AudioControl EPIC1500 Handleiding
AudioControl
Receiver
EPIC1500
Lees hieronder de š handleiding in het Nederlandse voor AudioControl EPIC1500 (16 pagina's) in de categorie Receiver. Deze handleiding was nuttig voor 16 personen en werd door 2 gebruikers gemiddeld met 4.5 sterren beoordeeld
Pagina 1/16
MONOBLOCK AMPLIFIERS
EPIC2000 EPIC1500 EPIC1000 EPIC750| | |
Quick Start Guide
Features
ā¢ Compact High-Power Class D Monoblock Ampliļ¬er
ā¢ High-Current Design - 1Ī© Stable
ā¢ Smart Auto-Reset Protection Circuit
ā¢ 12 dB/octave Linkwitz-Riley Variable Low Pass Filter
ā¢ 12 dB/octave Variable Subsonic Filter
ā¢ EPICBoostā¢ Variable Frequency Bass Boost
ā¢ ACR-E Remote Level Control Included
ā¢ Solid Power/Speaker Terminals with Hex Screws
ā¢ Built for THE EPICENTERĀ®
ā¢ You're not ready for this
2
Quick Start Guide
MONO BLOCK AMPLIFIERS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the
manufacturerās instructions.
8. Do not install near any heat sources such as muļ¬ers, silencers, exhaust
pipes, or other apparatus (including ampliļ¬ers) that produce heat.
9. WARNING: Improper installation may lead to permanent injury or death.
Installation of the apparatus must be done with great care by qualiļ¬ed
personnel, to prevent damage to fuel lines, power and other electrical
wiring, hydraulic brake lines, and other systems, that might compromise
vehicle safety.
10. Provide +12V and Ground wiring of suļ¬cient size to ensure adequate
current to the ampliļ¬er.
11. Use rubber grommets to protect wiring whenever passing wires through
metal openings or bulkheads.
12. Only use attachments/accessories speciļ¬ed by the manufacturer.
13. Refer all servicing to qualiļ¬ed service personnel. Servicing is required
when the apparatus has been damaged in any way, such as the power
input terminals are damaged or objects have fallen into the apparatus,
does not operate normally, or has been dropped.
14. Fuses shall be replaced only with the correct type and fuse value, and
only when the apparatus is powered oļ¬.
15. Exposure to high sound pressure levels may lead to permanent hearing
loss. Take every precaution to protect your hearing.
The lightning ļ¬ash with arrowhead symbol within an equilateral
triangle is intended to alert the user to the presence of uninsulated
ādangerous voltageā within the productās enclosure, that may be of
suļ¬cient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to
alert the user of the presence of important operating and mainte-
nance (servicing) instructions in the literature accompanying the
appliance.
Caution: to reduce the risk of electric shock, do
not disassemble the apparatus, other than to
remove the top panel to access the controls.
There are no user-serviceable parts inside.
Refer servicing to qualiļ¬ed personnel.
Recycling notice: If the time comes and this apparatus has fulļ¬lled
its destiny, do not throw it out into the trash. It has to be carefully
recycled for the good of mankind, by a facility specially equipped
for the safe recycling of electronic apparatii. Please contact your
local or state recycling leaders for assistance in locating a suitable
nearby recycling facility. Or, contact us and we might be able to
repair it for you.
Important Safety Instructions
3

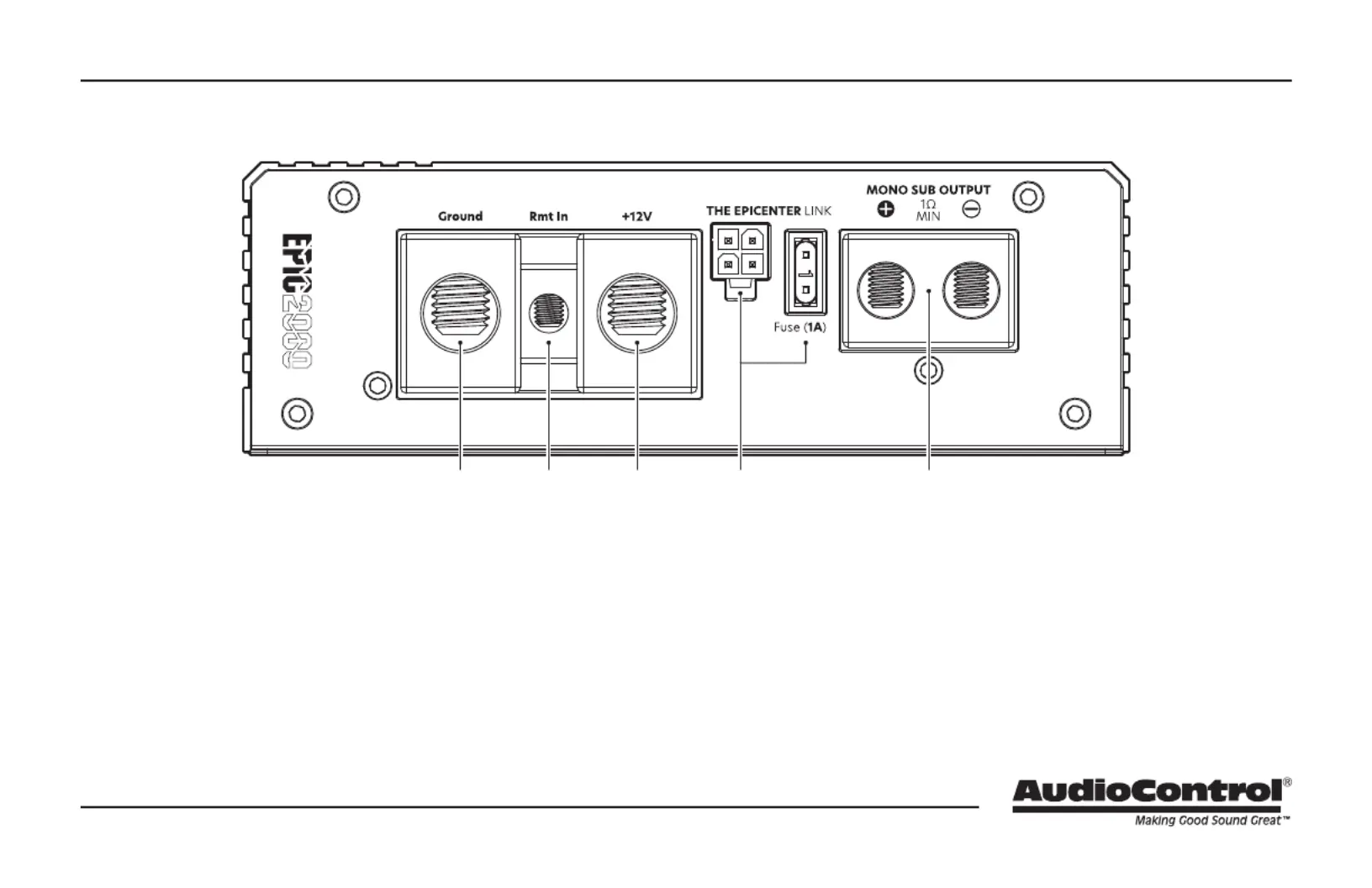

1. Ground Terminal ā This screw terminal connects to a clean, solid
ground in the vehicle. Use the shortest length possible of quality
insulated wire of the recommended wire gauge (see speciļ¬cations).
2. Remote Power Input Wire ā This wire connects to the 12V remote
trigger output of some head units and controls the on/oļ¬ state of
the ampliļ¬er.
3. Power Input Terminal +12V ā This screw terminal connects to
the +12V binding post of the vehicle battery. Use quality insulated
wire of the same gauge used for the Ground connection.
4. THE EPICENTERĀ® Link ā This port with built-in fuse protection
connects directly to The EPICENTERĀ® Digital Bass Restoration
Processor (sold separately) using the included one meter harness,
providing +12V power, ground, and remote.
5. Subwoofer Output ā Connect these terminals to a subwoofer
or multiple subwoofers using quality insulated wiring of the
recommended wire gauge (see speciļ¬cations).
Connections & Control Panel Features
q w e r t
