Installation Guide EN TME26184 – 0 /20236
As standards, specifications, and design change
from time to time, please ask for confirmation of the
information given in this publication.
© 2023 Schneider Electric .All rights reserved.
Schneider Electric
35 rue Joseph Monier
92500 Rueil Malmaison - France
Phone: +33 (0) 1 41 29 70 00
www.apc.com
APC ™
™
™
™™ Smart-UPS ™
™
™
™™ Ultra Battery Pack
Extension Cable SRTL016
Package Contents

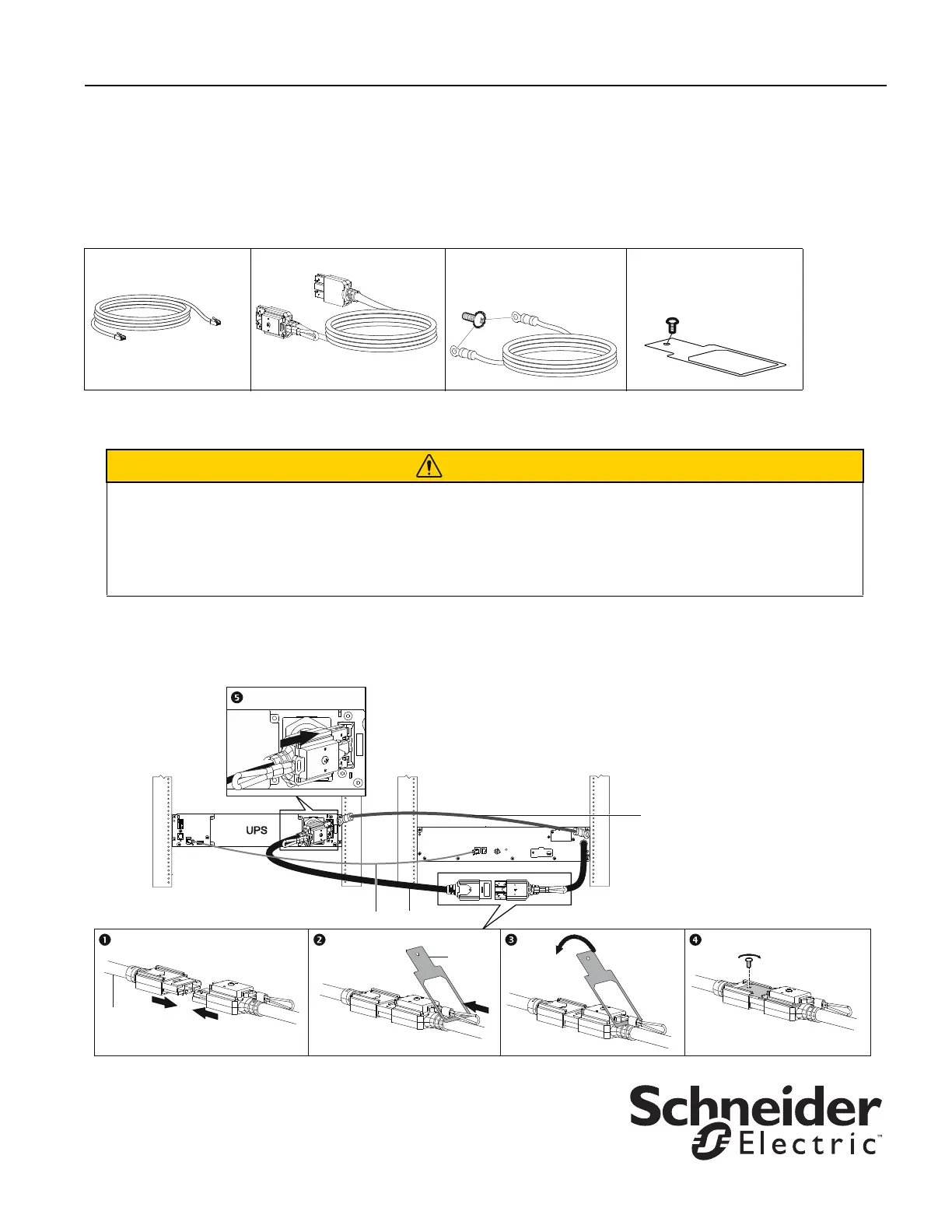

Installation
NOTE: UPS model SRTL5KRM2Ux is used for purpose of illustration. The installation steps remain the same for
SRTL8KRM4Ux and SRTL10KRM4Ux.
Single XLBP
Communication
cable (15 ft)
Extension cable (15 ft) Ground wire (15 ft)
with 2 nos. screws for
securing the wire
Interconnection
bracket with 1 no. screw
for securing the bracket
CAUTION
RISK OF ELECTRIC SHOCK
• Do not connect the XLBP extension cable to the UPS/XLBP till the interconnection bracket is installed.
• Remove the interconnection bracket only after disconnecting the connector from the UPS/XLBP.
Failure to follow these instructions can result in minor or moderate injury and equipment damage.
suo1140a
XLBP
suo2 192a
23
45 67 8
9
10
11
2
APC Smart UPS Ultra Battery Cable Extension Installation
EN TME26184 – 0 /2023 6

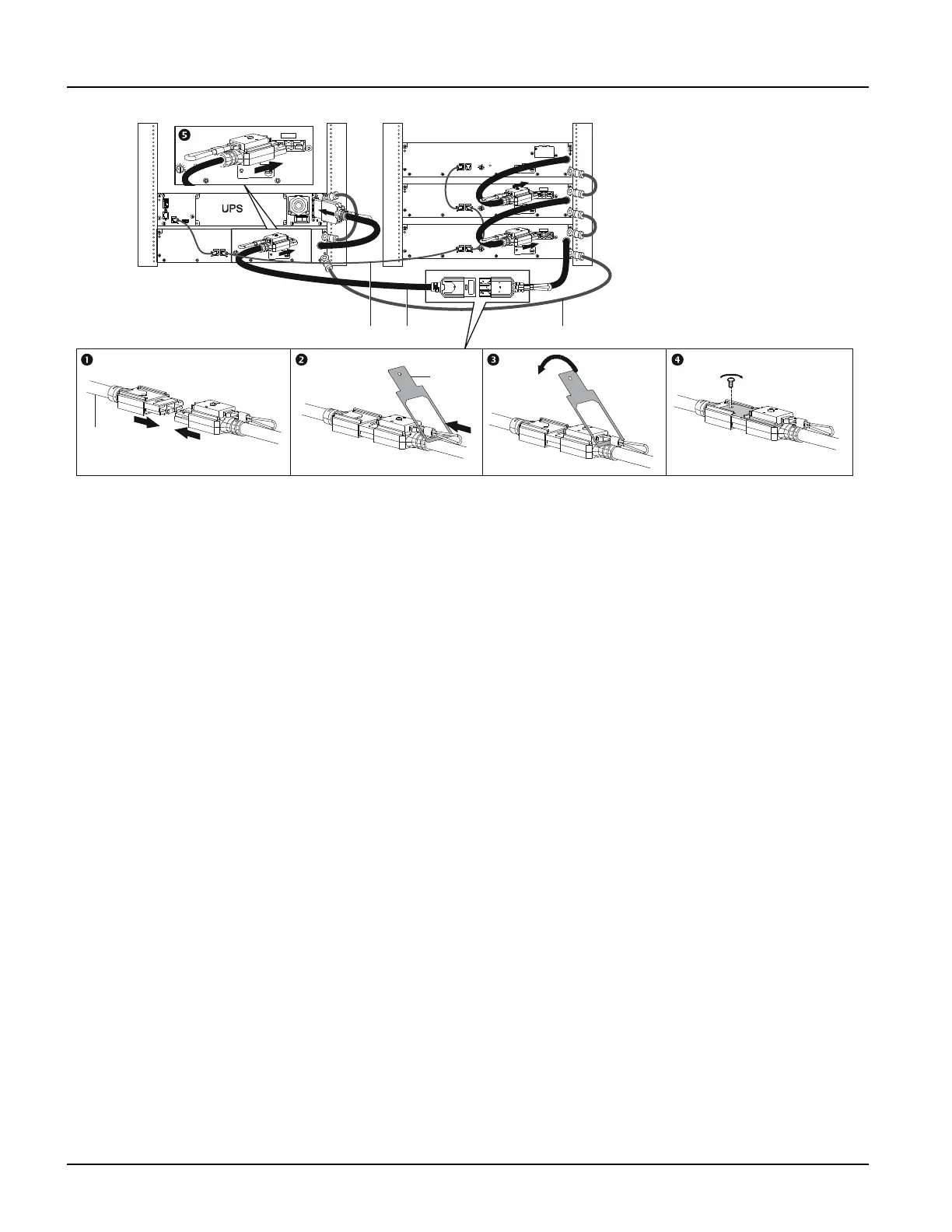

Multiple XLBPs
2
3
45
67
89
2
3
45
67
89
10
11
2
3
456 7
8
9
10
11
2
3
456 7
8
9
10
11
XLBP4
XLBP3
XLBP2
XLBP1
5678
9
10
suo2193a
