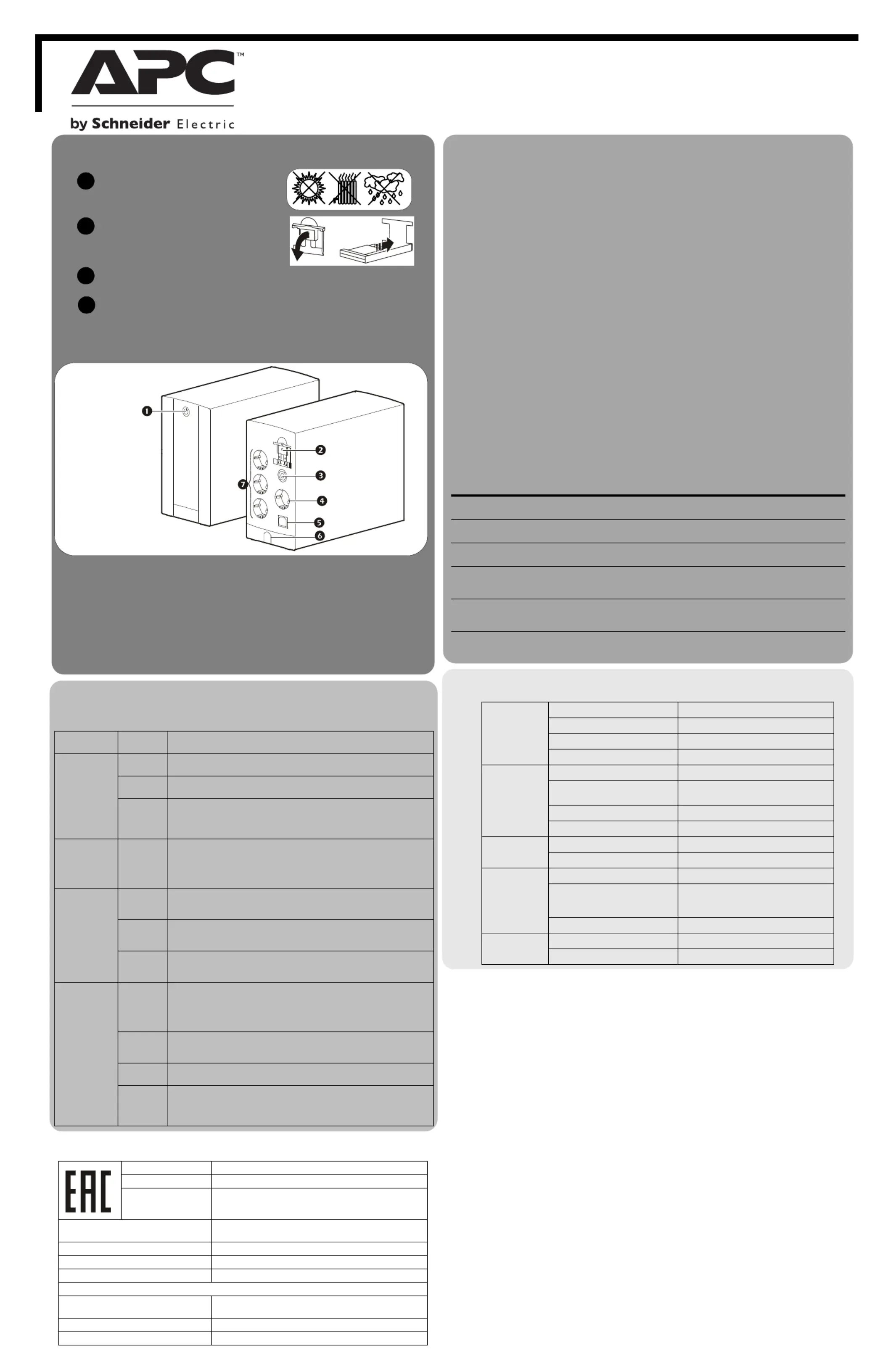

Back-UPS
BX650CI-GR
Adjust Transfer Voltage and
Sensitivity Settings
User Guide
4
1Place the Back-UPS to avoid:
• Direct sunlight
• Excessive heat
• Excessive moisture
Connect the battery by pulling the battery
connector handle down, and then pushing it into
the unit.
Plug the Back-UPS BX650CI-GR power cord directly into a wall outlet; not into a surge
protector or power strip.
Press the ON/OFF button to turn on the unit.
The green “Power On” indicator confirms that the Back-UPS is on and ready to provide
protection.
The Back-UPS should charge for at least 10 hours to ensure sufficient runtime. The unit is
being charged whenever it is connected to AC power, whether the unit is turned ON or
OFF.
2
1
3
2
Place and Power On
Battery Replacement
The battery in the Back-UPS BX650CI-GR is not user-replaceable. Contact SEIT Technical Support
for a list of authorized service centers near you.
Troubleshooting and Service
1. Consult the Troubleshooting from the APC by Schneider Electric Web site, www.apc.com.
2. If the problem persists, contact Schneider Electric IT (SEIT) Customer Support through the APC by
Schneider Electric Web site, www.apc.com.
a. Note the model number and serial number and the date of purchase. The model and serial
numbers are located on the rear panel of the unit and are available through the LCD display on
select models.
b. Call SEIT Customer Support and a technician will attempt to solve the problem over the
phone. If this is not possible, the technician will issue a Returned Material Authorization
Number (RMA#).
c. If the unit is under warranty, the repairs are free.
d. Service procedures and returns may vary internationally. Refer to the APC by Schneider
Electric Web site for country specific instructions.
3. Prepare to troubleshoot the problem over the phone. If this is not successful, and the unit is still
under warranty, the Technical Support Representative will provide all necessary information to
return the unit for replacement.
APC by Schneider Electric IT Customer
Support Worldwide
For country specific customer support, go to the APC by Schneider Electric Web site, www.apc.com.
Register your product on-line. http://warranty.apc.com
EN 990-5184 07/2013
© 2013 APC by Schneider Electric. APC, the APC logo and APC, the APC logo, and Back-UPS are owned
by Schneider Electric Industries S.A.S. or their affiliated companies. All other trademarks are property of
their respective owners.
3Status Indicators
Automatic Voltage Regulation boosts the AC voltage when it drops below safe levels. This allows
the equipment plugged into the unit to operate during low voltage conditions, conserving the
battery power in the event of a power cut.
The Back-UPS will switch to battery power if the input voltage level becomes too low for the
Automatic Voltage Regulation to compensate, or if the AC power is distorted.
If the Back-UPS switches to battery power too frequently or too infrequently, adjust the transfer
voltage and sensitivity settings:
1. Ensure the Back-UPS is off. Plug it into AC power.
2. Press and hold the ON/OFF button until the LED repeatedly flashes. The unit is now in
Program Mode.
3. Release the button. The LED will flash once, twice, or three times per second, indicating the
current setting.
4. Press the ON/OFF button within two seconds to change the setting. Each time the button is
pressed, the LED will flash at a different rate: once, twice, or three times per second,
indicating the new setting. Continue pressing the button until the desired setting is reached. If
the button is not pressed within five seconds, the Back-UPS will exit the Program Mode.
5. To exit Program Mode, release the button and wait for the LED to stop flashing
EAC Requirements
LED Audible
Alarm Condition
Illuminates
Green
None Power On -The Back-UPS is supplying AC power to the connected
equipment.
Constant
tone
Overload Alarm - The Back-UPS draws more voltage than the AC
voltage rating allows. Disconnect non-essential equipment.
Constant
beeping
Overload Shutdown - While operating on AC power the Back-UPS
experiences an overload condition. Disconnect non-essential equipment,
one device at a time until the overload condition has been corrected.
The Back-UPS will shutdown if the overload condition is not corrected.
Illuminates
Green
The LED is not
illuminated
during the beeps.
4 beeps
once every
30 seconds
On Battery - The Back-UPS is supplying battery power to the battery
backup outlet.
Flashes
Green
Rapid beeps
once every 1/
2 second
Low Battery Warning - The Back-UPS is supplying battery power to the
battery backup outlet and the battery is near a total discharge state.
The Back-UPS has 2 minutes of runtime remaining before shutdown.
Constant
tone
Bad Battery Warning - The battery needs to be charged, or is at the end
of its service life. The battery in this unit is not replaceable. Contact
Schneider Electric IT (SEIT) Technical Support.
Chirps
once every 2
seconds
Charger Warning - The Back-UPS has experienced an internal fault, and
continues to provide power to the connected equipment. Contact SEIT
Technical Support.
Not
Illuminated
Constant
tone
On Battery Overload - While operating on battery power the connected
equipment draws more voltage than the battery capacity can provide.
Disconnect non-essential equipment, one device at a time until the
overload condition has been corrected. If the problem persists, contact
SEIT Technical Support.
Constant
tone
Internal Charger Fault - The Back-UPS experiences an internal fault
and no longer provides power to connected equipment. Contact SEIT
Technical Support
Constant
tone
Temperature Fault - The Back-UPS has overheated and has shut down.
Short beeps
every 4
seconds
Low Battery Shutdown - During On Battery operation the battery is at a
complete discharge state and the Back-UPS stops providing output power.
(Once AC power is restored the Back-UPS will return to normal
operation.)
Product type UPS
Models BX650CI-GR
Manufacturer
contact information
International Precision Assemblies Inc.
Lot 2 Block 17 Phase IV, PEZA Rosario 4106 Cavite,
Philippines
Transportation conditions Battery key should be disconnected prior to
transportation.
Type of atmosphere for operations Normal
Type of environment for operations Normal
Date of manufacturing Printed on packaging.
Made in Philippines
Company representative in Russia ZAO Schneider Electric
127018, Moscow, Dvintsev street 12, Building 1
Product life time 3 to 5 years
Warranty 2 years
No-load Shutdown
If the UPS is operating on battery power and detects that the connected equipment is using less
than 15 W of energy for more than 15 minutes, it will shut down to conserve energy.
When the UPS is reconnected to AC power, the UPS will automatically switch on.
Note: Even if the UPS is OFF, it is still protecting connected equipment from power surges.
LED
Flashing
Audible
Indicator
Voltage
Sensitivity
Setting
Input
Voltage
Range
No-load
Shutdown Description
Once per
second
None Low 140-300 Disabled The Back-UPS will switch to battery
power less often.
Once per
second
4 beeps per
second
Low 140-300 Enabled The Back-UPS will switch to battery
power less often.
Twice per
second
None Medium 140-300 Disabled Use when the input AC power is normal,
without any fluctuation in voltage levels.
Twice per
second
4 beeps per
second
Medium
(factory
default)
140-300 Enabled Use when the input AC power is normal,
without any fluctuation in voltage levels.
Three times
per second
None High 150-290 Disabled The Back-UPS will switch to battery
power during any small fluctuation in
voltage.
Three times
per second
4 beeps per
second
High 150-290 Enabled The Back-UPS will switch to battery
power during any small fluctuation in
voltage.
ON/OFF button
Battery connector
Circuit breaker
Surge protected
outlet (no battery
backup)
USB port
AC power cable
PowerChute™ Personal Edition Software
PowerChute Personal Edition Software allows you to use your computer to access additional power
protection and management features of the Back-UPS.
Installation
Connect the Back-UPS to a computer using a USB cable. Plug one end into the PowerChute Port on the
rear panel of the Back-UPS and the other into a USB port on your computer.
Insert the PowerChute CD into your computer and follow the on-screen instructions.
For a detailed operation, go to www.apc.com and select the matching software and firmware.
™
Input Voltage 230 VAC nominal
Frequency 50/60 Hz
Brownout Transfer 140 VAC (maximum adjustable)
Over-voltage Transfer 300 VAC (maximum adjustable)
Output UPS Capacity (total) 650 VA/390 W
Voltage On Battery 230 Vac rms
(step-approximated sine wave)
Frequency - On Battery 50 Hz ±1 Hz, 60 Hz ±1 Hz
Transfer Time 6 ms typical, 10 ms maximum
Protection and
Filtering
AC Surge Protection Full time, 273 joules
AC Input Resettable circuit breaker
Battery Type (maintenance-free) 12 V, 7.2 Ah
Average Life 2 - 5 years depending on the number of
discharge cycles and environmental
temperature
Typical Recharge Time 8 Hours
Physical Net Weight 6.0 kg
Dimensions (H x W x D) 20 cm x 11.5 cm x 25.6 cm
bu303a
Specifications
4
