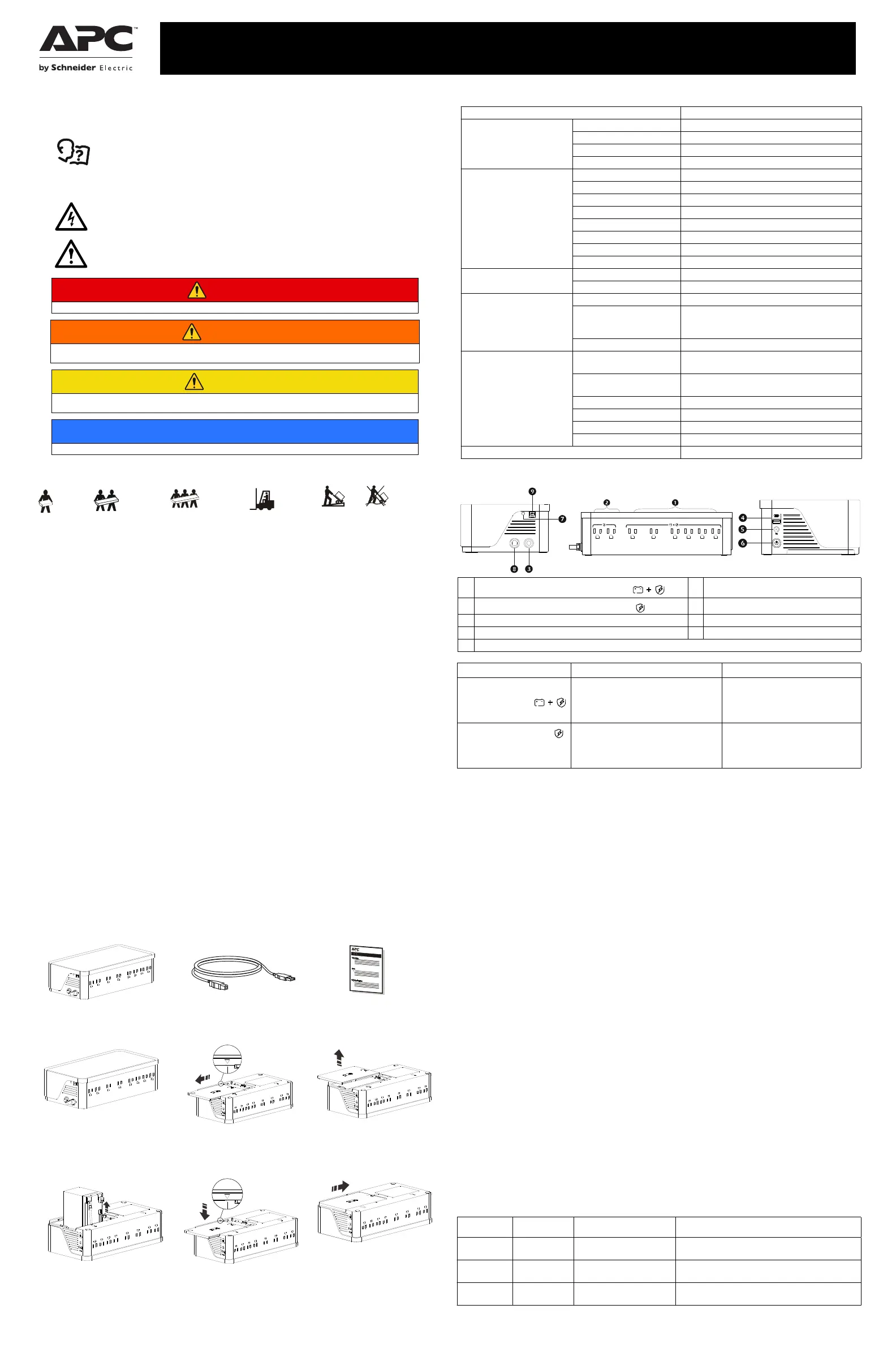

Important Safety Instructions
SAVE THESE INSTRUCTIONS - This manual contains important instructions that should be followed during
installation and maintenance of the Smart-UPS and batteries.
Read these instructions carefully and look at the equipment to become familiar with the device before
trying to install, operate, service or maintain it.
The following special messages may appear throughout this bulletin or on the equipment to warn of potential hazards or
to call attention to information that clarifies or simplifies a procedure.
The addition of this symbol either to a “Danger” or “Warning” safety label indicates that an electrical hazard
exists which will result in personal injury if the instructions are not followed.
This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety
messages that follow this symbol to avoid possible injury or death.
Product Handling Guidelines
Safety and General Information
Inspect the package contents upon receipt. Notify the carrier and dealer if there is any damage.
Read Safety Guide supplied with this unit before installing the UPS.
• Adhere to all national and local electrical codes.
• All wiring must be performed by a qualified electrician.
• Changes and modifications to this unit not expressly approved by APC by Schneider Electric could void the
warranty.
• This UPS is intended for indoor use only.
• Do not operate this unit in direct sunlight, in contact with fluids, or where there is excessive dust or humidity.
• Be sure the air vents on the UPS are not blocked. Allow adequate space for proper ventilation.
• For a UPS with a factory installed power cord, connect the UPS power cable directly to a wall outlet. Do not use
surge protectors or extension cords.
• The equipment is heavy. Always practice safe lifting techniques adequate for the weight of the equipment.
Deenergizing safety
The UPS contains internal batteries and may present a shock hazard even when disconnected from the branch circuit
(mains). The AC output connector may be energized by remote or automatic control at any time.
Before installing or servicing the equipment check that the:
• Input circuit breaker is in the OFF position.
• Internal UPS the batteries are removed.Input circuit breaker is in the OFF position.
• XLBP battery modules are disconnected.
Electrical safety
• Use tools with insulated handles.
• Do not handle any metallic connector before power has been disconnected.
• For models with a hardwired input, the connection to the branch circuit (mains) must be performed by a qualified
electrician.
• 230 V models only: In order to maintain compliance with the EMC directive for products sold in Europe, output cords
and network cables attached to the UPS must not exceed 10 meters in length.
• The protective earth conductor for the UPS carries the leakage current from the load devices (computer equipment). An
insulated ground conductor must be installed as part of the branch circuit that supplies input power to the UPS. The
conductor must have the same size and insulation material as the grounded and ungrounded branch circuit supply
conductors. The conductor will be green, with or without a yellow stripe.
• Leakage current for a pluggable, Type A UPS may exceed 3.5 mA when a separate ground terminal is used.
• The UPS input ground conductor must be properly bonded to protective earth at the service panel.
• If the UPS input power is supplied by a separately derived system, the ground conductor must be properly bonded at the
supply transformer or motor generator set.
Inventory
Connect the Battery
The Back-UPS is shipped with one battery cable disconnected.
Specifications
Connect Equipment
Turn On the Back-UPS
Press the POWER button. It will illuminate green and a single short beep indicates that the Back-UPS is on and helping to
provide protection for connected equipment. The Back-UPS battery will charge regardless of whether the Back-UPS is
switched on or off as long as it is connected to AC power. The UPS will have full runtime capability after the initial 24-
hour charging period, connected to AC power. If the Building Wiring Fault indicator (located on the end near the power
cord) is illuminated red, your building wiring may present a shock hazard that should be corrected by a qualified
electrician.
Turn Off the Back-UPS
Press the POWER button for at least 2 seconds. At the first beep, release the button and the UPS will turn off. A 2 second
delay has been added to mitigate unintentional contact with the POWER button.
Mute
The audible alarms of the Back-UPS can be muted. Press the MUTE button to enable or disable the mute function. The
Mute status LED illuminates when the mute function is enabled.
PowerChute™ Serial Shutdown
Overview
Use PowerChute™ Serial Shutdown software to configure the UPS settings, protect your computer and other equipment
during a utility power outage. During a power outage, PowerChute will save any open files on your computer and shut it
down. When utility power is restored, it will restart the computer.
Note: PowerChute is only compatible with a Windows operating system. If you are using Mac OSX, use the native
shutdown feature to protect your system. See the documentation provided with your computer.
Installation
Use the USB cable to connect the Data port on the UPS to the USB port on your computer.
Download PowerChute™ Serial Shutdown Software from www.apc.com/pcss and follow the directions to install the
software.
Voltage Sensitivity Adjustment
The Back-UPS detects and reacts to line voltage distortions by transferring to battery backup power to help protect
connected equipment. In situations where either the Back-UPS or the connected equipment is too sensitive for the input
voltage level it is necessary to adjust the transfer voltage.
1. Turn off the UPS while connected to a wall outlet.
2. Press and hold the POWER button for 10 seconds. The POWER button will illuminate green and red alternately
to indicate that the Back-UPS is in Program mode.
3. The POWER button will flash either green, amber, or red to indicate the current sensitivity level. Refer to the table
for an explanation of the transfer voltage sensitivity levels.
4. To exit Program mode wait five seconds and all LED indicators will extinguish. Program mode is no longer
active.
DANGER
DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury.
WARNING
WARNING indicates a hazardous situation which, if not avoided, could result in death or serious
injury.
CAUTION
CAUTION indicates a hazardous situation which, if not avoided, could result in minor or moderate
injury.
NOTICE
NOTICE is used to address practices not related to physical injury.
<18 kg
<40 lb
18-32 kg
40-70 lb
32-55 kg
70-120 lb
>55 kg
>120 lb
Remove the "Stop! connect the Battery"
label that covers the outles.
Press the battery compartment cover
release tabs located on the underside
of the unit. Slide the battery cover off
until triangle symbols are aligned with
edge of cover.
Remove the battery cover-up.
Connect the battery cable securely to the
battery terminal. lt is normal for small
sparks to be seen when the battery cable
is connected to the battery terminal.
Reinstall the battery compartment
cover. Align the triangle symbol with
edge of cover.
Slide the battery compartment cover. Be
sure that the release tabs lock into place.
bu 05
88
a
b
u058 8a
bu 0
5
8
9a
bu
05 90a
b
u059
1a
bu
05
92
a
bu05 93a
Model BE900G3 / BE1050G3
Input Voltage 120 VAC nominal
Frequency 50/60 Hz ± 3 Hz auto-sensing
Brownout Transfers 92 Vac Typical
Over-voltage Transfer 139 Vac Typical
Output (USB Port) UPS Capacity 900 VA/540 W; 1050 VA/600 W
No. of Outlets 8
Battery Backup / Surge Outlets 6 / 2
Total output current 12 A
Voltage - On Battery 115 Vac ± 8 %
USB output 5 Vdc, 3 A, 15 W
Frequency - On Battery 50 / 60 Hz ± 1 Hz
Transfer Time 6 ms Typical
Protection and Filtering EMI/RFI Filter Full time
AC Input Resettable circuit breaker
Battery Type Sealed, maintenance-free, lead acid, 12 V
Average Life 3 - 5 years, the number of discharge cycles, poor
quality AC power, environmental temperature and
humidity may shorten the battery lifetime
Charging Time 10 hours
Physical Net weight 4.1 kg for 900 VA
4.3 kg for 1050 VA
Dimensions (L x W x D) 12.52 in x 3.54 in x 6.57 in
318 mm x 90 mm x 167 mm
Operating temperature 32 ºF to 104 ºF (0 ºC to 40 ºC)
Storage temperature 5 ºF to 113 ºF (–15 ºC to 45 ºC)
Operating relative humidity 0 to 90 % non-condensing
Operating Elevation 0 to 10,000 ft (0 to 3000 m)
International Protection Code IP20
Battery Backup + Surge Protection Outlets MUTE Button
Surge Protection Outlets POWER Button
AC Power Inlet Building Wiring Fault
USB Charger Circuit Breaker
USB Data Port (Power Chute)
Feature Function Suggested Use
Battery Backup +
Surge Protection
Outlets
Receive power from the battery for a limited
period of time when a power outage, or
brownout condition occurs. Help to provide
protection from power surges or spikes.
Connect a computer, monitor and other
essential peripheral devices that need to
remain on during power outages or AC
problems.
Surge Protection Outlets Help to provide protection from power surges
or spikes.
Connect non-essential peripheral devices
(such as printer, scanner, etc.) that do not
need to remain on during power outages
or AC problems.
LED
Flashes
Sensitivity
Setting
Input Voltage Range (AC
Operation)
Recommended Use
Green LOW 88 Vac to 142 Vac Use this setting with equipment that is less sensitive to
fluctuations in voltage or waveform distortions.
Red MEDIUM 92 Vac to 139 Vac Factory default setting. Use this setting under normal
conditions.
Amber HIGH 96 Vac to 136 Vac Use this setting when connected equipment is sensitive
to voltage and waveform fluctuations.
bu059 a4
bu059 a6
bu059 a5
User Manual Back-UPS™ BE900G3 / BE1050G3
© 2023 APC by Schneider Electric. APC, the APC logo, PowerChute and Back-UPS are owned by Schneider Electric Industries S.A.S., or their affiliated companies. All other
trademarks are property of their respective owners.
EN TME25820
06/2023

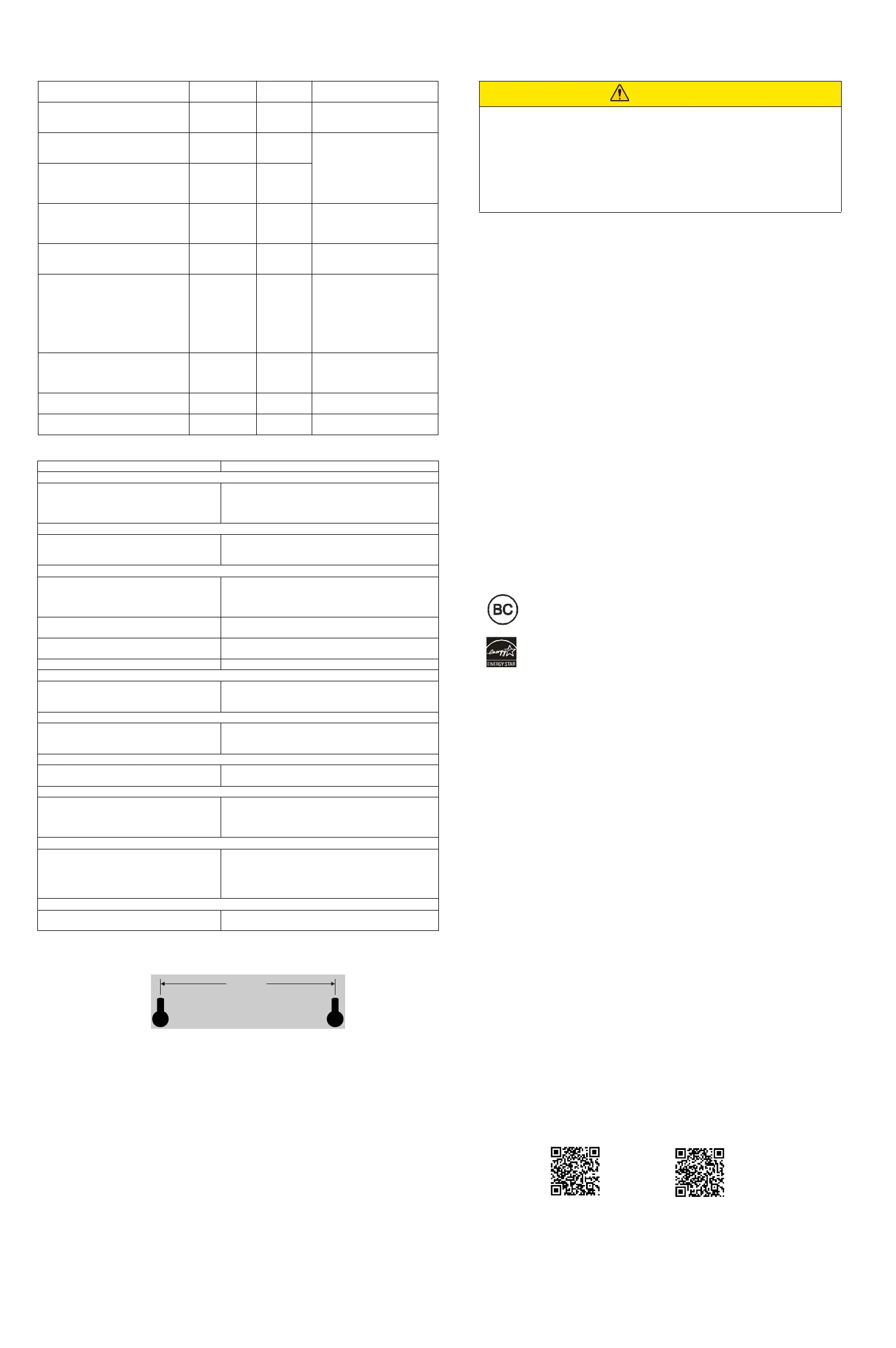

Status Indicators
Troubleshooting
Wall Mount Installation
• Horizontal installation, use 2 screws 7.87” (200 mm) apart.
• Allow 5/16” (8 mm), of the screw to protrude from the wall.
Replace Battery
Deliver the used battery to a recycling facility. Replace the used battery with an APC by Schneider Electric approved
battery.Replacement batteries can be ordered through the APC by Schneider Electric Web site, www.apc.com. Battery
replacement part for Back-UPS BE900G3 is RBC17 and BE1050G3 is APCRBC164.
Service
If the unit requires service, do not return it to the dealer. Follow these steps:
1. Review the Troubleshooting section of the manual to eliminate common problems.
2. If the problem persists, contact Schneider Electric IT (SEIT) Customer Support through the APC by Schneider
Electric Web site, www.apc.com.
3. Pack the unit in the original packaging whenever possible to avoid damage in transit. Never use foam beads for
packaging. Damage sustained in transit is not covered under warranty.
a. Note the model number and serial number and the date of purchase. The model and serial numbers are
located on the rear panel of the unit and are available through the LCD display on select models.
b. Call SEIT Customer Support and a technician will attempt to solve the problem over the phone. If this is not
possible, the technician will issue a Returned Material Authorization Number (RMA#).
c. If the unit is under warranty, the repairs are free.
d. Service procedures and returns may vary internationally. Refer to the APC by Schneider Electric Web site
for country specific instructions.
4. Always DISCONNECT THE UPS BATTERIES before shipping. The United States Department of
Transportation (DOT), and the International Air Transport Association (IATA) regulations require that
UPS batteries be disconnected before shipping. The internal batteries may remain in the UPS.
5. Write the RMA# provided by Customer Support on the outside of the package.
6. Return the unit by insured, pre-paid carrier to the address provided by Customer Support.
Battery Replacement
• Servicing of batteries should be performed or supervised by personnel knowledgeable about batteries and
required precautions.
• CAUTION: Before installing or replacing the batteries, remove conductive jewelry such as chains, wrist
watches, and rings. High energy through conductive materials could cause severe burns.
• CAUTION: Do not dispose of batteries in a fire. The batteries may explode.
• CAUTION: Do not open or mutilate batteries. Released material is harmful to the skin and eyes and may be
toxic.
• CAUTION: Failed batteries can reach temperatures that exceed the burn thresholds for touchable surfaces. .
• CAUTION: A battery can present a risk of electrical shock and high short-circuit current. The following
precautions should be observed when working on batteries:
– Disconnect the charging source prior to connecting or disconnecting battery terminals.
– Do not wear any metal objects including watches and rings.
– Do not lay tools or metal parts on top of batteries.
– Use tools with insulated handles.
– Wear rubber gloves and boots.
– Determine if battery is either intentionally or inadvertently grounded. Contact with any part of a grounded
battery can result in electric shock and burns by high short-circuit current. The risk of such hazards can be
reduced if grounds are removed during installation and maintenance by a skilled person.
Warranty
Register your product on-line. http://warranty.apc.com
The standard warranty is three (3) years from the date of purchase. Schneider Electric IT (SEIT) standard procedure is to
replace the original unit with a factory reconditioned unit. Customers who must have the original unit back due to the
assignment of asset tags and set depreciation schedules must declare such a need at first contact with an SEIT Technical
Support representative. SEIT will ship the replacement unit once the defective unit has been received by the repair
department, or cross ship upon the receipt of a valid credit card number. The customer pays for shipping the unit to SEIT.
SEIT pays ground freight transportation costs to ship the replacement unit to the customer.
APC by Schneider Electric IT Customer Support Worldwide
For country specific customer support, go to the APC by Schneider Electric Web site, www.apc.com.
EMC Compliance
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) This device must accept any interference received, including interference
that may cause undesired operation.
Select models are compliant with California (CEC) Battery Charger regulations. For more information on
your specific model visit the APC by Schneider Electric web site, www.apc.com.
Select models are ENERGY STAR ® qualified. For more information on your specific model visit the
APC by Schneider Electric web site, www.apc.com .
QR Code
Scan the QR code located on the unit to download manual and detailed product information.
Status POWER Button
illumination
Audible
Indicator On
Audible Indicator
Terminates
Power On
The Back-UPS is supplying AC power to
connected equipment.
Solid green None N/A
On Battery
Back-UPS supplying battery power to battery
backup outlets.
Solid green and
flashes twice every
2 seconds.
4 beeps every 30
seconds.
• Using Quick Mute
• Beeping stops when AC power is
restored or the
Back-UPS is turned off. Applies
only to modes where the on battery
alarm is audible.
Low Battery notification
The Back-UPS is supplying battery power to
the battery backup outlets and the battery is
near a total discharge state.
Flashes green in
rapid succession.
Rapid beeping
(1 beep every
0.5 second)
Low Battery shutdown
The battery has been completely discharged
while the Back-UPS is on battery, the UPS will
shut down.
None 1 beep every
4 seconds
• AC power is restored
• AC is not restored within 32 seconds
The Back-UPS is turned off.
Sleep Mode
The UPS has shut down and will “awaken”
once AC power is restored
None None N/A
Replace Battery
• The battery is disconnected.
• The battery needs to be charged, or replaced.
Alternates
green-red
Constant tone • Back-UPS is turned off
• If battery is disconnected, unplug the
Back-UPS from AC source and then
turn it off. Refer to the section
Connect Equipment on page 1.
• If battery needs replacement, refer to
the section Battery Replacement on
page 2 for details.
Detected Overload
An overload condition has occurred in one or
more of the battery backup outlets while
operating on battery power.
None Constant tone Back-UPS is turned off
MUTE Status LED illuminates None MUTE function
enabled.
N/A
MUTE Status LED does not illuminate None MUTE function
disabled.
N/A
Problem and Possible Cause Solution
The Back-UPS will not turn on.
The Back-UPS will not turn on The Back-UPS is not
connected to AC power, there is no AC power available
at the wall outlet, or the AC power is experiencing a
brownout or over voltage condition.
Be sure the power cord is securely connected to the wall outlet, and
AC power available at the wall outlet.Where ever applicable, be
sure that the wall outlet is switched on.
The Back-UPS is on, the POWER button illuminates green and red alternately and the unit emits a constant tone
• The battery is disconnected.
• The battery is near the end of useful life and should be
replaced.
• Remove AC power and refer to the section Connect Equipment
on page 1.
Connected equipment loses power
A Back-UPS overload condition has occurred. Remove all nonessential equipment connected to the outlets.
Reconnect equipment one at a time to the
Back-UPS. Charge the battery for 24 hours to make sure it is fully
charged. If the overload condition still persists, replace the battery.
The Back-UPS battery is completely discharged. Connect the Back-UPS to AC power and allow the battery to
recharge for ten hours.
Connected equipment does not accept the step-
approximated sine waveform from the Back-UPS.
The output waveform is intended for computers and peripheral
devices. It is not intended for use with motor driven equipment.
The Back-UPS may require service. Contact SEIT Technical Support.
The POWER button illuminates green and flashes twice every 2 seconds
The Back-UPS is operating on battery power. The Back-UPS is operating normally on battery power. Save all
open files, and shutdown the computer. When AC power is restored
the battery will recharge.
The POWER button flashes green in rapid succession
The Back-UPS battery has approximately two minutes of
remaining runtime.
The battery is near a total discharge state. Save all open files, and
shutdown the computer. When AC power is restored the battery will
recharge.
The Building Wiring Fault LED illuminates red
The building wiring presents a shock hazard that must be
corrected by a qualified electrical.
Do not operate the Back-UPS. Call a qualified electrician to correct
the building wiring fault.
The Back-UPS has an inadequate battery runtime
• The battery is not fully charged.
• The battery is near the end of useful life and should be
replaced.
Leave the Back-UPS connected to AC power for ten hours while
the battery charges to full capacity. As a battery ages, the runtime
capability decreases. See Battery Replacement on page 2 to order
replacement batteries.
The alarm is on with a constant tone; outlets are normal but POWER button illumination is not bright.
The UPS is on AC power but the power of the connected
equipment exceeds the rated power of the UPS. If a
power disruption occurs the UPS may not be able to
power the connected equipment. Power to the outlets
will be uninterrupted as long as AC power is present.
Disconnect devices from the UPS until the load is less than the rated
output of the UPS.
The alarm is on with a constant tone and the UPS is off
The UPS was on battery and the connected load
exceeded the rated load of the UPS.
Turn off the UPS. Disconnect all devices. Turn on the UPS and
reconnect the devices one at a time.
Wall-mounting Template
bu38
0f
200 mm
7.87 in.
CAUTION
RISK OF HYDROGEN SULPHIDE GAS AND EXCESSIVE SMOKE
• Replace the battery at least every 5 years or at the end of its service life, whichever is earlier.
• Replace the battery immediately when the UPS indicates battery replacement is necessary.
• Replace batteries with the same number and type of batteries as originally installed in the equipment.
• Replace the battery immediately when the UPS indicates a battery overtemperature condition, or when
there is evidence of electrolyte leakage. Power off the UPS, unplug it from the AC input, and disconnect
the batteries. Do not operate the UPS until the batteries have been replaced.
Failure to follow these instructions could result in equipment damage and minor or moderate
injury.
BE900G3 BE1050G3
Product specificaties
| Merk: | Apc |
| Categorie: | UPS |
| Model: | Back-UPS BE900G3 |
Heb je hulp nodig?
Als je hulp nodig hebt met Apc Back-UPS BE900G3 stel dan hieronder een vraag en andere gebruikers zullen je antwoorden
Handleiding UPS Apc
16 November 2024
12 November 2024
12 Oktober 2024
12 Oktober 2024
12 Oktober 2024
12 Oktober 2024
12 Oktober 2024
12 Oktober 2024
12 Oktober 2024
12 Oktober 2024
Handleiding UPS
- UPS HP
- UPS IKEA
- UPS AEG
- UPS Siemens
- UPS Dell
- UPS Digitus
- UPS Eaton
- UPS Emerson
- UPS Furman
- UPS Gembird
- UPS Gys
- UPS Lenovo
- UPS LevelOne
- UPS Riello
- UPS Schneider
- UPS Voltcraft
- UPS Jung
- UPS Steren
- UPS Conceptronic
- UPS Tripp Lite
- UPS Approx
- UPS Block
- UPS LC-Power
- UPS Energenie
- UPS CyberPower
- UPS Adj
- UPS East
- UPS Equip
- UPS Liebert
- UPS Avocent
- UPS Minute Man
- UPS Minuteman
- UPS Maruson
- UPS V7
- UPS Phoenix Contact
- UPS Puls Dimension
- UPS Vanson
- UPS Salicru
- UPS SurgeX
- UPS Murr Elektronik
- UPS Altronix
- UPS Ditek
- UPS Bxterra
- UPS Middle Atlantic
- UPS FSP
- UPS Atlantis Land
- UPS PowerWalker
- UPS FSP/Fortron
- UPS Online USV
Nieuwste handleidingen voor UPS
18 November 2024
17 November 2024
17 November 2024
17 November 2024
15 November 2024
15 November 2024
14 November 2024
14 November 2024
7 November 2024
7 November 2024
