Your Sun converter cable package

In addition to this brief guide, your package should contain the converter cable:

Adder Technology Limited,

Technology House,

Trafalgar Way,

Cambridge, CB3 8SQ,

United Kingdom

Tel: +44 (0)1954 780044

Fax: +44 (0)1954 780081

Sun® Converter Cable

User Guide

Email: support@adder.com

Web: www.adder.com

All trademarks are acknowledged.

Adder Corporation,

29 Water Street,

Newburyport,

MA 01950,

United States of America

Tel: +1-888-932-3337

Fax: +1-888-275-1117

Sun converter

cable

KVM Switch end

Keyboard, video and

mouse connectors

Computer end

Video and keyboard &

mouse connectors

Circuitry shell

This moulding contains

all of the signal

conversion circuitry

Sun combined

keyboard & mouse

connector

Your warranty

Adder Technology Ltd warrants that this product shall be free from defects in workmanship and

materials for a period of two years from the date of original purchase. If the product should fail to

operate correctly in normal use during the warranty period, Adder will replace or repair it free of

charge. No liability can be accepted for damage due to misuse or circumstances outside Adder’s

control. Also, Adder will not be responsible for any loss, damage or injury arising directly or indirectly

from the use of this product. Adder’s total liability under the terms of this warranty shall in all

circumstances be limited to the replacement value of this product.

Regulatory information

European EMC directive 89/336/EEC

This equipment has been tested and found to comply with the limits for a class A computing device in

accordance with the specifications in the European standard EN55022. These limits are designed to

provide reasonable protection against harmful interference. This equipment generates, uses and can

radiate radio frequency energy and if not installed and used in accordance with the instructions may cause harmful

interference to radio or television reception. However, there is no guarantee that harmful interference will not occur

in a particular installation. If this equipment does cause interference to radio or television reception, which can be

determined by turning the equipment on and off, the user is encouraged to correct the interference with one or

more of the following measures: (a) Reorient or relocate the receiving antenna. (b) Increase the separation between

the equipment and the receiver. (c) Connect the equipment to an outlet on a circuit different from that to which the

receiver is connected. (d) Consult the supplier or an experienced radio/TV technician for help.

FCC statement

This equipment generates, uses and can radiate radio frequency energy and if not installed and used properly, that is,

in strict accordance with the manufacturer’s instructions, may cause interference to radio communications. It has

been tested and found to comply with the limits for a Class A computing device in accordance with the

specifications in Subpart J of part 15 of FCC rules, which are designed to provide reasonable protection such

interference when the equipment is operated in a commercial environment. Operation of this equipment in a

residential area may cause interference, in which case the user at his own expense will be required to take whatever

measures may be necessary to correct the interference. Changes or modifications not expressly approved by the

manufacturer could void the user’s authority to operate the equipment.

Connecting your Sun® converter cable

Your converter cable is primarily designed for use with a Sun computer and a traditional

Keyboard, Video and Mouse (KVM) switch unit.

Note: It is technically possible to connect your PS/2-style keyboard, PS/2-style mouse and

monitor directly to the converter cable. However, you would first need to purchase separate

gender changers for the PS/2 keyboard and mouse connectors and possibly one also for the

video connector.

Connector/port icons & colours

Monitor (video) Dark blue

Keyboard Purple

Mouse or Mid green

Important information

• For use in dry, oil free indoor environments only.

• Your Sun converter cable contains no user-serviceable parts.

• For connection only to Sun computer systems and KVM switch connectors.

Software upgrades, country codes & keypresses

Your Sun converter cable can be upgraded to take advantage of feature improvements and

operation changes that may become available in the future. Additionally, it can also be

made to declare a particular keyboard country code when used with legacy KVM switches.

The necessary upgrade and keyboard files are made available within the Support section of

the Adder Technology website - www.adder.com. Full instructions for performing an

upgrade/keyboard emulation are included with the files from the website.

3 At the other end of the converter cable (with

two plugs), connect the video and Sun

keyboard & mouse plugs to the relevant

sockets on your computer.

4 Switch on your computer(s) and KVM switch,

and operate in the usual manner.

Note: If you are using your Sun converter

cable inconjunction with an Adder MP-type

KVM switch no further action is required to

ensure correct operation. However, with

other Adder switches or non-Adder switches,

you need to instruct your Sun converter cable

to declare a valid keyboard country code to

the system. Further details about this feature

are provided in the upgrade notes available

from www.adder.com.

Your Sun converter cable emulates the presence

of a keyboard and mouse to the computer at all

times. This means that there will be no delay in

response when switching to this channel.

KVM switch

Sun

computer

Mouse and Keyboard

connectors

Video

connector

Video

connector

Keyboard &

mouse

connector

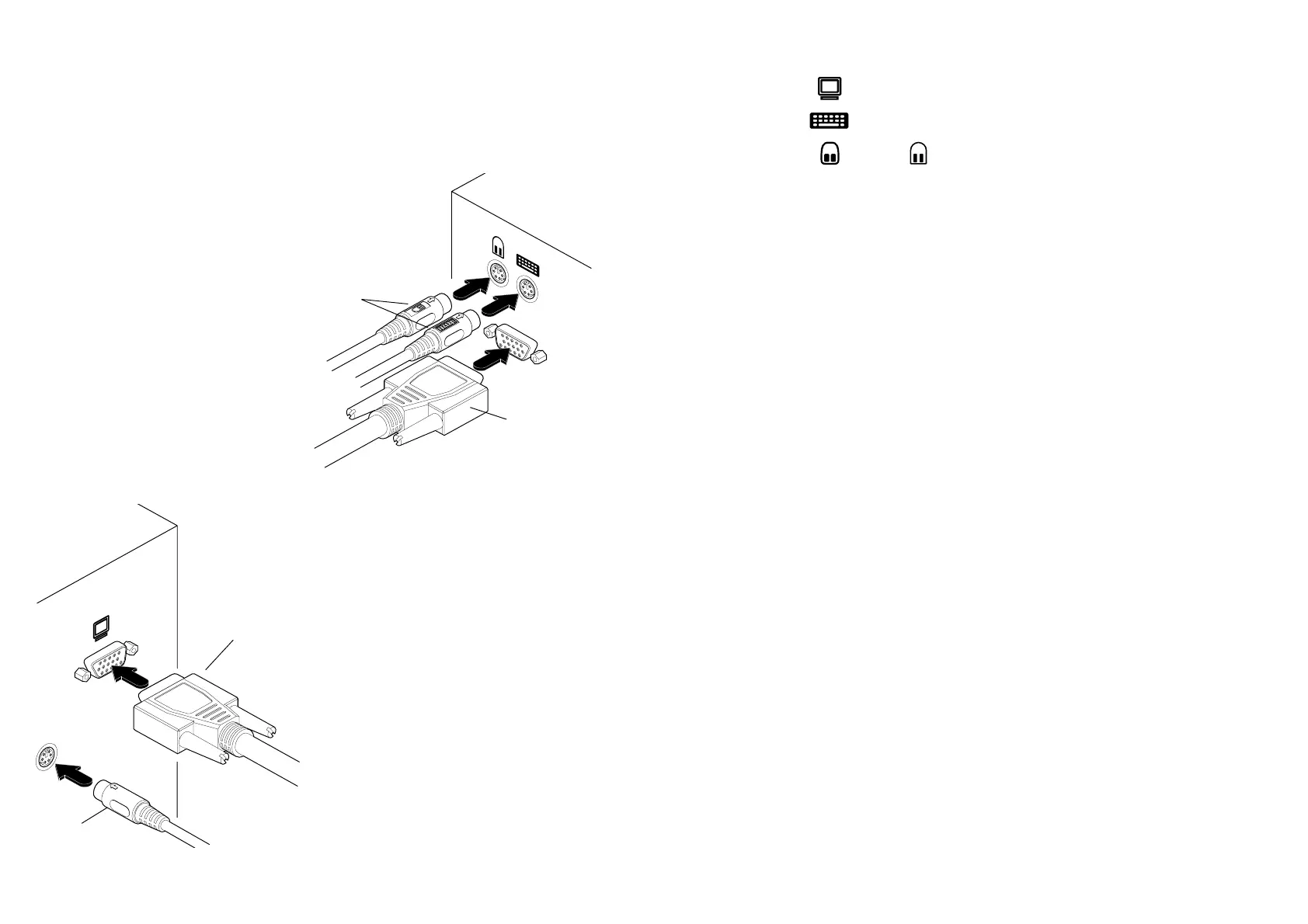

To connect your Sun converter cable

1 If possible, switch off your

computer(s) and KVM switch.

2 At the end of the converter cable

that has three plugs, connect the

keyboard, mouse and video plugs to

the relevant sockets on your KVM

switch.

PS/2 keyboard Sun keyboard

Right-[Ctrl] [F1] Stop

Right-[Ctrl] [F2] Again

Right-[Ctrl] [F3] Props

Right-[Ctrl] [F4] Undo

Right-[Ctrl] [F5] Front

Right-[Ctrl] [F6] Copy

Right-[Ctrl] [F7] Open

Right-[Ctrl] [F8] Paste

Right-[Ctrl] [F9] Find

Right-[Ctrl] [F10] Cut

Right-[Ctrl] [1] Mute

Right-[Ctrl] [2] Volume -

Right-[Ctrl] [3] Volume +

Right-[Ctrl] [4] Power*

Right-[Ctrl] [H] Help

* Certain PS/2 keyboards have a

power key which will be mapped

to perform the same function for

a Sun system.

When used with MP-type switches

When you use your Sun converter cable with

an Adder MP-type KVM switch, the cable

intelligently interacts with the switch. During

this interaction, the cable gathers information

(such as the keyboard country code) from the

switch and passes it through to the connected

Sun system. As the default settings on the MP-

type switch are all automatic, this makes the

whole system fully ‘plug and play’ for the

majority of installations.

Keypress equivalents

The tables below provide equivalent

keypresses on a standard PC (PS/2-style)

keyboard that emulate special keys

Product specificaties

Merk:	Adder
Categorie:	Kabels voor pc's en randapparatuur
Model:	CCSUN-10M
Kleur van het product:	Grijs
Snoerlengte:	10 m
Aansluiting 1:	SUN+VGA
Aansluiting 2:	2xPS/2+VGA
