Drive 4G-X™

Quick Install Guide

Package Contents

Quick Install Diagram

Drive 4G-X Signal Booster

Mini-Mag Mount Antenna

Slim Low Prole Antenna

DC Power Supply

Mounting Bracket

Outside Antenna Installation

Running Antenna Cable

Inside Antenna Installation

Connect Cables to Drive 4G-X / Power Supply Cord

Connect Power Supply

NEED ASSISTANCE? WE CAN HELP!

Contact our U.S.-BASED CUSTOMER SUPPORT:

nContact our U.S.-based customer support team at

1-866-294-1660 or email at support@weboost.com

nGo online for how to resolve the most common issues at

www.weboost.com/us/customersupport

nFind a weBoost Installer on our web site at

www.weboost.installernet.com

Installation is simple, but we’re here to make it even easier.

Alternate Outside Antenna Installations How It Works

For more information refer to full Install Guide at:

www.weboost.com/us/installguide/drive4G-X

Product Registration

Thank you for purchasing this weBoost product. Please take time to

www.weboost.com/us/productregistration

Registering is quick and easy, it only takes 2-3 minutes to complete.

Your information is secure, we don’t share or sell your information

to other third parties.

3301 East Deseret Drive, St. George, UT 84790

web: www.weboost.com support@weboost.comemail:

phone: local: fax: 866-294-1660 435-673-5021 435-656-2432

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) This device must accept any interference

received, including interference that may cause undesired operation.

RF Safety: Any antenna used with this device must be located at least 8 inches from all persons.

FCC ID: PWO460021 IC: 4726A-460021 Model # 460021

Your cell phone is an essential part of your life. weBoost is here to

ensure you have seamless connections on all your cellular devices.

The Drive 4G-X cellular signal booster is a effective solution to all

those times you have lost a call while driving your vehicle due to a

weak cell signal. Installation is simple and can be completed with

minimal tools.

Signal Received and

Transmitted

Power Supply

Outside Antenna

Inside

Antenna

Drive 4G-X

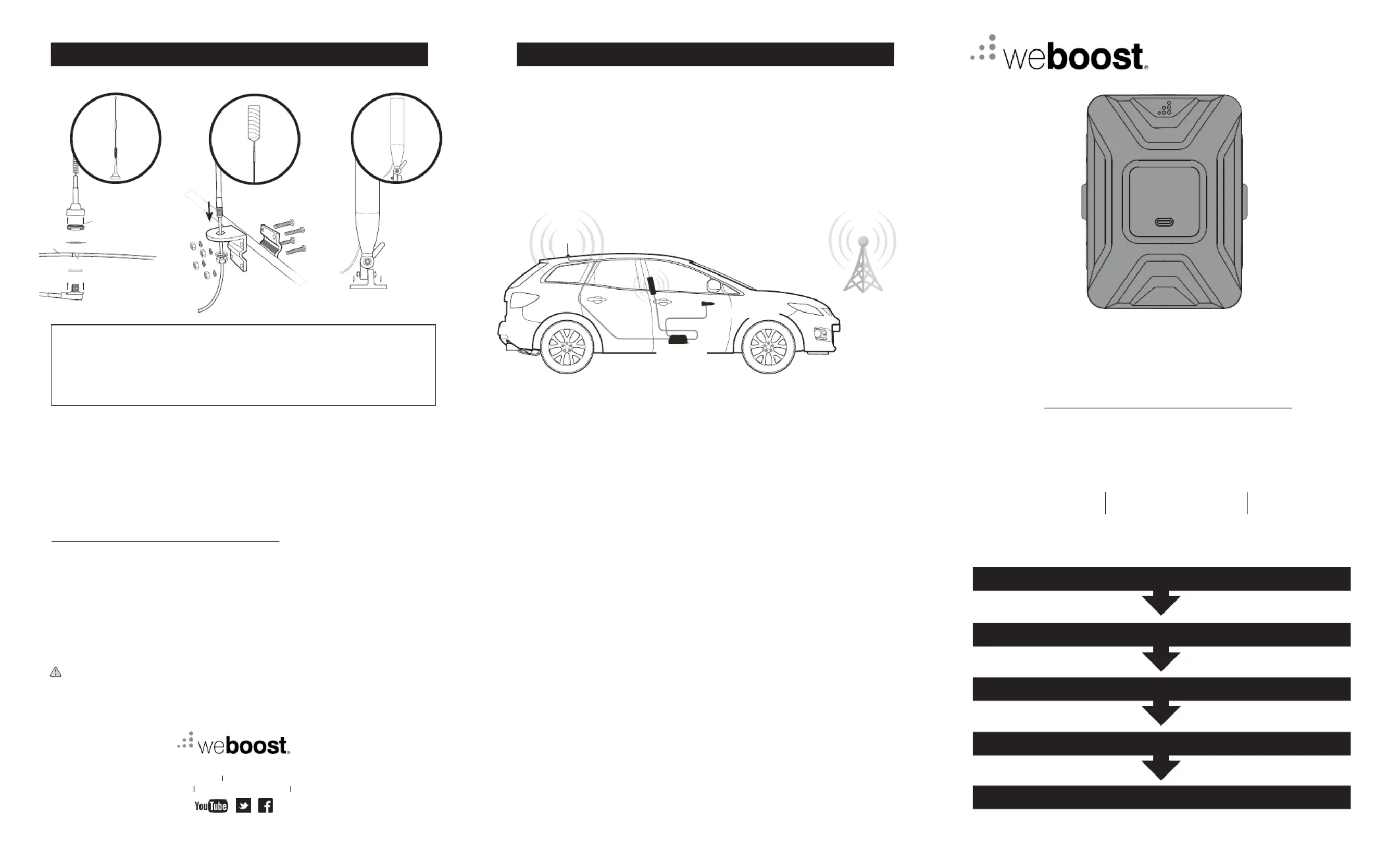

NMO Antenna Assembly

Rubber Seal

Mount to your Boat

or Yacht

Rubber Washer

Mount & Hardware

Drilled Hole

Vehicle Surface

Plastic Washer

NMO Connector

Cable

NMO Antenna 4G Trucker Mirror Mount Marine Antenna

111848_Rev02_05.09.16

THE ALUMINUM CASING OF YOUR SIGNAL BOOSTER WILL ADJUST TO THE TEMPERATURE OF ITS ENVIRONMENT, BUT IS

DESIGNED TO PROTECT THE SIGNAL BOOSTER TECHNOLOGY. FOR EXAMPLE, IN THE SUMMER, THE SIGNAL BOOSTER

CASE MAY BE AS HOT AS 150 DEGREES INSIDE YOUR VEHICLE. THESE HIGH TEMPERATURES WILL NOT DAMAGE THE

SIGNAL BOOSTER, NOR DO THEY POSE A FIRE RISK TO THE VEHICLE. AGAIN, BE SURE TO PLACE YOUR SIGNAL BOOSTER

IN A LOCATION WITH ADEQUATE VENTILATION AND AWAY FROM DIRECT SUNLIGHT OR MOISTURE.

THE DRIVE 4G-X SIGNAL BOOSTER MAY REMAIN ON, IN VEHICLES WHOSE 12V DC POWER SOURCES DO NOT

AUTOMATICALLY SHUTDOWN WHEN THE VEHICLE IS TURNED OFF. THIS COULD RESULT IN DISCHARGING THE VEHICLES

BATTERY IN ONE TO TWO DAYS.

Outside Antenna Installation Running Antenna Cable Inside Antenna Installation

Connect Coax Cables to Drive 4G-X Connect Power Supply to Drive 4G-X Connect to Power Supply

Select a location on top of the vehicle to mount the Mini- Mag

Mount Antenna that is:

Refer to other side for Alternate Outside Antenna Kit Installations.

Run the Outside Antenna cable into the car. The cable is strong

enough that it may be shut in most vehicle doors without damaging

the cable. For a cleaner look, carefully pull down the door seal, run

the cable under the seal, and push the seal back into place. This

method reduces wear on the cable as the door opens and closes.

Identify a place on the side of the seat to mount the Slim Low

Prole Antenna. The location should be at least 18 inches but no

more than 36 inches from where the cellular device will be used.

Peel off the backing of the Velcro® and attach to seat.

Connect the power supply cord to the end of the Drive 4G-X

labeled “Power.” NOTE: Do NOT connect the power to the Signal

Booster until you have connected both the Inside and Outside

Antennas.

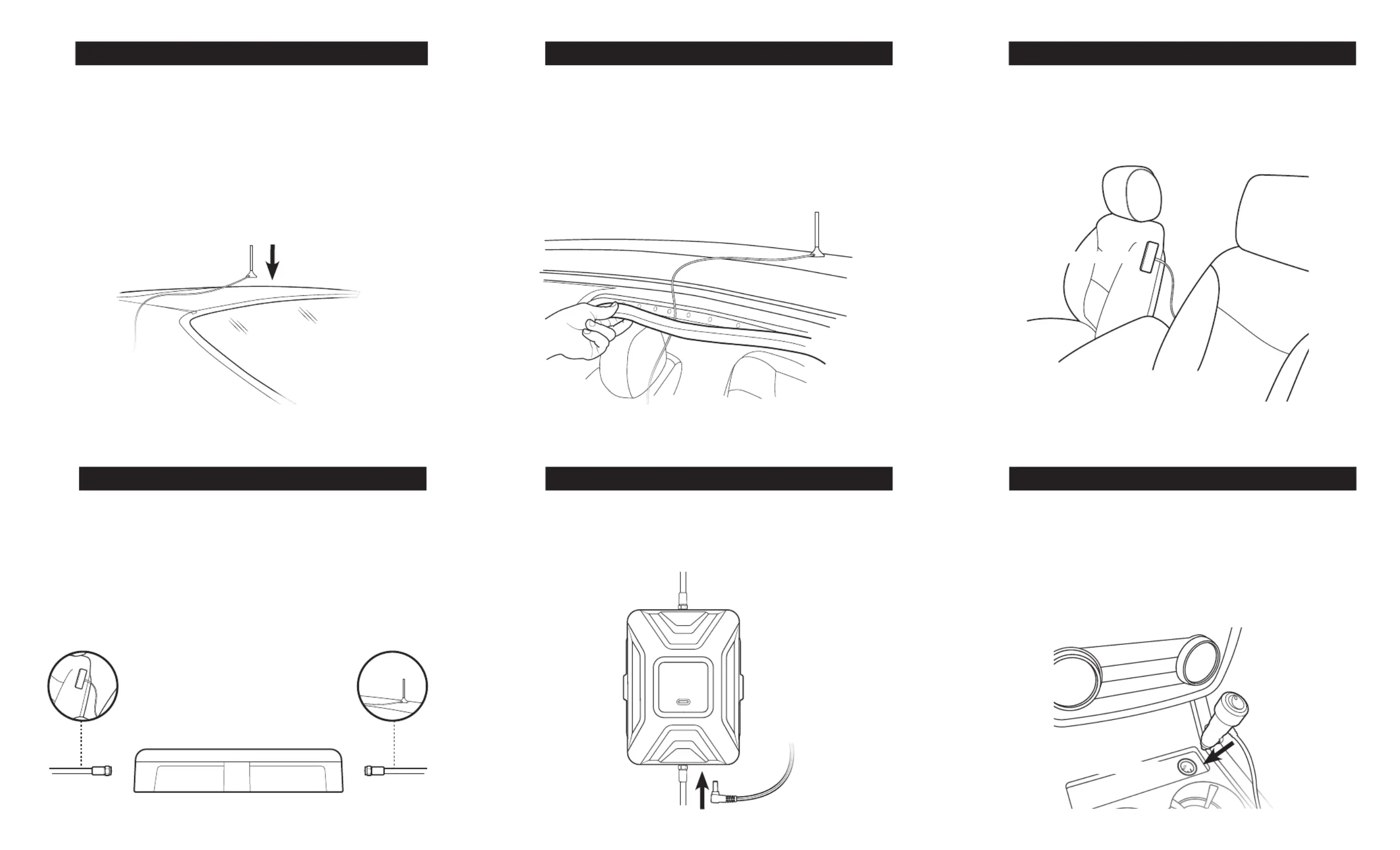

1 2 3

4 5 6

DC Power Adapter

switch

Vehicle’s Power Supply

Power Supply

Slim Low Prole Antenna Mini-Mag Mount Antenna

Slim Low Prole Antenna

n Near the center of the vehicle’s

roof.

n At least 12 inches from any

other antennas.

n Free of obstructions.

n At least 6 inches from any

windows (including sunroofs).

Select a location for the Drive 4G-X that is free from excessive

heat, direct sunlight and moisture and that has proper ventilation.

Good locations include underneath a seat or under the dashboard.

Connect the cable from the Mini-Mag Mount Antenna to the port

labeled “Outside Antenna” on the Drive 4G-X and connect the

cable from the Slim Low Prole Antenna to the port labeled “Inside

Antenna” on the booster.

Mini-Mag Mount Antenna

Plug the power adapter into vehicle’s 12V DC power supply. Power

up your Drive 4G-X by ipping the switch on the back of the DC

power adapter on. If your Drive 4G-X is working correctly, the lights

will be green.

NOTE: If light is not green on your weBoost booster, please refer to

the full user guide online or contact customer support at

1-866-294-1660 or email at support@weboost.com.
