Pagina 1/8

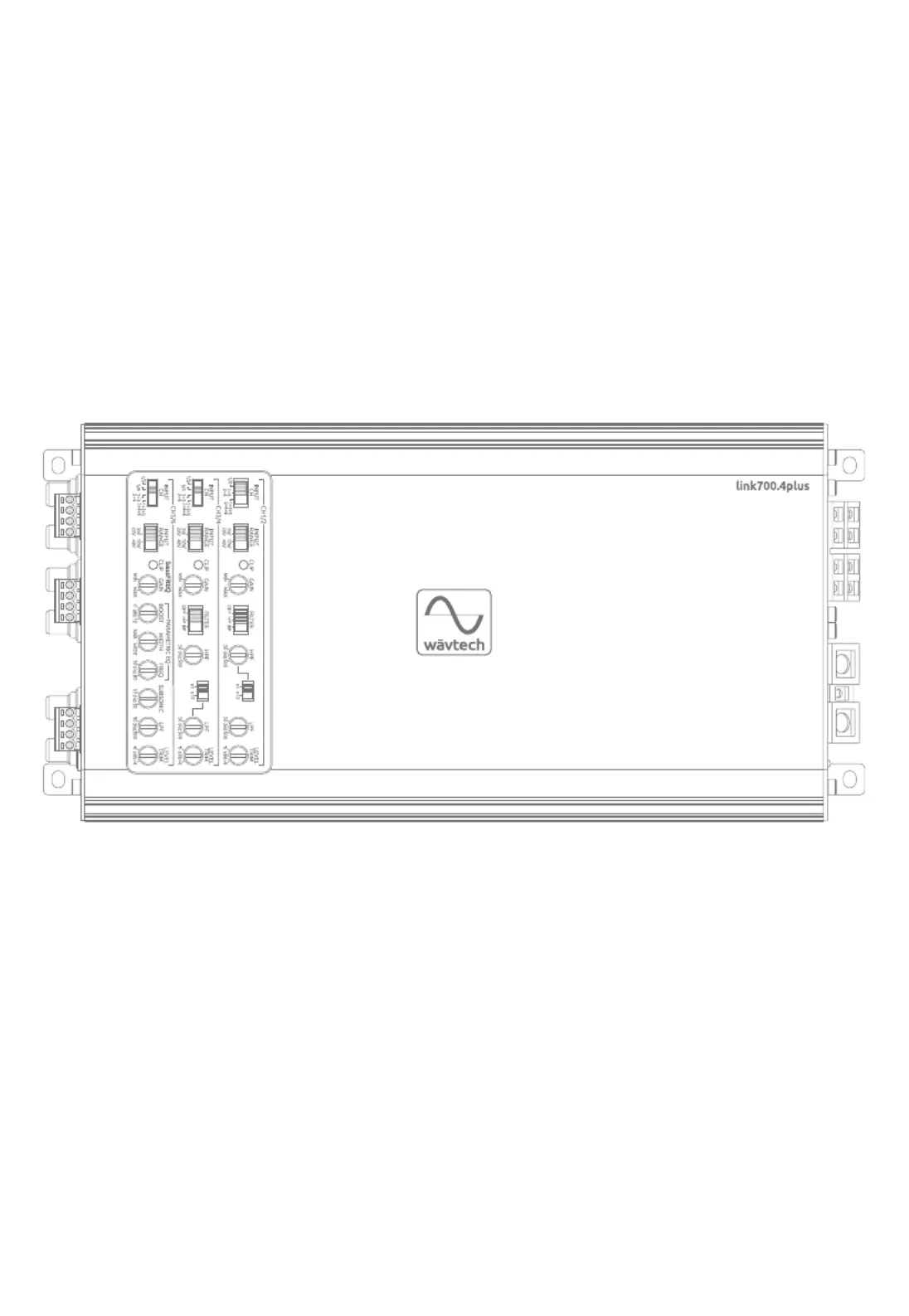

Ownerā€™s Manual
700W RMS 4-Channel Ampliļ¬er
link700.4plus
www.wavtech-usa.com
1
ā€¢ DO NOT DRIVE WHILE DISTRACTED. Any function that requires your prolonged attention should not be
performed while driving. Always stop the vehicle in a safe location before performing any such function. Failure to
do so may result in an accident.
ā€¢ KEEP THE VOLUME AT MODERATE LEVELS WHILE DRIVING. Excess volume levels can obscure sounds such as
emergency vehicle sirens or road warning signals and may result in an accident. Continuous exposure to high sound
pressure levels may cause permanent hearing loss. Use common sense and practice safe sound.
ā€¢ FOR USE WITH 12V NEGATIVE GROUND VEHICLE APPLICATIONS ONLY. Using this product other than in its
designed application may result in ļ¬re, injury or product damage.
ā€¢ MAKE THE CORRECT WIRING CONNECTIONS AND USE PROPER FUSE PROTECTION. Failure to connect wiring
correctly with appropriate gauge and fuse protection may result in ļ¬re, injury or product damage . When replacing
fuse(s), never exceed the speciļ¬ed rating. Ensure proper protection of all system power wiring and install an
external fuse (not included) with speciļ¬ed rating for each ampliļ¬er connected with the +12V lead at the battery
terminal.
ā€¢ DISCONNECT THE NEGATIVE BATTERY TERMINAL BEFORE INSTALLATION. Failure to do so may result in ļ¬re,
injury or damage to the unit.
ā€¢ D O NOT ALLOW CABLES TO BECOME ENTANGLED IN SURROUNDING OBJECTS. Arrange wiring and cables to
prevent obstructions when driving. Cables or wiring that obstruct or hang up on places such as steering wheel,
brake pedals, etc. can be extremely hazardous.
ā€¢ DO NOT DAMAGE VEHICLE SYSTEMS OR WIRING WHEN DRILLING HOLES. When drilling holes in the chassis
for installation, take precautions so as not to contact, puncture or obstruct brake lines, fuel lines, fuel tanks,
electrical wiring, etc. Failure to take such precautions may result in ļ¬re or an accident.
ā€¢ DO NOT UTILIZE OR CONNECT TO ANY PART OF VEHICLE SAFETY SYSTEMS. Bolts, nuts or wires used in the
brake, airbag, steering or any other safety-related systems or fuel tanks should NEVER be used for mounting,
power or ground connections. Using such parts may disable control of the vehicle or result in ļ¬re.
WARNING This symbol means important instructions.
Failure to heed them can result in serious injury or death.
CAUTION
ā€¢ STOP USE IMMEDIATELY IF A PROBLEM OCCURS. Failure to do so may result in personal injury or damage to the
product. Return it to your authorized Wāvtech dealer.
ā€¢ HAVE AN EXPERT DO THE WIRING AND INSTALLATION. This unit requires special technical skill and experience
for wiring and installation. To insure safety and proper function, always contact the authorized dealer where you
purchased the product to have it done professionally.
ā€¢ INSTALL THE UNIT SECURELY WITH SPECIFIED PARTS. Be sure to use only the included parts and speciļ¬ed
installation accessories (not included). Use of other than designated parts may damage this unit. Install the unit
securely so that it will not come loose during a collision or sudden jolt.
ā€¢ ROUTE WIRING AWAY FROM SHARP EDGES AND MOVING PARTS. Arrange cables and wiring away from sharp
or pointed edges and avoid moving parts such as seat hinges or rails to prevent pinching or wear. Use loom
protection where appropriate and always use a grommet for any wiring routed through metal.
ā€¢ NEVER RUN SYSTEM WIRING OUTSIDE OR UNDERNEATH THE VEHICLE. All wiring must be routed, secured
and protected inside the vehicle. Failure to do so may result in ļ¬re, injury or property damage.
ā€¢ INSTALL THE UNIT IN A DRY AND VENTILATED LOCATION. Avoid mounting locations where the unit will likely
be exposed to high moisture or heat without adequate ventilation. Moisture penetration or heat buildup may
result in product failure. Always make sure the ampliļ¬er chassis temperature is safe before touching it.
ā€¢ REDUCE GAIN AND SOURCE VOLUME TO MINIMUM LEVELS FOR INITIAL SYSTEM TUNING. Ensure ampliļ¬er
power is oļ¬€ before connecting signal cables and follow proper system gain setting procedures. Failure to do so
may result in damage to the ampliļ¬er and/or connected speakers.
Package Contents: Accessories Required for
Installation (not included):
WARNING
CAUTION
This symbol means important instructions.
Failure to heed them can result in injury or property damages.
Mounting Tabs
(pre-attached)
Spk Level
Input Terminals
Main Unit
Hex Wrenches
ÅøRCA Cables or Signal Wire
ÅøPower Supply & Speaker Wire
ÅøIn-line Fuse Holder w/80A Fuse
ÅøBattery Ring Terminal
ÅøChassis Ground Terminal
ÅøWire Crimp Connectors
ÅøGrommets & Loom
Mounting Screws
CH5/6 PRE-OUT
CH6(R)CH5(L)
LOAD LOAD LOAD LOAD
CH2(R)CH1(L)
CH1(L) CH2(R)
RLC
CH4(R)CH3(L)
LOAD LOAD
CH3(L) CH4(R)
BAL UNBAL BAL UNBAL CH3/4 OUTPUT
3/4 5/6
Power Supply / Output Panel Connections & Settings
Auto Turn-On Detect Jumpers:
Œ
By default, the ampliļ¬er is set to
detect both DC-oļ¬€set and audio
signals for turning itself on/oļ¬€
automatically. These jumpers
allow either turn-on mode to be
defeated independently or to
bypass both modes when a
switched +12V trigger is available
and connected to the remote turn-on (REM) terminal.
Power/Protect Indicator: This LED will illuminate green when the ampliļ¬er is powered on and
ā·
operating normally. If a shutdown occurs due to a detected fault, the LED will turn red. Once the
fault has been corrected or the condition has cleared, the ampliļ¬er will automatically recover,
indicated by the LED changing back to green.
2
Introduction
Welcome to Wāvtech, exceptional mobile audio products for audiophiles. Our products are engineered
from the ground up to provide a truly remarkable listening experience with superior performance,
sound quality and reliability. Built for the professional installer, our innovative features enable
maximum application coverage with ultimate system ļ¬‚exibility. Whether retaining the factory receiver
or utilizing an aftermarket source, our solutions are simply the best available for unlimited sound
system upgrades.
Features:
ā€¢ 4/3/2-Channel Bridgeable
ā€¢ Diļ¬€erential Balanced Inputs
ā€¢ Dual Input Range with Ideal Gain Structure
ā€¢ 6-Channel Summing Processor
ā€¢ +/-6dB Output Level Trim for After Sum or Copy
ā€¢ -12dB/oct. HP/LP/BP Filters (CH1/2 & CH3/4)
TM
ā€¢ bassFREQ Processor with Parametric EQ,
-24dB/oct. Subsonic and LP Filters (pre-out or CH3/4)
ā€¢ Line Driver RCA Pre-Out with up to 10Vrms Output
ā€¢ Remote Level Control Ready (pre-out or CH3/4)
ā€¢ Auto Turn-On via DC-Oļ¬€set and Audio Detect
ā€¢ Start/Stop Vehicle Compatible
ā€¢ Adaptive Loading for OEM Load Detect Systems
ā€¢ Active Thermal Rollback Power Management
ā€¢ Panel Mount RCA Inputs with Bal/Unbal Select
ā€¢ Locking Detachable Spk Level Input Terminals
ā€¢ 4AWG Insert Power/Ground Terminals
ā€¢ 12AWG Insert Speaker Output Terminals
ā€¢ Compact Chassis w/Detachable Mounting Tabs
Input Panel Connections & Settings
Load Jumpers: Each speaker
Œ
level input channel has built-in
adaptive loading to satisfy most
OEM load detect systems. These
internal loading circuits can be
bypassed (OFF) for channels
where no loading is required,
such as when a speaker is still
directly connected to the source.
Speaker Level Inputs: For up to six channels of speaker level input connections to the source.
ā·
When set to the 20V range (default), input signal from 1-20Vrms will produce full power output
from max to min gain, while the 40V range will take 2-40Vrms.
RCA Inputs: For up to four channels of RCA line level input connections to the source. When set to
Ž
the 5V range (default), input signal from 0.2-5Vrms will produce full power output from max to min
gain, while the 10V range will take 0.4-10Vrms.
RCA Input Bal/Unbal Switches: These switches select the associated RCA inputā€™s conļ¬guration
ā¹
between balanced (default) and unbalanced. Unbalanced connects the RCA shield to ground
reference, which may be useful in eliminating noise under certain source or system conditions.
Remote Level Control Jack: This RJ45 jack is for connecting the optional linkRC to the main unit
āŗ
for remote adjustment of CH5/6 output signal level from 0dB (max) to -30dB (min), whether routed
to the RCA pre-out or CH3/4ā€™s powered output.
RCA Pre-out: This CH5/6 line driver pre-out provides up to 10Vrms output signal for connecting
ā€˜
TM
external ampliļ¬ers. Its mono output signal comes from CH5/6ā€™s input stage and bassFREQ
processor, so for 2ch or 4ch sources, set CH5/6ā€™s INPUT CH to either copy 1/2 or sum 1+3/2+4.
CH3/4 Output Select: This switch selects which signal feeds CH3/4ā€™s powered outputs. When 3/4 is
ā€™
selected, CH3/4ā€™s settings and adjustments will aļ¬€ect CH3/4ā€™s output. When set to 5/6, CH3/4ā€™s
TM
signal is replaced by CH5/6ā€™s signal and bassFREQ processor settings, before Level Trim.
Œā·
Ž
ā¹
āŗ ā€˜
ā€™
DETECT
GND REM +12V
CH3(L) CH4(R)
BRIDGED
CH1(L) CH2(R)
PRO
āŗ
Œ
ā·
Žā¹
