Pagina 1/7

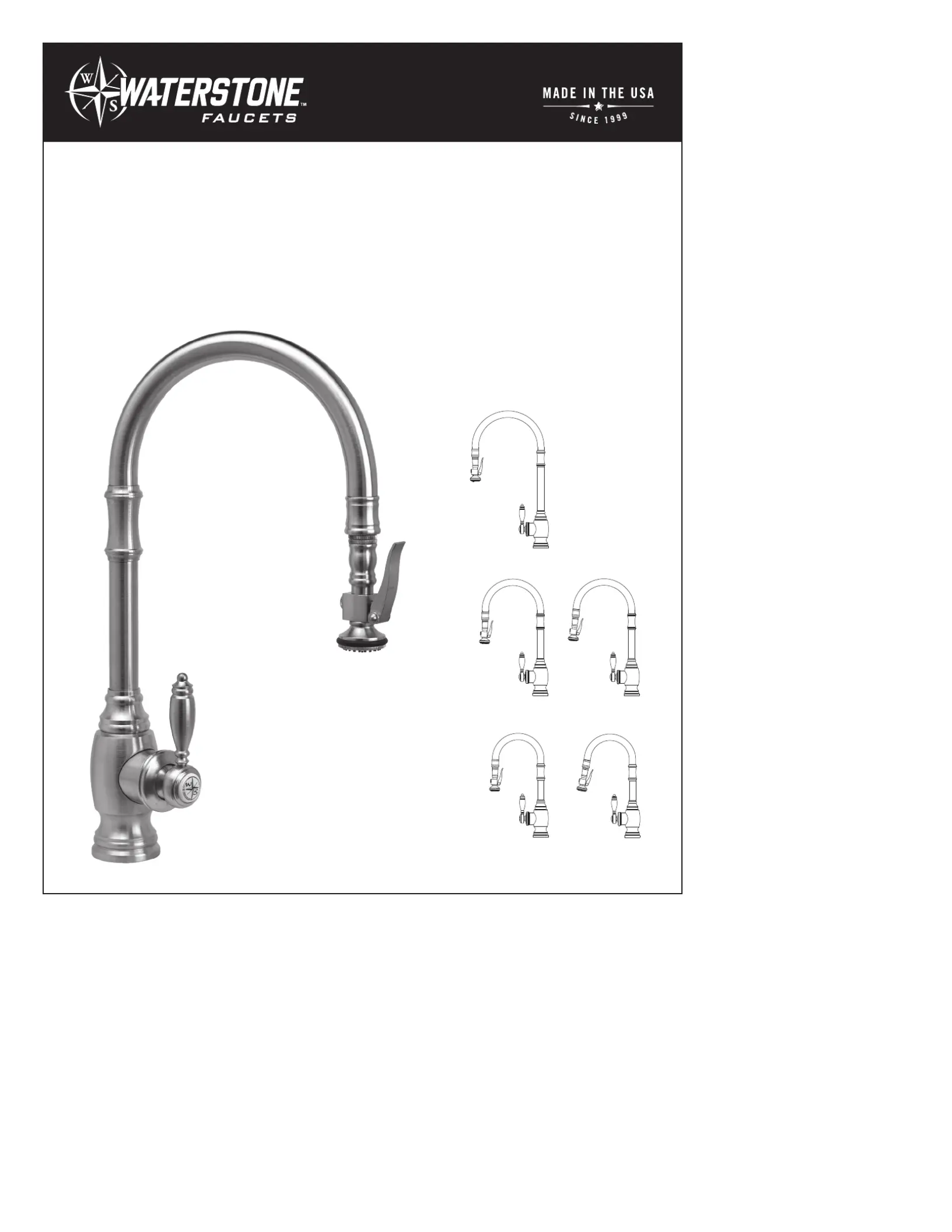

Model #s:
5500, 5600, 5610, 5200, 5210
TRADITIONAL PLP PULLDOWN FAUCET
INSTALLATION INSTRUCTIONS
5600
5500
5200
5610
5210
1 2 3 4
Turn o water supply. Observe all local
plumbing codes.
Inspect plumbing for signs of
damage. Replace as necessary.
DO NOT use petroleum based
products on this faucet.
REQUIRED TOOLS:
Phillips ScrewdriverAdjustable Wrench Channel Locks

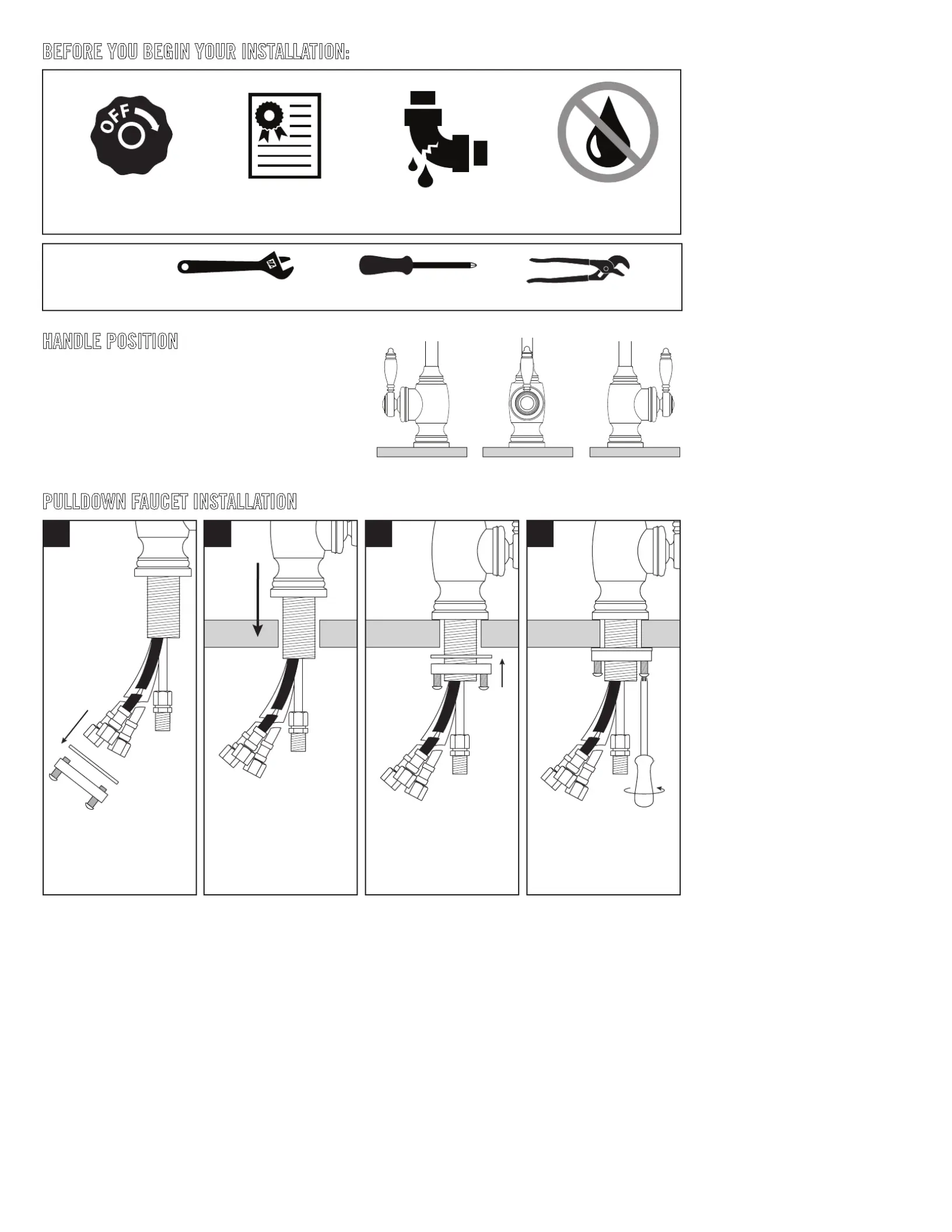

BEFORE YOU BEGIN YOUR INSTALLATION:
F
COUNTER
OR SINK
1. 2. 3. 4.
A
B
C
DE
PULLDOWN FAUCET INSTALLATION
Remove the clamp nut (A) and
washer (B) from the threaded
shroud (C).
Slide washer and thread the
clamp nut onto threaded shroud.
Tighten nut snug to underside of
sink or counter.
Turn faucet to the desired handle
position. Securely tighten clamp
screws (F).
Fit exible hoses (D) and spray
connection tube (E) through hole
on counter or sink. (No plumbers
putty is required. O-ring seals base).
Waterstone faucets are designed to be installed in 3 dierent faucet
positions. Choose to have the handle on left, front or right. Your faucet is
factory congured for the most common positions - a front and right side
installation. To reverse this and have the handle positioned on the left,
connect the hose for cold water to the hot supply and the hose for hot water
to the cold supply. This will maintain the relationship of pulling the handle
for hot water or pushing for cold water. HANDLE ON LEFT HANDLE IN FRONT HANDLE ON RIGHT
HANDLE POSITION
CONNECT THE PULLDOWN SPRAY HOSE

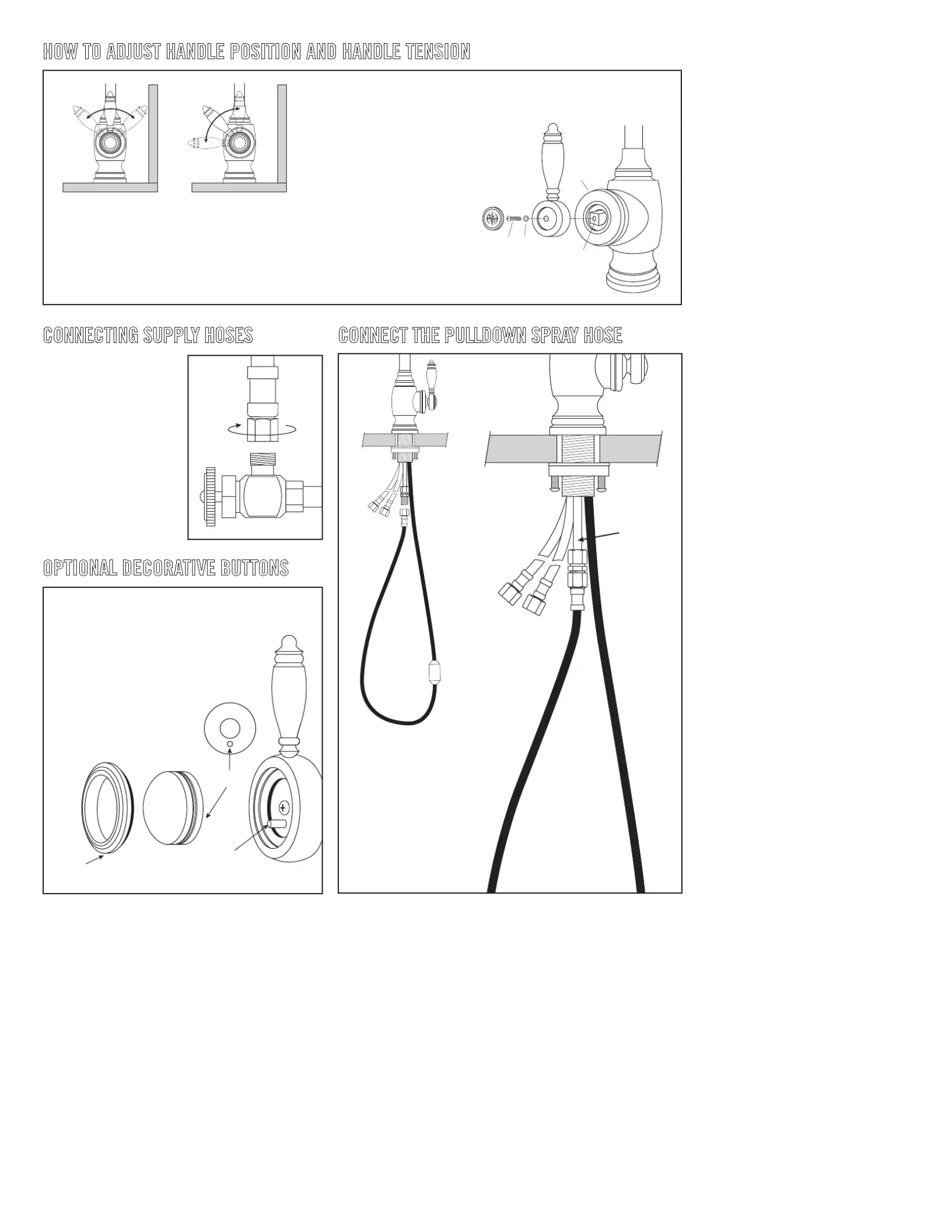

HOW TO ADJUST HANDLE POSITION AND HANDLE TENSION
On some kitchen countertops, the handle may hit the
backsplash when the faucet handle is positioned to the left
or right (Fig. 1). Waterstone gives you the option of adjusting
the handle 45 degrees to avoid hitting backsplash.
FIG.1
Place a small standard screwdriver in slot at bottom of
metal ring that surrounds handle button (A). Gently
pry button from handle (B). Unscrew and remove
holding screw (C) and washer (D). Hold handle in a
vertical position. Wiggle and pull straight o faucet.
Rotate handle away from backsplash
45 degrees then slide handle back
onto valve stem (E). Insert holding
screw with washer and tighten. Snap
handle cap back into place. To adjust
handle tension, turn ring (F) clockwise
to increase or counterclockwise to
decrease handle tension.
H C
AB
C D
E
F
A
C
B
Connect spray hose (A) to spray
connection hose tube (B).
NOTE – make sure spray hose
(A) and counter balance (C) are
free to slide up and down and
are not in conict with any
plumbing components or
items under sink.
ORIGINAL FACTORY POSITION
MAY HIT BACKSPLASH
NEW ADJUSTED POSITION
CLEARS BACKSPLASH
AC
DE
F
B
Before connecting supply hoses,
ush supply stops to clear any
debris. Place a bucket underneath
stops and run water for 5 to 10
seconds. Turn water o. Carefully
position hot and cold supplies so
they will not interfere with other
hoses. Connect supply hoses (A)
to supply stops (B). DO NOT use
teon tape or plumbers putty.
Turn water back on and check for
leaks.
CONNECTING SUPPLY HOSES
A
B
OPTIONAL DECORATIVE BUTTONS
To change button, nd the
slot (A) at bottom of retainer
ring (B). With a
small standard screwdriver, g
ently
pry retainer
ring
from faucet handle (C). Remove
button assembly (D). Insert new button by
lining up pin (E) on handle with hole (F)
on bottom of button assembly. With
slot facing down, press the button
retainer ring rmly back into
place.
