Pagina 1/17

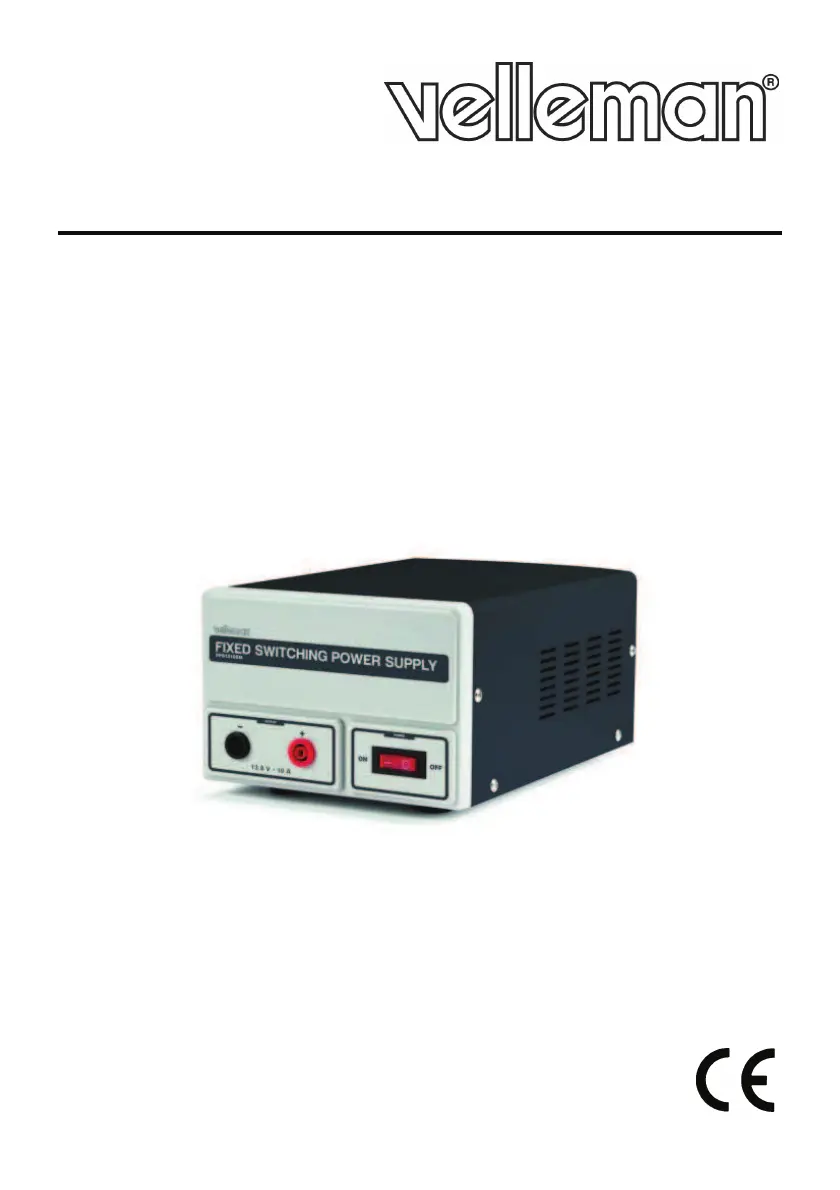

FPS1310SM
EN FIXED SWITCHING POWER SUPPLY
NL VASTE SCHAKELENDE VOEDING
FR
ALIMENTATION FIXE À DÉCOUPAGE
ES
FUENTE DE ALIMENTACIÓN CONMUTADA CON TENSIÓN DE
SALIDA FIJA
DE NETZGERÄT - FESTSPANNUNG - SCHALTNETZTEIL
PT FONTE DE ALIMENTAÇÃO FIXA
PL ZASILACZ PRADU STALEGO - MODEL IMPULSOWY
USER MANUAL 2
GEBRUIKERSHANDLEIDING 4
MODE D'EMPLOI 6
MANUAL DEL USUARIO 8
BEDIENUNGSANLEITUNG 10
MANUAL DO UTILIZADOR 12
,16758.&-$2%6à8*, 14
FPS1310SM
V. 01 – 01/09/2014 2 ©Velleman nv
USER MANUAL
1. Introduction
To all residents of the European Union
Important environmental information about this product
This symbol on the device or the package indicates that disposal of the device after its lifecycle could
harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it
should be taken to a specialized company for recycling. This device should be returned to your
distributor or to a local recycling service. Respect the local environmental rules.
If in doubt, contact your local waste disposal authorities.
Thank you for choosing Velleman! Please read the manual thoroughly before bringing this device into service. If
the device was damaged in transit, don't install or use it and contact your dealer.
2. Safety Instructions
Keep this device away from children and unauthorized users.
Indoor use only. Keep this device away from rain, moisture, splashing and dripping liquids.
Never put objects filled with liquids on top of or close to the device.
DO NOT disassemble or open the cover under any circumstances. Touching live wires can cause
life-threatening electroshocks. There are no user-serviceable parts inside the device. Refer to an
authorized dealer for service and/or spare parts.
Always connect the device to an earthed power socket.
Caution: device heats up during use. Make sure the ventilation openings are clear at all times.
For sufficient air circulation, leave at least 1” (± 2.5 cm) in front of the openings. Place the
device on a flat, heat resistant surface, do not place the device on carpets, fabrics…
Always disconnect mains power when device not in use or when servicing or maintenance
activities are performed. Handle the power cord by the plug only.
Keep this device away from dust and extreme temperatures.
Protect this device from shocks and abuse. Avoid brute force when operating the device.
Do not use the device when damage to housing or cables is noticed. Do not attempt to service
the device yourself but contact an authorised dealer.
Do not use this power supply with devices requiring an input current greater than 10 A.
3. General Guidelines
Refer to the Velleman® Service and Quality Warranty on the last pages of this manual.
xFamiliarise yourself with the functions of the device before actually using it.
xAll modifications of the device are forbidden for safety reasons. Damage caused by user modifications to
the device is not covered by the warranty.
xOnly use the device for its intended purpose. Using the device in an unauthorised way will void the
warranty.
xDamage caused by disregard of certain guidelines in this manual is not covered by the warranty and the
dealer will not accept responsibility for any ensuing defects or problems.
xKeep this manual for future reference.
4. Operation
1. Insert the AC power plug in a 230 VAC / 50 Hz outlet.
2. Connect the power cord of a device with the appropriate input voltage to the output binding posts on the
front panel. The red positive (+) terminal and black negative (-) terminal are indicated on the front panel.
Mind the polarity: reversal of polarity may damage the device.
3. Put the ON/OFF switch on the front panel in the "ON"-position. The light in the switch will come on.
4. The 230V-input is protected by the fuse, which is located at the back of the device. Replace a blown fuse
with an identical one.
10 A
FPS1310SM
V. 01 – 01/09/2014 3 ©Velleman nv
5. This device is protected against brief short circuits and equipped with an automatic reset function.
5. Cleaning and Maintenance
xDisconnect the device from the mains prior to maintenance activities.
xThe power supply cables must not show any damage. Have a qualified technician maintain the device.
xWipe the device regularly with a moist, lint-free cloth. Do not use alcohol or solvents.
xThere are no user-serviceable parts, apart from the fuse. Contact your dealer for spare parts if necessary.
xStore the device in a dry, well-ventilated, dust-free room.
6. Technical Specifications
input voltage 230 V 50 Hz
output voltage 13.8 V max.
output current
ripple voltage =/< 100 mVp-p
dimensions 155 × 115 × 255 mm
weight 1.614 kg
fuse T2
Use this device with original accessories only. Velleman nv cannot be held responsible in the event
of damage or injury resulting from (incorrect) use of this device.
For more info concerning this product and the latest version of this manual, please visit our website
www.velleman.eu.
The information in this manual is subject to change without prior notice.
© COPYRIGHT NOTICE
The copyright to this manual is owned by Velleman nv. All worldwide rights reserved. No part of this
manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the
prior written consent of the copyright holder.
