TRENDnet’s 12-Port Cat5e Unshielded Wall Mount Patch Panel, model TC-P12C5V, provides a 100MHz connection to 12 x

Gigabit RJ-45 Ethernet ports. This 10-inch patch panel is well suited for both home or SMB applications. Organize connections with

the available writing surface above each port, allowing users to label respective connections. This compact 12-port patch panel also

includes an 89D wall mount bracket for vertical or horizontal installations. The snap-in style wall mount bracket design provides

quick and easy access to cable connections when needed for installation or troubleshooting. Use with TRENDnet’s Punch Down

Tool, model TC-PDT, and RJ-11/RJ-45 Crimp/Cut/Strip Tool, model TC-CT68.

12-Port Cat5e Unshielded Wall Mount Patch Panel with

Included 89D Bracket

TC-P12C5V (v1.0R)

• 12-Port Cat5e Wall Mount Patch Panel

• Compatible with Cat5e and Cat6

• 10-inch patch panel is well suited for home and SMB

applications

• Color-coded labeling for T568A and T568B wiring schemes

• Included 89D wall mount bracket for vertical or horizontal

installations

• Organize cable connections with port labeling

• 110 IDC type terminal blocks (use 110 or Krone type tool)

• Use with TC-PDT Punch Down ool (soldTRENDnet T

separately)

• Supports ANSI/EIA/TIA 568-B.2-1 and ISO/IEC 11801

• 180° angle type

• Operating temperature: -10° – 60° C (14° – 140° F)

• -year warranty 3

TC-P12C5V

Cat5e Performance

Provides performance of up to 2.5Gbps speeds

at 100m for 10/100/1000/2.5GBASE-T

connections.

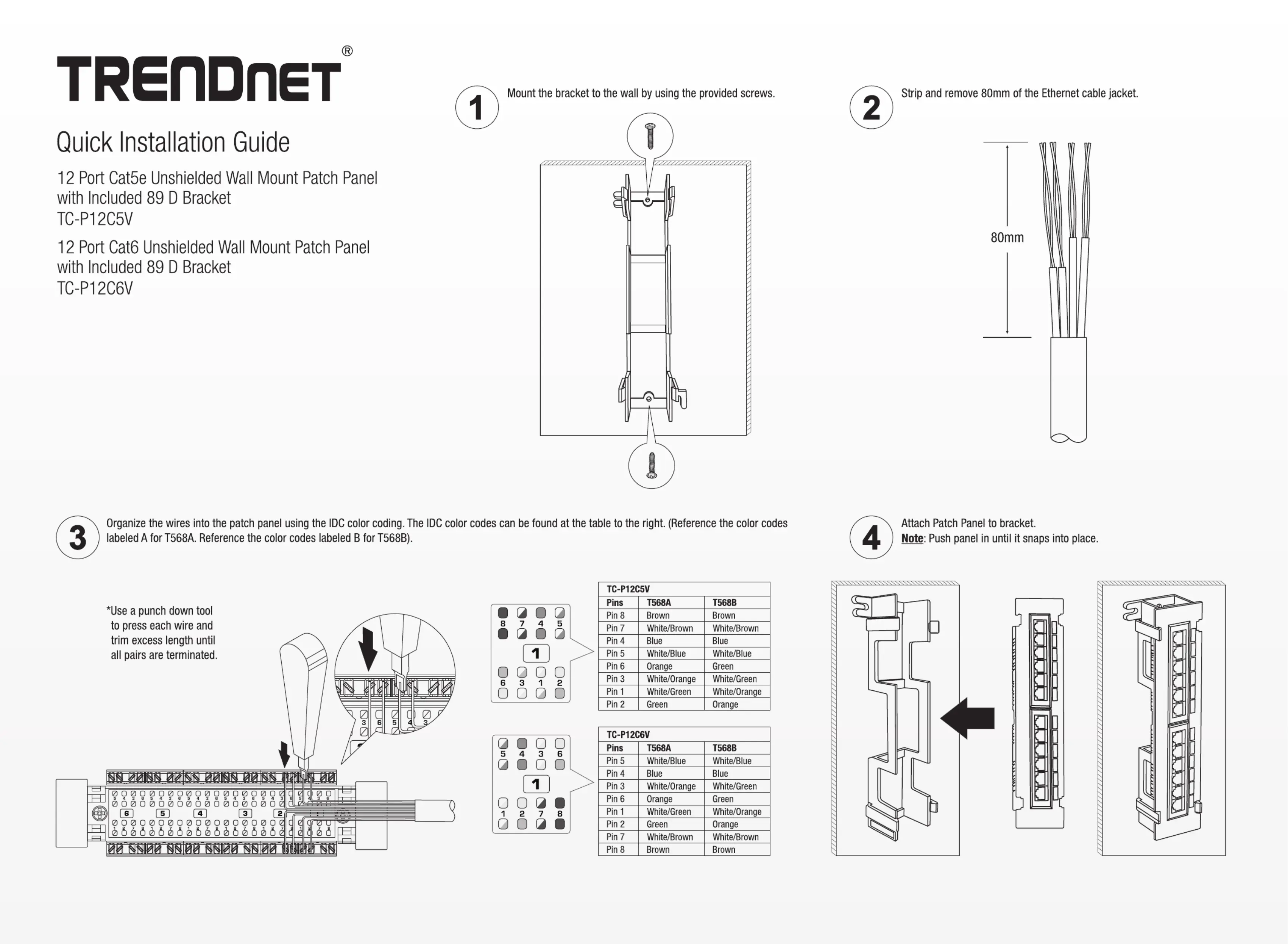

Wall Mount Design

This compact patch panel includes an 89D wall

mount bracket for vertical or horizontal

installations. The snap-in style wall mount

bracket design provides quick and easy access

to cable connections when needed for

installation or troubleshooting.

Port Labels

The 12-port patch panel features a blank

writing surface above each port, allowing users

to label and organize the respective

connections.

TC-P12C5V

89D wall mount bracket SPCC steel construction

Port Labels

12 x Cat5e RJ-45 ports

T568A/T568B wiring for Krone or

110 termination with color-coded

wiring diagram

180° IDC terminals

SPECIFICATIONS

Standards

• ANSI/TIA/EIA-568-C.2

• ISO/IEC 11801 2nd edition: 2002

Interface

• 12 x Cat5e RJ-45 ports with gold-plated 8P/8C

contacts

• T568A/T568B wiring for Krone or 110

termination with color-coded wiring diagram

• 180° IDC terminals

• Compatible with 22 – 26 AWG solid or

stranded wire

• SPCC steel construction

Mounting Options

• Wall mountable with included 89D bracket

Electrical Speciﬁcation

• Insulation resistance: >= 500 MΩ

• Dielectric Withstand Voltage: 500V DC

• Contact resistance: <= 35 MΩ

• Current rating: 1.5A at 20° C (68° F)

Mechanical Speciﬁcation

• Contact force 99.2g (3.5 oz.)

• Plug retention force: 13.3kg (29 lb.)

• 110/ Krone IDC insertion force: min. 4.5kg (9.9

lb.)

• 110/ Krone IDC retention force: min. 0.5kg (1.1

lb.)

Operating Temperature

• -10° – 60° C (-50° – 140° F)

Operating Humidity

• Max. 90% non-condensing

Dimensions

• 57 x 253 x 49mm (2.24 x 9.96 x 1.92 in.)

Weight

• 292g (10.3 oz.)

Warranty

• year 3

Package Contents

• TC-P12C5V

• Quick Installation Guide

• 89D Mounting Bracket

• Screws

All references to speed are for comparison purposes only. Product speciﬁcations, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.

20675 Manhattan Place • Torrance • CA 90501 • USA • T: 1-888-326-6061 • F: 1-310-961-5511 • intlsales@trendnet.com • www.TRENDnet.com

TRENDnet is a registered trademark. Other Brands and product names are trademarks of their respective holders. Information provided in this document pertain to TRENDnet products and is subject to change at

Updated: 8/4/2020
