Regulations & Compliance
Fcc Statement
Warning: Changes or modications to this unit not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment
oîžȘ and on, the user is encouraged to try to correct the interference by one or more of the following measures:
‱ Reorient or relocate the receiving antenna.
‱ Increase the separation between the equipment and receiver.
‱ Connect the equipment into an outlet on a circuit diîžȘerent from that to which the receiver is connected.
‱ Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause undesired operation.
ISED Regulatory Compliance
This device contains license-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic
Development Canada’s license-exempt RSS(s). Operation is subject to the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference, including interference that may cause undesired operation of the
device.
L’émetteur/rĂ©cepteur exempt de licence contenu dans le prĂ©sent appareil est conforme aux CNR d’Innovation,
Sciences et DĂ©veloppement Ă©conomique Canada applicables aux appareils radio exempts de licence.
L’exploitation est autorisĂ©e aux deux conditions suivantes :
1. L’appareil ne doit pas produire de brouillage;
2. L’appareil doit accepter tout brouillage radioĂ©lectrique subi, mĂȘme si le brouillage est susceptible d’en
compromettre le fonctionnement.
RF Exposure Compliance
This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance 20cm between the radiator and your body.
Cet Ă©quipement est conforme aux limites d’exposition aux radiations FCC/IC Ă©tablies pour un environnement non
contrĂŽlĂ©. Cet Ă©quipement doit ĂȘtre installĂ© et utilisĂ© avec une distance minimale de 20 cm entre le radiateur et votre
corps.
VuPoint Solutions, Inc. (USA):
710 Nogales Street, City of Industry, CA 91748
VuPoint (Europe) Company Limited:
Innovation Center, Longbridge Technology Park,
Longbridge, Birmingham B31 2TS
For additional info, visit our website at ToucanSolution.com
©2022 VUPOINT SOLUTIONS, INC. All Rights Reserved.
The Toucan logo and Toucan are trademarks or registered trademarks of VuPoint Solutions Inc. in the United States and other
countries. App Store is a registered trademark of Apple Inc. iOS is a registered trademark of Cisco Technology, Inc. in the
U.S. and other countries and is under license. Android and Google Play are registered trademarks of Google LLC. Product
names, logos, brands and other trademarks referred to herein are the property of their respective trademark holders. All
trademarks remain the property of their respective holders, and are used only to describe the products or services being
provided. These trademark holders are not aliated with VuPoint Solutions, Inc. They do not sponsor or endorse VuPoint
Solutions, Inc’s products or services.
Wireless Video
Doorbell PRO
MANUAL
TVDP05GR
facebook.com/toucansmarthome
USB Charging
Cable
Instagram.com/toucansmarthome
AA Batteries Mounting Tape
Wireless
Chime
Wireless Video
Doorbell PRO
Thank You Card
Warranty Card
Screwdriver Screws Wall Anchors Mounting Plate Manual
Items Included
Youtube.com/c/toucansmarthome
For detailed setup procedure, please refer to Toucan website www.ToucanSolution.com

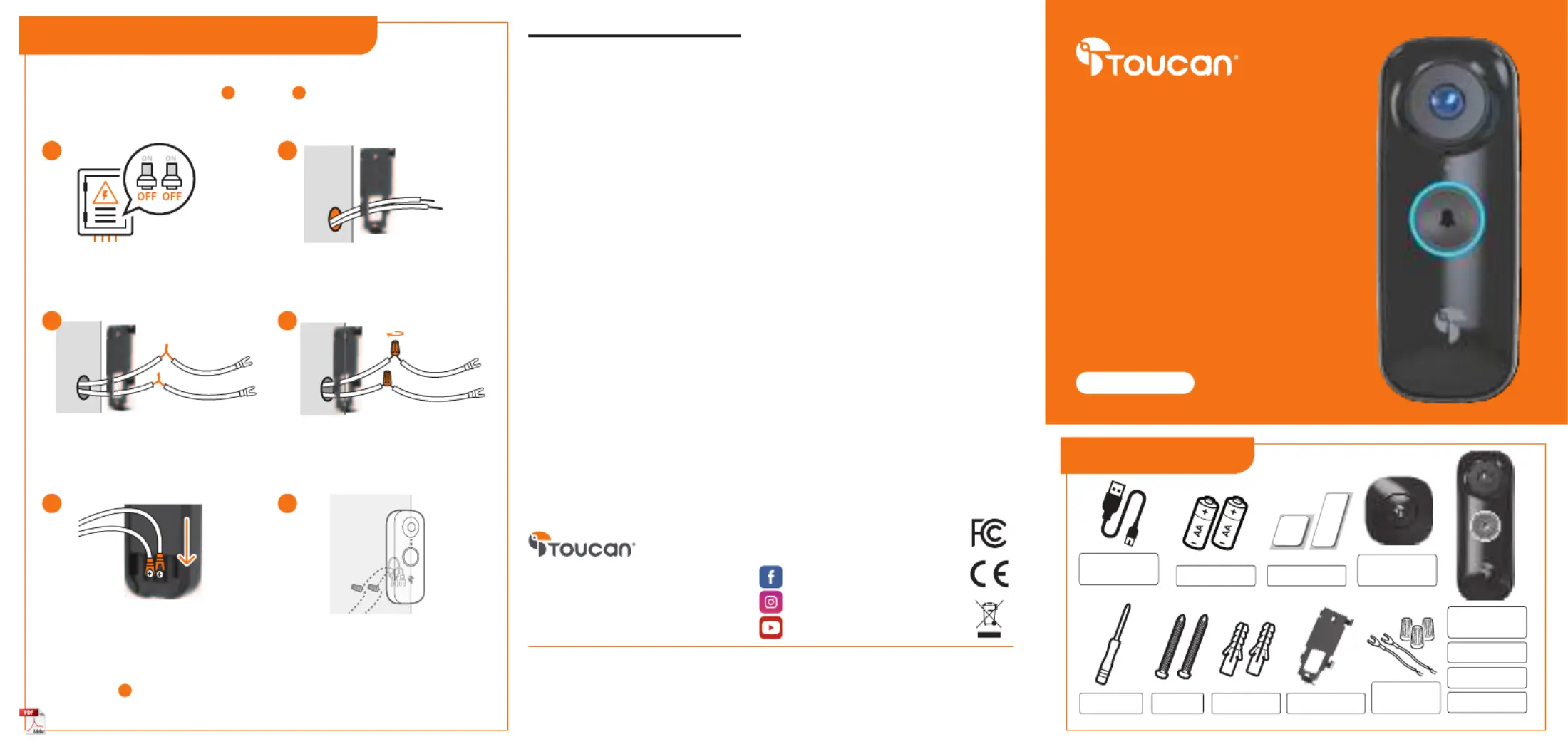

(Optional) Wiring your video doorbell
This section should be followed ONLY if you are using existing doorbell wiring,
and only after completing steps through 1 1 in the “Install your video
doorbell and chime” section
ENSURE THAT YOU HAVE TURNED
OFF ALL POWER TO DOORBELL
WIRING AT YOUR BREAKER BOX
Pull a few inches of doorbell wiring
through mounting plate
Twist ends of each doorbell wire
together with the wire end of a
connector
Place a wire nut over each pair of
twisted wires, turn nut clockwise
to tighten
Slide the U-shaped ends of the con-
nectors under the screws in the back
of the doorbell. Tighten screws so
that connectors do not slip out.
Push excess wires back into the
wall
1 2
3 4
5 6
Doorbell
Wiring Kit
We Make Security Easy
Return to Step 4in the section “ ”Install your video doorbell and chime
1 3
1
www.toucansolution.com/pages/
toucan-smart-home-app
Doorbell
1. Camera lens
2. Microphone
3. Light sensor
4. Doorbell button
5. Speaker
6. SET / Power ON
button
7. RST / Power OFF
pinhole button
8. Charging port
9. (Optional) Power
Terminals
Open the back cover,
plug in micro usb cable to
charge the video doorbell.
Recommend to fully charge the
device before 1st use.
Solid Red
Solid Blue
Charging Battery
Battery Fully Charged
Download the Toucan
App for Android or IOS
Scan QR code or visit
Tap the in the ‘+’
upper right to
add a device
The chime and doorbell come pre-paired, but if you need to pair it again, follow the
instructions in this section.
Flashing BLUE
Flashing PURPLE
Flashing RED
Setup Mode
Connecting to cloud server
Connection Failed
Chime LED
Description
LED
Description
Chime
10. LED indicator
11. SET button
12. Speaker
Press and hold the SET
button until LED light
blinks to enter the
setup mode
Follow the
instructions on the
Toucan App to
complete the setup
LED
Description
Press and hold the SET button on
the Chime until the LED blinks,
about 3 seconds
Press and hold the doorbell button
for about 3 seconds to complete
pairing with the chime
Flashing BLUE
BLUE Flashes Once
Pairing Mode
Select Next Chime Sound
Drill holes for wall anchor placement. If
installing to use existing doorbell wiring,
the hole in the center of the mounting plate
should be over the old doorbell wiring hole.
Insert wall anchors
Attach the mounting plate with included
screws
If connecting the Wireless Video Doorbell Pro to your existing doorbell wiring,
proceed to the “(Optional) Wiring your video doorbell” section on the next
page. Otherwise, continue with step
Tighten the
securing screw
by turning it
clockwise

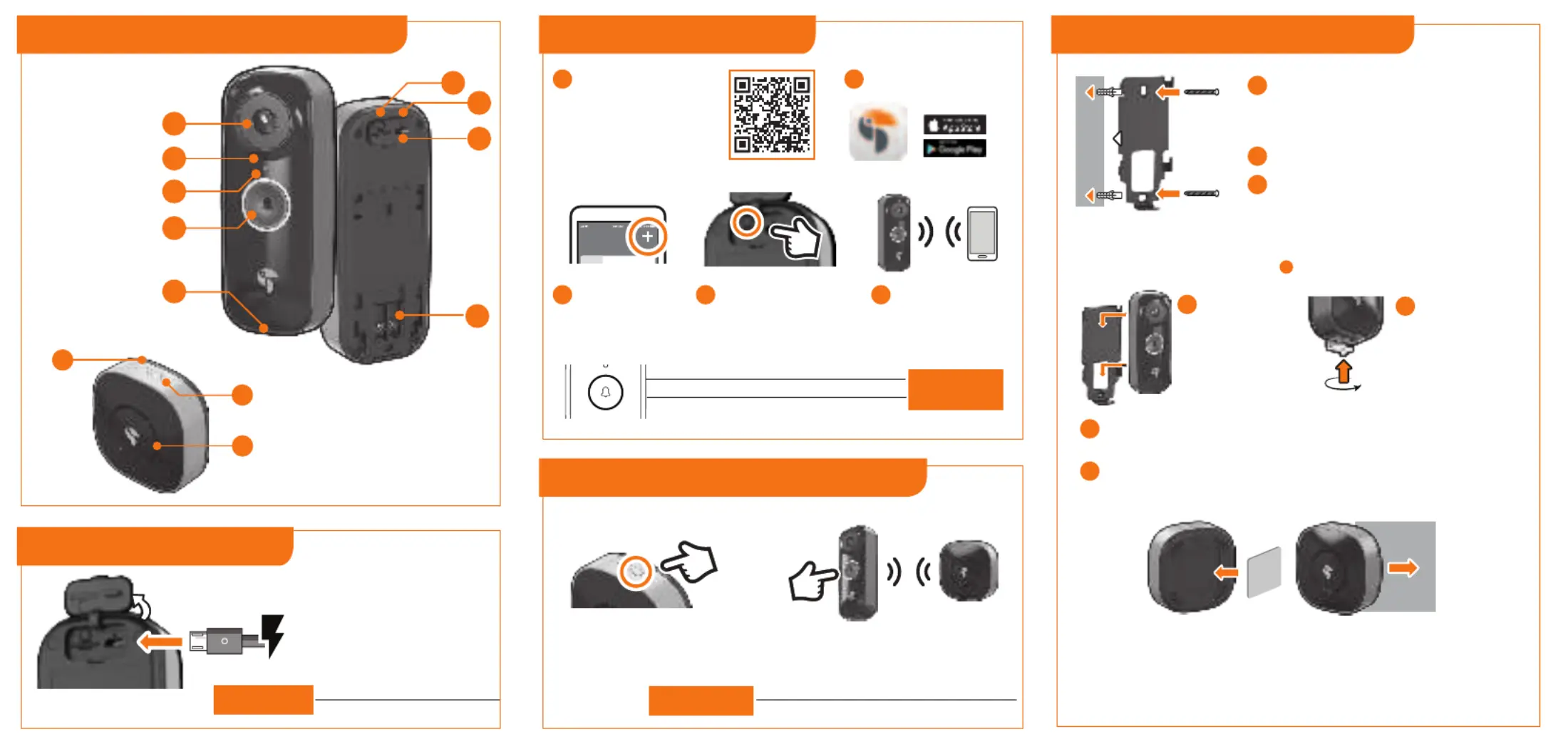

Get to know your video doorbell and chime
Charge your video doorbell
Setup your video doorbell
Pairing your chime with your video doorbell
Install your video doorbell and chime
10
12
11
5
6
1
2
3
4
9
8
7
Open the app and
create a free account
Place the
doorbell on
mounting plate
If using the “(Optional) Wiring your video doorbell”, you may now turn
the power back on for the doorbell wiring.
Place the adhesive tape on the back of the chime and stick it to the wall in
a suitable location inside your home.
If using the adhesive to mount the doorbell, please adhere to the surface and wait 24-48 hours to
enable maximum bond strength before adding the doorbell. Apply 3M adhesive to dry surfaces
only.
You can mount the doorbell using just the adhesive on UPVC, wooden or smooth surface door
frames (not suitable for brick or stone)
The Chime can be placed up to 50m from the doorbell
*
**
***
2
3
45
6
7
1 2
3 4 5
4
