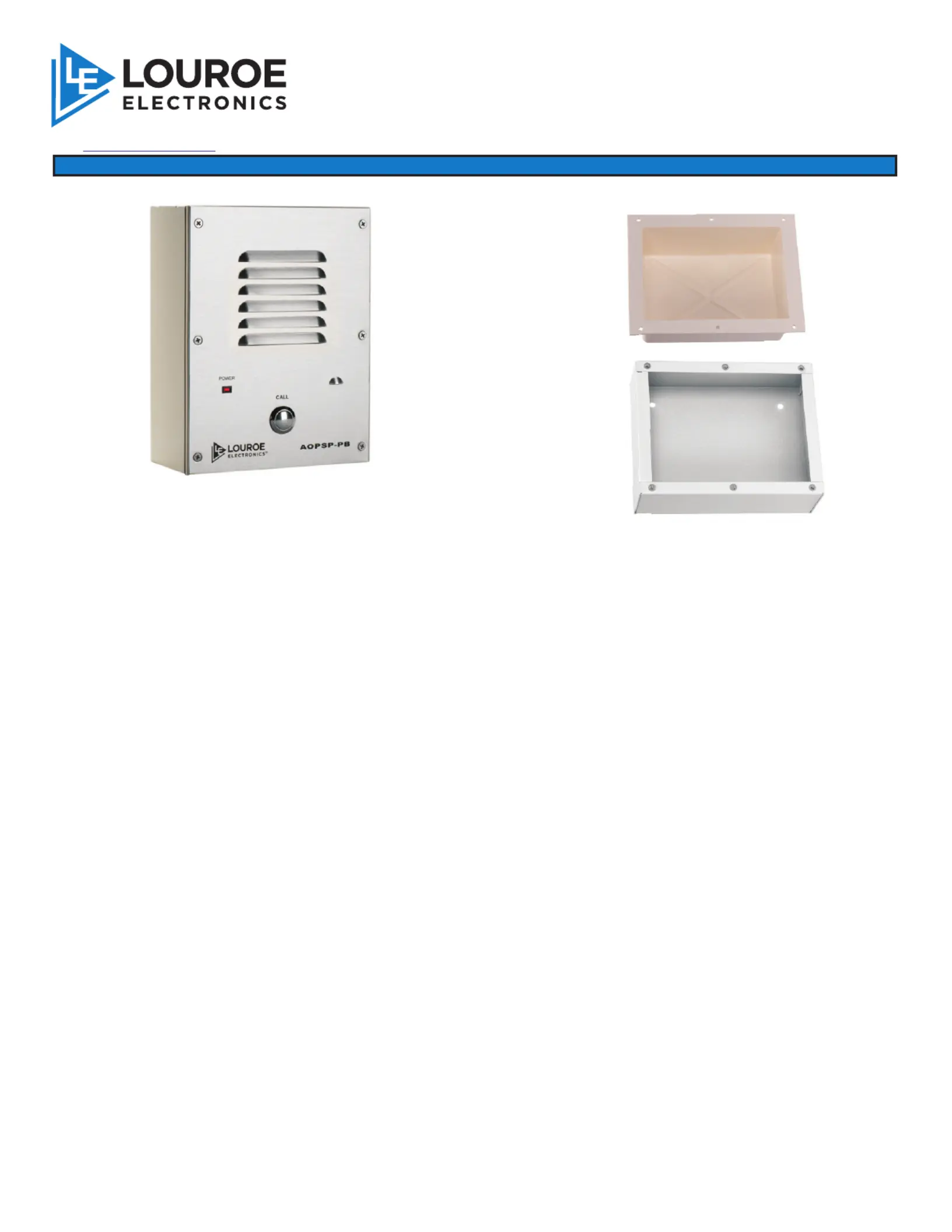

DESCRIPTION

AOPSP-PB

PLASTIC BACKBOX

(FLUSH MOUNT)

METAL BACKBOX

(SURFACE MOUNT)

OPERATIONS

Model AOPSP-PB is a wall mount two-way call stations containing a built-in line level electret condenser microphone, a

4” speaker and a 5/8 vandal resistant call button. It is designed to interface with various modes of audio/video

transmission systems such as:

IP Network Cameras

DVR’s

Video Servers

PC Soundcards

Provided with the unit are two back boxes for either flush or surface mounting to a wall. Also, a built-in call button

provides switch closure activation with the receiving device. a 12Vdc power supply is included with the the unit.

The gain of the microphone and speaker are factory adjusted. If it is necessary to change the gain of either or both the

audio output of the microphone and speaker of the unit, it has to be done in small increments. For adjusting the gain of

the microphone, rotate clockwise to increase or counterclockwise to decrease, the potentiometer marked “MIC” slowly

until the desired level is attained. Somebody at the head-end has to listen to it while the adjustments are made. If the

microphone’s gain is too high, it will attenuate the audio output of the speaker. The output of the speaker will then be

cutting off as you talk. If this happens, rotate the potentiometer marked “MIC” slowly counterclockwise to decrease the

gain of the microphone until the talkback sound at the speaker no longer cuts off.

To adjust the audio output of the speaker, rotate the “SPKR” potentiometer clockwise (increase) or counterclockwise

(decrease) slowly until the desired loudness is attained. If the audio from the microphone starts to get low, rotate the

“SPKR” potentiometer counterclockwise a small increment at a time until the microphone audio becomes louder again.

This unit has a built-in muting system that if the microphone’s is too high it is going to mute the speaker and vice versa.

aopsp-pb_inst 3/15

Page 1 of 4

AOPSP-PB

SPEAKERPHONE WITH CALL BUTTON

INSTALLATION AND OPERATING INSTRUCTIONS

6955 VALJEAN AVE, VAN NUYS, CA 91406

PH: (818)994-6498 / FAX: (818)994-6458

/ www.louroe.com

techsupport@louroe.com

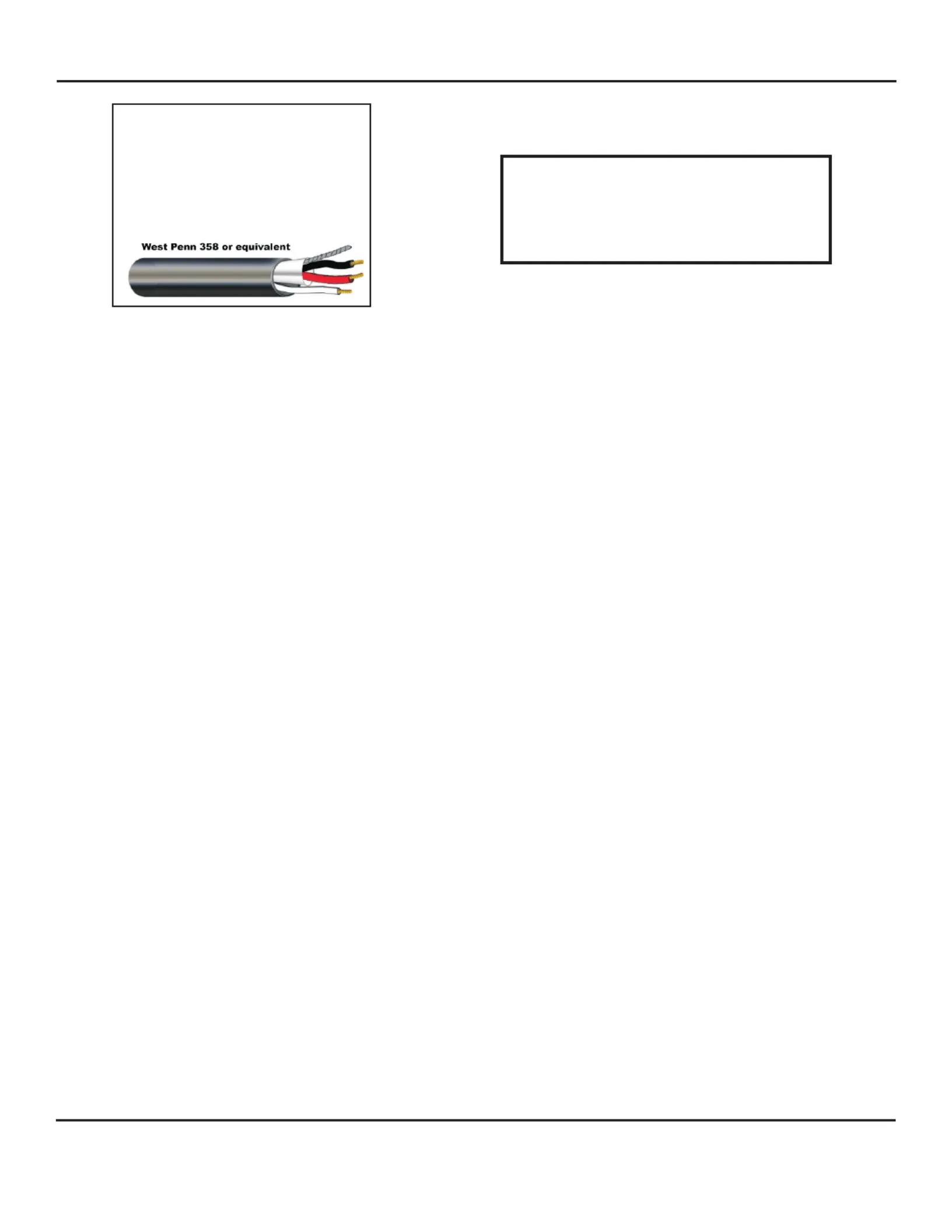

WIRING CONNECTION TO SPEAKER AND MICROPHONE OF AOPSP-PB

Connect the two wires (black and green) attached to Call Button Switch to the contacts of the

receiving device, using wire nuts and 22 gauge stranded wire. Refer to the receiving device

manufacturers instructions for proper connection.

Page 2 of 4

LOUROE ELECTRONICS® 6 9 5 5 VA L J E A N AVENUE, VAN NUYS, CA 91406 TEL (818) 994-6498 FAX 994-6458

website: www.louroe.com e-mail: sales@louroe.com

(818)

INSTALLATION AND OPERATING INSTRUCTIONS

WIRING CONNECTION TO AOPSP-PB CALL BUTTON

aopsp-pb_inst 3/15

Drill an opening top, bottom or back side

of backbox for passing wiring or for

connecting conduit.

block marked A, B, C, SP

A = 12Vdc power

B = Audio output

C = Ground (bare wire)

SP = Speaker Connection

Bring one end of recommended cable and connect as follows:

Located on the bottom right side of PC board is a 4-pin terminal

1) Connect RED wire to terminal marked “B”

2) Connect BLACK wire to terminal marked “C” (together with bare wire)

3) Connect BARE wire to terminal marked “C“

4) Connect WHITE wire to terminal marked “SP“

5) No connection on terminal “A”

WIRING REQUIREMENTS

3 Conductor consisting of:

2 Conductor , 20 gauge shielded

with 22 gauge drain

1 Conductor , 20 gauge unshielded

All in the same jacket

WIRING CONNECTION TO IP CAMERA OR DVR

POWER CONNECTION

Bring the other end of the cable to connector that matches the audio input

and outputs of the receiving devices

1) RED (positive audio) and BARE (ground) are soldered to the audio

connector (RCA, 3.5mm Mono or Stereo plugs). This connector goes

to the Audio input of the receiving device (IP Camera, DVR, etc)

2) WHITE (positive audio) and BLACK (ground) are soldered to the another

audio connector (RCA, 3.5mm Mono or Stereo plugs. This connector

goes to the Audio output of the receiving device (IP Camera, DVR,

etc).

The unit has a 2-pin terminal block for power connections marked 12Vdc

1) Connect the positive 12Vdc of the power supply (AD-1) to the terminal

marked +

2) Connect the negative or ground of the power supply to terminal marked

GRD

WIRING CONNECTION TO AOP-SP-PB

See connections on the next page

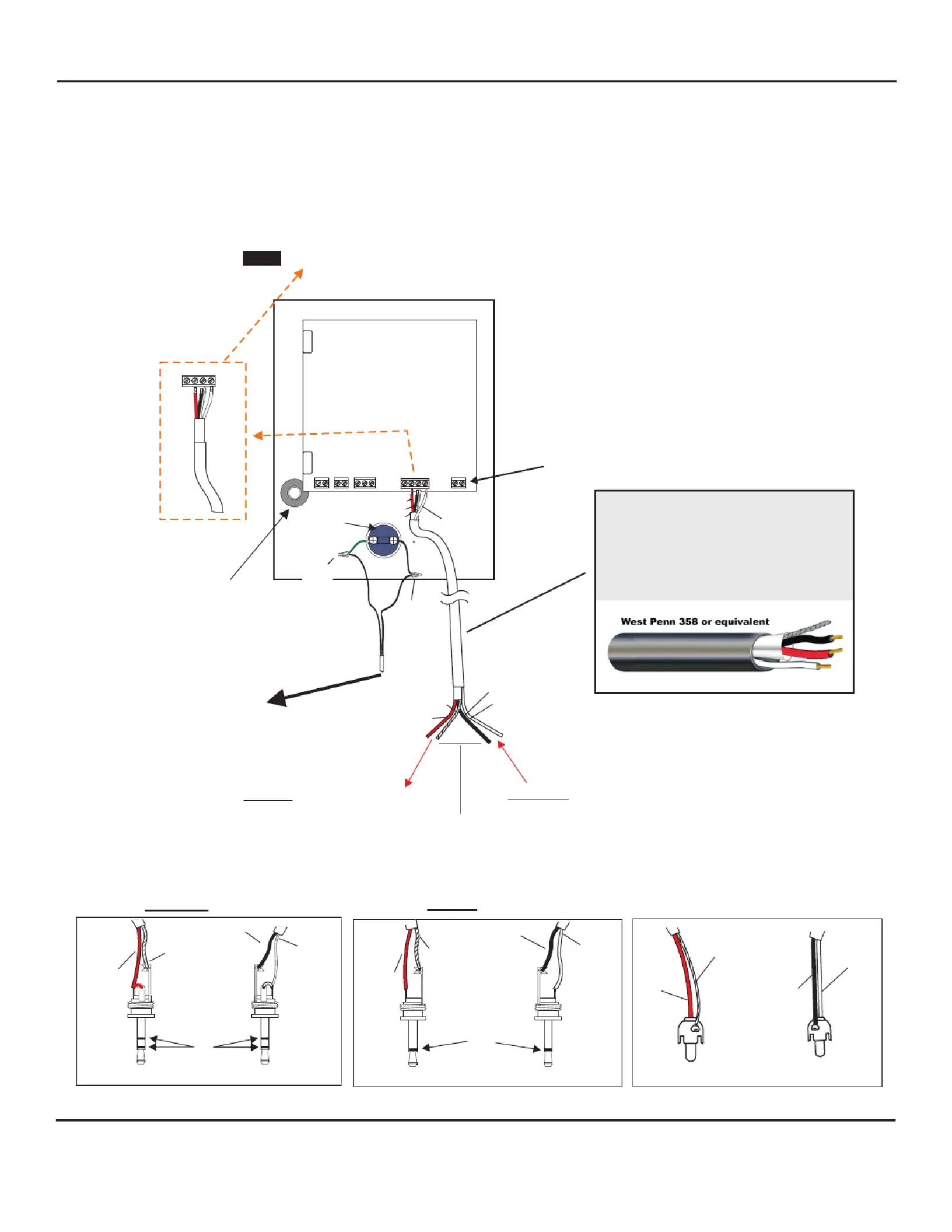

INTERCONNECTION DIAGRAM

CONNECTING LOUROE MODEL AOPSP-PB

DIRECTLY TO AN IP CAMERA, DVR,

VIDEO SERVER, ETC. USING 3-COND. SHIELDED CABLE

EXT

MIC SPKR +12Vdc

AUDIO

OUT

AUDIO

A B C

TALKBACK

ADJUST

MIC

ADJUST

SPB

LOUROE MODEL AOPSP-PB

WHITE (SP)

BLACK (C)

(B) RED

TO AUDIO OUT OF IP CAMERA, DVR, ETC.

TO AUDIO IN OF IP CAMERA, DVR, ETC.

NOTE: BLACK AND BARE WIRES ARE COMMON GROUND

BARE (C)

BLACK (C)

RED (B)

4-PIN TERMINAL BLOCK IDENTIFIER OF AOPSP-PB (A,B,C,SP)

( ) B = Audio Output

( ) C = Ground (audio) and Ground (speaker) (black wire)

( ) SP = Speaker output

A = not used with this application

red

bare

white

West Penn 358

or equivalent

SPB

WHITE (SP)

Audio Out

Audio Out Audio In

Audio In

Bare Wire

Red Wire

RCA CONNECTION

3.5mm MONO CONNECTION 3.5mm STEREO CONNECTION

White Wire

Black Wire

White Wire

Red Wire

Bare Wire

Audio Out

Audio In

Red Wire

Black Wire

White WireBare Wire

WIRING REQUIREMENTS

3 Conductor consisting of:

2 Conductor , 20 gauge shielded

with 22 gauge drain

1 Conductor , 20 gauge unshielded

All in the same jacket

CALL

BUTTON

ELECTRET

CONDENSER

MICROPHONE

TO SWITCH CLOSURE OF

AUDIO RECEIVING DEVICE

(refer to manufacturer’s

instructions for connection)

EXT

MIC SPKR

AUDIO

OUT

AUDIO

AOP-XD is not used for this application.

+12Vdc,500mA power required

(AD-1 power supply included)

Connect to this 2-pin terminal block

12 Vdc power is required to connect the AOP-SP-E directly to

an IP camera or DVR such as AD-1 power supply.

Positive 12Vdc connects to terminal marked “+”

Negative 12 Vdc or ground

connects to terminal marked “GND”

(wire with white stripes)

+12Vdc

GND

Page 3 of 4

LOUROE ELECTRONICS® 6 9 5 5 VA L J E A N AVENUE, VAN NUYS, CA 91406 TEL (818) 994-6498 FAX 994-6458

website: www.louroe.com e-mail: sales@louroe.com

(818)

INSTALLATION AND OPERATING INSTRUCTIONS

WIRE

NUT

WIRE

NUT

aopsp-pb_inst 3/15
