SolidDrive

INSTALLATION & USE GUIDE

for MSK-1, MSK-1-G, & MSK-1-SM

Sound Masking Transducer

INSTALLATION OF SOLIDDRIVE MSK-1 INTO WALLS AND CEILINGS

GETTING STARTED WITH SOLIDDRIVE

WARRANTY

WARNING

SolidDrive MSK-1/MSK-1G/MSK-1SM Specications

Type

Construction

Dimensions

Weight

SolidDrive MSK-1 In-Wall and

In-Ceiling Mounting Bracket Specications

NOTE: When installed in Canada, this product must be installed in accordance

with the Canadian Electrical Code, C22.1, Part1.

Type

Frequency Response(Hz)

Recommended Amplier Power

Dimensions

Weight

UL Listing

Full Range Sound Masking

Impedance 8 Ohm

70 Hz to 15 kHz

10 - 50 Watts

2.28'' Diameter x 4.8'' Height

Mounting Plate 3.5'' Diameter

1.2 lb / .54 kg

1480 & 2043 Pending

Patented balanced cantilever spring bracket

Heavy duty, galvanized steel

12OC – 2.0'' H x 17.5'' W x 5.0'' D

16OC – 2.0'' H x 25.5'' W x 5.0'' D

24OC – 2.0'' H x 13.5'' W x 5.0'' D

1.0 lb / .45 kg

Experience Audio Perfection

218-2127 REV-06.22.17

Induction Dynamics extensive line of audio products makes it easy to create

the ultimate audio system, regardless of installation requirements. Induction

Dynamics builds these products with only the most select components and

materials; and utilizes numerous unique and proven technologies.

SolidDrivesare guaranteed for 7 years from date of purchase. Any misuses or

modications to this equipment in any way will void the warranty.

Read instructions prior to operating. To reduce the risk of re or electric shock, do

not expose this product to rain or moisture. Unplug prior to cleaning and clean with

a damp cloth. There are no user-serviceable parts in this product, please refer all

servicing to qualied personnel.

By utilizing these basic installation steps, you can install the SolidDrive MSK-1

into walls and ceilings for a variety of sound masking applications.

What’s included with the SolidDrive MSK-1 for installation into walls and

ceilings and what is supplied by the installer —

A SolidDrive MSK-1 consists of: One (1) SolidDrive MSK-1 unit with 2 hard wire

leads and one duplex conduit connector. *Additional mounting materials may

need to be ordered with the SolidDrive MSK-1 or supplied by the installer

depending on the application.

For drywall: For in-wall and in-ceiling installation, you will have ordered one (1)

or more SolidDrive MSK-1 and one (1) or more patented acoustic in-wall

mounting brackets (one (1) bracket per MSK-1), which comes with four (4) #8-32

x 5/16'' Phillips at head machine screws for mounting the drive to the bracket.

At the time of the order, you will also have specied mounting bracket(s) in widths

of 12OC, 16OC, or 24OC (ON CENTER of wall studs or ceiling joists) for proper

width. *Installation also requires four (4) 1 3/8'' drywall screws and one (1)

container of 3M® Super 77 Spray Adhesive (supplied by the installer).

EXISTING DRYWALL INSTALLATION NOTE:

For retrotting the SolidDrive MSK-1 into existing drywall installations, it will be

necessary to remove a portion of the existing drywall before installation and to

replace the drywall after the SolidDrive MSK-1 is installed. Please refer to the

instructions marked with for the steps necessary for the EXISTING DRYWALL

type of installation. If installing the SolidDrive MSK-1 in new construction, IGNORE

the steps.EXISTING DRYWALL

STEP 1

INSTALLATION INTO EXISTING DRYWALL

For installing the SolidDrive MSK-1 mounting bracket into existing drywall, rst cut a

rectangular opening in the drywall. The minimum recommended opening size is

approximately fteen inches tall and beyond the width of the adjacent wall studs. This will

help in attaching the mounting bracket, feathering the drywall back in, and getting the

drywall to meet at the seams (Figure 1). This will allow proper distribution of sound and the

SolidDrive MSK-1 will function with optimum performance.

Figure 1

Cut an

opening large

enough to

install the

mounting

bracket to the

wall studs

MSE Audio / 8005 W 110th St / Suite 208 / Overland Park, KS 66102 / 855.663.5600 / 913.663.5600 / www.soliddrive.com

STEP 2

Attach the SolidDrive mounting bracket to wall studs or ceiling joists

STEP 3

Insert the SolidDrive into the bracket

STEP 4

Make the electrical connections

STEP 5

Apply adhesive to the drywall surface and base of the SolidDrive

STEP 6

EXISTING DRYWALL

Re-install rectangular cutout in wall

STEP 7

Install the new drywall

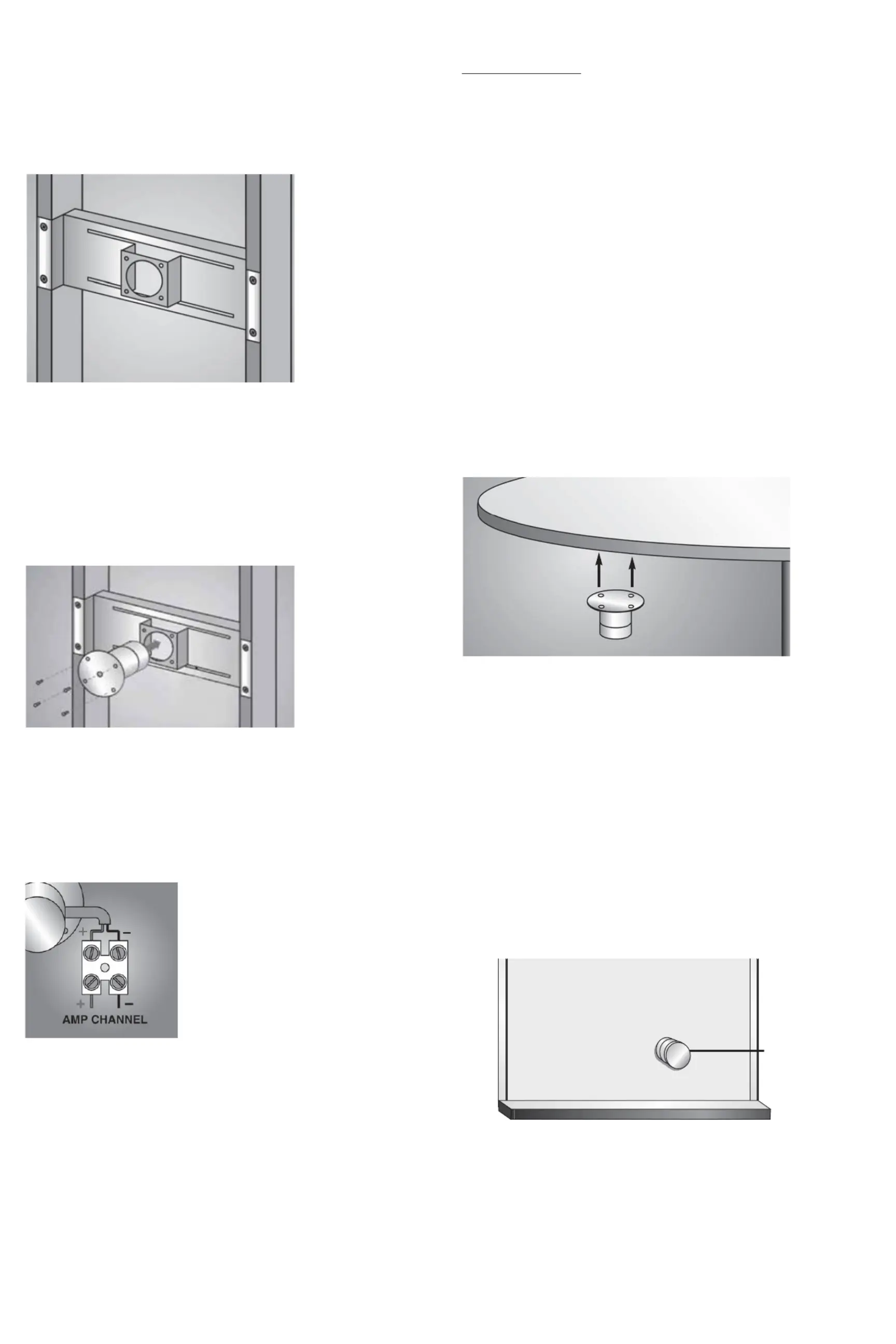

Place the mounting bracket between the wall studs or ceiling joists and secure with four 1

3/8" drywall screws. Insert the screws through the four pre-drilled holes in each ange and

screw them into the face of each wall stud or ceiling joist (Figure 2). The drywall screws need

to be driven ush with the surface of the ange so that the drywall sets ush on the bracket

ange.

Figure 2

SolidDrive

MSK-1

mounting

bracket

attached to

the wall studs

Feed the SolidDrive cable through the round opening in the face of the mounting MSK-1

bracket. Insert the SolidDrive through the same opening with the oversized MSK-1

mounting base facing outward toward the side that the drywall will be installed and ush

against the bracket face. Align the pre-drilled holes in the mounting base to the threaded

holes in the bracket face (Figure 3). Attach the SolidDrive securely to the mounting MSK-1

bracket using the 4 Phillips at head machine screws.

Figure 3

SolidDrive

MSK-1 being

installed into

the mounting

bracket

If possible, position the drywall panel so that the SolidDrive is at the center of the MSK-1

panel or as far from the edge of the panel as possible. This will allow proper distribution of

sound and the SolidDrive will function with optimum performance. Prior to MSK-1

mounting, take measurements of the new drywall panel to determine the exact area that

will come in contact with the base of the SolidDrive and spray that area liberally MSK-1

with the 3M® Super 77 contact spray adhesive. Also, liberally spray the surface of the

oversized mounting base of the SolidDrive (masking around the base is highly MSK-1

recommended to prevent overspray). NOTE: Failure to apply the adhesive to both the

drywall surface and oversized mounting base will prevent the system from functioning

properly.

Make the electrical connection between the SolidDrive and the speaker cable using MSK-1

the included Eurostyle connector. Be sure to observe proper polarity when connecting the

SolidDrive MSK-1. NOTE: When installed in Canada, this product must be installed in

accordance with the Canadian Electrical Code, C22.1, Part1.

For re-installing the rectangle drywall panel that was cut out to install the SolidDrive

MSK-1, it is important to create a uniform seal between the cut drywall and the existing

drywall. This will allow proper distribution of sound and the SolidDrive will function MSK-1

with optimum performance. Apply fast setting joint compound, not vinyl based, in the

space between the cutout section and the existing drywall panel. Make sure to ll the

space completely with drywall compound then proceed with the normal taping, sanding

and nishing routine.

Immediately install the new drywall before the spray adhesive sets up (approximately 10

minutes). This allows adjustment of the panel before the nal location is determined. The

drywall panel is to be tted to the wall studs or ceiling joists and screwed into position.

Apply joint compound in the space between the drywall panels and proceed with the

normal taping, sanding and nishing routine. The joint compound lled between the

panels will improve the distribution of sound as well as overall sound quality.

Figure 4

By utilizing these basic installation steps, you can install the SolidDrive MSK-1sm on

wood, laminate, composites, and other porous surfaces. The MSK-1sm is commonly used

on desks, conference tables, cabinetry, and other furniture.

INSTALLATION OF SOLIDDRIVE MSK-1sm TO WOOD SURFACES

Figure 1

Mounting the

SolidDrive

MSK-1sm to a

table.

Once you have determined where to mount the SolidDrive MSK-1sm, spray a thin layer of

3M® Super 77 adhesive on the bottom of the SolidDrive, then use the appropriate length

wood screws to attach it securely to the surface. The adhesive improves the sonic

transmission between the drive and the surface. The best mounting location is typically

out of sight on the underside or back of desks, counter tops, conference tables, or other

ofce/home furniture. The four pre-drilled mounting holes on the SolidDrive MSK-1sm

oversized mounting base will hold screws as large as #9. Refer to Step 4 for electrical

connections.

Some installations may require that pilot holes be drilled into the surface material due to

its hardness, especially if larger, coarse thread screws are used.

For installation on glass surfaces, the SolidDrive MSK-1g comes with a VHB double-sided

adhesive disc.

INSTALLATION OF SOLIDDRIVE MSK-1g TO GLASS SURFACES

The SolidDrive MSK-1g should be mounted in an inconspicuous location of the window.

Simply apply the VHB pad that comes with the drive to the base of the drive (the side

opposite the label). Remove one side of the protective layers from the VHB disc and apply

to the base of the MSK-1g. Then remove the other protective layer and apply to glass

surface with moderate pressure. Refer to Step 4 for electrical connections.

When mounting the SolidDrive on the window, keep it about 4 to 6 inches from the window

frame. The SolidDrive MSK-1g will have maximum output with at least 20 square feet of

window surface space.

Figure 1

Mounting the

SolidDrive

MSK-1g to

glass.
