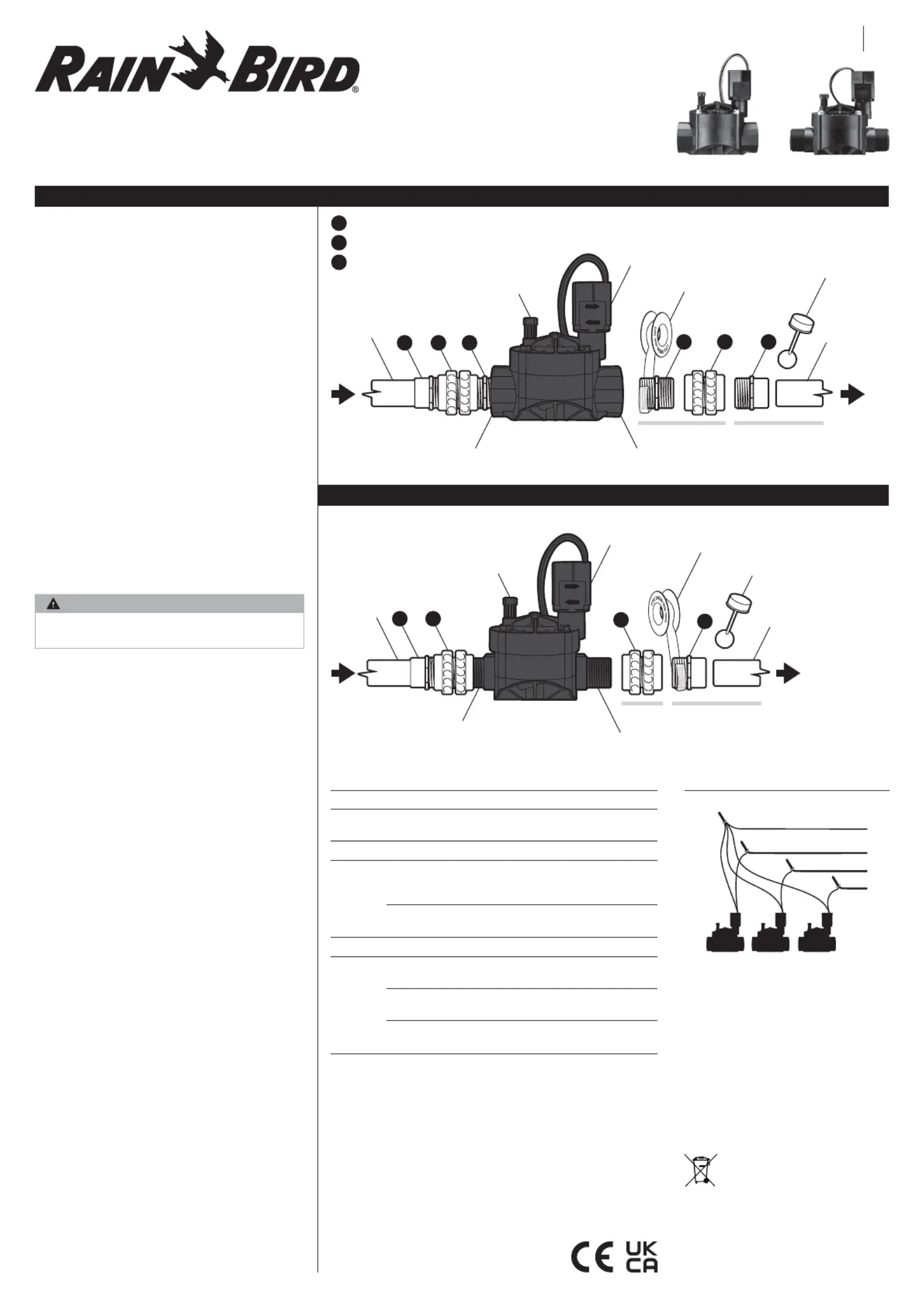

INSTALLATION INSTRUCTIONS
HIGH VALUE IN-LINE VALVE CPHVVBSPMMCPHVVBSPFF
Male x Male adapter
Female threaded union
Male x Slip adapter
O N
O FF
MANUAL
1/4 TURN
Solenoid PTFE thread-seal tape
Bleed screw
Inlet
Outlet
BASICRECOMMENDED
Flow Sprinklers
System
pipe
System pipe
PVC glue
BB
CC
O N
O FF
MANUAL
1/4 TURN
Solenoid
Bleed screw
Inlet Outlet
PTFE thread-seal tape
BASICRECOMMENDED
PVC glue
Flow Sprinklers
System
pipe System
pipe
A
B AC B C
CPHVVBSPFF 26 x 34 mm
CPHVVBSPMM 25 mm
ENENGLISH
A
B
C
WASTE ELECTRICAL AND
ELECTRONIC EQUIPMENT (WEEE)
This symbol means that end of life
electrical and electronic equipment
(WEEE) should not be mixed with general household
waste. For proper treatment, recovery and recycling,
please take this product to designated collection
points. Rain Bird has met its national obligations
to the EU WEEE Directive by registering in those
countries to which Rain Bird is an importer. Rain Bird
has also elected to join WEEE Compliance Schemes
in some countries to help manage customer returns
at end of life.
1
2
3
1 2 3
COMMON
TROUBLESHOOTING
Problem Leaks at the valve
Solution Check pipe ttings, solenoid, bleed screw, etc. Retighten or
replace as required.
Problem Leaks at sprinkler heads (valve doesn’t close)
Solution Possible cause 1: Debris.
Open the bleed screw. Flush one minute. Open the solenoid.
Flush ve minutes.
Possible cause 2: External leaks at the valve.
See above.
Problem Sprinklers do not turn on (valve doesn’t open)
Solution Possible cause 1: Damaged or disconnected wire.
Inspect and repair as required.
Possible cause 2: Damaged solenoid.
Replace solenoid. Kit # SRKCP/CPF.
Possible cause 3: Damaged diaphragm.
Remove bonnet (top) and replace diaphragm. Kit # DRK-JTV.
NOTE: During winter shutdown, drain the system to protect HV valves
from freezing.
WIRING
TECHNICAL SPECIFICATIONS
Flow 0.05–6.82 m3/h (0.8 –113 l/min)
Pressure 1.0 –10.3 bar (15–150 psi)
Electrical 24 VAC (50/60 Hz)
BEFORE INSTALLING VALVE
• Make sure you have sucient water supply, pressure,
and ow.
• Flush system until water runs clear.
• For best performance, install a pressure regulator if
water pressure exceeds 10.3 bar (150 psi).
• If water source has sediment, install a 100 mesh or ner
lter.
• Do not use with water exceeding 43.3° C (125° F).
Refer to local building codes for other plumbing and
electrical requirements.
INSTALLATION STEPS (Outdoor Use Only)
Connect Pipe and Adapters to Valve
TIP: Using pipe unions (B) on both the inlet and outlet side
of the valve as shown will greatly simplify installation and
allow retightening to correct for leaks. Unions will also permit
connections to be preassembled on a benchtop and enable
easier valve maintenance/replacement in the future.
1. Apply PTFE thread-seal tape to all male threads (A and C).
DO NOT USE pipe sealant paste which will damage your
system. Assemble in the order shown and tighten.
2. Tighten the union (B) collars and test t the entire
assembly in the valve box.
CAUTION
Make sure the valve arrows face correctly in direction
of ow.
3. When satised with t of all components, clean the ends
to be glued with primer and apply solvent glue.
Connect Valve Wires
TIP: Use watertight connectors (gel caps) and multi-strand
direct burial wire only.
4. Connect the common wire from the controller (typically
white) to one of the two wires from valve solenoid. It
does not matter which wire you use.
5. Attach the valve’s remaining wire lead to the strand color
for that zone.
Operate Valve Manually
6.
To ush the valve, turn on water and open bleed screw for
one full minute (this will ush smaller debris).
7.
Tighten bleed screw and test system. If valve does not
close fully, check solenoid and bleed screw for leaks.
8. If valve still does not close fully, remove bonnet, ush
and reinstall.
Made in Mexico
RAIN BIRD CORPORATION
6991 East Southpoint Road, Tucson, AZ 85756, USA
UK Authorised Representative
Comply Express Ltd , Unit C2, Coalport House, Staord Park 1,
Telford TF3 3BD, UK
Imported in EU by RAIN BIRD EUROPE
Bât A, Parc Clamar, 240 rue René Descartes - BP 40072 -
13792 Aix-en-Provence, CEDEX 3, France
www.rainbird.com
® Registered trademark of Rain Bird Corporation
© 2022 Rain Bird Corporation
Rev. 09/22
