Radial Engineering HotShot DM1 Handleiding
Radial Engineering
Splitter
HotShot DM1
Lees hieronder de š handleiding in het Nederlandse voor Radial Engineering HotShot DM1 (2 pagina's) in de categorie Splitter. Deze handleiding was nuttig voor 2 personen en werd door 2 gebruikers gemiddeld met 4.5 sterren beoordeeld
Pagina 1/2
www.radialeng.com
Radial Engineering
1638 Kebet Way, Port Coquitlam BC V3C 5W9
Tel: 604-942-1001 Fax: 604-942-1010
email: info@radialeng.com
HotShot DM1
Ownerās Manual
True to the Music
Radial Engineering is a division of Cā¢TEC (JP CableTek Electronics Ltd.)
Radial HotShot DM1 users guide Sept.. 2005, V1.0 - Part #: R870 1100 00
Subject to change without notice
123
5 4
HotShot DM1 User GuideRadial Engineering
RADIAL LIMITED THREE YEAR TRANSFERABLE WARRANTY
Radial Engineering - a division of JP Cabletek Electronics Ltd. warrants this product to be
free from defects in material and workmanship to the original owner and will remedy any
such defects free of charge according to the terms of this warranty. Radial Engineering
will repair or replace at its option any defective component(s) of this product, excluding the
ļ¬nish, the footswitch (footswitch is warranted for 90 days) and wear and tear from normal
use, for a period of three (3) years from the original date of purchase. In the event that a
particular product is no longer available, Radial Engineering reserves the right to replace
the product with a similar product of equal or greater value. To make a request or claim
under this limited warranty, the product must be returned prepaid in the original shipping
container (or equivalent) to Radial Engineering or to an authorized repair centre and you
must assume the risk of loss or damage. A copy of the original invoice showing date of
purchase and the dealer name must accompany any request for work to be performed
under this limited warranty. This limited warranty shall not apply if the product has been
damaged due to abuse, misuse, misapplication, accident or as a result of service or
modiļ¬cation by any other than an authorized repair centre.
THERE ARE NO EXPRESSED WARRANTIES OTHER THAN THOSE ON THE FACE
HEREOF AND DESCRIBED ABOVE. NO WARRANTIES, WHETHER EXPRESSED
OR IMPLIED, INCLUDING BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE SHALL EXTEND
BEYOND THE RESPECTIVE WARRANTY PERIOD DESCRIBED ABOVE OF THREE
YEARS.
RADIAL ENGINEERING SHALL NOT BE RESPONSIBLE OR LIABLE FOR ANY SPE-
CIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LOSS ARISING FROM THE
USE OF THIS PRODUCT. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS,
AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH MAY VARY DEPENDING ON
WHERE YOU LIVE.
HotShot DM1 User GuideRadial Engineering
1
2
3
4

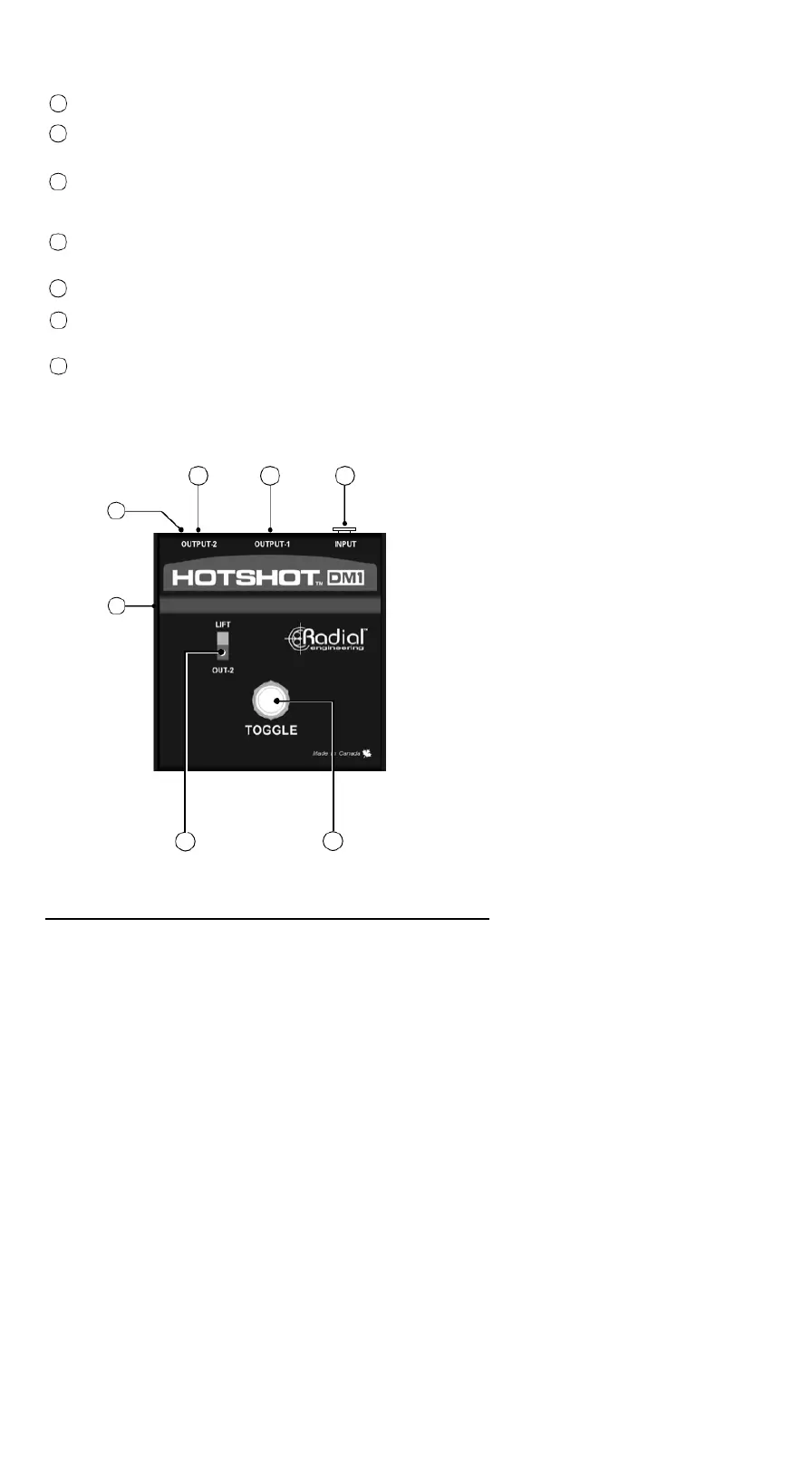

INPUT jack connects from a dynamic mic.
OUTPUT-1 connects to main console or 1st channel. This
output is normally active.
OUTPUT-2 connects to sub-mixer or main console
2nd channel. This output is active only when the toggle
footswitch is held down.
TOGGLE footswitch is momentary and routes the mic
signal to output-2 when depressed.
LIFT switch disconnects the ground on pin-1 of output-2.
14 gauge steel enclosure is compact and made for heavy-
duty stage use.
Rugged glass-ļ¬lled nylon XLR connectors are 100%
isolated to help reduce ground loops.
7
6
5
CAUTION: PLEASE READ THE IMPORTANT NOTICE ON
THE BACK COVER BEFORE USING THE HOTSHOT DM1
FEATURE AND FUNCTIONS
7
6
IMPORTANT NOTICE!
The DM1 is designed for dynamic microphones and is not intended
for use with condenser microphones. Before you start it is impor-
tant that you understand that since there are literally thousands of
different sound system variables, we have no way of checking how
the HotShot DM1 is used in the ļ¬eld.
You are responsible to ensure the safe and proper use of the DM1.
Using the DM1 conļ¬rms you have taken full responsibility. If you
are not 100% sure of your actions, please consult a qualiļ¬ed tech-
nician for advice.
Order # R800 1500
the gain of the two mixer channels so there is no noticeable difference in level when switching
the DM1.
Always begin by testing at a low volume level to make sure you do not encounter any pops or
clicks when the DM1ās footswitch is depressed. If you do hear pops or clicks, check for phan-
tom power to make sure it is off. If you hear any hum, try engaging the ground lift switch.
USING THE RADIAL HOTSHOT DM1
The concept is simple: Connect the DM1 to two mixer channels. Set the ļ¬ rst channel to route
the signal to the main PA and monitors. Set the second channel to route the signal only to the
monitors. Place the DM1 at the base of the microphone stand where the performer can use the
footswitch. When the DM1 footswitch is not depressed, the microphone will work as it normally
does and the signal will go to the main PA system and monitors. When the switch is depressed,
the DM1 mutes OUTPUT-1 and redirects the signal to OUTPUT-2. The microphone will be
muted in the main PA system as long as the footswitch is held down. Releasing the footswitch
will revert to normal operation. Again, before you turn the volume up, begin by testing the DM1
to make sure the transition is smooth and noise-free during your sound check.
USING THE DM1 WITH A SUB-MIXER
If you are limited for extra channels on your mixer you can use the DM1 with a sub-mixer.
This is a popular setup for bands that have each performer equipped with in-ear monitoring
systems. A sub-mixer also will make it easier to interface multiple DM1s with a venueās PA and
monitor systems.
Follow the same basic instructions as outlined, only this time, connect OUTPUT-2 from each
DM1 to a sub-mixer which combines the signals to one channel on your main or monitor mixer.
This setup allows you to consolidate all of the āintercomā channels, saving valuable inputs on
your mixer.
USING THE DM1 AS A COUGH MUTE
The DM1 can be used as a cough mute by simply not connecting OUTPUT-2. Connect OUT-
PUT-1 as above to the main PA system. Leave OUTPUT-2 disconnected. The microphone
can now be muted whenever the footswitch is depressed. A simple solution for headset and
lavalier mic users!
CONGRATULATIONS on your purchase of the Radial HotShot DM1. The Radial HotShot DM1
is a foot-controllable device that allows a vocalist to mute his or her microphone and redirect the
signal to a second output to allow communication through the monitor system, in-ear wireless
system or intercom.
Designed speciļ¬ cally for dynamic microphones, the DM1 is completely passive and does not
require any power. The foot selector switch is momentary, which means that the switching only
occurs when the footswitch is depressed. This eliminates the need for indicator lights and bat-
teries or external power.
Typical applications include muting the FOH (front-of-house) microphone to speak to other
musicians through the in-ear monitoring systems, muting the FOH to speak with technical staff
or muting a mic for a cough.
CONNECTING THE RADIAL HOTSHOT DM1
Before making any connections, please conļ¬ rm the sound system is powered off and the vol-
ume controls are turned all the way down.
Following the simple block diagram below, connect a dynamic microphone to the INPUT of the
DM1. Connect OUTPUT-1 to the ļ¬ rst channel of your mixer. Set this ļ¬ rst mixer channel to route
the signal to the main PA and monitors. Connect OUTPUT-2 to a second channel on your mixer.
Set this second channel to route the signal only to the monitors. With this setup, depressing the
DM1ās footswitch will effectively mute the microphone signal from the main PA mix. This allows
the musician using the microphone to speak with the other musicians or technical staff through
the monitors without the audience listening in.
TESTING THE RADIAL HOTSHOT DM1
At this point, your sound system should be turned off and the level controls at minimum. Make
sure the 48V phantom power is turned off on the channels that you are connecting
the DM1 to. Phantom power could cause loud pops in your sound system when the DM1 is
switched. You are now ready to turn on your sound system and test the DM1 to make sure it
works with your equipment.
Turn on your sound system. If this is the ļ¬ rst time youāre using the DM1 we suggest testing with
two mixer channels set identically so that the DM1 directs both its outputs to the same speaker
system. This way, you can minimize options when troubleshooting. It is a good idea to match
HotShot DM1 User GuideRadial Engineering HotShot DM1 User GuideRadial Engineering HotShot DM1 User GuideRadial Engineering
FAQ
Can I use the DMI with a battery or phantom powered microphone?
Although the DM1 may work in some cases with condenser mics, we do not recommend it due to
power on/off transients which could cause the sound system to pop when switching. To be safe,
only use the DM1 with dynamic mics.
Why are there no light indicators on the DM1?
The DM1 is designed to be a discreet switcher that allows band members to speak among
themselves on stage or to technicians. A bright light going on and off during a performance can
distract the audience from the performance.
Can I accidentally leave the DM1 on?
No. The footswitch is momentary which means that it only works when it is being depressed.
This way, the only time it will mute is when you physically have your foot on the switch. This
completely eliminates the need for indicator lights.
Why should I be concerned about popping noise in the sound system?
When PA systems are turned up, a loud transient could potentially cause a tweeter to blow. By
testing the DM1 at low volume levels to make sure the DM1 does not cause any loud transients
like pops or clicks, you eliminate this concern.
Should I be worried about using the DM1 and the potential for pops causing system
failure? No. We only underline this potential for problem so that you follow proper set-up
procedures and avoid these concerns all together. The DM1 essentially works like an ON-OFF
switch that is found on some microphones. Follow the setup procedures as outlined above and
you should be ļ¬ ne.
Can the HotShot be used in complex sound systems where there are separate FOH and
monitor mixers connected with a splitter snake?
Yes. The principal remains the same as when using the DM1 with a sub-mixer, only the HotShotās
OUTPUT-1 connects to the main splitter snake which passes the signal to both the FOH and
monitor consoles. The following illustration outlines the basic connections for several HotShots
in such a situation.
Output-1
Mixer Ch 2
PA system
Monitor system
HotShot DM1
Footswitch
Mixer Ch 1
Output-2
Sub-mixer
Main Console Ch 1 PA system
Monitor system
HotShot DM1
Footswitch
Output-1
Output-2 Main Console Ch 2
Monitors Wedges
DM1 Output-1 connects
to main splitter snake.
Vocal 1 Vocal 2 Vocal 3 Vocal 4
DM1 Output-2
connects to
sub-mixer.
Sub-mixer
connects
to monitor
console.
Sub-mixer
FOH SplitMonitor Split
