Pagina 1/3

- 1 -- 4 -

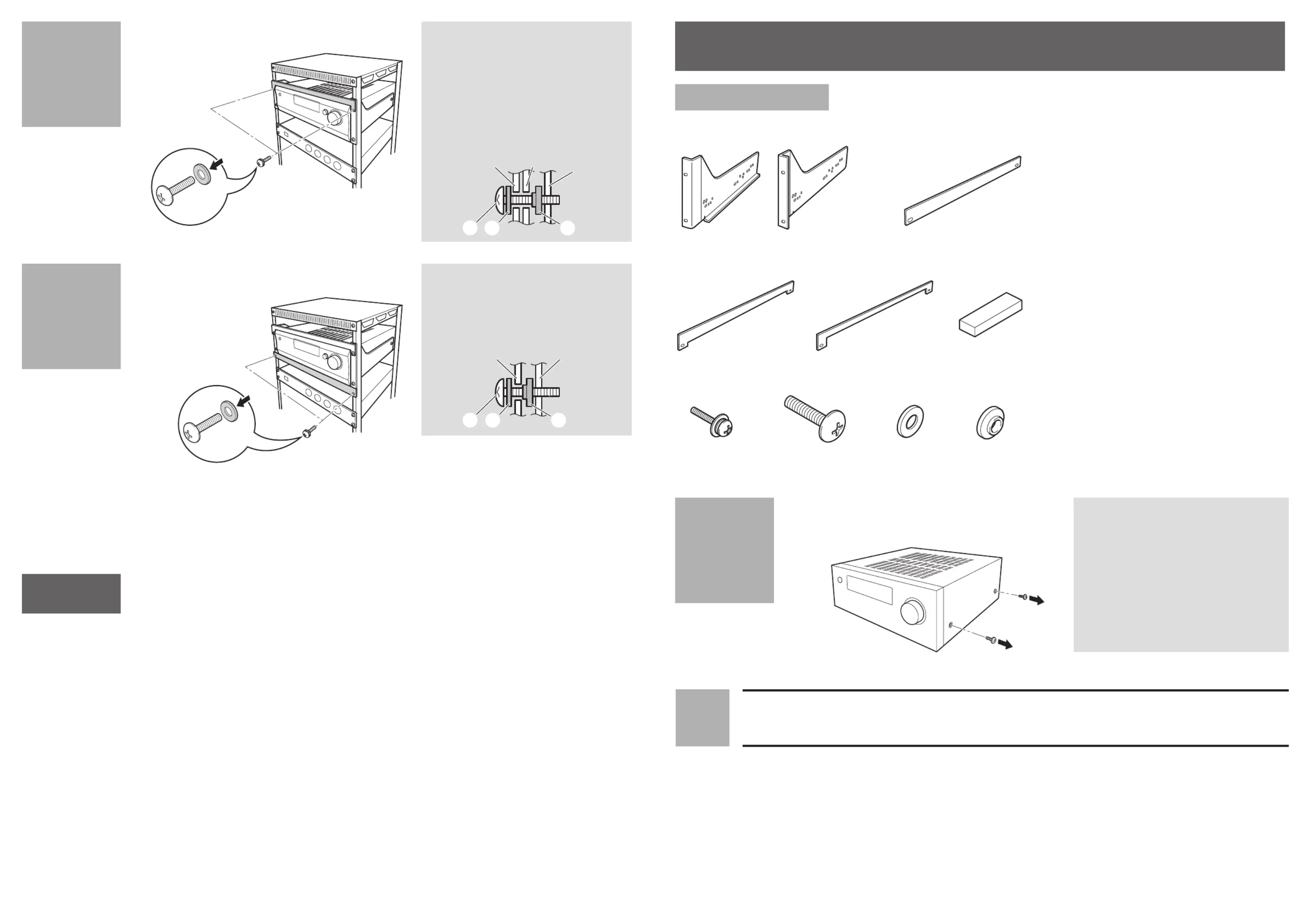

Rack Mount Kit Instruction Manual

PARTS ENCLOSED

1. Rack Mount Panels

･ Actual panels may vary by model.

2. Blank panel A

Blank panel B (For 120 mm (4.7") height model)

Blank panel (For 130 mm (5.1") height model)B

5. Spacer (For 130 mm (5.1") height model)

6. Screws A

･ For attaching the Rack Mount Panles to the

Unit (STEP 2).

7. Screws B

8. Washers A

9. Washers B

1 ×

× 1

× 4 × 6 × 6 × 6

1 ×







   



Remove screws from the right side

of the cover. Do not remove feet from the

unit. Remove side screws only

from cover as indicated.

STEP

CAUTIONS

* Not suitable For In-Wall Mounting.

* Do not ground through the rack mount.

* Do not mount the unit to the rack alone, need one more person to hold the unit.

* Read "Important Safety Instruction" in the instruction manual and install the audio product with caution to avoid blocking its

ventilation.

Improper installation may cause a re or injury.

1. Ensure that there is adequate ventilation above and below the unit.

(according to the unit's instruction manual.)

2. For products that have vents on the side panels, please do not obstruct, in order to allow for ventilation.

3. Do not cover the ventilation holes on the unit installed.

4. For products that generate heat, such as an Amplier or Receiver, please use a minimum of one "U" (1.75") blank panel (or

space) above and below product for ventilation.

For best performance, it is recommended that DVD/CD players should be rack mounted below receivers to protect laser

mechanisms.

5. If rack is installed in a warm or enclose environment, use a cooling fan for ventilation.

* Please use caution when rack mounting products. To balance the weight and to keep the center of gravity as low as possible (in

order to keep from being too top heavy) mount heavier products towards the bottom of the rack.

SN29356000 F1803-0

STEP

Mount the blank panel B.

Mount the blank panel A.



 





More than one person is

needed for this step.

Please ensure that tack screw

and washers are assembled

as shown below to avoid

grounding through the rack

mount and blank panel B.

Please ensure that tack screw

and washers are assembled

as shown below to avoid

grounding through the blank

panel A.

Rack Mount

Panel

Blank

Panel B

Rack

  

Blank Panel A Rack

  

Please mount

panel with

sticker on back

side, oriented

as indicated on

sticker.

If the height of the unit being mounted is 155 mm (6.1") (âP2)

If the height of the unit being mounted is 120 mm (4.7") or 130 mm (5.1") ( âP3 - 4)

STEP

- 2 - - 3 -

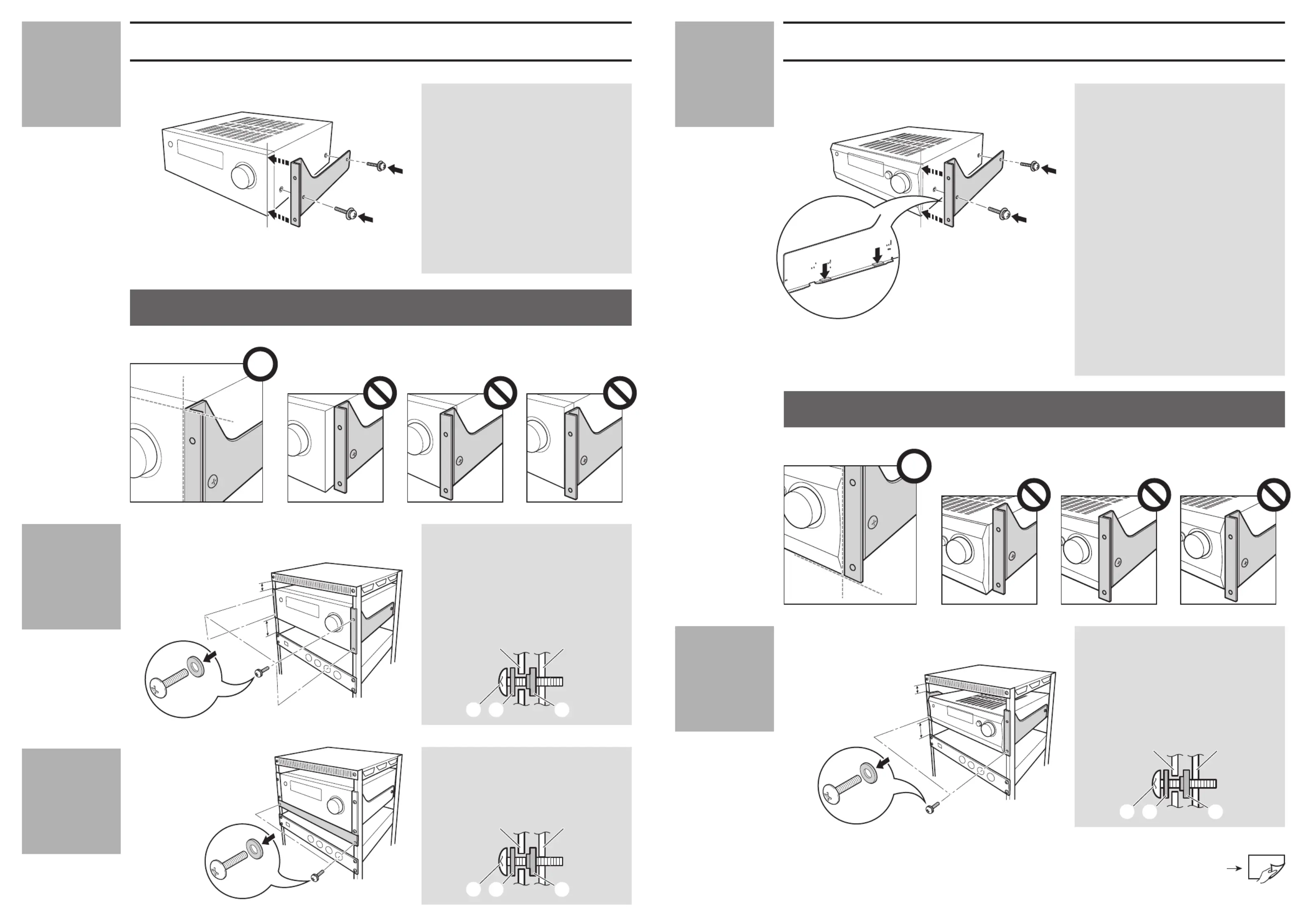

Align the rack mount to front panel of

the unit.

Align the rack mount to front panel of

the unit.

Repeat the same procedure (step 1 - 2)

for the left side.

Repeat the same procedure (step 1 - 2)

for the left side.

Caution !

Make sure to use correct screw type and the rack mount panel is positioned correctly.

Align the top corner of the rack

mount panel to the top of the

front panel rst then align it

vertically to the front panel.

After installing the rack mount

panel on the right side, repeat

the same procedure (step 1 - 2)

for the left side.

Align the bottom corner of the

rack mount panel to the bottom

of the front panel rst then align

it vertically to the front panel.

After installing the rack mount

panel on the right side, repeat

the same procedure (step 1 - 2)

for the left side.

STEP STEP

2 2

When you install the rack mount panels, do not use any screws

other than those included in the package.

STEP

Mount the unit to the rack system.

Mount the blank

panel A.

Please see caution

section (âP4)

for ventilation

specics.

Please ensure that tack screw

and washers are assembled as

shown below to avoid grounding

through the blank panel A.

Please mount

panel with

sticker on

back side,

oriented as

indicated on

sticker.











For 155 mm (6.1") model For 120 mm (4.7") and 130 mm (5.1") model

More than one person is

needed for this step.

Please ensure that tack screw

and washers are assembled as

shown below to avoid grounding

through the rack mount.

Rack Mount Panel Rack

  

Blank Panel A Rack

 

STEP

Mount the unit to the rack system.

Please see caution

section (âP4)

for ventilation

specics.



More than one person is

needed for this step.

Please ensure that tack screw

and washers are assembled as

shown below to avoid grounding

through the rack mount.

Rack Mount Panel Rack

  







If the height of the unit is

130 mm (5.1"), rst afx the

Spacers in the locations indi-

cated in the illustration at

left.

Caution ! When you install the rack mount panels, do not use any screws

other than those included in the package.

STEP

4 - 5
