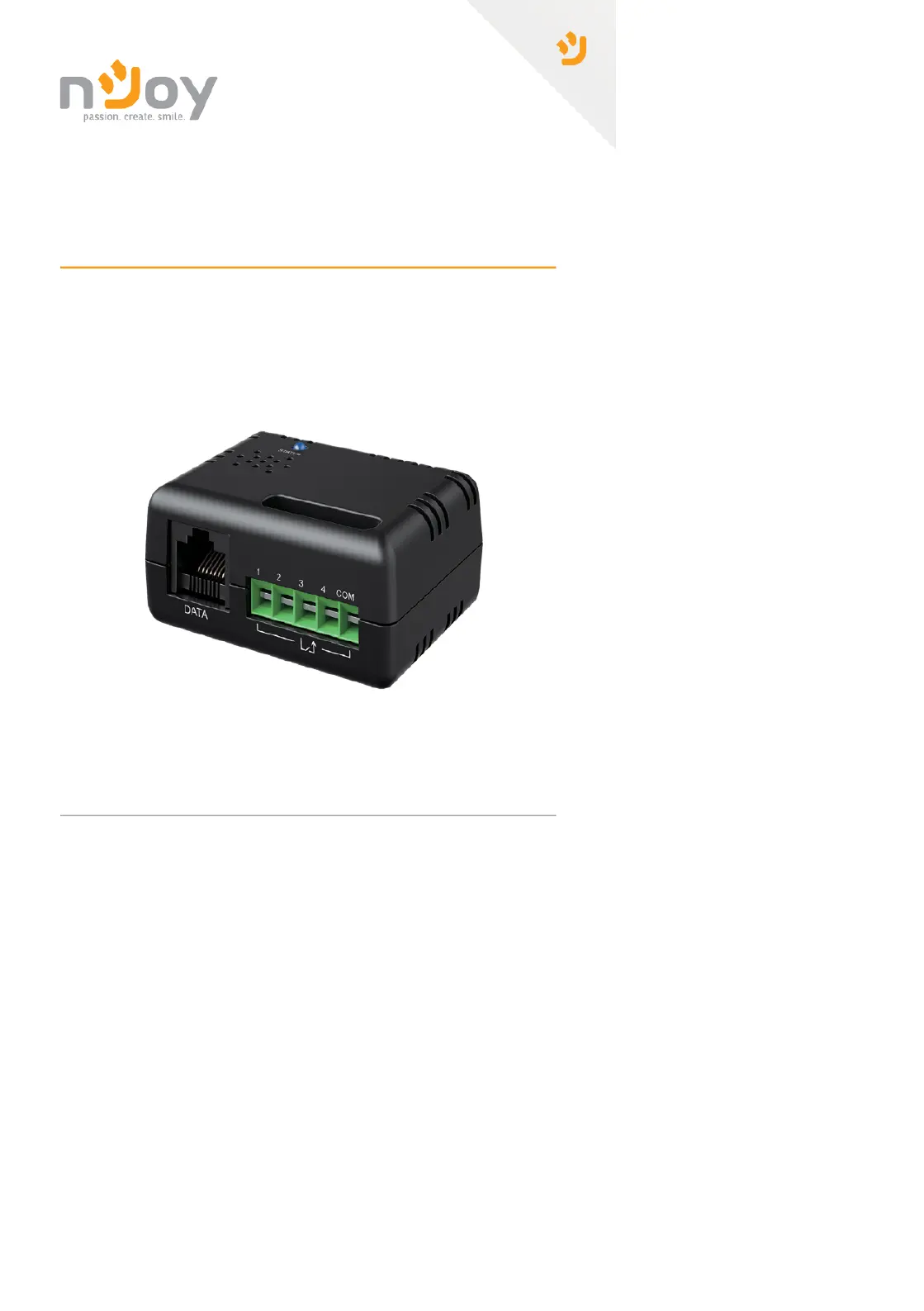

Sensor Box (Temperature & Humidity)
User manual
UPAC-TEMPHUM-CG01B
Before using this product, carefully read all product documentaon and retain it for future reference.
111.0
2
Table of contents
EN
1. Package contents ...................................................................................................... 3
2. Product overview ...................................................................................................... 4
2.1 Product Features ............................................................................................ 4
3. Technical Specicaons .......................................................................................... 5
4. Installaon Guide ...................................................................................................... 6
4.1 Method 1: Hook and Loop Tape Mounng ................................................ 6
4.2 Method 2: Fixed Mounng .......................................................................... 7
5. Conformance Approvals ......................................................................................... 8
5.1 FCC Warning ................................................................................................... 8
6. Troubleshoong ........................................................................................................ 9
7. Appendix ................................................................................................................. 10
7.1 Input Dry Contact Applicaon .................................................................. 10
4
Product overview2
The environmental monitoring sensor (EMS-U01) along with selected Power
Management Cards (PMCARD) enables users to monitor the temperature
and humidity of a server closet and/or data center remotely. Addionally, the
EMS-U01 provides 4 input dry contacts that enable users to monitor the sta-
tus of connected devices, such as door switch sensors.
Features include:
• Real me environment monitoring
• Remote management and conguraon of the sensor via Web Browsers
or NMS
• Automac events nocaon via email, SMS and SNMP traps
• 4 input dry contacts applicaon interface provided
• Displays the name and locaon of the sensor and connected devices
2.1. Product Features
A. LED
B. Input Dry Contact 1-4
C. Common Connecon
D. RJ45 Port (connect to PMCARD)
NOTE!
Please refer to Appendix for
Input Dry Contact Application.
A
DATA
STATUS
COM
41 2 3
C
B
D
