Pagina 1/7

I-00130 Rev B

THANK YOU

Thank you for purchasing the LBH / LBFR Series Telescoping Lacer bar.

Please read these instructions thoroughly before installing this product.

Page 2

TABLE OF CONTENTS

Hardware Pg. 2

Installing LBFR-5A-XX Pg. 3

Installing LBFR-XXXX-T Pg. 3

Installing LBH-1930-T Pg. 4

Applications Pg. 5-7

Warranty Pg. 7

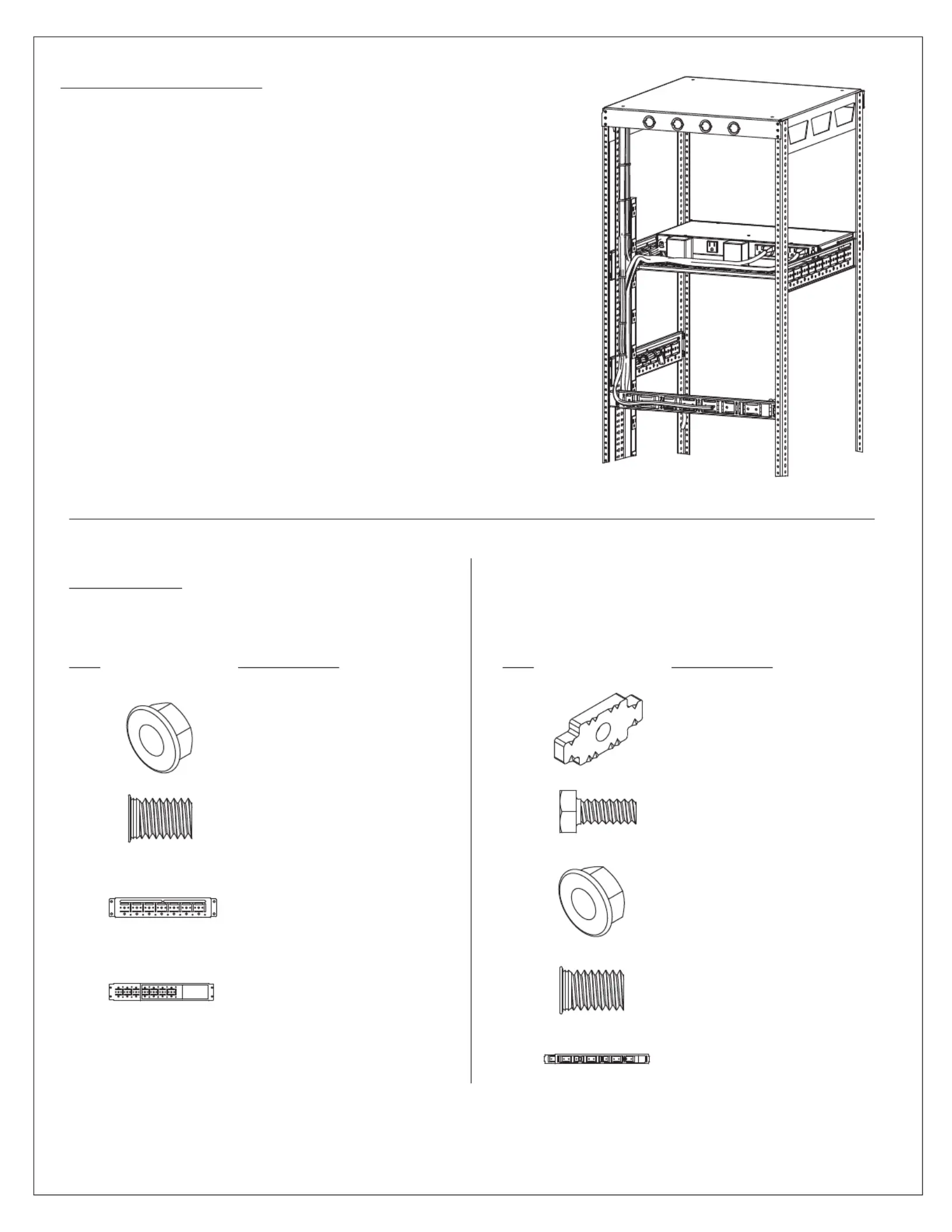

HARDWARE

LBFR-5A-XX / LBFR-XXXX-T Includes:

Qty Description

8 5/16-18 flange nut

8 5/16-18 PEM stud

2 LBFR-5A-xx

2 LBFR-xxxx-T

LBH-1930-T Includes:

Qty Description

4 1/4-20 sliding nut

4 1/4-20 bolt

4 5/16-18 flange nut

4 5/16-18 PEM stud

2 LBH-1930-T

Page 3

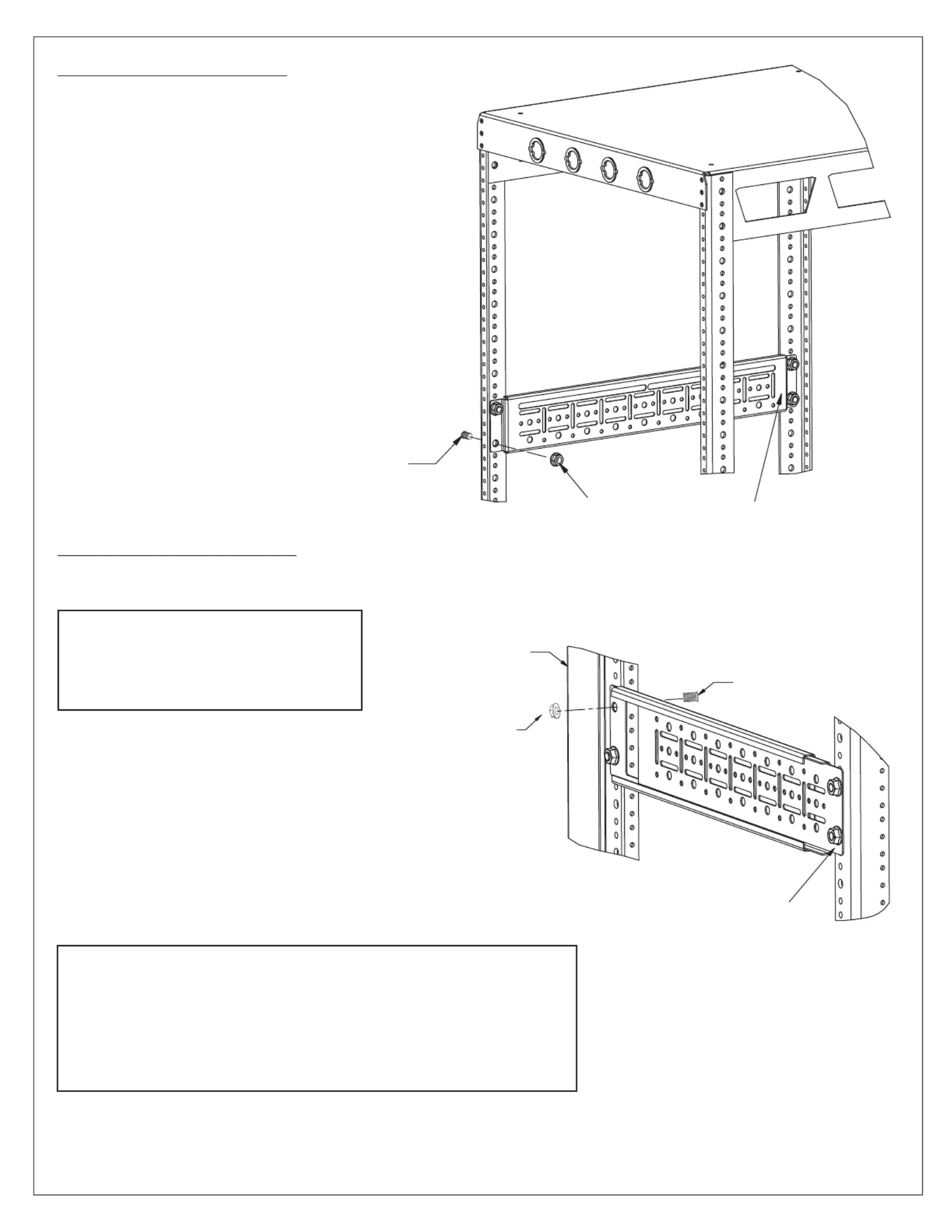

INSTALLING LBFR-5A-XX

(SLIM 5 or AXS racks only)

1) Mount lacer bar in desired location to

inside of front and rear rackrail of SLIM 5

or AXS rack using included hardware.

(FIGURE A)

5/16-18

PEM STUD

5/16-18

FLANGE NUT LBFR-5A-XX

MOUNTS TO

INSIDE OF

RACKRAIL

FIGURE A

INSTALLING LBFR-XXXX-T

FRONT OF

RACK

5/16-18

FLANGE NUT

5/16-18

PEM STUD

LBFR-XXXX-T

MOUNTS TO

OUTSIDE OF

RACKRAIL

FIGURE B

HINT:

For stand-alone racks, it may be

easier to point studs into the rack

during installation.

1) Mount telescoping lacer bar in desired

location to outside of front and rear

adjustable rackrail using included hardware.

(FIGURE B)

HINT:

A) Telescoping lacer bars mount to the outside of rackrail

so there is no interference if center rackrail is required.

B) Telescoping lacer bars can also be mounted to center

rail and front or rear rackrail.

Product specificaties

Merk:	Middle Atlantic
Categorie:	Niet gecategoriseerd
Model:	LBFR-3650-T
Kleur van het product:	Zwart
Breedte:	12.7 mm
Diepte:	914.4 mm
Hoogte:	88 mm
Gewicht verpakking:	2450 g
Breedte verpakking:	101.6 mm
Diepte verpakking:	889 mm
Hoogte verpakking:	50.8 mm
Soort:	Kabelmanagementstaaf
Materiaal behuizing:	Staal
Certificering:	Greenguard
Duurzaamheidscertificaten:	RoHS
Aantal per verpakking:	2 stuk(s)
Code geharmoniseerd systeem (HS):	85389099
Inbouwdiepte (max):	1270 mm
Inbouwdiepte (min):	914.4 mm
