Pagina 1/6

I-00522 Rev A

PRODUCT FEATURES

- Powerful, yet quiet way to remove heat from electronic components on open shelving or racks.

- Blowers exhaust 50 CFM of hot air while providing high static pressure to maintain airflow.

- (I)COMP-COOL50 is ideal for cooling one component when no others need to be stacked on top of it.

- (I)COMP-COOL50P is ideal for cooling one component when stacking others on top.

Thank you for purchasing the (I)COMP-COOL50/(I)COMP-COOL50P Component Coolers.

Please read these instructions thoroughly before installing/operating this product.

(I)COMP-COOL50

(I)COMP-COOL50P

(C)

(D)

(B)

(G)

(A)

(F)

(I)COMP-COOL50 FRONT VIEW

(I)COMP-COOL50P REAR VIEW

COMPONENT COOLER BOTTOM VIEW

(I)COMP-COOL50/(I)COMP-COOL50P BLOWER CALLOUTS

(E)

Page 2

A) CONTROL CIRCUIT WITH ON-BOARD TEMPERATURE SENSOR: DO NOT BLOCK!

B) TURN ON TEMPERATURE: The blower will turn on at 87° F (30.5° C) and run proportionately (speed

increases with temperature) from 87° F (30.5° C) to 95° F (35° C). At 95° F and above, the blower

will run at full speed. The blower will stop running at 85° F (29.4° C).

C) PRODUCT REVISION LEVEL: Current revision level of your (I)COMP-COOL50/(I)COMP-COOL50P.

D) MANUFACTURING DATE CODE: Denotes the date the (I)COMP-COOL50/(I)COMP-COOL50P was

manufactured.

E) POWER CONNECTOR: Connects to the provided power supply.

F) POWER LED: Blue LED that illuminates when the unit is receiving power, both

(I)COMP-COOL50/(I)COMP-COOL50P models.

G) (I)COMP-COOL50P POWER INLET: Connects to the provided power supply.

PARTS LIST

1 - (I)COMP-COOL50

1 - 12V 1A POWER SUPPLY

1 - ALCOHOL WIPE

5 - WIRE TIES

5 - WIRE TIE SADDLES

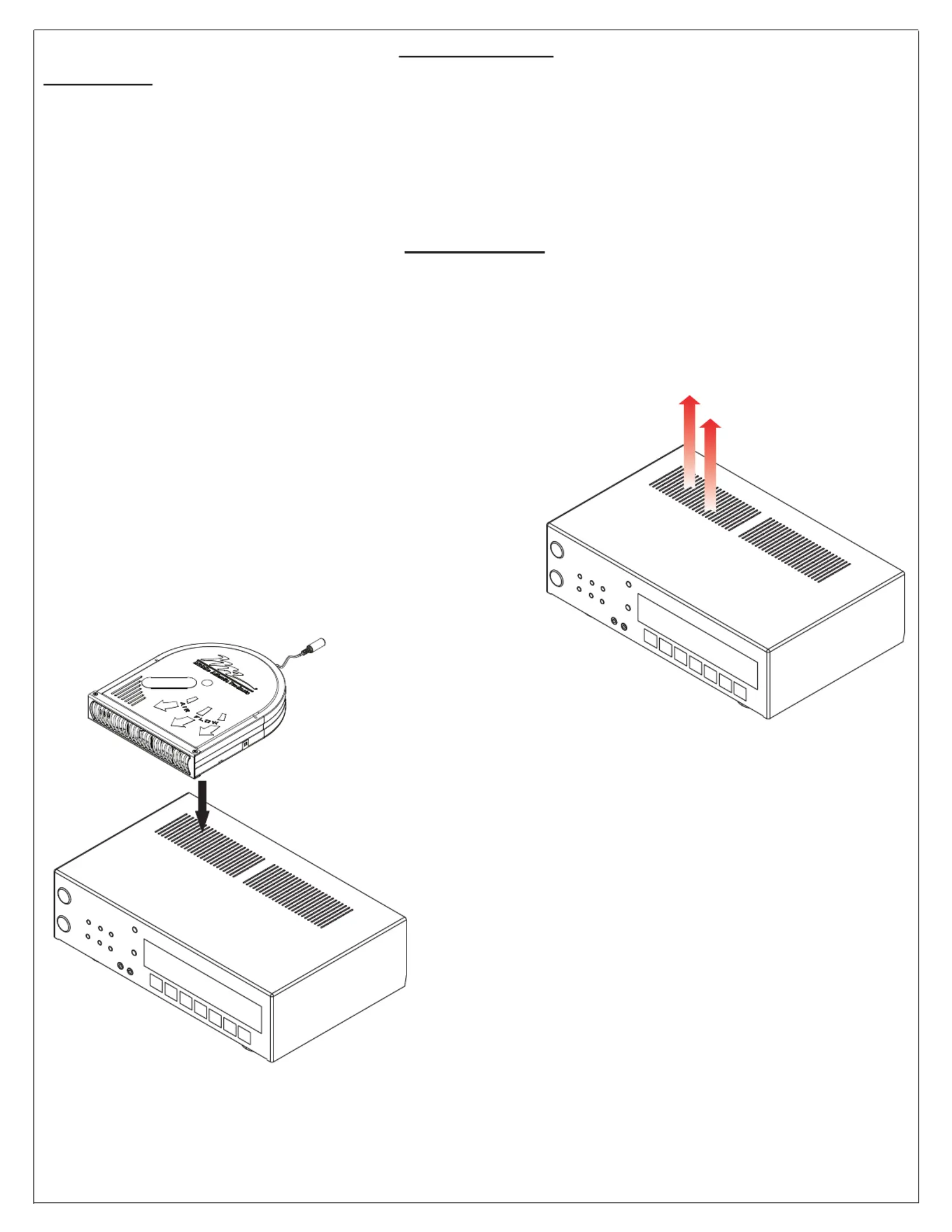

1) Locate the hot-spot on your component. (FIGURE A)

NOTE: The (I)COMP-COOL50 can be positioned in any direction to remove the hot air.

2) Position the (I)COMP-COOL50 in the desired location,

and place it on the hot-spot. (FIGURE B)

- Aim toward desired opening in the rack to exhaust

hot air.

- Aim toward source of forced ventilation.

3) Connect the unit’s power source cable to the provided

power supply.

- Wire ties and wire tie saddles are provided for cable

management.

INSTALLATION

(I)COMP-COOL50

Page 3

FIGURE A

FIGURE B

For Best Thermal Management Practices Please Visit

http://www.middleatlantic.com/pdf/ThermalManagement.pdf

Product specificaties

Merk:	Middle Atlantic
Categorie:	Niet gecategoriseerd
Model:	ICOMP-COOL50
Kleur van het product:	Zwart
Breedte:	221 mm
Diepte:	257 mm
Hoogte:	45 mm
Gewicht verpakking:	1630 g
Breedte verpakking:	368.3 mm
Diepte verpakking:	368.3 mm
Hoogte verpakking:	133.4 mm
Soort:	Koelventilator
Stroombron:	AC/DC
Luchtstroom:	1.4 m³/uur
Ingangsspanning:	220 V
Spanning:	12 V
Code geharmoniseerd systeem (HS):	85389099
Stroom (max.):	0.55 A
