PART QTY

Pair of Runners 2

Phillips Head Screws 6

1/4-20 Flange Nuts 6

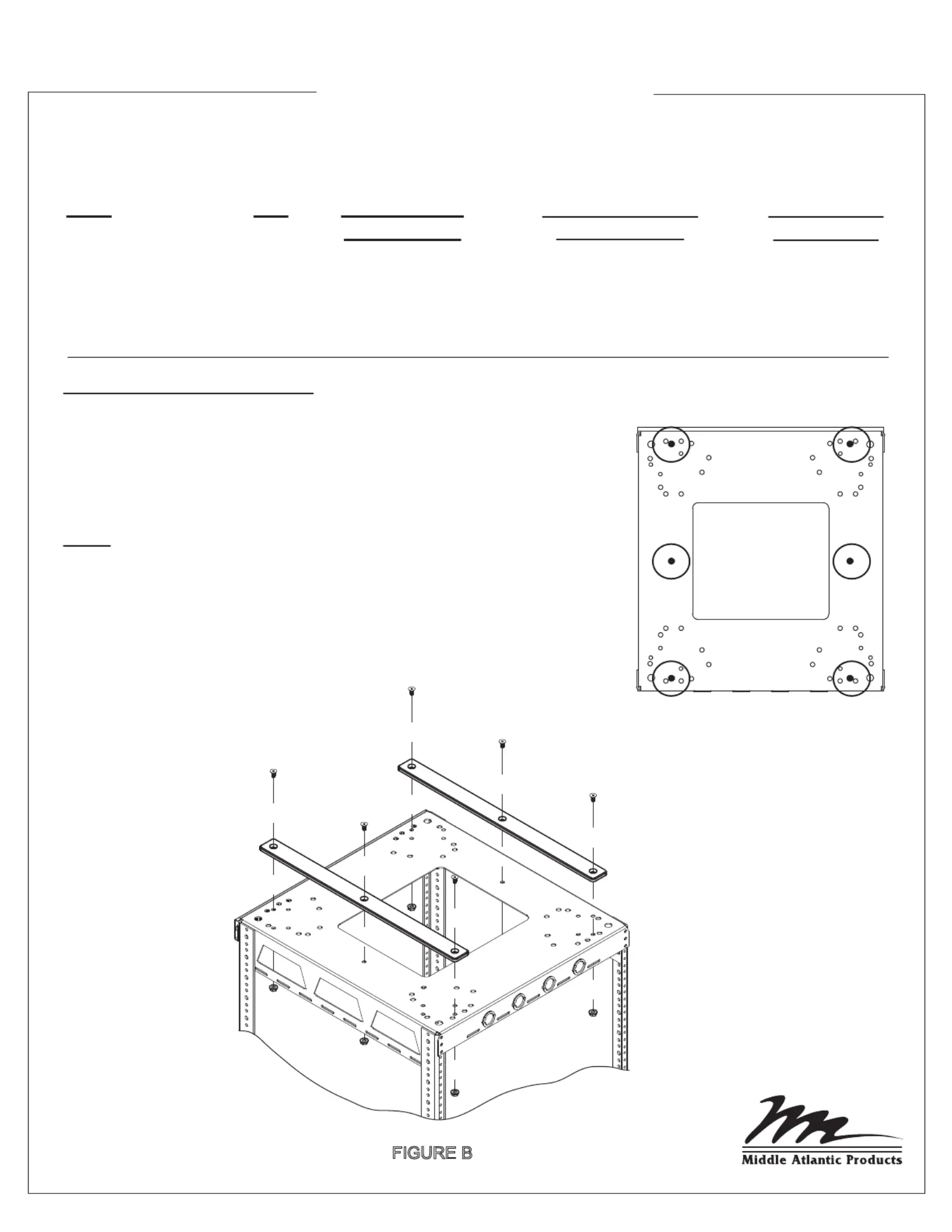

1) Install the runners using the two outer holes.

2) Drill into the center holes using a 9/32" drill bit.

3) Install the remaining nuts and bolts.

1) Install the runners to the enclosure bottom through the holes

shown using the supplied hardware. (FIGURE A)

2) Install the screws and nuts as shown. (FIGURE B)

NOTE: If your Slim 5 does not have the center holes, perform the

following steps:

SLIM 5 SERIES INSTALLATION

SLIM 5 SERIES

RUNNER KITS

5-RS20

5-RS26

FIGURE A

DTRK SERIES

RUNNER KIT

5-RS18

SLIM 5 BOTTOM SHOWN

FIGURE B

CFR/HRF SERIES

RUNNER KITS

5-RS14 (HRF Only)

5-RS16

5-RS18

5-RS20

5-RS23

I-00273 Rev E

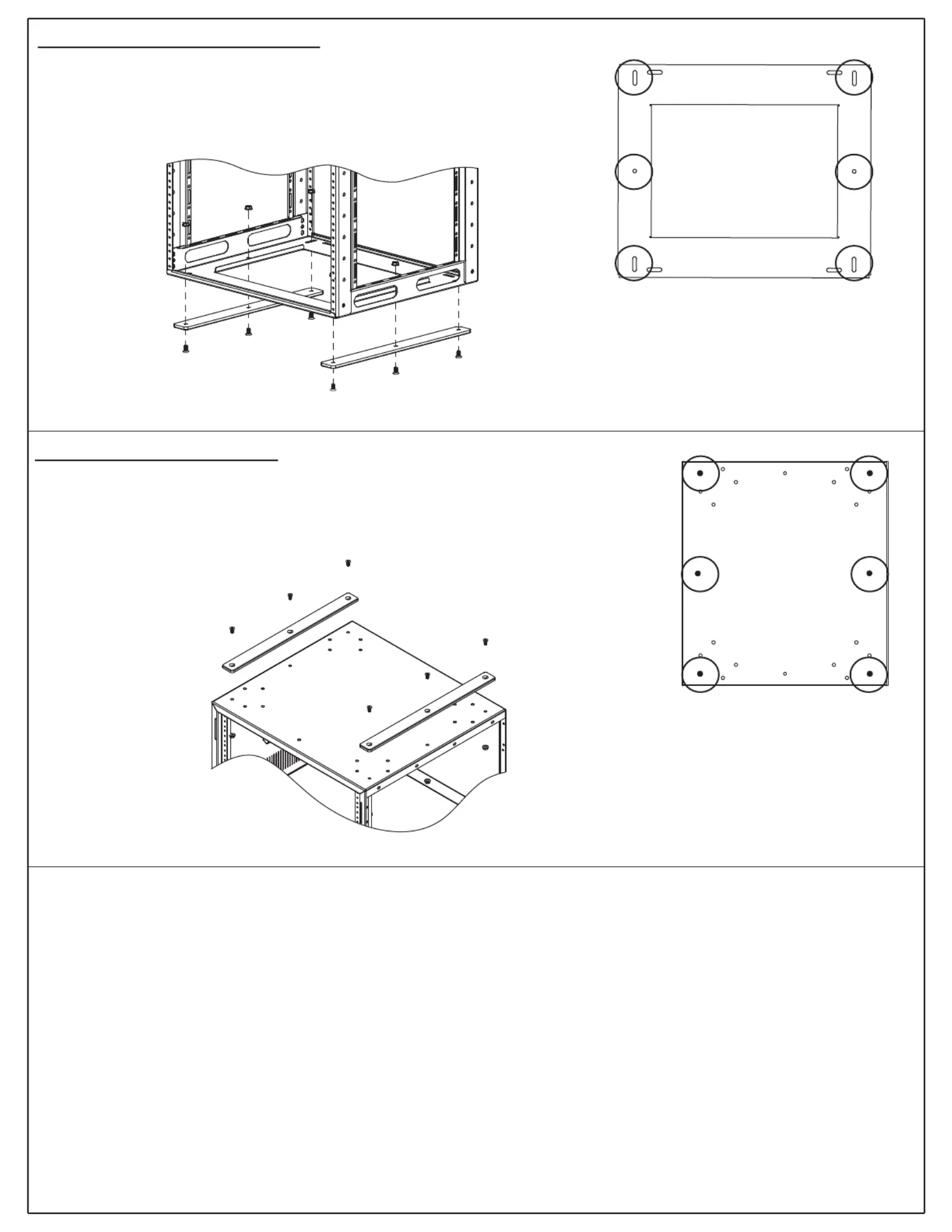

DTRK SERIES INSTALLATION

1) Install the runners to the enclosure bottom through the holes shown

using the supplied hardware. (FIGURE C)

FIGURE C

FIGURE D

FIGURE E

FIGURE F

1) Install the runners to the enclosure bottom through the holes shown.

(FIGURE E)

2) Install screws and nuts as shown, side removed for clarity. (FIGURE F)

CFR / HRF SERIES INSTALLATION

2) Install the screws and nuts as shown. The top and bottom of the

CFR / HRF Enclosure are interchangeable. (FIGURE D)

Page 2

WARRANTY

Middle Atlantic Products (the "Company") warrants the 5-RS Series to be free from defects in material or workmanship under normal use and conditions for the lifetime of the product.

The Company's entire liability to the purchaser, and the purchaser's (or any other party's) sole and exclusive remedy, under this warranty shall be limited, at the Company's option, to either (a) return of and

refund of the price paid for, or (b) repair or replacement at the Company's factory of the products purchased, or any part or parts thereof, which the Company has determined to be defective after inspection

thereof at the Company's factory.

This warranty does not cover damage due to acts of God, accident, misuse, abuse or negligence by parties other than the Company, or any modification or alteration of the products. In addition, this warranty

does not cover damage due to improper handling, assembly, installation or maintenance.

THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY

AND FITNESS FOR A PARTICULAR PURPOSE.

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL THE COMPANY BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES

WHATSOEVER (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION OR ANY OTHER PECUNIARY LOSS) ARISING OUT OF THE USE

OF THE PRODUCTS PURCHASED, EVEN IF THE COMPANY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. THE COMPANY'S LIABILITY TO THE PURCHASER (OR ANY OTHER

PARTY) HEREUNDER, IF ANY, SHALL IN NO EVENT EXCEED THE PURCHASE PRICE OF THE PRODUCTS PAID TO THE COMPANY.
