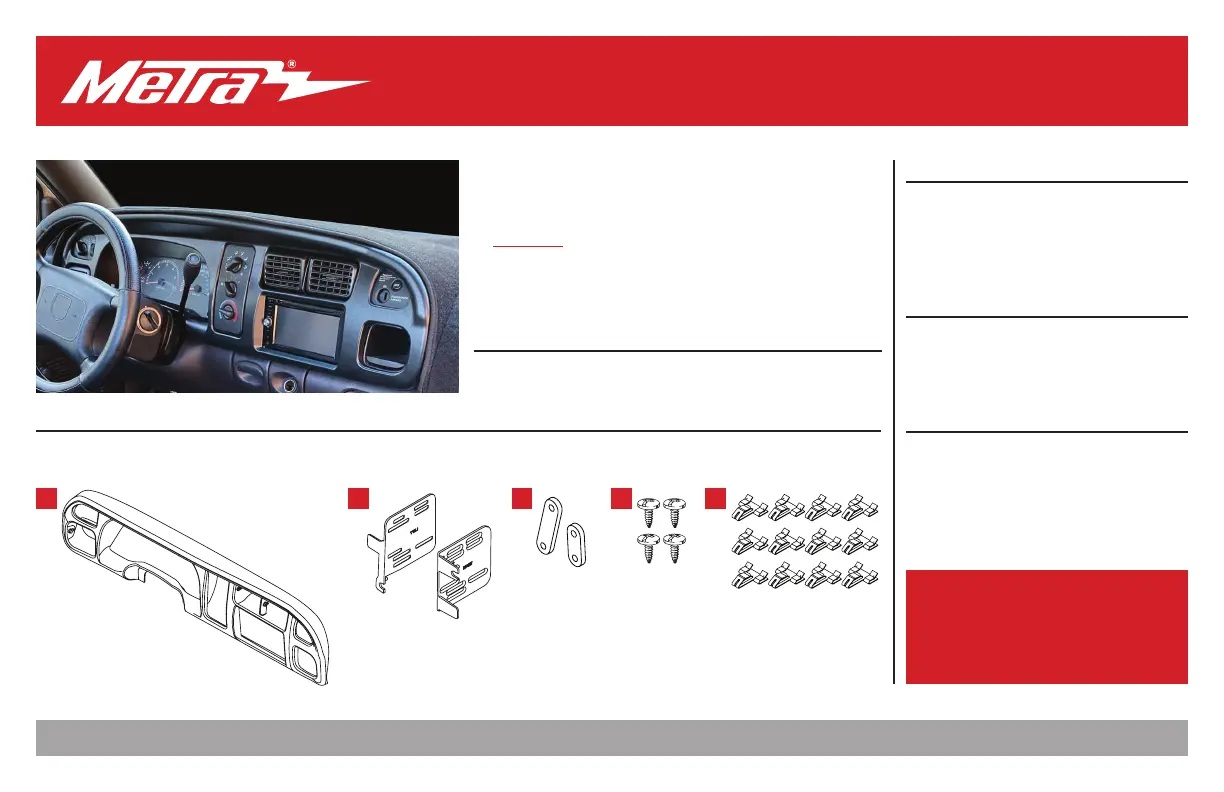

Metra. The World’s Best Kits.® MetraOnline.com © COPYRIGHT 2021 METRA ELECTRONICS CORPORATION REV. 9/30/21 INSTDP-6551
I N S TA L L AT I O N I N S T R U C T I O N S
DP-6551
Attention! Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
KIT COMPONENTS
• A) Replacement dash panel • B) Radio brackets • C) Retainers • D) #8 x 1/4 “ Phillips screws (4) • E) Panel clips (12)
KIT FEATURES
• ISO DDIN radio provision
• Custom textured dash panel with a DDIN radio opening.
Dodge Ram 1500 1998-2001/
Dodge Ram 2500/3500 1998-2002
Visit for more detailed information about the product and up-to-date vehicle MetraOnline.com
specific applications
Not designed for 1998 models with single knob headlamp switch or
12 volt power outlet in upper right corner of the dash
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 3/8” Socket wrench • Cutting tool • Scribe tool
TABLE OF CONTENTS
Dash Disassembly ..................................................2
Kit Preparation .......................................................2
Kit Assembly ..........................................................3
WIRING & ANTENNA CONNECTIONS
(sold separately)
Wiring Harness: 70-1817
Antenna Adapter: Not required
A B C D E
386.257.1187
|
MetraOnline.com
2
1. Cut or grind the plastic welds from the
rubber trim around the steering column
area of the factory dash panel.
2. Secure the factory rubber trim to the
replacement dash panel with the
supplied retainers and screws.
3. Remove factory vents and snap them
into the replacement dash panel.
(Figure A)
4. Install the (12) to the panel clips
replacement dash panel.
5. Cut the sub-dash to allow room for the
radio assembly. (Figure B)
Continue to Kit Assembly
DASH DISASSEMBLY
1. Unclip, unplug and remove the
dashboard trim panel. (Figure A)
2. Remove (2) 3/8” hex-head screws
securing the radio to the dash. Slide the
radio out, then unplug and remove
Continue to Kit Preparation
(Figure A)
KIT PREPARATION
(Figure D)
(Figure B)
Remove shaded areas
REV. 9/30/2021 INSTDP-6551 3
KIT ASSEMBLY
(Figure A)
1. Secure the radio brackets to the radio
using the screws supplied with the
radio. (Figure A)
2. Locate the factory wiring harness and
antenna connector in the dash and
complete all necessary connections to
the radio. Metra recommends using
the proper mating adapter from Metra
and/or Axxess. Test the radio for proper
operation.
3. Secure the radio assembly to the dash
using the factory screws.
4. Reassemble the dash in reverse
order of disassembly to complete the
installation.
