Pagina 1/4
AXTC-VW1
I N S T A L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2019 METRA ELECTRONICS CORPORATION REV. 7/30/19 INSTAXTC-VW1
Product Info
INTERFACE FEATURES
INTERFACE COMPONENTS
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip ties
TABLE OF CONTENTS
Connections ............................................................2
Programming .........................................................3
Troubleshooting .....................................................4
Volkswagen SWC (Steering Wheel Control)
and Data Interface 2002-2017
APPLICATIONS
• Provides accessory power
(10-amp)
• Provides wires for multimedia
radios (park brake, reverse,
speed sense)
• Used in both amplified and
non-amplified systems*
• Retains audio controls on the
steering wheel
• Designed to be compatible with
all major radio brands
• Auto detects vehicle type, radio
connection, and preset controls
• Ability to dual assign steering
wheel control buttons
• Retains memory settings even
after battery disconnection or
interface removal (non volatile
memory)
• Provides illumination output
• Micro-B USB updatable
Volkswagen
Beetle 2012-2015
CC 2009-2017
EOS 2007-2016
Golf 2002(DDIN models only)
Golf, Golf R 2003-2014
GTI 2002-2014
Jetta (DDIN models only) 2002
Jetta, Jetta GLI 2003-2015
Jetta SportWagen 2010-2014
Passat 2002-2015
R32 2007-2008
Rabbit 2007-2009
Tiguan 2009-2015
• AXTC-VW1 interface
• AXTC-VW1 harness
• 3.5mm adapter
* Excluding Fender audio systems
2

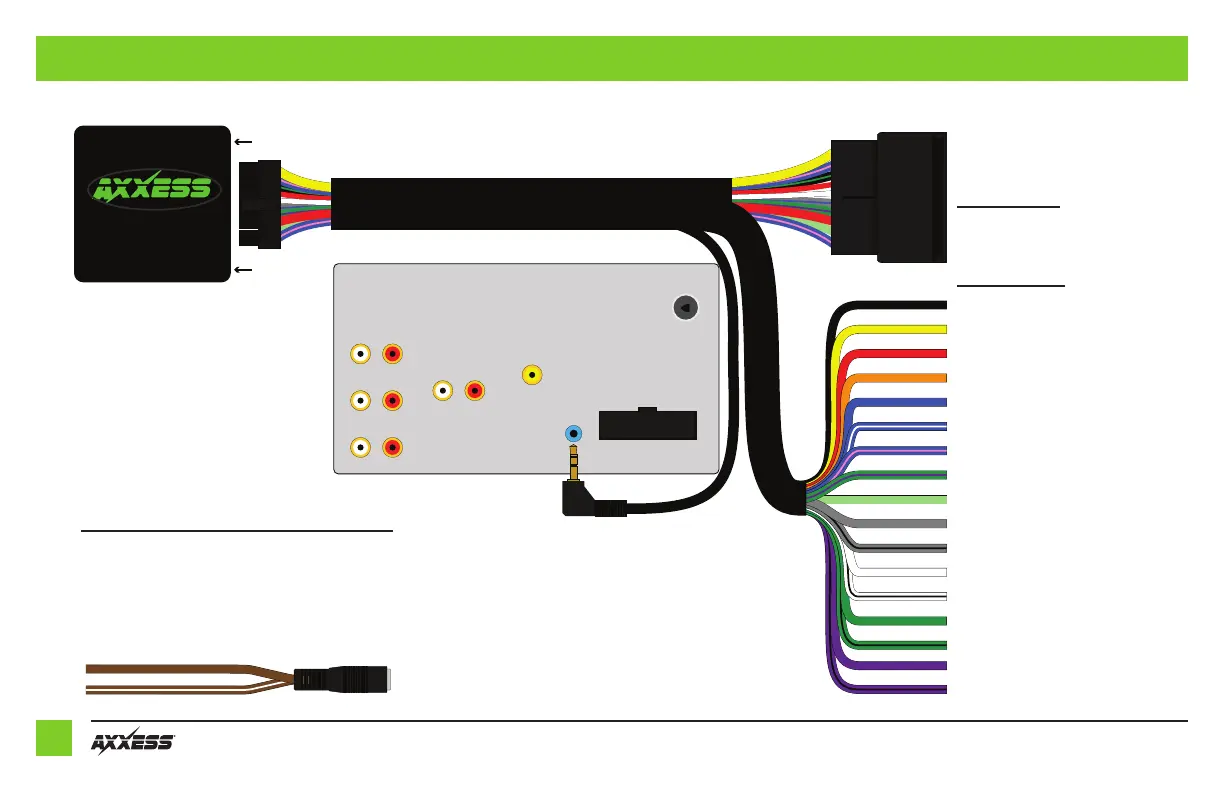

CONNECTIONS
Front
Rear
Sub
AUX-IN
Rear View
SWC
Vehicle Connector
Radio Connections
Black - Ground
Yellow - Battery power
Red - Accessory power
Orange - Illumination
Blue - Not used
Blue/White - Amp turn-on
Blue/Pink - VSS/Speed-Sense
Green/Purple - Reverse signal
Light Green - Parking brake
Gray - Front right speaker +
Gray/Black - Front right speaker -
White - Front left speaker +
White/Black - Front left speaker -
Green - Rear left speaker +
Green/Black - Rear left speaker -
Purple - Rear right speaker +
Purple/Black - Rear right speaker -
Aftermarket Radio
(radio’s features may vary)
3.5mm Adapter (for radios with a wire for SWC)
Boss (with SWC wire): Key 1 (Gray) - Brown
Kenwood / JVC (with SWC wire): Blue/Yellow - Brown
XITE: SWC-2 - Brown
Universal Radio*: Key-A or SWC-1 - Brown
Key-B or SWC-2 - Brown/White
* After programming, assign SWC buttons within radio menu
Reset Button
LED Light
3
REV. 7/30/2019 INSTAXTC-VW1
Open the driver’s door, and keep open during the programming process.
Cycle the ignition on.
Connect the AXTC-VW1 harness AXTC-VW1 interface to the , and then to
the wiring harness in the vehicle.
Locate the Volume Up button on the the steering wheel. Program the
interface by tapping the Volume Up button at a heartbeat pace until the
LED light stops flashing.
The LED light will flash & while the interface programs Green Red
the radio to the steering wheel controls. Once programmed, the
LED light will go out, then produce a pattern which will identify the
radio type installed. Refer to the section under Radio LED Feedback
Troubleshooting for radio types.
The LED light will go out, then once again quickly flash Green & Red
while the interface programs itself to the vehicle. Once programmed,
the LED light will go out again, then turn solid .Green
Cycle the ignition off, then back on.
Test all functions of the installation for proper operation.
Note: Audio Mode must be selected in the MFI menu to allow track up
and down to function. Refer to the vehicle owner’s manual for more
information.
PROGRAMMING
1.
2.
3.
4.
5.
6.
7.
8.
Gr Deen & Red LE
Gr Deen LE
O
F
F
A
C
C
O
N
S
T
A
R
T
O
F
F
A
C
C
O
N
S
T
A
R
T
O
F
F
A
C
C
O
N
S
T
A
R
T
VOL
+
Tap Volume Up
Gr Deen & Red LE
Gr Deen or Red LE
