METRA. The World’s best kits.™metraonline.com1-800-221-0932 © COPYRIGHT 2004-2013 METRA ELECTRONICS CORPORATION
REV. 7/18/2014 INST99-7344
CAUTION: Metra recommends disconnecting the
negative battery terminal before beginning any
installation. All accessories, switches, and especially
air bag indicator lights must be plugged in before
reconnecting the battery or cycling the ignition.
NOTE: Refer to the instructions included with the
aftermarket radio.
INSTALLATION INSTRUCTIONS FOR PART 99-7344

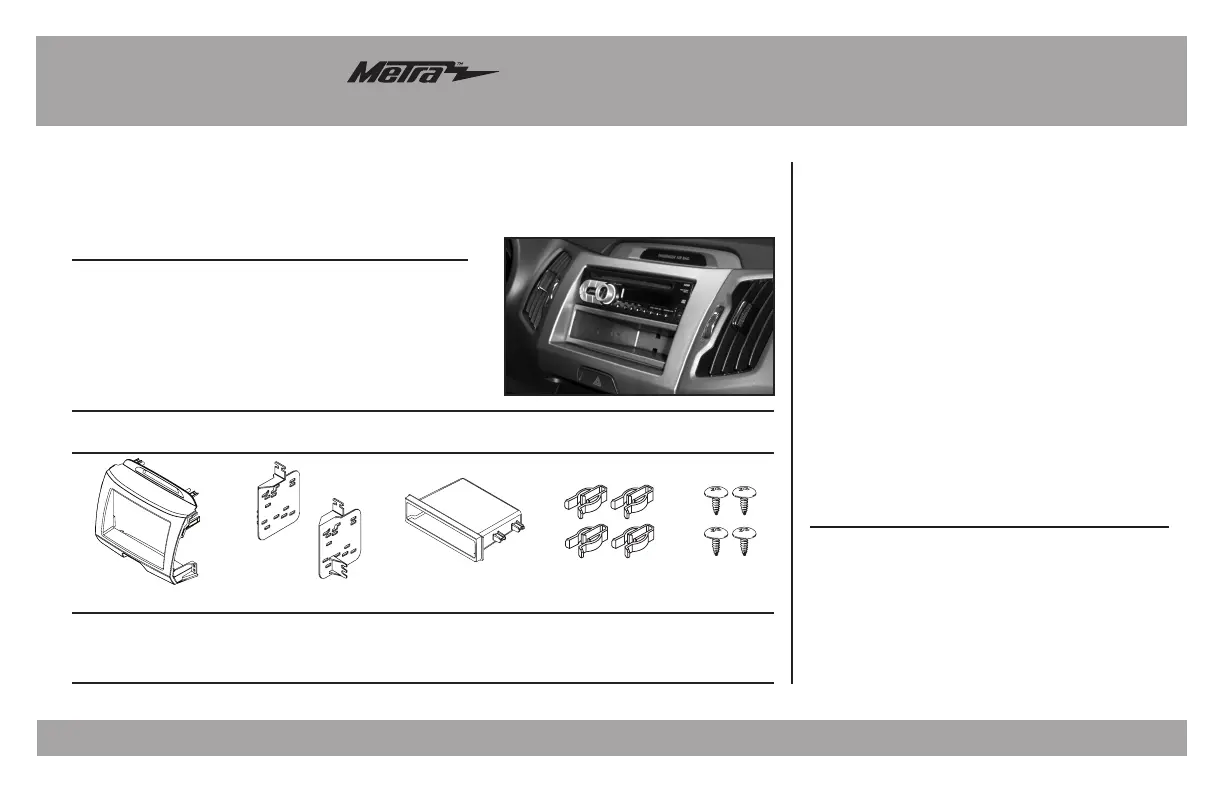

• A) Radio housing trim panel • B) Double DIN radio housing brackets • C) Pocket • D) (4) Panel clips
• E) (4) Phillips truss head screws
KIT COMPONENTS
• ISO DIN radio provision with pocket
• Painted Gray or Charcoal to match factory finish
G = Gray, CH = Charcoal
KIT FEATURES
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: • 70-7304 - Hyundai Kia harness 2010-up • HYBL-04 - HYU/KIA amp interface
Antenna Adapter: • Not required
• Panel removal tool • Phillips screwdriver
TOOLS REQUIRED
A B C
Dash Disassembly
– Kia Sportage 2011-up ...................................... 2
Kit Preparation
– Kia Sportage 2011-up ...................................... 3
Kit Assembly
– ISO DIN radio provision with pocket ................ 3
Table of Contents
D E
99-7344

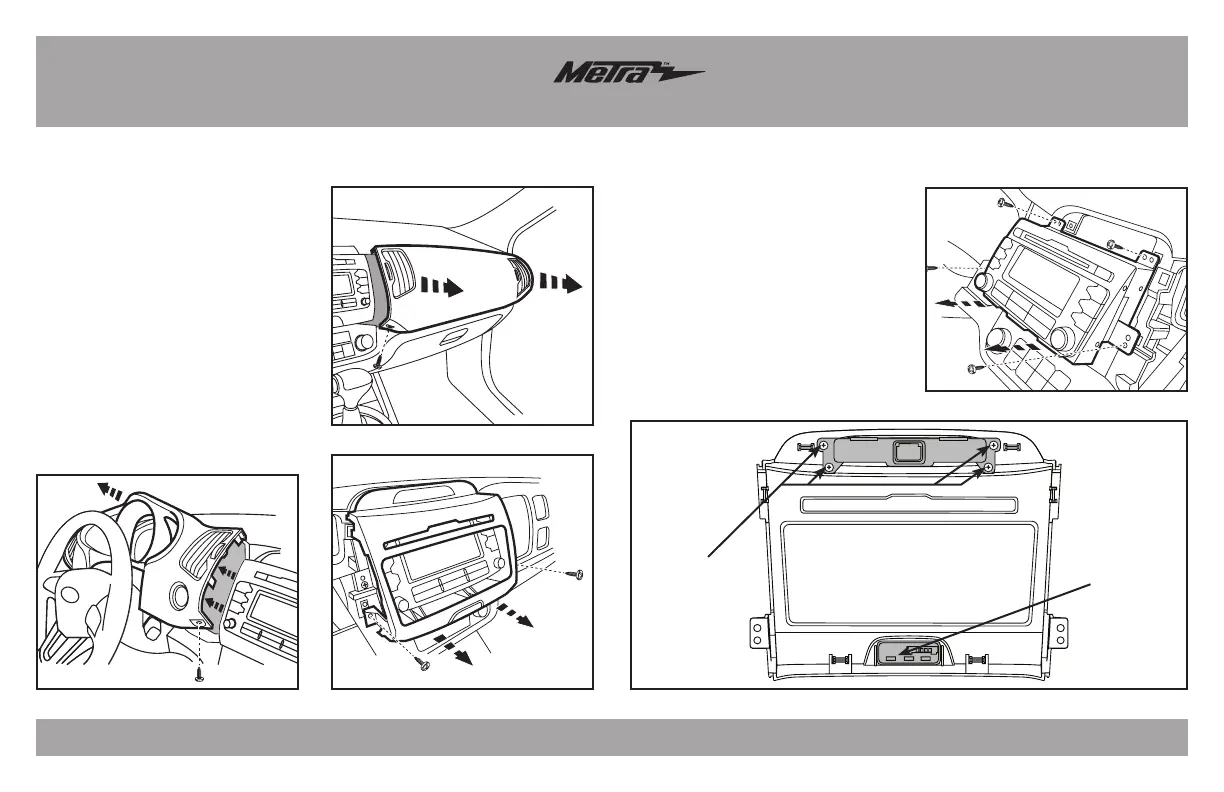

1. Remove the screw in the
instrument panel to the right of
the “engine start” button then
unclip the top panel of the steering
column then unclip and remove the
instrument panel. (Figure A)
2. Remove the screw in the dash
panel above the glove box to the
right of the radio then unclip and
remove the dash panel. (Figure B)
3. Remove the two screws from the
from the radio panel, unclip and
remove. (Figure C)
Kia Sportage 2011-up
(Figure C)
(Figure B)
(Figure A)
4. Unscrew the 4 Phillips screws
securing the radio into the dash,
unplug and remove the radio.
(Figure D)
5. Remove the four screws securing
the display into the factory panel
and unclip the hazard button. Both
items will need to be installed into
the 99-7344 kit panel. (Figure E)
Continue to kit preparation (Figure D)
(Figure E)
Hazard
button
Display
screws
99-7344
Kit Preparation
(Figure B)
(Figure C)
ISO DIN radio provision with pocket
1. Locate the factory wiring harness in
the dash. Metra recommends using
the proper mating adapter from Metra
or AXXESS. Re-connect the negative
battery terminal and test the unit for
proper operation.
2. Mount the pocket to the double
DIN brackets using the (4) supplied
screws. (Figure A)
3. Mount the radio to the doble
DIN brackets/pocket assembly with
the supplied (4) screws. (Figure A)
4. Mount the radio/bracket assembly
into the dash. (Figure B)
5. Snap the radio trim plate over
the radio/bracket assembly and
reassemble dash in reverse order of
disassembly. (Figure C)
Kit Assembly
1. Install the hazard button and display previously removed from the factory
radio panel.
2. Attach the four included panel clips to the radio panel. (Figure A)
Continue to kit assembly
(Figure A) (Figure A)
White
plastic
clips
White
plastic
clips
