METRA. The World’s best kits.™metraonline.com © COPYRIGHT 2016 METRA ELECTRONICS CORPORATION
REV. 1/6/2016 INST99-5831
CAUTION: Metra recommends disconnecting the negative battery
terminal before beginning any installation, unless the vehicle
manufacturer recommends against so. Please check with your
local Dealership for more information. All accessories, switches,
climate controls panels, and especially air bag indicator lights
must be connected before reconnecting the battery or cycling
the ignition. Also, do not remove the factory radio with the key
in the on position, or the vehicle running. It would be best to
remove the key from the ignition and then wait a few seconds
before removing the factory radio.

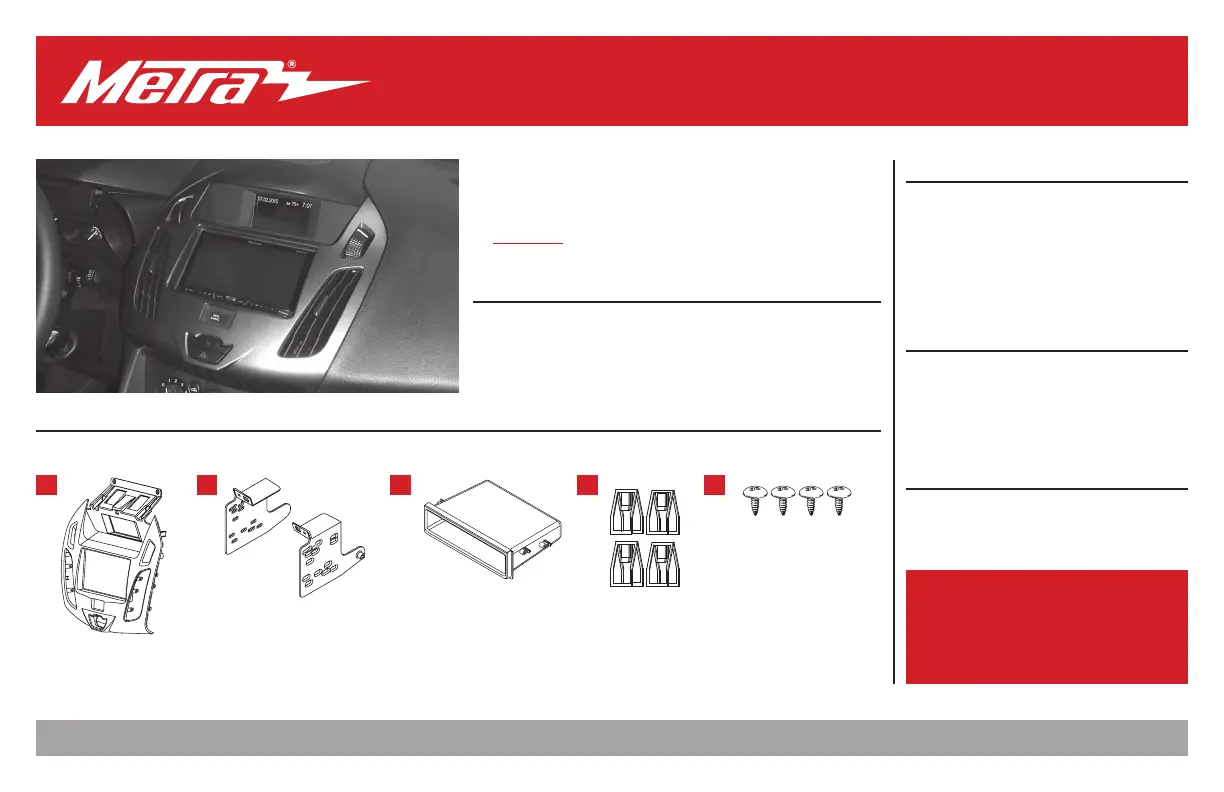

Installation instructions for part 99-5831
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• Passenger airbag indicator
• Painted black (99-5831B) or
charcoal gray and black (99-5831G)
• A) Radio trim panel • B) Radio brackets • C) Pocket • D) (4) Panel clips • E) (4) #8 x 3/8” Phillips screws
KIT FEATURES
KIT COMPONENTS
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: • XSVI-5524-NAV or AX-ADBOX2 & AX-ADFD02 Antenna Adapter: • 40-EU10
• Panel removal tool • Phillips screwdriver
• T15 Torx driver • T20 Torx driver
TOOLS REQUIRED
(With factory 4.2” display)
A C D EB
Dash Disassembly ................................................. 2
Kit Assembly
– ISO DIN radio provision with pocket 3 ......................
– ISO DDIN radio provision 3 ......................................
Table of Contents
NOTE: This installation kit is intended to be used in
conjunction with an AXXESS radio replacement interface.
Models with steering wheel controls will require an
AXXESS radio replacement interface and the AXXESS
ASWC-1 steering wheel control interface for all features
to work properly.
99-5831

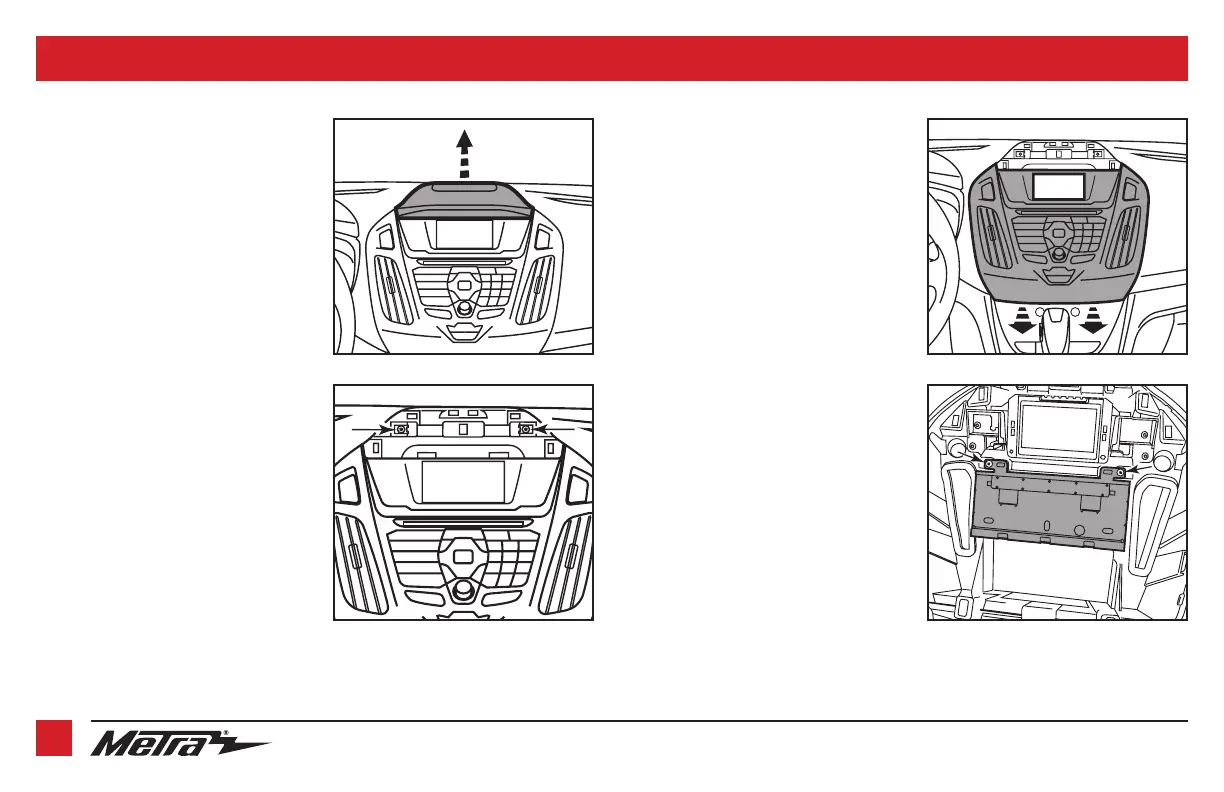

Dash Disassembly
1. Remove the top panel above the
display. (Figure A)
2. Remove (2) T-15 Torx screws
above the display/radio panel.
(Figure B)
3. Unplug and remove the display/
radio panel. (Figure C)
4. Remove the A/C vents and hazard
switch from the panel and set
aside for kit assembly.
5. Remove (2) T-20 Torx screws
from the top of the radio, and then
unplug and remove from the dash
cavity. (Figure D)
Continue to kit assembly.
(Figure A) (Figure C)
(Figure B) (Figure D)
99-5831
Kit Assembly
(Figure A) (Figure A)
(Figure B)
ISO DIN radio provision with pocket
1. Attach the pocket to the using radio brackets
the (4) #8 x 3/8” Phillips screws supplied.
(Figure A)
2. Remove the metal “DIN” sleeve and
trim ring from the aftermarket radio.
3. Mount the radio to the using radio brackets
the screws supplied with the radio. (Figure B)
4. Snap the hazard switch into the radio trim
panel from the front.
5. Snap the A/C vents into the radio trim panel
from the back.
6. Plug in the passenger airbag light and
hazard connections.
7. Locate the factory wiring harness and
antenna connector in the dash, and complete
all necessary connections to the radio. Metra
recommends using the proper mating adapter
from Metra and/or AXXESS.
8. Attach (4) panel clips to the radio trim panel,
and then reassemble the dash in reverse
order of disassembly, using the 99-5831
radio trim panel.
ISO DDIN radio provision
1. Attach the to the radio radio brackets
using the screws supplied with the radio.
(Figure A)
2. Snap the hazard switch into the radio
trim panel from the front.
3. Snap the A/C vents into the radio trim
panel from the back.
4. Plug in the passenger airbag light and
hazard connections.
5. Locate the factory wiring harness and
antenna connector in the dash, and
complete all necessary connections to
the radio. Metra recommends using the
proper mating adapter from Metra and/
or AXXESS.
6. Attach (4) panel clips to the radio trim
panel, and then reassemble the dash in
reverse order of disassembly, using the
99-5831 radio trim panel.
