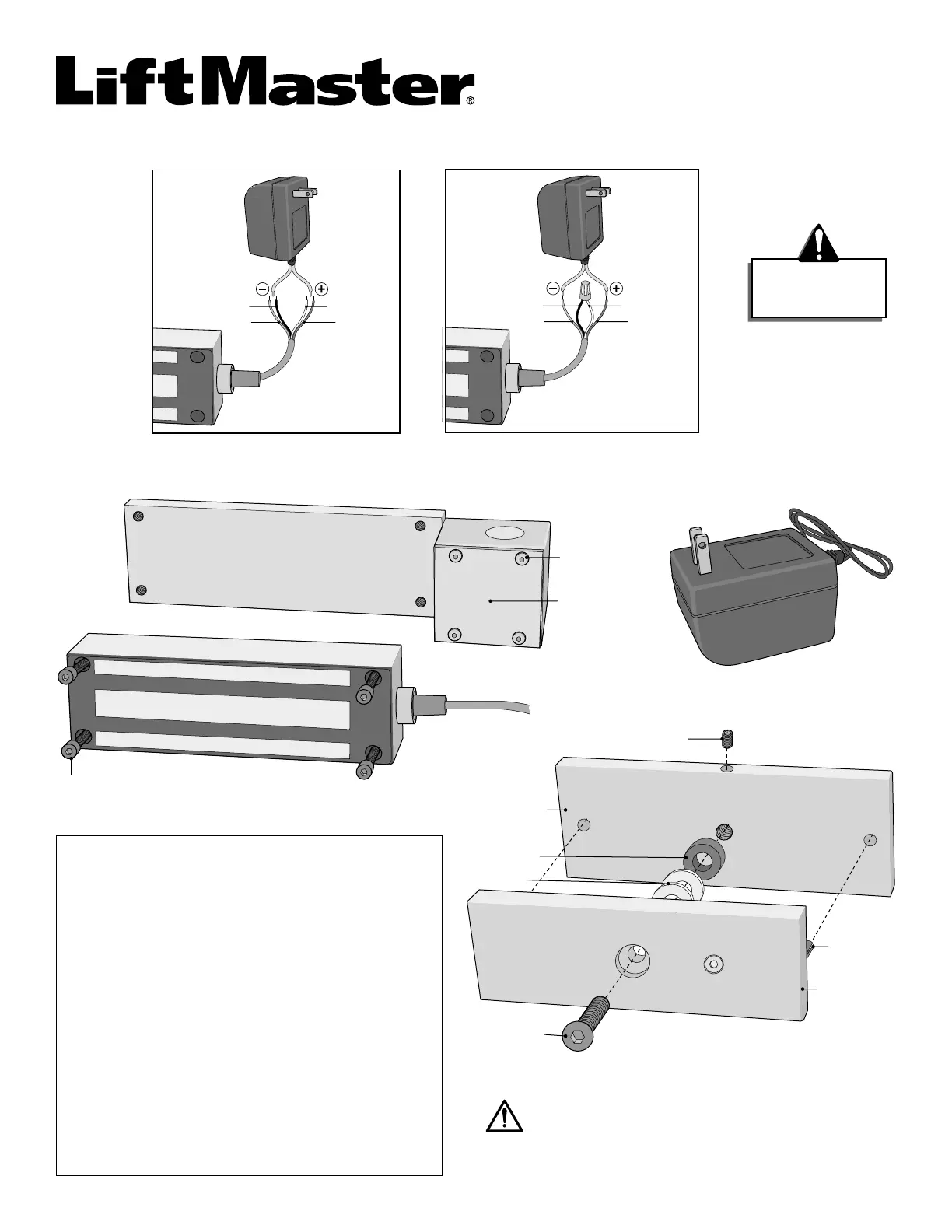

Pagina 1/2
Transformer
Magnetic Lock Plate and Junction Box
Magnetic Lock
Magnetic Lock Screws (4)
Junction Plate
Cover Screws (4)
Junction Box Cover
Washers
Guide Pins (2)
Armature Screw
Rubber Washer
Armature Side Screw
Armature
Armature Plate
WIRING & SPECIFICATIONS
Model MG 1300
WIRING INSTRUCTIONS
Wiring 12 Vdc or 24 Vdc Transormer
12 Vdc Transormer
(Provided)
24 Vdc Transormer
(Not Provided)
White WhiteBlack Black
HARDWARE LIST AND SPECIFICATIONS
Housing: Stainless Steel
Junction Box: Steel
Magnet Plate: Steel
Plating: Zinc Clear
Power Supply
12 Vdc Supply:
Transformer: input 120 Vac
Output: 7.2 VA 12 Vdc @ 600 mA
24 Vdc Supply (Not provided):
Transformer: input 120 Vac
Output: 14.4 VA 24 Vdc @ 600 mA
Current draw
250 mA @ 24 V, 500 mA @ 12 V 600 mA
• If power supply is 12 Vdc and wire is 50 ft. use
18 AWG, if wire is 150 ft. use 14 AWG
• If power supply is 24 Vdc and wire is 50 ft use
22 AWG, if wire is 150 ft. use 18 AWG
Do Not Use Wire
Smaller than
22 AWG
Red Red
Green Green
12 Vdc @ 500 mA 24 Vdc @ 500 mA
WARNING: This product can expose you to chemicals
including lead, which are known to the State of California to
cause cancer or birth defects or other reproductive harm.
For more information go to www.P65Warnings.ca.gov
Junction Box
Magnetic Lock
Magnetic Lock
Mounting Screws
Anti-Tamper Plug
Armature
Screw Rubber
Washer
Washers
Armature
Plate
Guide
Pins
Armature
POST
GATE
Welding Welding
Armature
Allen Screw
Magnetic Lock Plate
Position the magnetic lock with armature plate at desired location and tack weld the magnetic lock plate to the gate post.
Do not fully weld or you will burn the wire or lock.
Tack weld armature plate to gate. Again,
Do not fully weld or you will burn the rubber pieces.
Remove the armature plate with rubber washer and magnetic lock from the junction box and
fully weld the plates.
After it cools-off, reassemble magnetic lock and armature with the rubber washer.
HANDLING:
The magnetic lock, junction box and
magnet plate are ruggedly constructed and designed to
provide years of trouble-free service. Care must be taken,
however, during installation and during actual use so that
the magnet face and magnet plate face are free of dirt,
rust, burrs, paint, or any other obstruction which may
interfere with the magnet and magnet plate making good
contact.
1
2
3
4
MOUNTING INSTALLATION
Anti-Tamper Plug
For Technical Support: www.liftmaster.com 1-800-528-2806
© 2011 The Chamberlain Group, Inc.
All Rights Reserved
It is necessary to separate the MG 1300
parts from the armature and magnet
plates prior to welding.
Failure to do so will cause the wiring
and rubber pieces to burn and melt.
MOUNTING THE MG 1300 MAGNETIC LOCK
01-50688E
