Thank you for purchasing this dual Equaliser
module from Laine. We hope it soon
becomes the go-to tone shaping tool in your
1U row.
Overview
Sī†·lts provides two channels of single control ī…”ltering, with ī†·lt
or high shelf topologies. It can be switched seamlessly
between these two styles of EQ.
Tilt: Boost low frequencies while also cuī‡ƒng highs,
or boost high frequencies whilst also cuī‡ƒng lows.
Baxandall High Shelf: A gentle high frequency gain shelf
allowing boosting or cuī‡ƒng whilst leaving the mid-range and
bass frequencies untouched.
Use the ī†·lt and high shelf to perform a variety of mixing
and sound design duī†·es ranging from subtle, non-resonant
brightness and clarity adjustments to low-end rumble
removal, boosted low pass ī…”ltering and sweep EQ.
Each channelā€™s fully analogue signal path comprises several
mulī†·-band acī†·ve ī…”lters that are summed and mixed through
a VCA. These active ī…”lter networks are tuned to provide a
transparent response with controls at the centre posiī†·on,
whilst also allowing for smooth adjustment on low and high
frequency bands.
Operaī†·on
In the default ī†·lt mode (Mode Switch in the raised posiī†·on)
turning a control knob clockwise simultaneously boosts treble
and cuts bass. Turning anī†·-clockwise boosts bass and cuts
treble. These boosts and cuts pivot around the mid-range in
the 800Hz region. With the control knob at
12 oā€™clock the frequency response is neutral.
With Baxandall high-shelf mode enabled, turning the control
knob clockwise past 12 oā€™clock introduces a gentle high shelf
EQ weighted around the upper mid-range in the 1kHz region.
Turning the control knob anī†·-clockwise results in a wide high
shelf cut with subtle bass and mid-range adjustments.
The signal paths of both channels are idenī†·cal, and
depending on how they are routed externally, the
channels can be conī…”gured as dual independent ī…”lters,
or as a stereo-in, stereo-out ī…”lter with each output panned
leī…² and right. Patching the output of CH1 to CH2 runs the
ī…”lters in series and allows for pronounced sound shaping and
band pass responses.
Each channel provides up to +/- 8dB of low and high-
frequency gain control, summing into a low noise VCA
output stage. Hot input signals over 15VPP are
saturated
by acī†·ve Zener diode clipping at the input buī…‘er.
The boost and cut controls are CV responsive to input
signals of 0-8V. Turn the control knobs fully anī†·-
clockwise to allow full CV control of the ī…”lter gain
range.

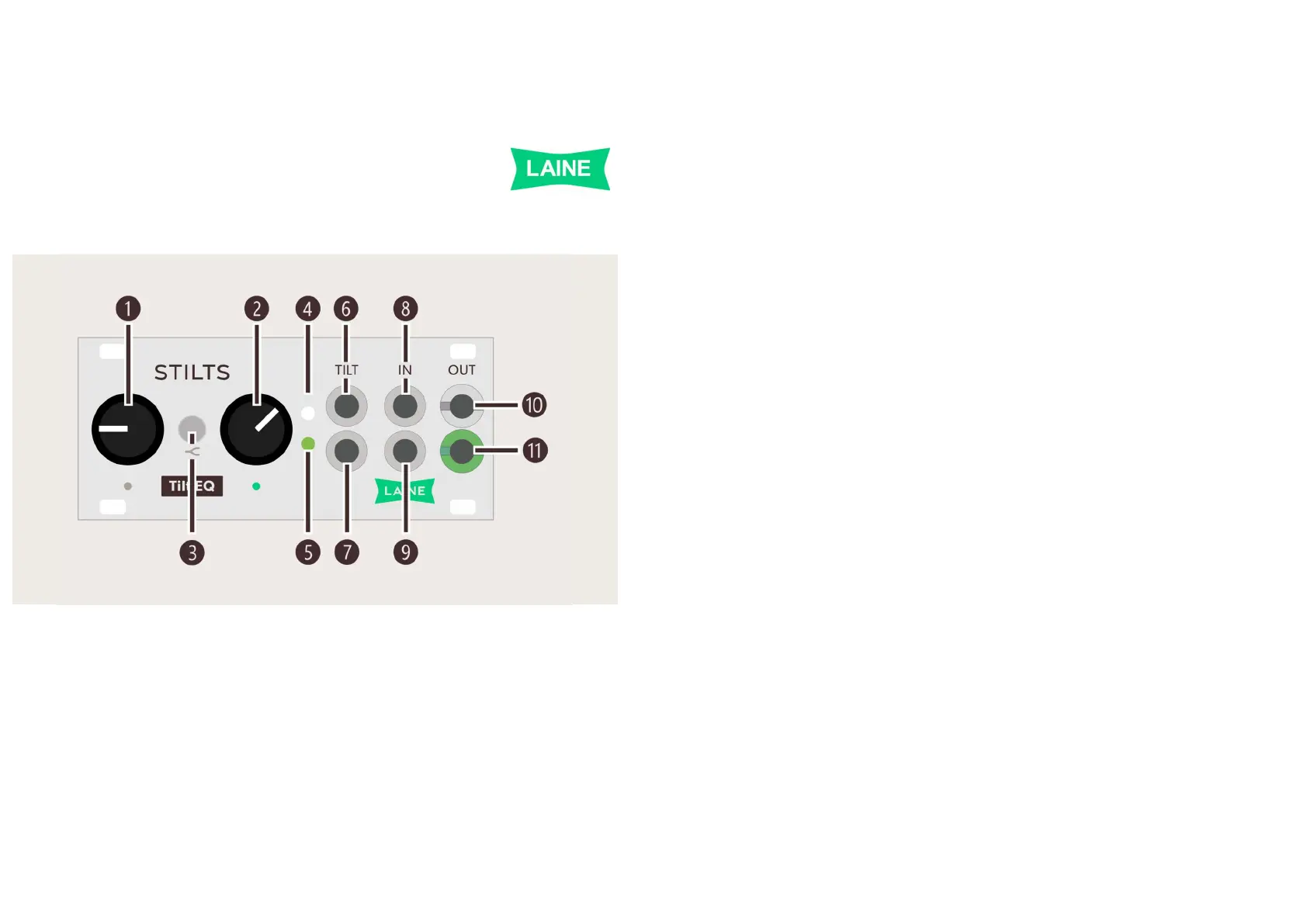

Front Panel
āžŠ ā· CH 1, CH 2 Control
These potenī†·ometers control the frequency response
of the equaliser channel. Turn anī†·-clockwise for full CV
control.
āø Mode Switch
The latching switch is used to select EQ topologies for
both channels. Tilt (with the Mode Switch in the raised
posiī†·on) and Baxandall High Shelf (with the Mode
Switch latched down)
ā¹ āŗ CH 1, CH 2 Audio Level LEDs
The clear LED represents CH1 audio input signals, the
green LED displays CH 2.
ā» ā¼ CH 1, CH 2 CV Input
These CV input jacks are responsive to signals ranging
from 0 to 8V and show an input impedance of 100k.
Turn the channelā€™s control knob fully anī†·-clockwise for
full CV control through the jack inputs. With no jack
patched, CH 2 is normalled to the
CH 1 CV input.
ā½ āž’ CH 1, CH 2 Audio Input
The AC-coupled input jacks will begin to clip
with input signals over 15VPP. They show an input
impedance of 100k. With no jack patched, CH 2 is
normalled to the CH 1 Audio input.
āæ ā“« CH 1, CH 2 Audio Output
These output audio signals for CH1 and CH2. With the
control knob in the central posiī†·on the output signal
will match the signal level at the audio inputs.
STILTS
Dual VC Tilt/High Shelf Equaliser
Designed in the Intellijel 1U format
for Eurorack modular systems.
User Manual
20
/1
2
/23

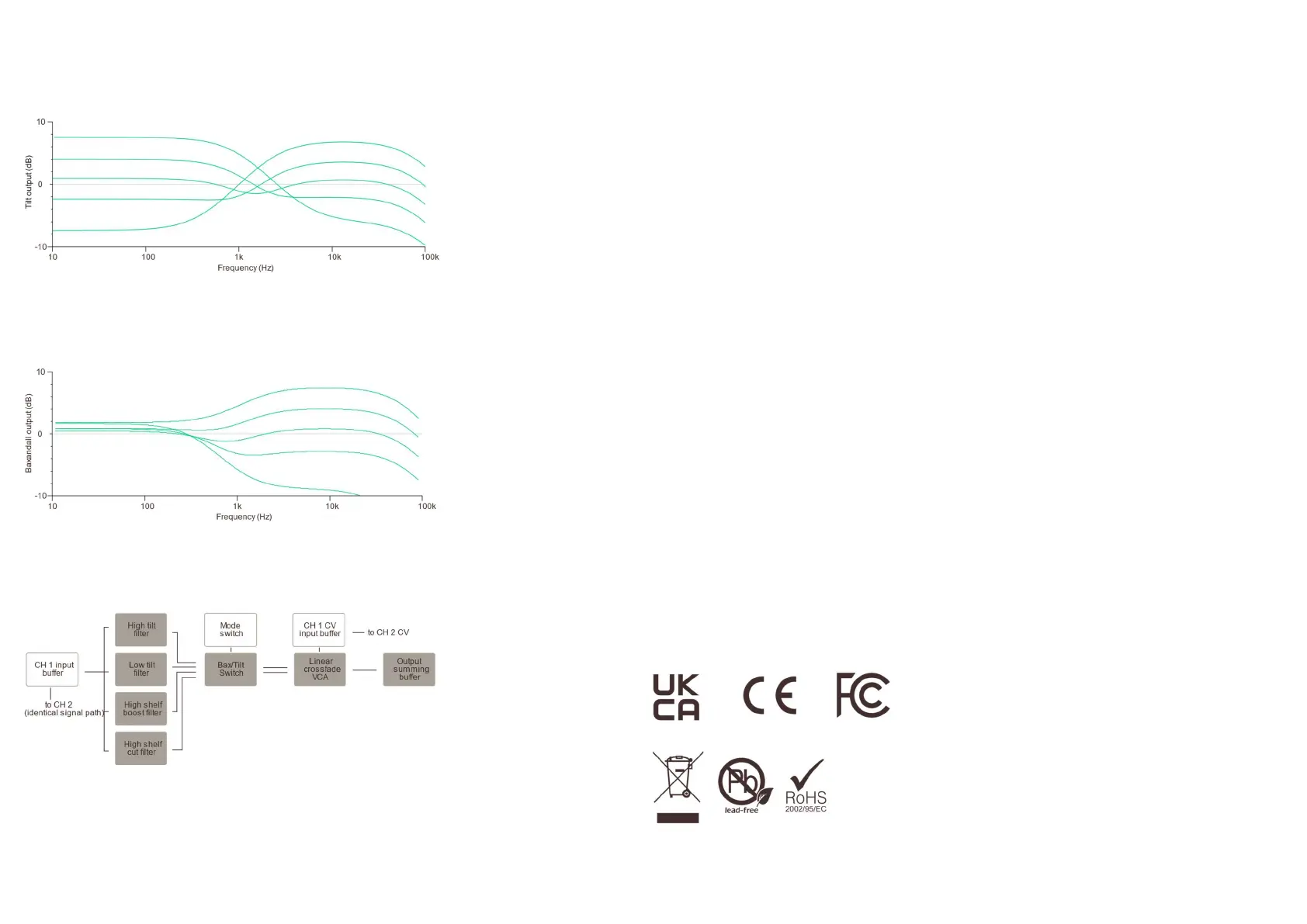

Typical Response Graphs
Tilt EQ Response
Baxandall High Shelf Response
s
Signal Flow Diagram
Speciī…›caī†¾ons
ā€¢ Intellijel 1U format
ā€¢ Width 18HP
ā€¢ Depth 32mm
ā€¢ Power requirements ~60mA
+12V
~58mA -12V
ā€¢ Control voltage range
0-8V
ā€¢ Impedance:
Input 100K
Output 1K
Standards Compliance
This device complies with internaī†¾onal EMC and Safety
Standards when installed in a fully compliant rack. It has been
assembled and tested in the United Kingdom.
UKCA
UK Electrical Equipment (Safety) Regulaī†¾ons 2016 (SI
2016/1101) UK Electromagneī†¾c Compaī†¾bility Regulaī†¾ons
2016 (SI 2016/1091.) The Restricī†¾on of the use of certain
Hazardous Substances in Electrical and Electronic Equipment
Direcī†¾ve (RoHS2) 2011/65/EU.
CE
EU Low Voltage direcī†¾ve (LVD) 2014/35/EU,
EU Electromagneī†¾c Compaī†¾bility direcī†¾ve (EMC) 2014/30/EU.
The Restricī†¾on of the use of certain Hazardous Substances in
Electrical and Electronic Equipment Direcī†¾ve (RoHS2)
2011/65/EU.
FCC
This device complies with Part 15 of FCC rules. Operaī†¾on
is subject to the following two condiī†¾ons:
(1) this device may not cause harmful interference,
(2) this device must accept any interference received,
including interference that may cause undesired
operaī†¾on.
Electromagneī†¾c Compaī†¾bility
BS EN 55032:2015, Class B. BS EN 55035:2017.
Electrical Safety
BS EN 62368-1:2014 + A11:2017, EN 62368-1:2014 +
A11:2017, CSA CAN/CSA-C22.2 NO. 62368-1 2nd Ed, 2014.
Environmental Temperature
Operaī†¾ng: +1 to 30Ā°C.
Storage: -20 to 50Ā°C.
Warranty
Laine warrants this product to be free of defects in
materials or construcī†¾on for a period of one year
from the date of purchase (proof of purchase or
invoice is required.)
Defects resulī†¾ng from incorrect power supply
voltages over or under 12V, abuse of the product,
removing knobs, changing face plates, or any other
causes determined by Laine to be the fault of the user
are not covered by this warranty, and normal service
charges will apply. During the warranty period, any
defecī†¾ve products will be repaired or replaced, at the
discreī†¾on of Laine, on a return-to-Laine basis with
the customer paying the shipping cost to Laine.
Laine implies and accepts no responsibility for harm
to person or apparatus caused through the operaī†¾on
of this product.
Product Support Contact
Please contact jack@laine.uk with any quesī†¾ons,
return requests and comments.
www.laine.uk
Instagram @laine.modular
