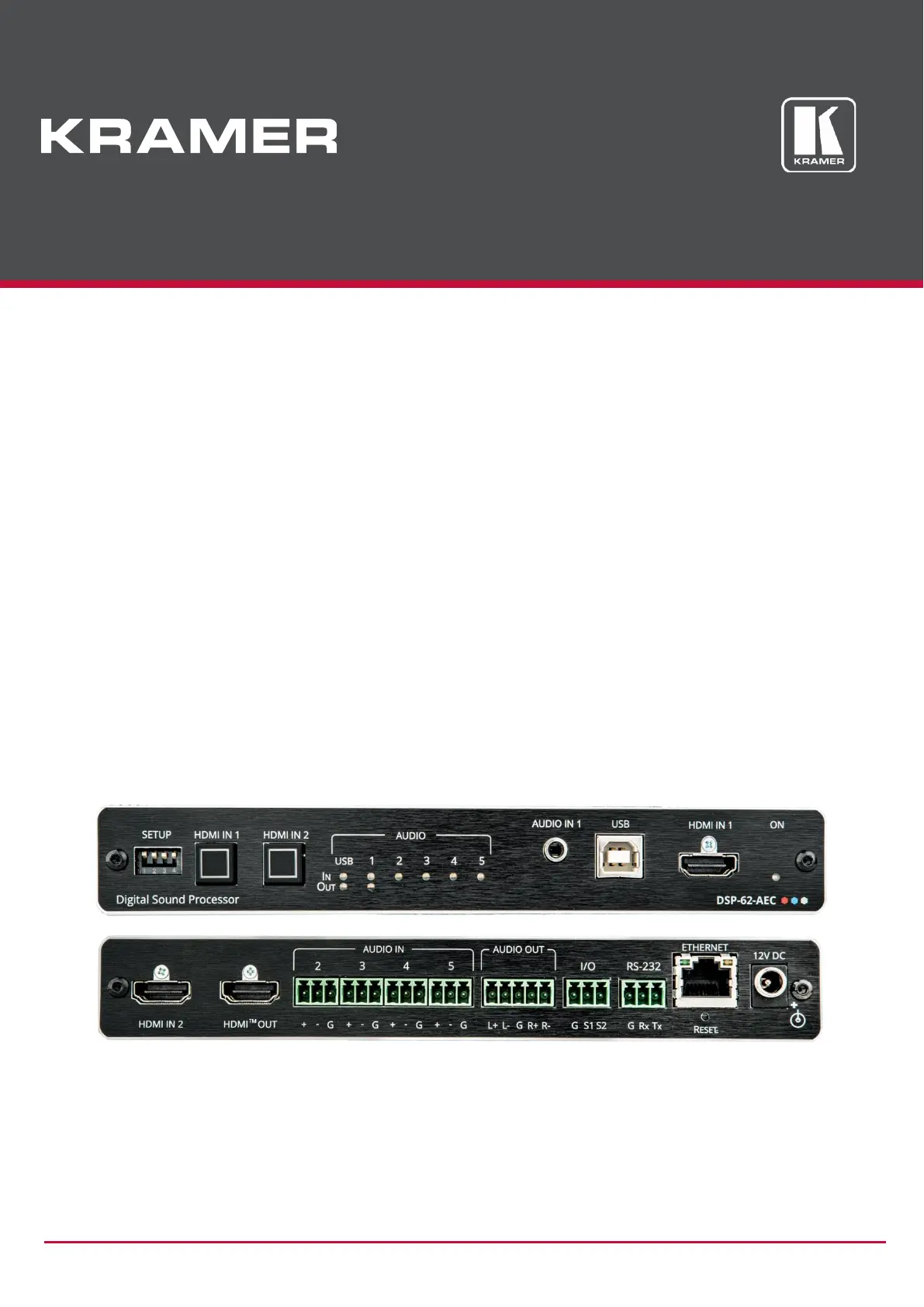

P/N: 2900-301432 Rev 2 www.kramerAV.com
USER MANUAL
MODELS:
DSP- -AEC, DSP- - 62 62 UC
Digital Sound Processor
Kramer Electronics Ltd.
DSP- -AEC, DSP- - Contents 62 62 UC
i
Contents
Introduction 1
Getting Started 1
Overview of DSP- -AEC, DSP- - 262 62 UC
Typical Applications 4
Dening DSP- -AEC, DSP- - 562 62 UC
DSP- -AEC, DSP- -UC Front Panels 562 62
DSP- -AEC, DSP- - Rear Panels 662 62 UC
Mounting the Device 7
Connecting DSP- -AEC 862
Connecting DSP- - 962 UC
Connecting the Output to a Balanced/Unbalanced Stereo Audio Acceptor 10
Connecting to the Device via RS-232 10
Operating the DSP- -AEC, DSP- - 62 62 UC 10
Connecting through Ethernet 11
Using the Embedded Webpages 14
Browsing the DSP-62 Webpages 14
Using the Top Status Bar 15
Viewing the Matrix Area 17
Processing Audio Signals 18
Linking Analog Inputs and Outputs 18
Processing a Signal 18
Routing Inputs to Outputs 32
Mixing Audio Signals 36
Audio and Video Settings 39
Dening Audio Settings 39
Dening Video Settings 40
Dening HDMI Auto Switching 41
Dening General Settings 42
Performing Firmware Upgrade 43
Importing/Exporting Global Settings 44
Restarting and Resetting the Device 45
Dening Communication Settings 46
Setting Access Security 47
Viewing Device Information 50
Upgrading Firmware 51
Technical Specications 52
DSP- -AEC Technical Specications 62 52
DSP- -UC Technical Specications 62 53
Default Communication Parameters 54
Default EDID for DSP- - 62 UC 56
Protocol 3000 58
Understanding Protocol 3000 58
Protocol 3000 Commands 59
Result and Error Codes 84
Kramer Electronics Ltd.
DSP- -AEC, DSP- - Introduction 62 62 UC
1
Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world
of unique, creative, and aordable solutions to the vast range of problems that confront the
video, audio, presentation, and broadcasting professional on a daily basis. In recent years, we
have redesigned and upgraded most of our line, making the best even better!
Getting Started
We recommend that you:
Unpack the equipment carefully and save the original box and packaging materials for
possible future shipment.
Review the contents of this user manual.
To check for up- -date user manuals, application programs, and if rmware upgrades are to
available (where appropriate):
For , go to .
DSP- -AEC62 www.kramerav.com/downloads/DSP- -AEC62
For , go to . DSP- -62 UC www.kramerav.com/downloads/DSP- -62 UC
Achieving Best Performance
Use only good quality connection cables (we recommend Kramer high-performance,
high-resolution cables) to avoid interference, deterioration in signal quality due to poor
matching, and elevated noise levels (often associated with low quality cables).
Do not secure the cables in tight bundles or roll the slack into tight coils.
Avoid interference from neighboring electrical appliances that may adversely inuence
signal quality.
Position your Kramer device away from moisture, excessive sunlight, and dust.
Safety Instructions
Caution:
This equipment is to be used only inside a building. It may only be connected to other
equipment that is installed inside a building.
For products with relay terminals and GPI/O ports, refer to the permitted rating for an
external connection located next to the terminal or in the User Manual.
There are no operator serviceable parts inside the unit.
