Pagina 1/2
4-1/2"
115mm
3-1/4"
84mm
1-1/8"
30mm
4-11/16"
118mm
5"
127mm
5-9/16"
140mm
3-9/16"
90mm
7-5/16"
185mm
8-11/16"
220mm
4-1/4"
107mm
8-1/8"
205mm
2-3/8"
60mm
7/16"
10mm
2-1/16"
51mm
1-13/16"
45mm
2-3/8"
60mm
7/8"
22mm
11/16"
17mm
R E F E R E N C E
6830cs
Declaration of Conformity
We,Harman Consumer Group,Inc.
2,route de Tours
72500 Château du Loir
France
declare in own responsibility that the product described in this owner’s
manual is in compliance with technical standards:
EN 61000-6-3:2001
EN 61000-6-1:2001
Klaus Lebherz
Harman Consumer Group,Inc.
Château du Loir,France 1/09
6830cs
BL (T-m) 5.25
DCR (ohms) 2.30
Mms (g) 19.57
Sd (sq cm) 178.1
Cms (µm/N) 189
Vas (l) 8.42
Fs (Hz) 82.8
Qes 0.85
Qms 5.99
Qt 0.74
SPECIFICATIONS
6830cs
Type: 6" x 8"/5" x 7"
2-Way Component
Impedance: 2 Ohms
Power Handling, RMS: 90W
Power Handling, Peak: 270W
Frequency Response: 49Hz – 21kHz
Sensitivity (2.83V, 1m): 93dB
WARRANTY:
Reference Series speakers are warranted against defects.
The duration of the speaker’s warranty depends on the laws in the country in which it
was purchased.Your local Infinity car audio retailer can help you determine the length
of your warranty.To register your product, please visit us at www.infinitysystems.com.
SPECIFICATIONS
6830cs
Type: 6" x 8"/5" x 7"
2-Way Component
Impedance: 2 Ohms
Power Handling, RMS: 90W
Power Handling, Peak: 270W
Frequency Response: 49Hz – 21kHz
Sensitivity (2.83V, 1m): 93dB
WARRANTY:
Reference Series speakers are warranted against defects.
The duration of the speaker’s warranty depends on the laws in the country in which it
was purchased.Your local Infinity car audio retailer can help you determine the length
of your warranty.To register your product, please visit us at www.infinitysystems.com.
SPECIFICATIONS
6830cs
Type: 6" x 8"/5" x 7"
2-Way Component
Impedance: 2 Ohms
Power Handling, RMS: 90W
Power Handling, Peak: 270W
Frequency Response: 49Hz – 21kHz
Sensitivity (2.83V, 1m): 93dB
WARRANTY:
Reference Series speakers are warranted against defects.
The duration of the speaker’s warranty depends on the laws in the country in which it
was purchased.Your local Infinity car audio retailer can help you determine the length
of your warranty.To register your product, please visit us at www.infinitysystems.com.
Designed and engineered in the USA. Conception et design aux É.U.A.
A valid serial number is r ed for w anty coverage.Un numéro de série valable est exigé pour la couverture de la garantie.equir arr
Features,specifications and appearance are subject to change without notice.
Les dispositifs,les caractéristiques et l’aspect sont sujets au changement sans communication préalable.
Harman Consumer Group, Inc.,250 Crossways Park Drive,Woodbury, NY 11797 USA
www.infinitysystems.com
© 2009 Harman International Industries,Incorporated.All rights reserved.Tous droits réservés.• Part No.REF6830CSOM1/09
Infinity is a trademark of Harman International Industries,Incorporated,registered in the United States and/or other countries.
I-Mount is a trademark of Harman International Industries,Incorporated.
Infinity est une marque commerciale de Harman International Industries,Incorporated,déposée aux États-Unis et/ou dans d’autres pays.
I-Mount est une marque commerciale de Harman International Industries, Incorporated.
1
2
4
3
1
2
3
1x
12x 4x 4x 4x 2x 2x 8x
2x 2x
1
2
3
2x2x2x 2x2x2x

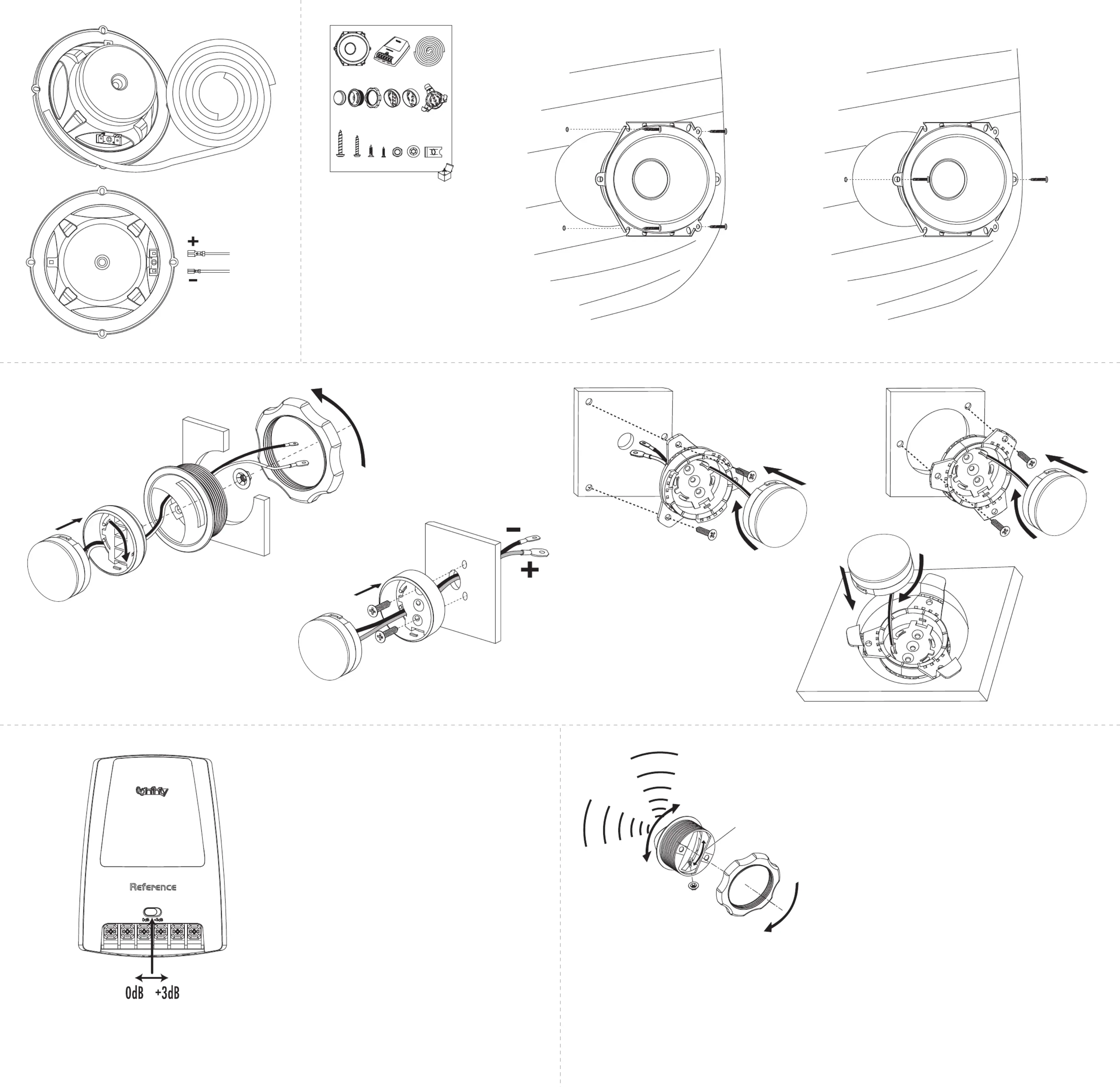

ROTATING TWEETER
This component system includes the
I-Mount™(patent no. 5,859,917) feature,
an extremely versatile tweeter-mounting
system, which is designed to allow the
tweeter to be aimed toward the listening
position. Since the tweeter’s output becomes
directional at extremely high frequencies,
aiming the tweeter toward the listening
position will improve high-frequency
response and stereo imaging. Refer to
the mounting diagrams.With the tweeter
mounted in the proper location, rock the
tweeter element in the slot and rotate the
entire assembly to aim the tweeter toward
the listening position. Secure the small nut
to lock the angle, then tighten the large
hand nut to lock the rotational position.
ROTATING TWEETER
This component system includes the
I-Mount™feature, an extremely versatile
tweeter-mounting system, which is designed
to allow the tweeter to be aimed toward the
listening position. Since the tweeter’s output
becomes directional at extremely high
frequencies, aiming the tweeter toward the
listening position will improve high-frequency
response and stereo imaging. Refer to
the mounting diagrams.With the tweeter
mounted in the proper location, rock the
tweeter element in the slot and rotate the
entir assembly te o aim the tweeter toward
the listening position. Secure the small nut
to lock the angle, then tighten the large hand
nut to lock the rotational position.
ROTATING TWEETER
This component system includes the
I-Mount™feature, an extremely versatile
tweeter-mounting system, which is designed
to allow the tweeter to be aimed toward the
listening position. Since the tweeter’s output
becomes directional at extremely high
frequencies, eetaiming the tw er toward the
listening position will improve high-frequency
response and stereo imaging. Refer to
the mounting diagr With the tweeterams.
mounted in the proper location, rock the
tweeter element in the slot and rotate the
entire assembly to aim the tweeter toward
the listening position. Secure the small nut
t lock the angle, then tighten the large hando
nut to lock the rotational position.
TWEETER-LEVEL
CONTROL
This speaker system is equipped with a
tweeter-level switch.The normal setting for
this switch is the “0dB” position, which pro-
vides an apparently “flat” response.Tweeter
output may be increased according to the
user’s preference, or to compensate for off-
axis placement (where the speaker does not
directly face the listening position), by set-
ting the switch to the “+3dB” position.
TWEETER-LEVEL
CONTROL
This speaker system is equipped with a
tweeter-level switch.The normal setting for
this switch is the “0dB” position, which pro-
vides an apparently “flat” response.Tweeter
output may be increased according to the
user’s preference, or to compensate for off-
axis placement (where the speaker does not
directly face the listening position), by set-
ting the switch to the “+3dB” position.
TWEETER-LEVEL
CONTROL
This speaker system is equipped with a
tweeter-level switch.The normal setting for
this swi is the “0dB” position, which pro-tch
vides an apparently “flat”response.Tweeter
output may be increased according to the
user’s preference, or to compensate for off-
axis placement (where the speaker does not
directly face the listening position), by set-
ting the switch to the “+3dB” position.
