Infinity Systems, Inc. •20630 Nordhoff Street,
Chatsworth, CA 91311, USA •(818) 407- 0228 •FAX (818) 709 -9486
Thank you for purchasing Infinity Reference 4622cfp
speakers. You’ve selected a premium product that offers
superior performance and advanced materials, resulting
from over 25 years of loudspeaker design. Before reading
further, please verify that the package includes a pair of
Reference 4622cfp speakers, mounting hardware, and a
warranty card.
IMPORTANT: Installation of automotive stereo com-
ponents can require extensive experience in dealing
with a variety of mechanical and electrical proce-
dures. Although these instructions explain how to
install Reference 4622cfp speakers in a general sense,
they do not show the exact installation methods for
your particular vehicle. If you do not feel you have the
experience, do not attempt the installation yourself,
but instead ask your Authorized Infinity Car Audio
Dealer about professional installation options.
PRECAUTIONS
• Turn off all audio systems and other electrical devices
before you start. Disconnect the (–) negative lead from
your vehicle’s battery.
• Keep speakers in their package until final installation.
When moving a speaker, always rest it with the cone or
dome facing up. Never use force to install any speaker.
• At the installation sites, locate and make a note of all
fuel lines, hydraulic brake lines, and electrical wiring.
Use extreme caution when cutting or drilling in and
around these areas.
• Check clearances on both sides of a planned mounting
surface before drilling any holes or installing any screws.
Remember that the screws can extend up to an inch
behind the surface.
• Before drilling or cutting holes, use a utility knife to
remove unwanted fabric or vinyl, to keep material from
snagging in a drill bit or saw.
• Always wear protective eyewear when using power or
conventional tools.
INSTALLATION
1. Use the supplied template (on the back) to create each
cutout. Tape or trace a template at each site and mark
the locations of the mounting holes and circumference of
baffle openings.
NOTE: Reference 4622cfp speakers have built-in
universal mounting brackets to accommodate a variety of
custom-fit installations. Mounting holes can be located
anywhere within the bracket openings (see template).
2. Use a hole punch to make drilling guides. Clear away
any carpet or other material prior to drilling.
3. Use a 1⁄8" bit to drill a pilot hole at the center of each
proposed baffle opening. Then drill four holes for
mounting screws. Use a saber or hole saw to create a
cutout for each baffle opening.
4. Slip a supplied metal mounting clip over each screw
mounting hole. Route the speaker wires from the source
unit (or amplifier) through each cutout.
5. Observing the color codes, attach the wires to the keyed
terminals on each speaker.
6. Position each speaker in its cutout, aligning the
mounting holes to match the drilled holes. Push the
wires into the opening and carefully fasten each speaker
to its site with the supplied screws.
7. Reconnect the (–) negative battery lead and turn on the
audio system.
SPECIFICATIONS
Power Handling: 55 watts
Frequency Response: 78 Hz ~ 20 kHz
Mounting Depth: 1 3⁄4" (44.5 mm)
4622cfp – 4x6" Two-Way Plate Speaker
I N S T R U C T I O N S
CAR AUDIO
REFERENCE 4622cfp

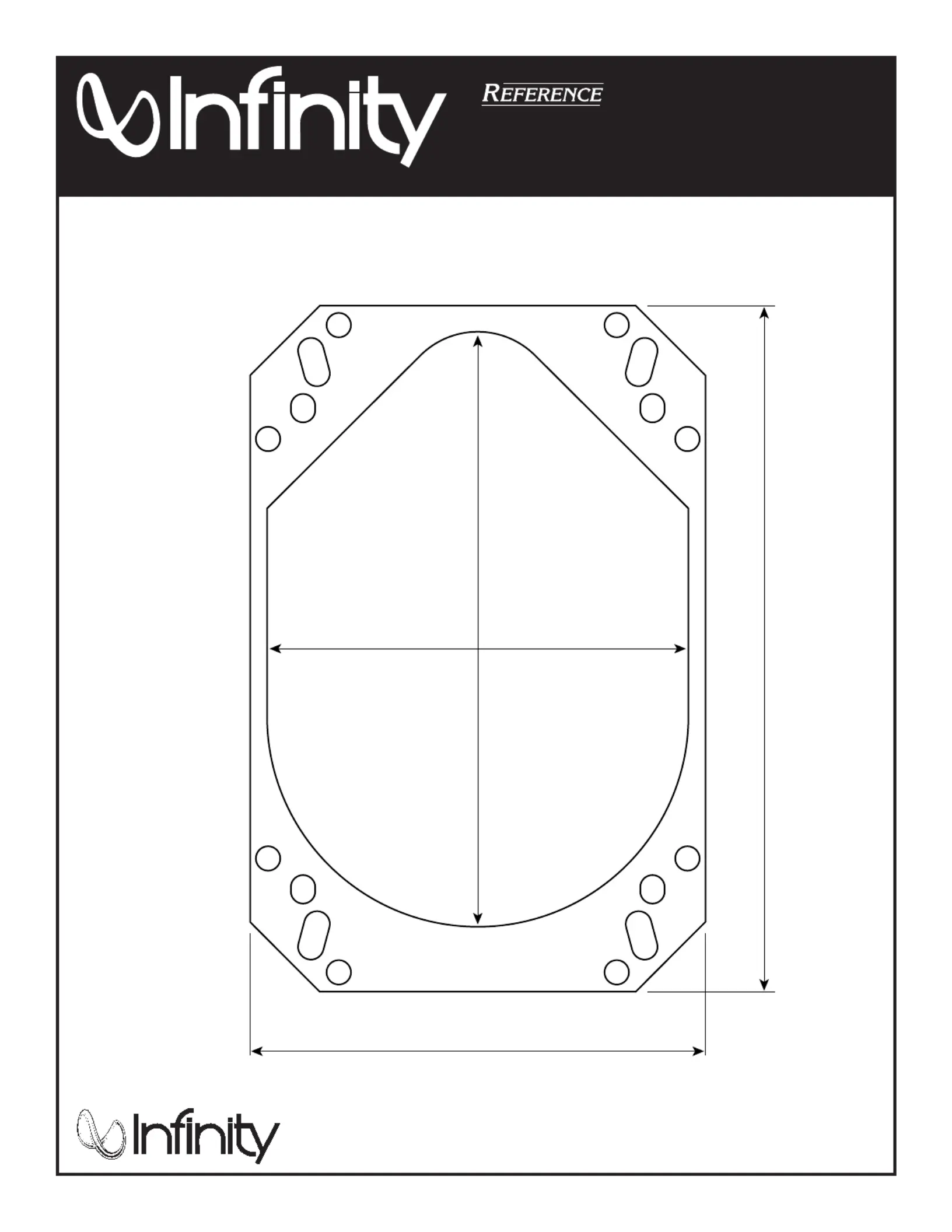

MOUNTING TEMPLATE
3
3⁄ " (95.3 mm)4
BAFFLE OPENING
5
5⁄ " (134.9 mm)16
BAFFLE OPENING
61⁄ " (155.6 mm)8
FRAME OUTSIDE
41⁄ " (104.8 mm)8
FRAME OUTSIDE
®
Infinity Systems, Inc. •20630 Nordhoff Street,
Chatsworth, CA 91311, USA •(818) 407- 0228 •FAX (818) 709 -9486
Printed In China
4622cfp – 4x6" Two-Way Plate Speaker
MOUNTING TEMPLATE
CAR AUDIO
