Thank you for purchasing an Infinity Kappa Perfect component
system. Kappa Perfect components have been engineered to provide
the most accurate sonic reproduction possible. Over the years, we at
Infinity have listened to hundreds of automotive speakers and we
think these are among the finest. We hope you agree.
This manual includes information that will make your installation as
simple and trouble-free as possible. It also provides detailed technical
information that will help an experienced installer optimize speaker
placement and crossover adjustment. Please study this manual before
you begin your installation. Remember to send in your warranty
registration card, and keep your sales receipt somewhere safe in case
you need warranty service.
kappa series
perfect5.1
perfect6.1
instructions
IMPORTANT
Installation of automotive stereo components
can require extensive experience performing
a variety of mechanical and electrical proce-
dures. Although these instructions explain
how to install a Kappa Perfect component
system in a general sense, they do not
show the exact installation method for your
particular car. If you feel you may not have
the necessary tools or experience, ask your
authorized Infinity car audio dealer about
professional installation options.
WARNING
Playing loud music in your automobile can
permanently damage your hearing as well
as hinder your ability to hear traffic. We
recommend listening at low volume while
driving. Infinity accepts no liability for hear-
ing loss, bodily injury or property damage
resulting from use or misuse of this product.
A NOTE BOUT YSTEM ERFORMANCEA S P
For the best performance possible, the
Kappa Perfect components should be used
with a two-channel amplifier with output
power of at least 50W RMS per channel.
The passive
crossover contains impedance-
compensating
circuitry and has been
computer-optimized for the flattest possible
frequency response with the tweeter flush-
mounted, on-axis with the listener. The
combined responses of the speakers and
passive crossover constitute a 4th-order
Linquitz-Riley
acoustic alignment and cannot
be duplicated
with any electronic crossover
currently available for car audio use.
Consequently, bi-amping a Perfect
component system with an electronic
crossover is not recommended.
S PPEAKER LACEMENT

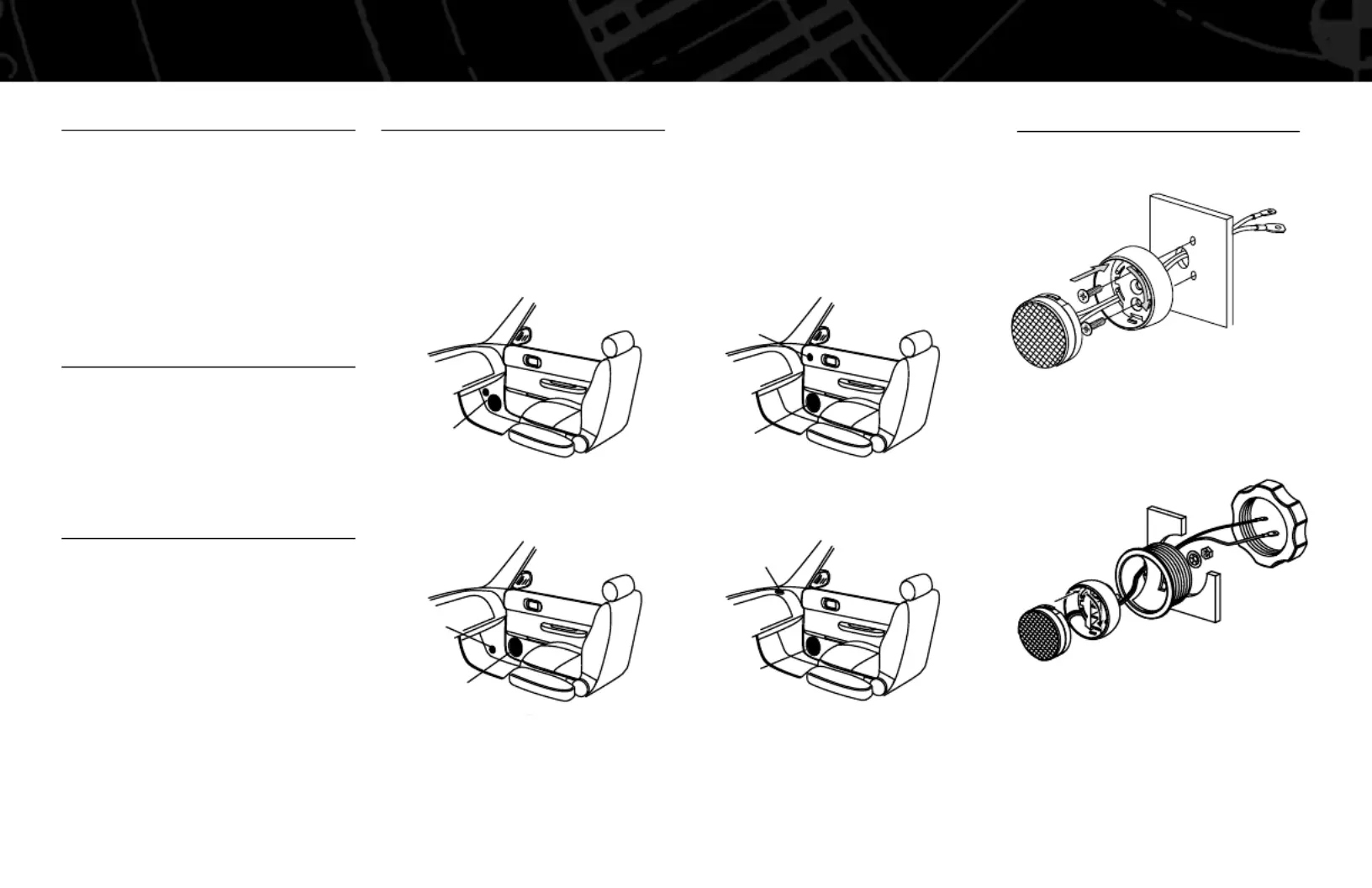

Figures 1– 4 show possible speaker place-
ments in the order of most desirable to
least desirable. Kick-panel mounting will
provide the best staging and imaging in
most vehicles.
T IWEETER NSTALLATION
TWEETER
on dash
WOOFER
in factory-
door location
TWEETER
on kick panel
WOOFER
in factory-
door location
TWEETER
and
WOOFER
on kick panel
WOOFER
in factory-
door location
TWEETER
in high/forward
location on door
Figure 1.
Mounting the woofer and tweeter in
the kick panels
Figure 2.
Mounting the woofer in the door and
the tweeter in the kick panel
Figure 3.
Mounting the woofer and tweeter in
the doors
Figure 4.
Mounting the woofer in the door and
the tweeter in the dash
1
2
–
+
1
2
–
+
red
blk
Figure 5.
Surface-mounting the tweeter
Figure 6.
Flush-mounting the tweeter
- 2 -

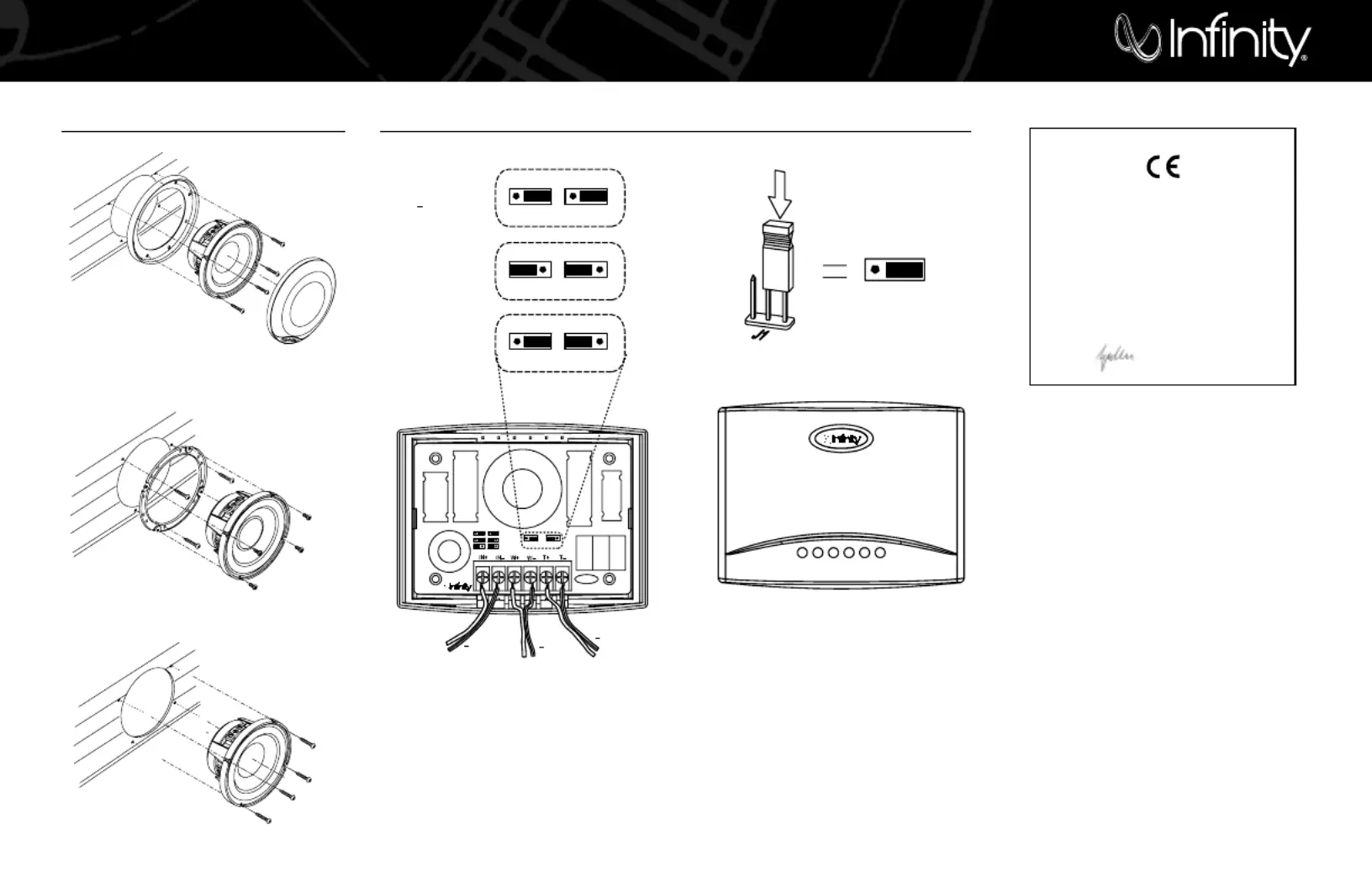

W IOOFER NSTALLATION
Figure 7.
Mounting the P5.1 or P6.1 woofer
where there is no factory speaker location.
To mount the P5.1 in factory locations, omit
the grille and grille tray.
Figure 8.
Mounting the P6.1 woofer in
standard 5-1/4" holes (in many
Japanese and American automobiles)
Figure 9.
Mounting the P6.1 woofer in
165mm holes (in many European
and American automobiles)
E C C ALECTRICAL ONNECTIONS AND ROSSOVER DJUSTMENTS
¤
TWEETER LEV EL
—4dB
J1 J2
J1 J2
0dB
+5dB
KPX00
J1 J2
Tweeter level
+5dB
Tweeter level
0dB
(default)
To woofer To tweeter
To amplier
+
speaker output
J1 J2
Tweeter level
4dB J1 J2
++
Figure 10.
Connecting the speakers and the amplifier
to the crossover
J1
¤
Figure 11.
Adjust the crossover using the jumpers
provided
- 3 -
DECLARATION OF CONFORMITY
We, Harman Consumer International
2, route de Tours
72500 Chateau-du-Loir
France
Lutz Uphoff
Harman Consumer International
Chateau-du-Loir, France 4/01
declare in own responsibility, that the products
described in this owner’s manual are in compliance
with technical standards:
EN 50081-1:1992
EN 50082-1:1997
