Infinity Systems, Inc. •9409 Owensmouth Avenue
Chatsworth, CA 91311, USA •(818) 407- 0228 •FAX (818) 709 -9486
Thank you for purchasing a pair of Infinity Kappa
EMIT-N™ MK II Tweeters. You’ve selected a
premium car audio product that offers extended
high-frequency response, advanced materials, and
a compact size to fit virtually any interior location.
Kappa EMIT-N MK II Tweeters are easy to install.
Each one is housed in an attractive surface-mount
enclosure with grille and is equipped with an
attached color- and terminal-keyed wire pigtail.
For flush-mount applications (see back page), a
pair of flush-mount clips and cups are included.
IMPORTANT
Installation of automotive stereo components
requires extensive experience in dealing with a
variety of mechanical and electrical procedures.
If you do not feel you have the experience, do not
attempt the installation yourself, but instead ask
your Authorized Infinity Car Audio Dealer about
professional installation options.
Surface-Mount Installation
1. At the chosen site, use the surface-mount
bracket (with two holes) or template (see
Figure 1) to mark locations of mounting holes.
A 5⁄16" diameter feed-through hole is required to
pass the tweeter wires and pre-attached
terminals. Make sure the proposed hole will not
extend beyond the tweeter’s boundary.
2. Use a hole punch to create drilling guides. Clear
away any carpet or other material prior to
drilling. Use a drill with 5⁄16" bit to create a
feed-through hole at each tweeter location.
Then use a 1⁄8" bit to drill two mounting holes.
3. Fasten each surface-mount plate with supplied
screws. Route wires from a crossover through
each feed-through hole, and connect each pigtail.
4. Carefully align the openings on the back of each
tweeter with the tabs on the surface-mount
bracket. Slide each tweeter down on its plate to
lock it into place, as shown in Figure 2.

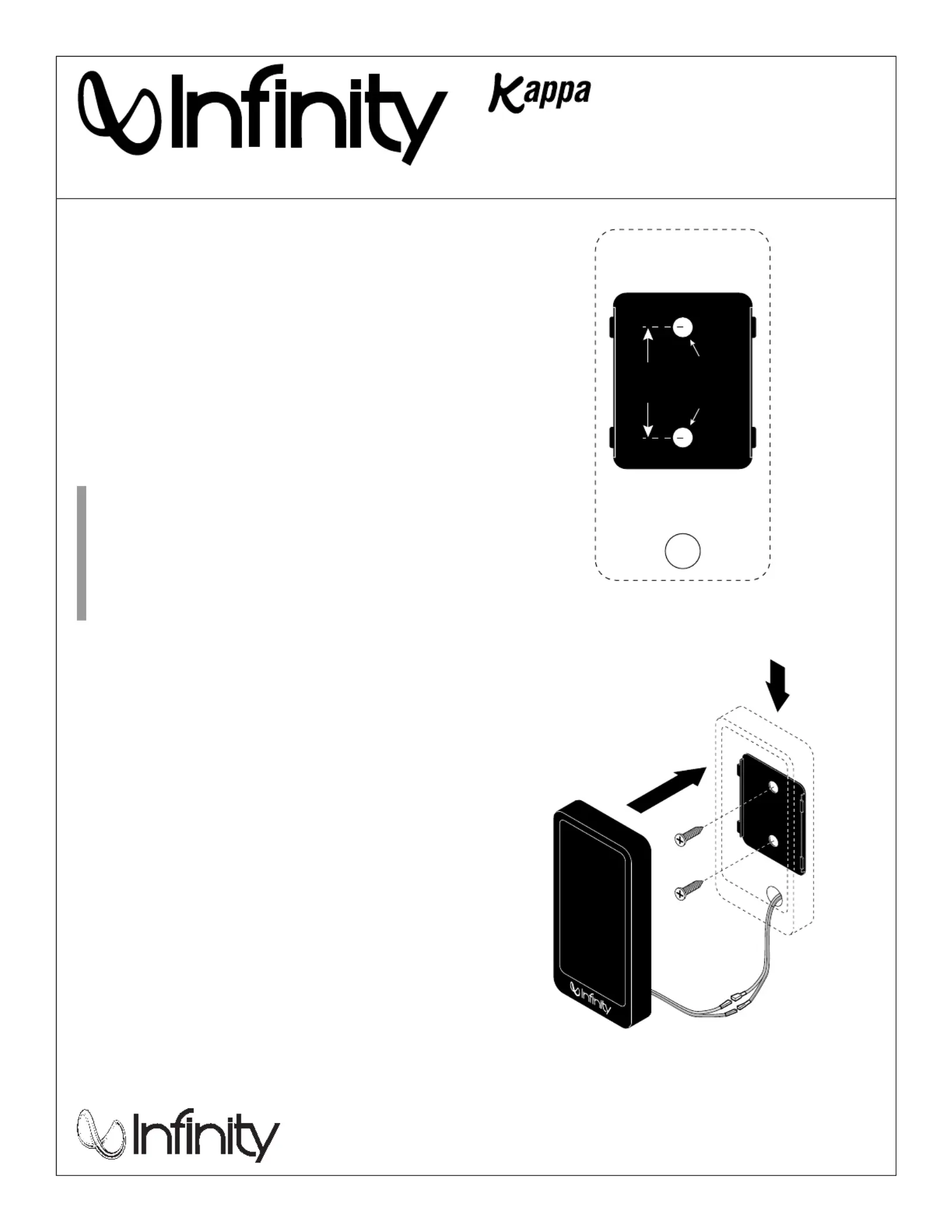

Figure 1. Use this template to surface-mount a Kappa
EMIT-N MK II Tweeter. The vertical position provides
best high-frequency dispersion.
Figure 2. After installing the surface-mount plate, slide
the Kappa EMIT-N MK II Tweeter down on the plate to
lock in place.
TWEETER TOP
feed-through hole
diam.= 0.3125" (5/16")
0.984"
(25 mm)
diam. =
0.177"
(4.5 mm)
EMIT-N™ MK II Tweeter
INSTRUCTIONS
CAR AUDIO
®
Infinity Systems, Inc. •9409 Owensmouth Avenue
Chatsworth, CA 91311, USA •(818) 407- 0228 •FAX (818) 709 -9486
P/N .930...6646
Flush-Mount Installation
To flush-mount Kappa EMIT-N MK II Tweeters,
first remove the panels at each selected site.
Make sure there is minimum mounting depth of
1" behind each panel.
1. At a chosen site, use the template shown in
Figure 3 to create a hole in the panel for each
flush-mount cup.
2. Insert a machine screw (enclosed) through the
flush-mount plate, align its tabs with the
channel openings on the back of the tweeter,
and slide it down to lock it in place, as shown
in Figure 4.
3. Route the tweeter’s attached wire pigtail
through the opening in the flush-mount cup
and gently press the tweeter into the cup.
4. Place the cup and tweeter into the panel hole
and fasten it by using the retaining clip and
enclosed wing nut (see Figure 4).
5. Connect the tweeter wires to a crossover and
re-install the panel.
Warranty Information
Infinity Kappa EMIT-N MK II Tweeters are
covered by our full one-year parts and labor
warranty. Keep your original dated bill of sale in
case warranty service is required. For detailed
warranty statement, contact Customer Service
at the address below.
Specifications
Impedance: 4 ohms
Crossover: 5 kHz
Power Capacity: 50 watts with crossover

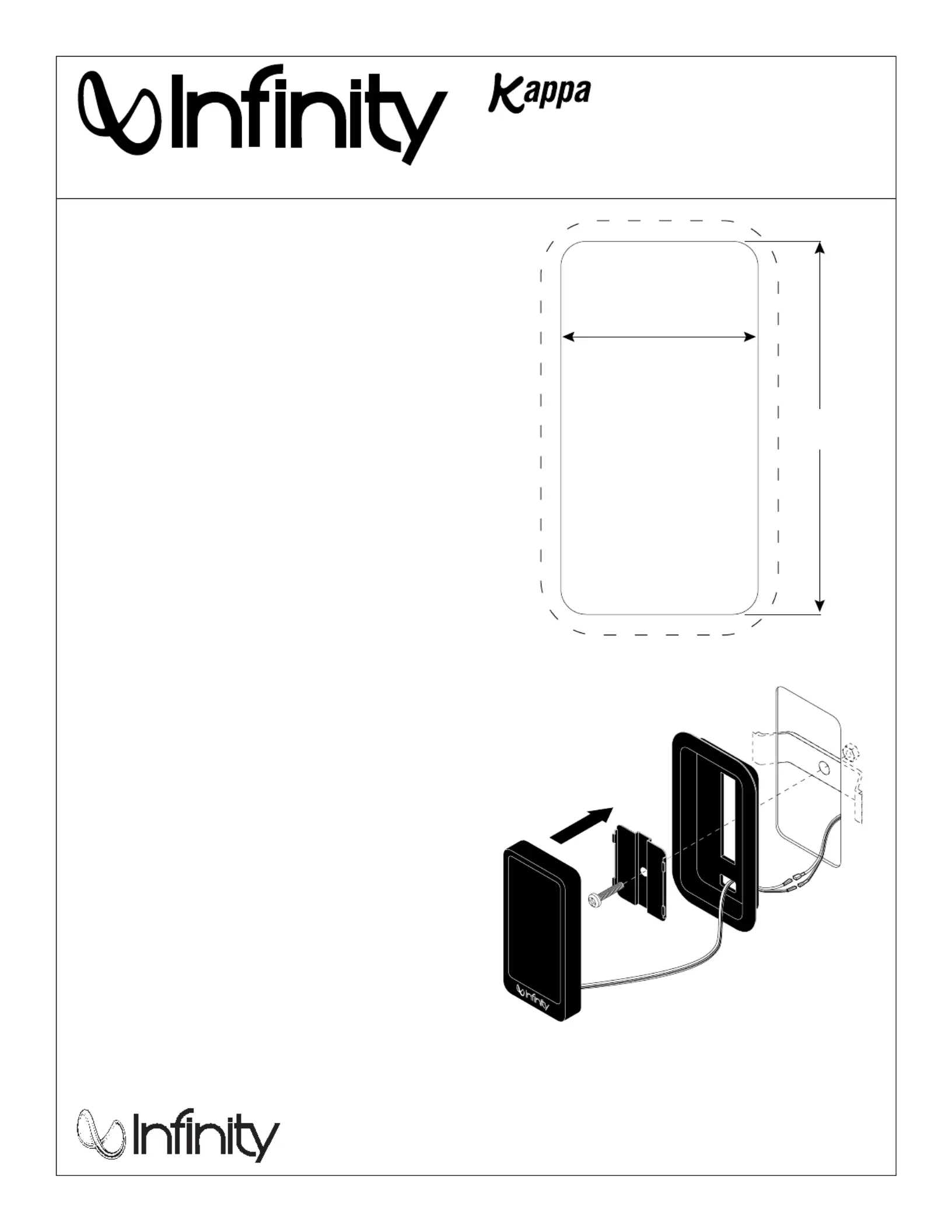

Figure 3. Use this template to flush-mount a Kappa
EMIT-N MK II Tweeter.
Figure 4. After sliding the flush-mount clip onto the
back of the Kappa EMIT-N MK II tweeter, use the
supplied hardware to fasten cup to the panel.
OPENING FOR
FLUSH-MOUNT CUP
TRIM RING EDGE
1.76" (44.7 mm)
3.33"
(84.6 mm)
EMIT-N™ MK II Tweeter
INSTRUCTIONS
CAR AUDIO
