Thank you for purchasing Infinity’s Kappa Series multi-
element automotive loudspeakers. We’ve organized this manual to
make your installation as simple and trouble-free as possible. Please
read it thoroughly before proceeding. Remember to keep your sales
receipt with this manual in a safe place so both are available for
future reference.
®
K
A P PA
S
ERIES
42.1i, 52.1i, 62.1i, 63.1i, 652.1i, 692.1i,
693.1i, 32.1cf, 462.1cf, 572.1cf
I N S T R U C T I O N S
- 2 -
IMPORTANT: Installation of automotive stereo
components can require extensive experience
with a variety of mechanical and electrical proce-
dures. Although these instructions explain how to
install Kappa Series speakers in a general sense,
they do not show the exact installation method
for your particular vehicle. If you do not feel you
have the experience, do not attempt the installa-
tion yourself, but instead ask your Authorized
Infinity Car Audio Dealer about professional
installation options.
WARNING: Playing loud music in an automotive
environment can permanently damage your hear-
ing, as well as hinder your ability to hear traffic.
The maximum volume levels achievable with
Infinity speakers, combined with high power
amplification, may exceed safe levels for
extended listening. We recommend using low
volume levels when driving. Infinity accepts no
liability for hearing loss, bodily injury or property
damage as a result of use or misuse of this
product.
S PPEAKER LACEMENT
Kappa speakers are designed to be easily
installed in stock speaker locations. While mount-
ing your speakers in the original factory locations
will, in most cases, provide excellent sonic
results, the best sounding installations are a
result of adherence to a few basic rules.
• For the most spacious stereo image, place the
left and right speakers as far apart as possible.
• For enhanced center image, place the left and
right speakers so they are equidistant from the
listening position. If possible, try to place them
as far forward as possible.
• For best treble response, aim each speaker
so that its sound waves will converge at the
listener’s ears. This will take advantage of the
tweeter’s directional nature and provide the
best on-axis high-frequency response.
• For models with UniPivot™ tweeters (52.1i,
62.1i, 652.1i, 692.1i and 572.1cf) aim the tweeter
at the listening position by rotating it up to 355
degrees.
INSTALLATION ARNINGS AND IPSW T
• Always wear protective eyewear when using
any tools.
• Turn off all audio systems and other electrical
devices before you start. Disconnect the (–) neg-
ative lead from your vehicle’s battery.
• Keep speakers in their package until final instal-
lation. When moving a speaker, always rest it
with the cone or dome facing up. Never use
force to install any speaker.
• Check clearances on both sides of a planned
mounting surface before drilling any holes or
installing any screws. Remember that the
screws can extend behind the surface.
• At the installation sites, locate and make a note
of all fuel lines, hydraulic brake lines, vacuum
lines and electrical wiring. Use extreme caution
when cutting or drilling in and around these
areas.
CAUTION: In some cars, fuel tanks may be
located directly beneath the rear deck. Check for
adequate speaker basket clearance before
considering this location!
• Before drilling or cutting holes, use a utility
knife to remove unwanted fabric or vinyl, to
keep material from snagging in a drill bit or
saw.
• For door installations, check the clearance with
the windows throughout the range of the win-
dow’s travel, and verify that a mounted speaker
will not interfere with the window crank or
power window mechanism.
• If mounting speakers elsewhere, check for clear-
ance around rear deck torsion bars, glove box
or other structural elements.
• Do not mount speakers where they will get wet.

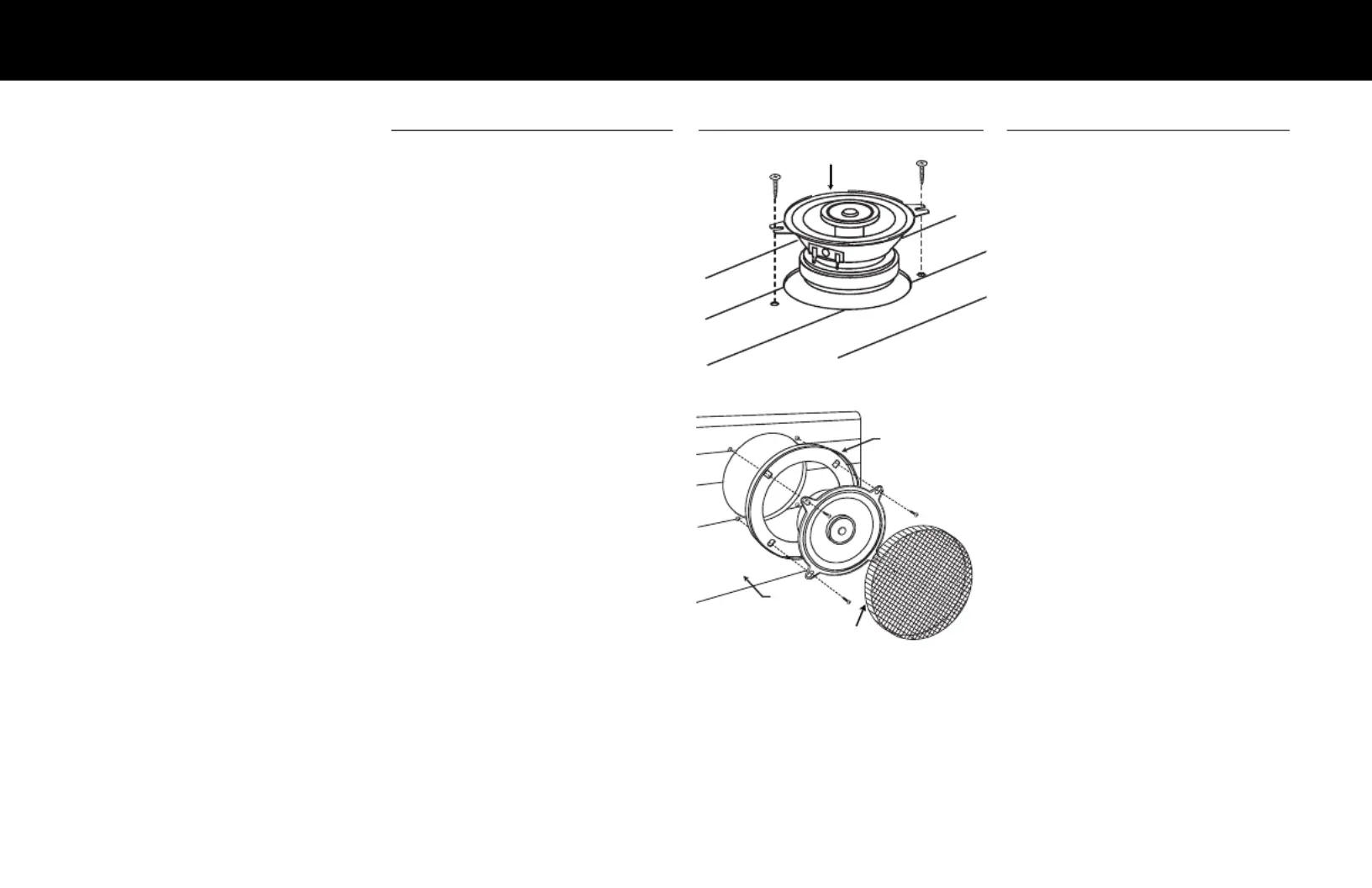

Mounting Ears Removed
Two-Screw Mounting Configuration
Figure 2
INSTALLATION
Figure 1
Grille
Screen
Trim Ring
Car Door
Typical installation of the Kappa i Series speakers
with grilles as shown in Figure 2.
NOTE:The cf Series is designed for direct replace-
ment of factory speakers. Therefore they do not
contain the grilles and trim shown in Figure 2.
Installation of these models simply entails
reversing the steps taken to remove the original
speakers.
- 3 -
A NOTE ON P HOWER ANDLING
Kappa speakers are designed to produce reason-
able volume levels with little amplifier power.
However, the addition of an amplifier to drive
your speakers and a subwoofer will enhance the
dynamic range of your system, and help over-
come the ambient noise in a moving vehicle.
Kappa speakers are designed to handle the power
of a dedicated amplifier driven at or below its
rated power. If an amplifier is driven far above its
rated power, the output signal will “clip,” and the
additional power present in a clipped signal can
damage any speaker. Distorted or “fuzzy” sound
from your speakers is an indication that the ampli-
fier has exceeded its rated power, and you should
reduce the volume level.
SPECIFICATIONS TANDARD ERIES: KAPPA S S
42.1i
Type: 4" 2-Way
Speaker Impedance: 4 ohms
Power Handling: 45W
Frequency Response: 80Hz ~ 20kHz
Sensitivity: 89Hz @ 2.83 V, 1 watt
Mounting Depth, Drop-in: 1-3/4" (45 mm)
Cut-out Diameter: 3-3/4" (96 mm)
52.1i
Type: 5-1/4" 2-Way
Speaker Impedance: 4 ohms
Power Handling: 50W
Frequency Response: 59Hz ~ 20kHz
Sensitivity: 89Hz @ 2.83 V, 1 watt
Mounting Depth, Drop-in: 2-7/16" (62 mm)
Cut-out Diameter: 4-13/16" (123 mm)
62.1i
Type: 6-1/2" 2-Way
Speaker Impedance: 4 ohms
Power Handling: 70W
Frequency Response: 50Hz ~ 20kHz
Sensitivity: 89Hz @ 2.83 V, 1 watt
Mounting Depth, Drop-in: 2-7/16" (62 mm)
Cut-out Diameter: 5-1/8" (131 mm)
63.1i
Type: 6-1/2" 3-Way
Speaker Impedance: 4 ohms
Power Handling: 70W
Frequency Response: 50Hz ~ 21kHz
Sensitivity: 89Hz @ 2.83 V, 1 watt
Mounting Depth, Drop-in: 2-7/16" (62 mm)
Cut-out Diameter: 5-1/8" (131 mm)
652.1i
Type: 165 mm 2-Way
Speaker Impedance: 4 ohms
Power Handling: 70W
Frequency Response: 50Hz ~ 20kHz
Sensitivity: 89Hz @ 2.83 V, 1 watt
Mounting Depth, Drop-in: 2-9/16" (66 mm)
Cut-out Diameter: 5-11/16" (145 mm)
692.1i
Type: 6" x 9" 2-Way
Speaker Impedance: 4 ohms
Power Handling: 100W
Frequency Response: 38Hz ~ 20kHz
Sensitivity: 89Hz @ 2.83 V, 1 watt
Mounting Depth, Drop-in: 2-3/4" (70 mm)
Cut-out Diameter: 5-11/16" x 8-3/4"
(145 mm x 223 mm)
693.1i
Type: 6" x 9" 3-Way
Speaker Impedance: 4 ohms
Power Handling: 100W
Frequency Response: 38Hz ~ 21kHz
Sensitivity: 89Hz @ 2.83 V
Mounting Depth, Drop-in: 2-3/4" (70 mm)
Cut-out Diameter: 5-11/16" x 8-3/4"
(145 mm x 223 mm)
G CENERAL ARE
The loudspeaker grilles may be cleaned with a
slightly damp cloth. Do not use any cleaners or
solvents on the grilles or the speaker cones.
