Imarflex Ventilator IF-365BK

Lees hieronder de 📖 handleiding in het Nederlandse voor Imarflex IF-365BK (2 pagina's) in de categorie Ventilator. Deze handleiding was nuttig voor 3 personen en werd door 2 gebruikers gemiddeld met 4.5 sterren beoordeeld

Download PDF
Pagina 1/2
HOW TO USE
1. Plug the unit into the convenience outlet (230Va.c. ).
2. Rotate the speed selector to the desired air flow. “1” indicates LOW
speed; “2” indicates MEDIUM speed; “3” indicates HIGH speed; and “0” to
turn it OFF.
3. and up Push-down the oscillating knob for oscillation pull- the oscillating
knob for xed position.
4. The air ow can be adjusted upward or downward by moving the Motor
Housing up or down.
5. To adjust the height: Turn fastening cap clockwise and pull- push-down up/
to desired height then turn the fastening cap counter clockwise to x the
height.
CLEANING MAINTENANCE
1. Always disconnect the unit from the convenience outlet before
disassembling the unit or before cleaning.
2. To disassemble the unit, simply reverse the assembly instruction.
3. an an an an Wash the front f guard, f cap, f blade, clamping nut and rear f
guard with soap and water.
4. Use a moistened cloth (NOT WET) to remove the dirt from the plastic and
metal surfaces of Electric Fan.
5. Do not immerse the Motor Base in water or other liquids.
6. Allow the detachable parts to dry off before assembling the unit.
REMINDER: Please do not forget to register your product warranty
through the warranty registration website at
https://imarflex.ph
Distributed By: Sabretech Technology Inc.
103-113 Sen Gil Puyat Ave. Pasay
Made in China
Fit the rear fan guard and the front
fan guard, and tightened the screw
Insert the fan blade to the motor
shaft.
Fasten the fan cap by turning it
counter clockwise.
Fit the rear fan guard to the motor
housing by matching the two rear
holes of the back guard to the t wo
round pins in front of the motor
housing.
Fasten the clamping nut by turning
it clockwise.
SPECIFICATION
MODEL NO. : -365BK IF
RATED VOLTAGE : 230Va.c. 60Hz
POWER CONSUMPTION : 50W T
BOX DIMENSION : ____________
UNIT DIMENSION : ____________
GROSS WEIGHT : ____________
UNIT WEIGHT : ____________
IMPORTANT SAFEGUARDS:
1. Read all instructions carefully.
2. Before using the unit, check if the voltage indicated corresponds
with the convenience outlet (230Va.c.).
3. Do not use a two-way socket with another appliance.
4. Do not use any appliance with a damaged cord or plug. If the cord
is damaged it should be replaced with the same type and size or
bring the unit to the nearest authorized service center.
5. Do not place the unit near gas stove, electric stove or in a heated
oven.
6. Put the unit on at stable surface; keep it away from the edge of
counter to avoid accident.
7. Children should be supervised to ensure that they do not play with
the appliance.
8. This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliances by a
person responsible for their safety.
9. To protect against electric shock, do not immerse the unit in water
or any other liquid.
10. Do not use the unit for outdoor use.
11. This unit must only be used for room ventilation. Do not use in
bathrooms.
12. Do not insert your fingers or any objects into the fan guard. It may
cause accident or injuries.
13. Never touch the unit with wet hands.
14. Do not use the plug to stop or start the operation of the unit, use
the switch button.
15. Be sure that the fan is switched o from the convenient outlet
before removing the fan guard, any of its parts or before cleaning.
16. Avoid water spillage into the socket, connector, cord and alike.
17. Do not use this unit other than its intended use.
18. For household use only; not intended for any business
purposes.
19. Save this instruction for future reference.

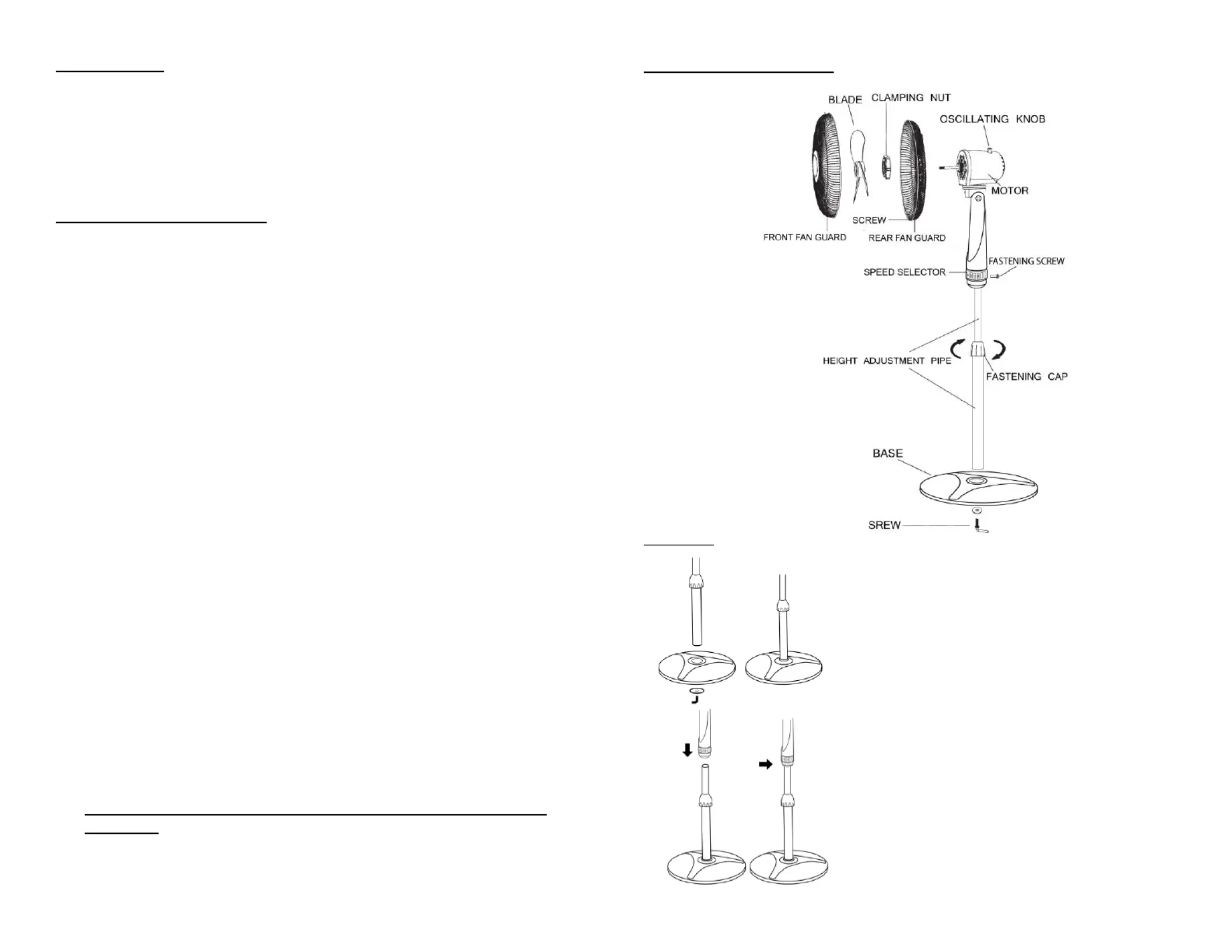

DESCRIPTION OF PARTS
ASSEMBLY
Unscrew the fastening screw on
the main body and insert height
adjustment pipe. Tighten the
fastening screw.

Product specificaties

Merk: Imarflex
Categorie: Ventilator
Model: IF-365BK
