What’s Included

1 x Mylo Mini Bi-Color LED Light Fixture

1 x Dual Charger

1 x Charger Adapter 12V

1 x Ball Head

1 x Diffuser

1 x Barn Doors

1 x Hard Case

2 x Sony “L” Batteries

QUICKSTART GUIDE

MB4-TK

Mylo Mini Bi-Color Portable Field LED Light Travel Kit

General Information

Thank you for choosing Ikan Mylo Mini Bi-Color LED Light. This product will provide you with bright, portable illumination. It can

be used in a variety of different scenarios. It features ultra-bright 420 LED bulbs with 45° lens. It has 3200K-5600K variable

color temperature. With its removable barn doors and neutral diffusion ﬁlter, the Ikan Mylo Mini Light is the best choice for any

working professional.

This ﬁxture has been designed to perform reliably for years when the guidelines in this booklet are followed. Please read and

understand the instructions in this manual carefully and throughly before attempting to operate this unit. These instructions

contain important information regarding safety during use and maintenance.

Every ﬁxture has been throughly tested. Carefully check the shipping carton for damage that may have occurred during shipping.

If the carton appears to be damaged, carefully inspect your unit for damage and be sure all accessories necessary to operate

the unit have arrived intact. In the event damage has been found or parts are missing, please contact our customer support

team for further instructions. Please do not return this unit to your dealer without ﬁrst contacting customer support at the

number listed below. Please do not discard the shipping carton in the trash. Please recycle whenever possible.

What’s Included

1 x Mylo Mini Bi-Color LED Light Fixture

1 x Dual Charger

1 x Charger Adapter 12V

1 x Ball Head

Safety Warnings

To guarantee a smooth operation, it is important to follow the guidelines in this manual. The manufacturer of this device will not

accept responsibility for damages resulting from the misuse of this ﬁxture due to the disregard of the information printed in this

manual.

DO NOT try and disassemble or repair the MB4. The ﬁxture must be returned to Ikan for repair or replacement.

DO NOT expose the water or rain; electric shock may occur.

DO NOT operate near ﬂammable gas or vapors.

DO NOT use if the ﬁxture emits smoke or ﬂames. The power supply must be disconnected immediately to prevent bodily injury.

Handle Unit with care. Use only the recommended batteries.

1 x Diffuser

1 x Barn Doors

1 x Hard Case

2 x Sony “L” Batteries

General Guidelines

Mounting the Mylo Mini to a Camera

The Mylo Mini can be mounted to a camera by attaching the shoe mount supplied with the ﬁxture to any camera that has a cold

shoe adapter. (Hot shoe adapters can be used with caution).

The Mylo Mini has a ¼-20" receiver in the bottom of the ﬁxture that can receive the ¼-20" thread of the shoe mount. After

screwing in the mount and tightening the tension disk, the light is now ready to be attached to the camera. Loosening the

tension disk above the shoe adapter, you can slide the shoe mount into the cold/hot shoe of the camera and tighten down the

tension disk.

Mounting the Mylo Mini to a Stand

The Mylo mini can be attached to a stand as well buy using the supplied shoe mount that come with the ﬁxture. The stands that

work most effectively with the Mylo Mini have a ¼-20 or 3/8-15 thread on the top of them. The shoe mount must be modiﬁed

to accept the stand by removing the bottom of the shoe and tightening disk from the mount. This will have a ¼-20 insert in

the mount and that can be screwed down on the top of the stand. (Removing the ¼-20 insert allow for you to use the shoe

mount with a 3/8-15 stand instead) The Mylo Mini can now be attached to the top of the shoe mount on the stand. This allow

movement of 360 degrees for placement of the ﬁxture in any position that is desired.

Powering the LEDs

The Mylo Mini can be powered by AC power supply or from the supplied Sony “L” Style Batteries. The AC power supply has a

4ft length and allows you to plug the lights into any standard 120-240V outlet. The Mylo Mini can be powered by the supplied

Sony “L” Style batteries Either one or two batteries can be used to power up the ﬁxture.

Adjusting the Color & Brightness of the Light

The My Mini LED Light is controlled by the large yellow knob on the rear of the ﬁxture. The knob was designed with the idea that

it could be reached and adjusted when the light is up on a stand. The knob has two push settings.

1. The default setting is the brightness, from 10%-100% brightness.

2. By pressing in on the knob the color temperature can be adjusted. (Bi-Color Lights)

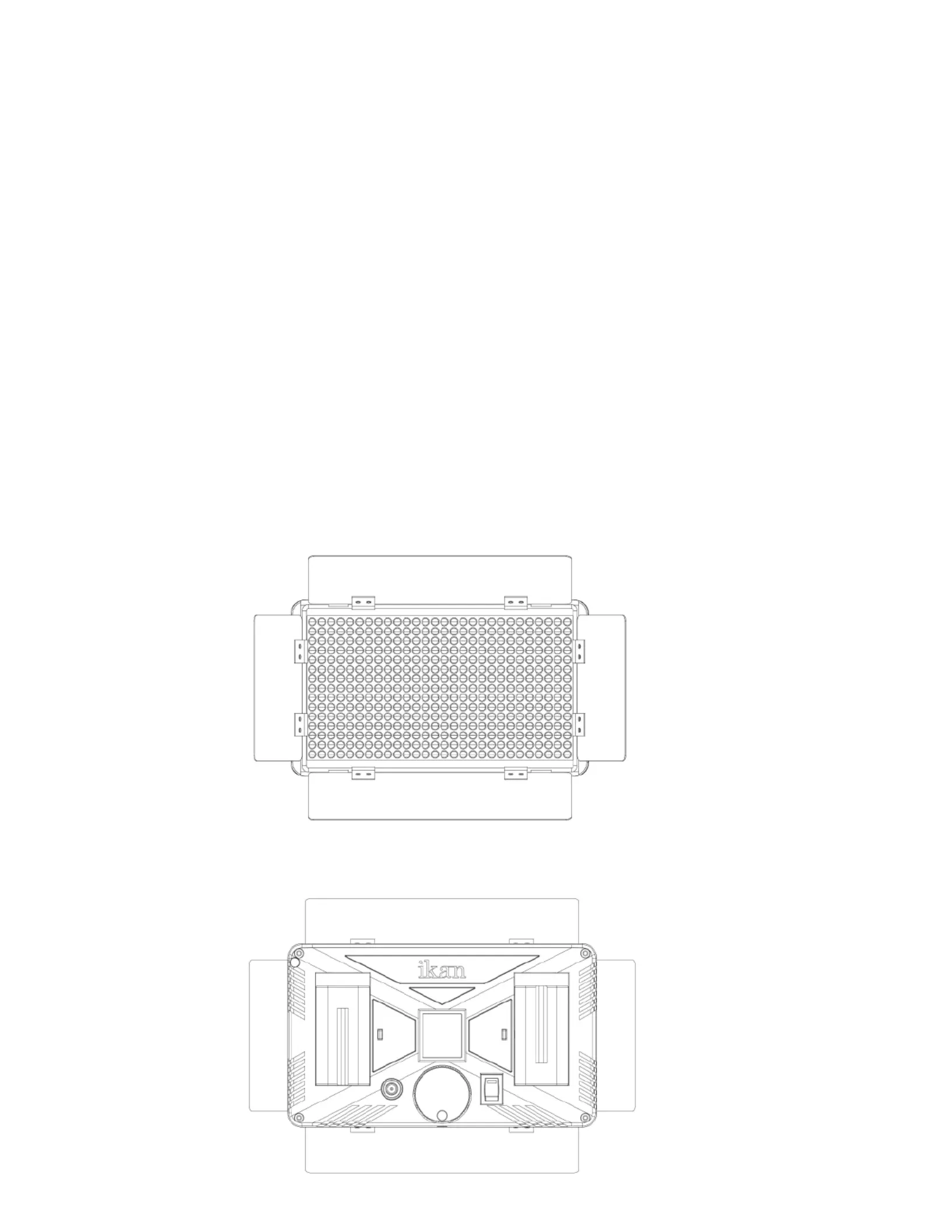

Fixture Overview: (Front)

Fixture Overview: (Back)

Product specificaties

Merk:	Ikan
Categorie:	Verlichting
Model:	MB4-2PT-KIT
Kleur van het product:	Zwart
Gewicht verpakking:	5440 g
Breedte verpakking:	304.8 mm
Diepte verpakking:	555.8 mm
Hoogte verpakking:	304.8 mm
Type stroombron:	AC
Vorm:	Rechthoekig
Aantal per verpakking:	2 stuk(s)
Color Rendering Index (CRI):	95
Stralingshoek:	50 °
Aantal leds:	420
Kleurtemperatuur (max):	5600 K
AC-ingangsspanning:	100-240 V
Kleurtemperatuur (min):	3200 K
