HQ Power VDL30MB Handleiding
HQ Power
ej kategoriserat
VDL30MB
Lees hieronder de 📖 handleiding in het Nederlandse voor HQ Power VDL30MB (14 pagina's) in de categorie ej kategoriserat. Deze handleiding was nuttig voor 65 personen en werd door 2 gebruikers gemiddeld met 4.5 sterren beoordeeld
Pagina 1/14
VDL10MB / VDL20(C)MB /
VDL30(C)MB(G) / VDL50MB

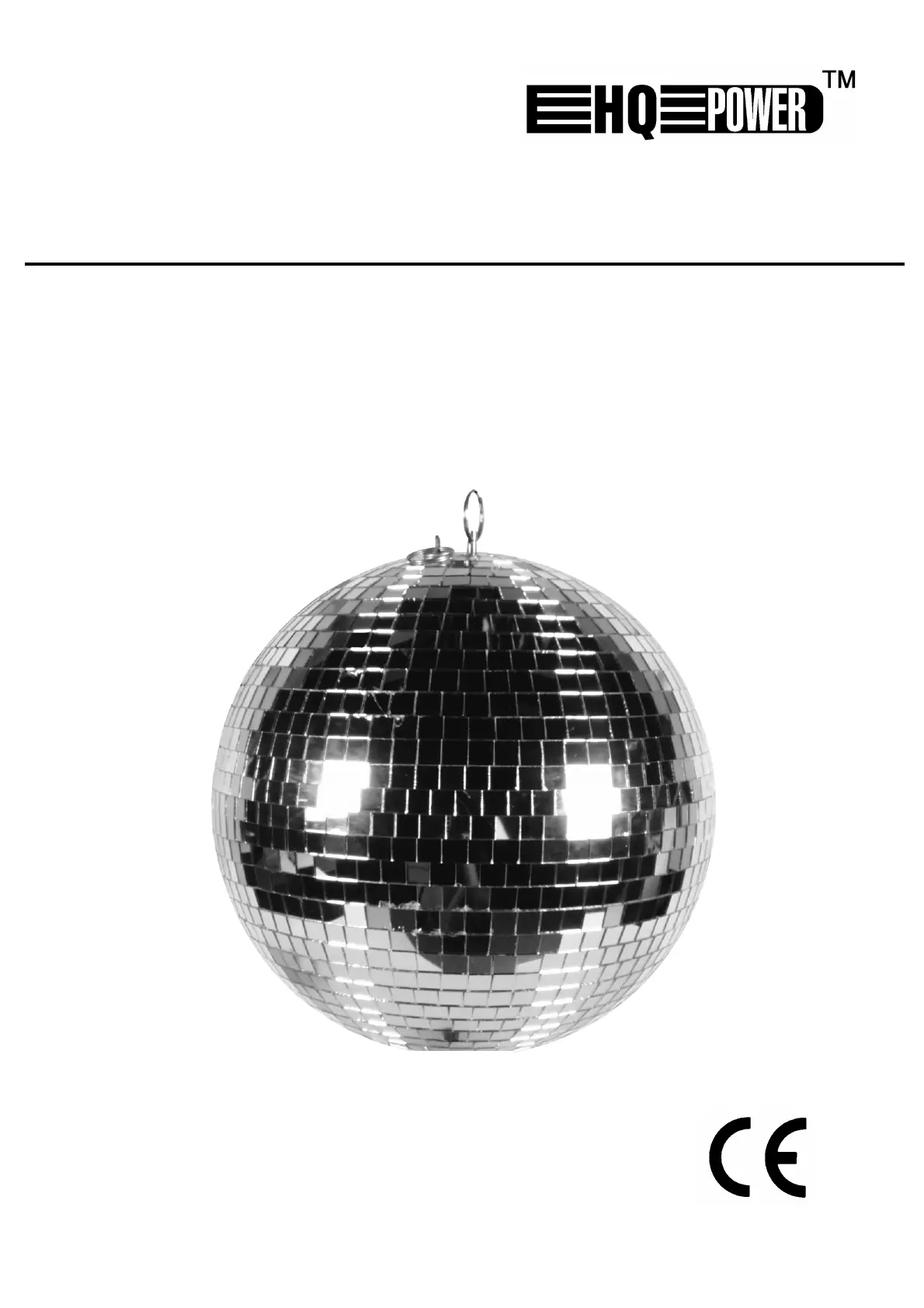

MIRROR BALL
SPIEGELBOL
BOULE À FACETTES
BOLA DE ESPEJOS
SPIEGELKUGEL
KULA LUSTRZANA
USER MANUAL
GEBRUIKERSHANDLEIDING
NOTICE D’EMPLOI
MANUAL DEL USUARIO
BEDIENUNGSANLEITUNG
INSTRUKCJA OBSŁUGI
VDL10MB / VDL20(C)MB / VDL30(C)MB(G) / VDL50MB_v2 Velleman® nv
2
VDL10MB / VDL20(C)MB / VDL30(C)MB(G) / VDL50MB
MIRROR BALL
1. Introduction
To all residents of the European Union
Important environmental information about this product
This symbol on the device or the package indicates that disposal of the device after its
lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted
municipal waste; it should be taken to a specialized company for recycling. This device
should be returned to your distributor or to a local recycling service. Respect the local
environmental rules.
If in doubt, contact your local waste disposal authorities.
Thank you for buying this mirror ball! Read the manual thoroughly before bringing this device into
service. If the device was damaged in transit, don't install or use it and contact your dealer.
2. Safety Instructions and General Guidelines
• Damage caused by disregard of certain guidelines in this manual is not covered by the warranty
and the dealer will not accept responsibility for any ensuing defects or problems.
• A qualified technician should install and service this device.
• Keep the device away from children and unauthorised users.
• This device is designed for professional use on stage, in discos, theatres, etc.
• Select a location where the device is protected against extreme heat, dust and moisture.
• 30 cm and 50 cm mirror balls should be fixed with an appropriate safety cable ( or VDLSC7
VDLSC8). All other models should be used with a safety net.
• Familiarise yourself with the functions of the device before actually using it. Do not allow
operation by unqualified people. Any damage that may occur will most probably be due to
unprofessional use of the device.
• Use the original packaging if the device is to be transported.
• All modifications of the device are forbidden for safety reasons and are not covered by the
warranty.
• Only use the device for its intended purpose. All other uses may lead to a crash, injuring people
badly. Using the device in an unauthorised way will void the warranty.
3. Installation
• Have the device installed by a qualified person, respecting EN 60598-
2-17 and all other applicable norms.
• The construction to which the device is attached should be able to
support 10 times the weight of the device for one hour without
deformation. The installation area should be able to hold a minimum
point load of 30 kg.
• The installation must always be secured with a secondary attachment
e.g. a safety cable or safety net.
• Install the device in a location with few passers-by that is inaccessible
to unauthorised persons.
• Overhead mounting requires extensive experience: calculating
workload limits, determining the installation material to be used… Do
not attempt to install the device yourself if you lack these qualifications
as improper installation may result in injuries. Never stand directly
below the device when it is being mounted, removed or serviced. Have
a qualified technician check the device once a year and once before
you bring it into service.
• Have a qualified electrician carry out the electric connection.
VDL10MB / VDL20(C)MB / VDL30(C)MB(G) / VDL50MB_v2 Velleman® nv
3
• The installation has to be approved by an expert before the device is taken into service.
• The mirror ball (3) has to be properly attached to the mirror ball motor (1). We recommend a
chain (2) for mirror balls ( , 30 cm). VDLCH
• For 30 cm (12") and 50 cm (19
10/16
”) mirror balls, use mains powered mirror ball motor (1)
VDLMM3S or an equivalent in combination with a safety cable (5). Make sure the safety cable is
securely attached to the safety rings (4 & 6) and is slightly longer than the mirror ball chain (2).
• For smaller mirror balls, use battery powered mirror ball motor or mains powered VDLMM1
VDLMM3(P) in combination with a safety net.
• The safety cable or net should be installed in such a way that no part of the installation can fall
down if the main attachment fails and that it can hold at least 12 times the weight of the
installation for 1 hour without any harming deformation.
• Make sure the mirror ball is never slowed down or stopped by decoration material etc. Make sure
no side forces can impact on the installation.
4. Technical Specifications
VDL10MB VDL20(C)MB VDL30(C)MB(G)
VDL50MB
Diameter 10 cm (4") 20 cm (8") 30 cm (12") 50 cm (19
10/16
”)
Approximate
weight 0.4 kg 0.9 kg 2.2 kg 5.6 kg
Appropriate
motor
VDLMM1,
VDLMM3(P)
VDLMM1,
VDLMM3(P) VDLMM3S VDLMM3S
Use this device with original accessories only. Velleman nv cannot be held responsible in
the event of damage or injury resulted from (incorrect) use of this device. For more info
concerning this product, please visit our website www.velleman.eu. The information in
this manual is subject to change without prior notice.
© COPYRIGHT NOTICE
This manual is copyrighted. The copyright to this manual is owned by Velleman nv. All
worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced
to any electronic medium or otherwise without the prior written consent of the copyright holder.
VDL10MB / VDL20(C)MB / VDL30(C)MB(G) / VDL50MB
SPIEGELBOL
1. Inleiding
Aan alle ingezetenen van de Europese Unie
Belangrijke milieu-informatie betreffende dit product
Dit symbool op het toestel of de verpakking geeft aan dat, als het na zijn levenscyclus
wordt weggeworpen, dit toestel schade kan toebrengen aan het milieu. Gooi dit toestel (en
eventuele batterijen) niet bij het gewone huishoudelijke afval; het moet bij een
gespecialiseerd bedrijf terechtkomen voor recyclage. U moet dit toestel naar uw verdeler of
naar een lokaal recyclagepunt brengen. Respecteer de plaatselijke milieuwetgeving.
Hebt u vragen, contacteer dan de plaatselijke autoriteiten betreffende de verwijdering.
Dank u voor uw aankoop van deze spiegelbol! Lees deze handleiding grondig voor u het toestel in
gebruik neemt. Als het toestel werd beschadigd tijdens het transport, installeer het dan niet en
raadpleeg uw dealer.
Product specificaties
| Merk: | HQ Power |
| Categorie: | ej kategoriserat |
| Model: | VDL30MB |
| Diameter: | 300 mm |
| Produktens färg: | Silver |
| Vikt: | 2250 g |
| Discokula typ: | Spegel |
