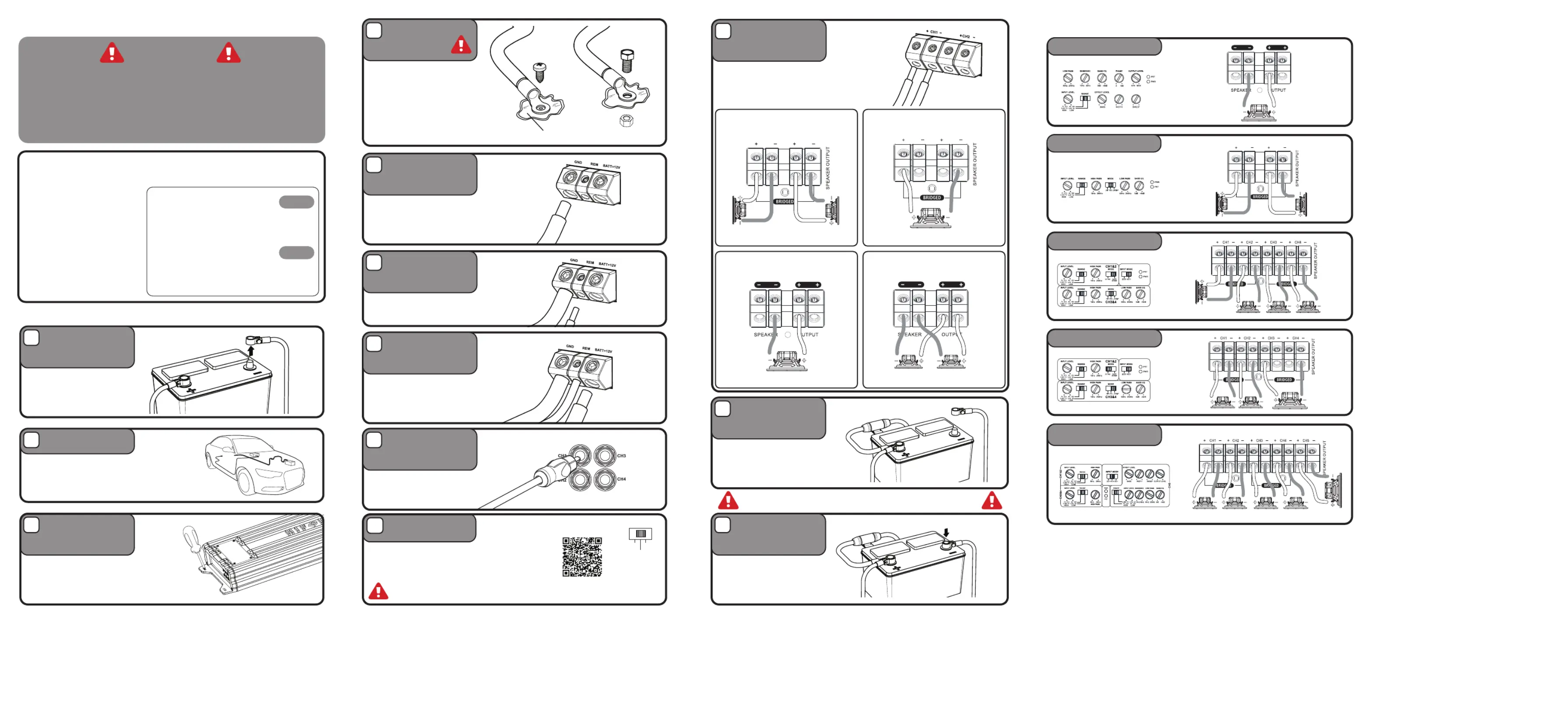

Power cable size
and fusing
It is critical to use the proper power
and ground cable. Select the size
listed here for your ampliîšżer model.
Always use high quality copper
cable. Visit our website for multi amp
system cable recommendations.
Be sure to use the proper fuse size
for each model.
Attach the chassis ground
cable to the ampliîšżer
negative terminal. It is
important to make sure this
connection is very tight.
Bare metal
Attach the main power cable
to the ampliîšżer +12V. The
cable must run directly to
the battery and be properly
fused and be very tight.
Attach the remote turn on
wire to the ampliîšżer remote
output of the source unit.
Connect the RCA cables to the
coordinating RCA input number
that will match the speaker
outputs number.
Connect the power cable to the
positive battery terminal. The
power cable must be fused
within 18 inches of the battery
terminal.
Re-connect the negative
battery terminal making sure it
is securely tightened.
The chassis ground connection
is critical to the performance
of the ampliîšżer. Choose a
location that is close to the
ampliîšżer. Completely scrape
away the paint and use a nut
and bolt if possible.
DO NOT USE AN EXISTING
FACTORY BOLT!
Negative Power
Connection
Positive Power
Connection
Remote Turn-on
Connection
Signal Input
Connection
Positive Battery
Connection
Re-connect
Negative Battery
Terminal
Chassis Ground
Be prepared to disarm your vehicle’s alarm and
to enter your radio / source unit code.
Before you start
CAUTION
Many new and factory radios require a reset code when
disconnected from battery power. This is an anti-theft
feature. Before unplugging power, you must determine if
your radio/source unit requires a reset code. Check the
operation manual for your vehicle or contact the dealer.
5
7
6
8
11
12
4
High Level Input
- DC turn on
- Music Sense
Low Level Input
- REM turn on
(Remote wire turn on)
Please scan QR code below or go to
Hifonics.com/product-manuals for the
Auto-Sense Technical Guide.
Turn on Mode
9
Model Fuse Size Cable Size
4ga
0ga
Using spade terminals,connect
the speaker cables to the speaker
output connectors. Follow the
diagram below that best îšżts your
speaker conîšżguration.
Speaker
Connections
Stereo
Monoblock single woofer multiple woofersMonoblock
Bridged
10
MUSIC SENSE
DC SENSE
REMOTE
TURN ON MODE
NOTE - When using low level input and the RCA’s are plugged into the amplier and the TURN ON
MODE is in the DC ON position, the ampliîšżer will NOT turn on. Please re-read QR document above
or hire a professional installer.
BE40-1000.1D
BE40-1500.1D
BE40-2000.1D
BE40-3000.1D
BE40-1500.2D
BE40-1500.4D
BE40-2000.5D
2x60A
External 150A
External 200A
External 300A
External 150A
External 150A
External 200A
Place terminal in a secure
position so that it won’t
accidentally contact the
negative battery post
Properly route power,
speaker and RCA cables
through the vehicle.
Choose a mounting location
that will provide adequate air
ventilation. Mount the ampliîšżer to
a secure surface. Do not mount
the ampliîšżer upside down.
Disconnect
Negative Battery
Terminal
Run Cables
Mount Ampliîšżer
Installation
1
2
3
CH1 CH2
CH1 CH2
Common System Setup
4ch - Full Range
4ch - Mixed Mono
Mono
5ch
CH1 CH2
2ch - Full Range
Quick Start
Installation Guide
Congratulations on your choice of a Hifonics ampliîšżer.
This “Quick Start Installation” guide is meant to help you
“hook up” and play music. For more detailed information,
on system setting, speaker and subwoofer conîšżguration
and full speciîšżcations by model visit the website,
http://hifonics.com/manuals.html
BE40-1000.1D
BE40-1500.1D
BE40-2000.1D
BE40-3000.1D
BE40-1500.2D
BE40-1500.4D
BE40-2000.5D

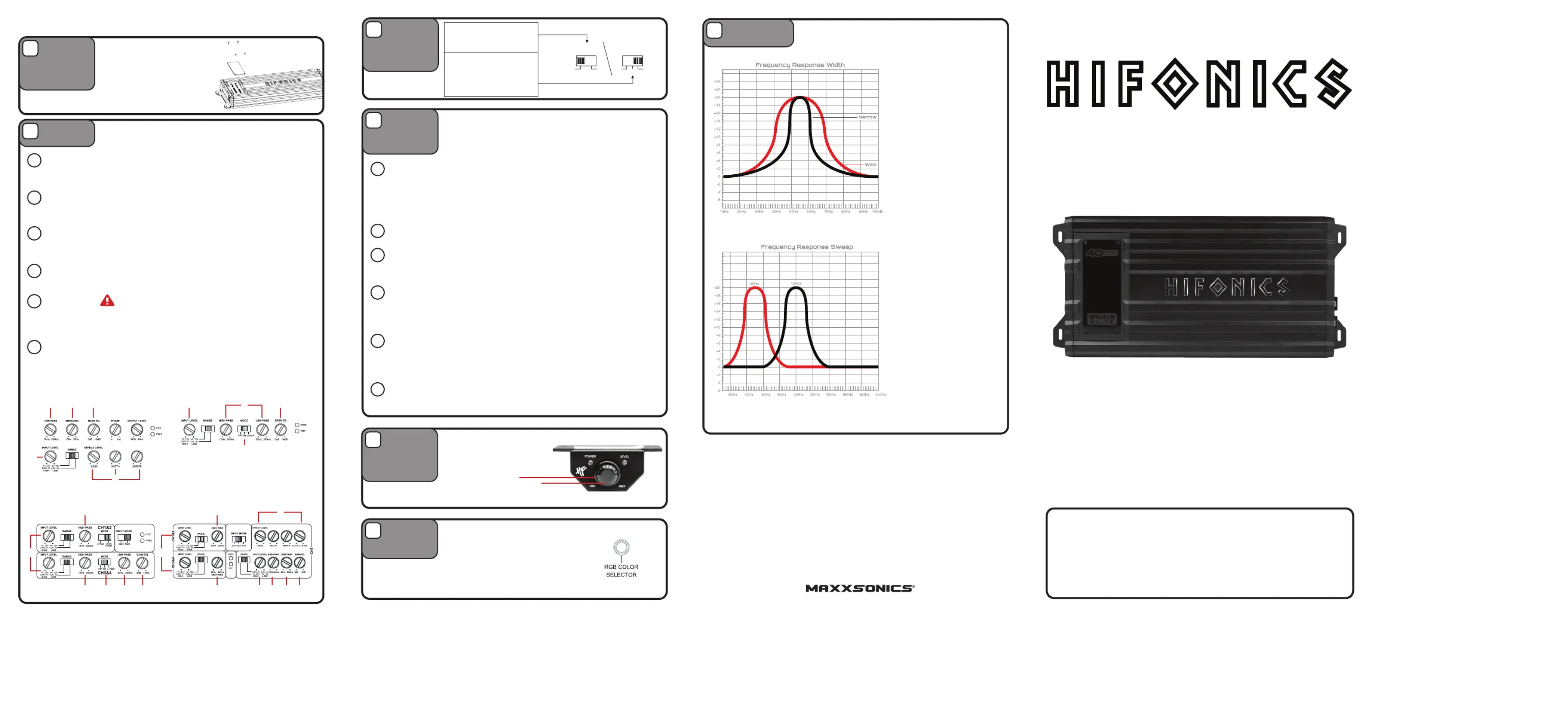

Adjusting your input level
Gives you the ability to îšżne tune the output signal
using the WIDTH and SWEEP knobs
Width Control
Controls how wide the frequency
range that is centered on the
sweep frequency
Sweep Control
Allows you to select the center
frequency
Input Level
D
1
2
5
6
3
4
Adjusting your input level
adjust your range switch to match your input range
level from your source unit, either High level(speaker
connections) or low-level inputs (RCA connection)
Disconnect speaker outputs
Play test tone (available on Hifonics.com
under the products support tab.)
Turn input clockwise until clip indicator LED (behind
level control dial) until it illuminates and then turn down
counterclockwise until LED turns off.
Once this is done you can stop the test tone track and
turn ampliîšżer off and reconnect the speakers leads to the
ampliîšżer.
While playing music you can now adjust and îšżne tune the
Effect levels: Bass, width and sweep controls.
WARRANTY
Maxxsonics, LLC. warrants this product, to the original consumer purchaser, to be free from
defects in material and workmanship for a period of one (1) year from the date of purchase.
Maxxsonics, LLC. will, at it’s discretion, repair or replace defective products during the warranty
period. Components that prove to be defective in materials and workmanship under proper
installation and use must be returned to the original authorized Maxxsonics, LLC. retailer from
where it was purchased. A photocopy of the original receipt must accompany the product being
returned. The costs associated with removal, re-installation and freight are not the responsibility of
Maxxsonics, LLC. This warranty is limited to defective parts and speciîšżcally excludes any incidental
or consequential damages connected therewith. To view the full warranty, please visit the website.
The information contained within this document is intended to offer some basic guidelines for a few
of the most common installations. More complex audio systems should be installed by a professional.
Additional installation information available at
www.maxxsonics.com
HIFONICS products are designed and engineered in the USA by
www.maxxsonics.com HF BE40 QSG 01 - rev1
5CH2CH 4CH
MODE
4CH 2CH
MODE
Dual concentric bass knob to
adjust the bass level (A) and
output level (B)
Select between different LEDcolors and
sequences with the “RGB Color Selector”
button located on the end panel.
AB
Remote Level
Control
RGB Controls
Effect Level
E
F
G
2CH - Input: CH1/CH2
Output: CH1/CH2/CH3/CH4
4CH - Input: CH1/CH2/CH3/CH4
Output: CH1/CH2/CH3/CH4
2CH - Input: CH1/CH2
Output: CH1/CH2/CH3/CH4/CH5
4CH - Input: CH1/CH2/CH3/CH4
Output: CH1/CH2/CH3/CH4/CH5
5CH - Input: CH1/CH2/CH3/CH4/CH5
Output: CH1/CH2/CH3/CH4/CH5
Input Mode
C
Setup
The illustrations below describe the various controls. Refer to
the illustration that matches your ampliîšżer.
The level control purpose is to match the output of your source signal to the
ampliîšżer. Refer to the section C & D for detailed instructions.
This switch will set the ampliîšżer to have a full frequency output or to îšżlter out high
or low frequencies.
The Bass EQ control will increase the power output at 45Hz for more pronounced
bass. Exercise caution when using this control. Increase the level in small
amounts until distortion is noticed, then back off a little.
• Adjustable Bass Level Output
• Adjustable Bass Width and Sweep Adjustments
Refer to section F for detailed instructions.
Settings
B
1
2
5
6
LEVEL Adjustment
Mono-Block
4-Channel 5-Channel
2-Channel
X-OVER Switch
BASS BOOST
Effect Level
The Low Pass Filter will cut off the frequencies above the setting. The High Pass
Filter will cut off the frequencies below the setting.
The Subsonic control will cut off the frequencies between 15Hz-35Hz
3
4
Frequencies Adjustment
SUBSONIC Control
To gain access to the BE40
ampliîšżer series top mount setting
control panel carefully remove
the four screws and lift the face
plate up.
Open Control
Panel
A
3 4 5 51
6
2
1
3
1 1
6
3 3 3 51 4
3 3
3 52
