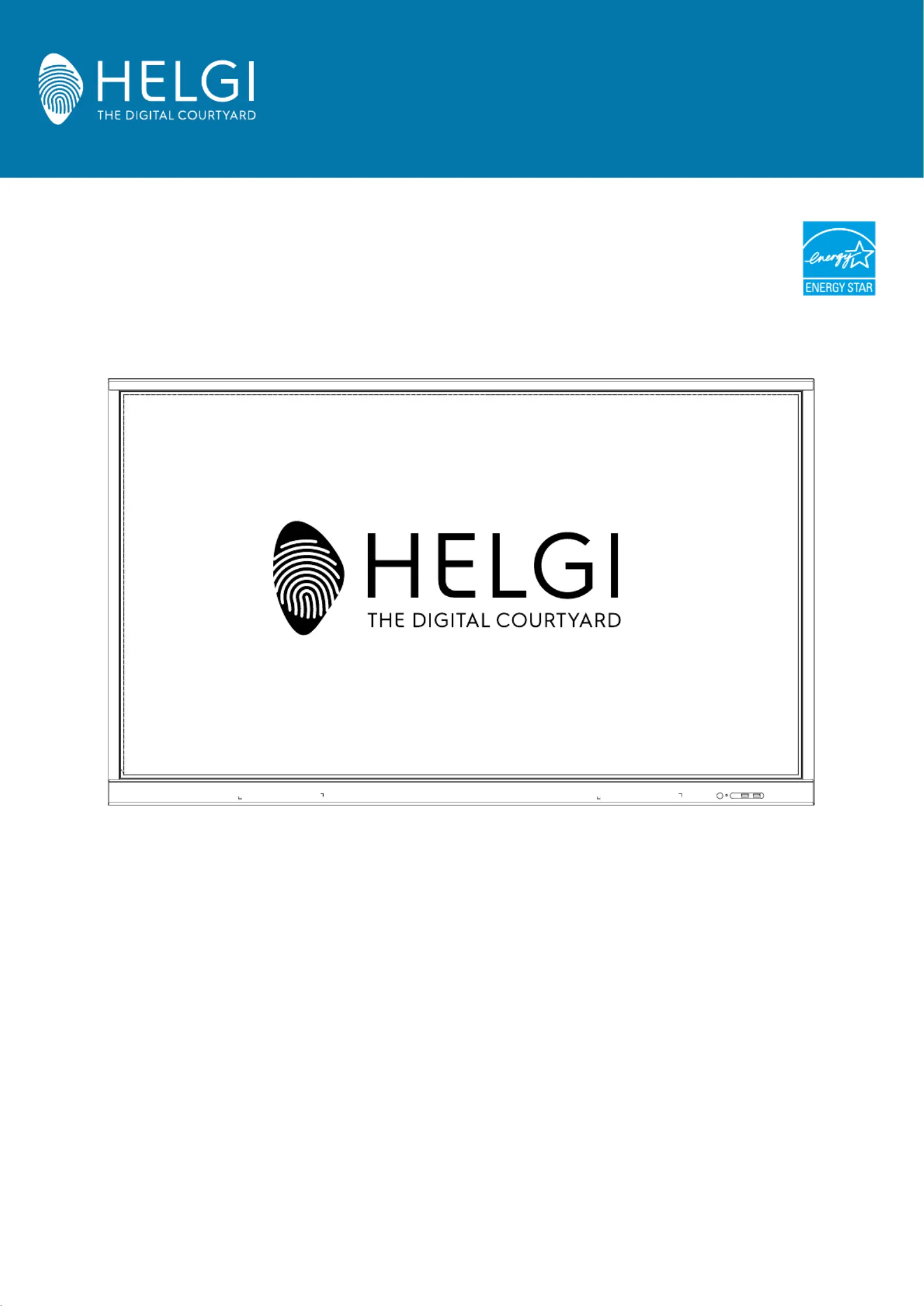

HELGI V-SERIES

Interactive Flat Panel

USER MANUAL

HELGI - The Digital Courtyard Via Artigiani 29/31 29020 Vigolzone (PC) Italy

E-mail: education@helgi-europe.com | business@helgi-europe.com | Web: www.HELGI-europe.com

HELGI IFP V SERIES

HELGI - The Digital Courtyard Via Artigiani 29/31 29020 Vigolzone (PC) Italy

E-mail: education@helgi-europe.com | business@helgi-europe.com | Web: www.HELGI-europe.com 2

HELGI IFP V SERIES

USER GUIDE

Safety Warning

Positioning

Do not put heavy objects on top of the unit.

Do not put the unit near appliances that generate magnetic ﬁelds.

Do not expose the unit to direct sunlight and other sources of heat.

Do not place the unit on an unstable cart, stand, tripod, bracket, table, or shelf.

Do not put any liquid near or on the unit, make sure do not spill any liquid inside the unit.

Power Supply

Please keep power cable from physical or mechanical damage.

Please check and ensure AC source is connected with the ground.

This power cable comes with the device exclusively for this device only.

Please unplug power supply when the weather is thunder-storm or lightning.

Check that the unit’s operating voltage is identical with your local power supply.

Please use the original power cable from the accessory bag, don’t modify or lengthen it.

Please unplug power supply, when there is nobody home or the unit will be in idle for a long time.

LED Screen

Unplug the power cable before cleaning. Clean the screen with a soft, dustless and dry cloth.

For deep clean, please contact an authorized service center. Never use water or the spray type detergent to clean the unit.

Never use any other hard or sharp object to replace the touch pen. Better for the panel lifetime and the display performance, do not

display high brightness image for long time.

Temperature

Normal operating temperature is 0 ~ 40°C.

Do not place the unit near or over a radiator or a heater.

If your unit is suddenly moved from a cold to a warm place, please unplug the power

cable and do not turn it on at least 2 hours, making sure the moisture inside the unit is all evaporated.

Humidity

Do not expose the unit in rain, or place in high humidity area.

Please make sure indoor environment is dry and cool. Normal operating humidity is

10%~90%RH.

Ventilation

Please put the unit in a well-ventilated place, so the heating can be released easily.

Ensure that the unit has enough space for ventilation. Space requirement: left, right and

back >10cm, top> 20cm.

Earphones

Before using earphone, please turn down the volume in advance.

Using the earphone to listen loud sound for a long time might affect the hearing.

Standby

It will enter standby mode but not turn off the unit after press the standby key.

Battery

Please make sure the battery gets proper disposal or recycle after using.

Please keep the battery away from kids and don’t throw the battery into ﬁre.

Notes for Cleaning

There are vents on back cover, please do not use any liquid or spray directly during

Power Switch Status Signs

“I” means power on, “O” means power off.

Notes for Maintenance

This machine can only be maintained by certiﬁed engineer.

HELGI - The Digital Courtyard Via Artigiani 29/31 29020 Vigolzone (PC) Italy

E-mail: education@helgi-europe.com | business@helgi-europe.com | Web: www.HELGI-europe.com

HELGI IFP V SERIES

USER GUIDE

Control Panel

Number Items Function description

1Magnetic zone Area for placing the adsorptive magnetic pen

2Tap to enter Energy Saving Function Press at least 2 seconds to enter standby mode

3Power Indicator Light Open the power supply when the power indicator light is Always is normal

4Remote control signal

receiver Do not place any object in front of the IR signal receiver, otherwise the remote control will not work

5USB USB interface for Android operating system and integrated mini PC

1. Prepare to Install

Product specificaties

Merk:	HELGI
Categorie:	Monitor
Model:	HV8630
Kleur van het product:	Black, Grey
Gewicht verpakking:	86600 g
Breedte verpakking:	2112 mm
Diepte verpakking:	280 mm
Hoogte verpakking:	1283 mm
Materiaal behuizing:	Metaal
Beeldschermdiagonaal:	86 "
Resolutie:	3840 x 2160 Pixels
Oorspronkelijke beeldverhouding:	16:9
Grafische adapter:	Mali G51
Inclusief besturingssysteem:	Android
Ethernet LAN:	Ja
Kijkhoek, horizontaal:	178 °
Meegeleverde kabels:	AC, HDMI, USB Type-A to USB Type-B
Typische contrastverhouding:	5000:1
Touch technologie:	Multi-touch
Helderheid:	450 cd/m²
LED backlight:	Ja
Aantal USB 2.0-poorten:	5
VGA (D-Sub)poort(en):	1
Aantal HDMI-poorten:	3
PC audio ingang:	Ja
Aantal Ethernet LAN (RJ-45)-poorten:	1
Ingebouwde luidsprekers:	Ja
Gemiddeld vermogen:	32 W
Stroomverbruik (in standby):	0.5 W
Vermogensverbruik (max):	500 W
Aantal luidsprekers:	2
Hoofdtelefoonuitgangen:	1
Certificering:	EnergyStar, ROhS, CE
Beeldscherm, aantal kleuren:	1.073 biljoen kleuren
RS-232C:	Ja
Stroomverbruik (indien uit):	0.5 W
HD type:	4K Ultra HD
Intern geheugen:	2048 MB
Processor architectuur:	ARM Cortex-A73 + ARM Cortex-A53
RS-232 port:	1
Audio-ingangen:	1
Audio-uitgang:	2
Operating systeem versie:	Android 8.0
HDMI:	Ja
Display technologie:	LCD
Responstijd:	8 ms
Pixel pitch:	0.4296 x 0.4296 mm
VESA-montage:	Ja
Paneelmontage-interface:	800 x 400 mm
Duurzaamheidscertificaten:	CE, ENERGY STAR
Contrast ratio (dynamisch):	6000:1
Effectieve beelddiameter:	1895 x 1066 mm
Diepte ( zonder voet ):	87 mm
Hoogte (zonder voet ):	1160 mm
Breedte ( zonder voet ):	1957 mm
Gewicht (zonder voet):	67450 g
Plug and play:	Ja
Type processor:	Ja
Meegeleverde software:	Note (Android), Note Plus (Windows), Connect (Windows), Capture (Windows).\n1 year Chimpa RDM software license included.
Backlight type:	LED
Soort voeding:	AC
Soort paneel:	IPS
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A:	3
Inhoud:	1x EU / UK Power cord (3m), 1x HDMI (3m), 1x USB (5m), User Manual, 2x Passive pens\n1x Remote control (batteries included).
Verbinding met pc:	Ja
HDD capaciteit:	16 GB
Ophangsysteem voor aan de muur:	Ja
Hoeveelheid simultane aanraakpunten:	20
Touchscreen technologie:	Infrarood
Inclusief Stylus:	Ja
Hardheid oppervlak:	7H
S/PDIF-uitgang:	Ja
OPS-modulesleuf:	Ja
Draaien:	Nee
Afstandsbediening inbegrepen:	Ja
Wifi:	Nee
Batterijen inbegrepen:	Ja
Aantal gelijktijdige touchpoints (Windows 7):	20
Locale/landinstellingen:	Arabic, Catalan, Croatian, Czech, Danish, Dutch, English, Estonian, French, German, Greek, Hungarian, Italian, Japanese, Norwegian, Polish, Portuguese, Romanian, Russian, Simplified Chinese, Spanish, Traditional Chinese, Turkish
