Output Rating: AC 0 ~ 350 Vrms,
DC 0 ~ ± 500 V
Output Frequency up to 999.9 Hz
DC Output (100% of Rated Power)
Output Capacity: 500VA/ 1000VA
Measurement Items: Vrms, Vavg, Vpeak,
Irms, IpkH, Iavg, Ipeak, P, S, Q, PF, CF
Voltage and Current Harmonic Analysis
(THDv, THDi)
Customized Phase Angle for Output
On/Off
Remote Sensing Capability
OVP, OCP, OPP, OTP, AC Fail Detection
and Fan Fail Alarm
Interface: USB,LAN ;RS-232+GPIB
(std.) (opt)
Built-in External Control I/O and
External Signal Input
Built-in Output Relay Control
Memory Function (up to 10 sets)
Sequence and Simulation Function
(up to 10 sets)
Support Arbitrary Waveform Function
Built-in Web Server
LAN

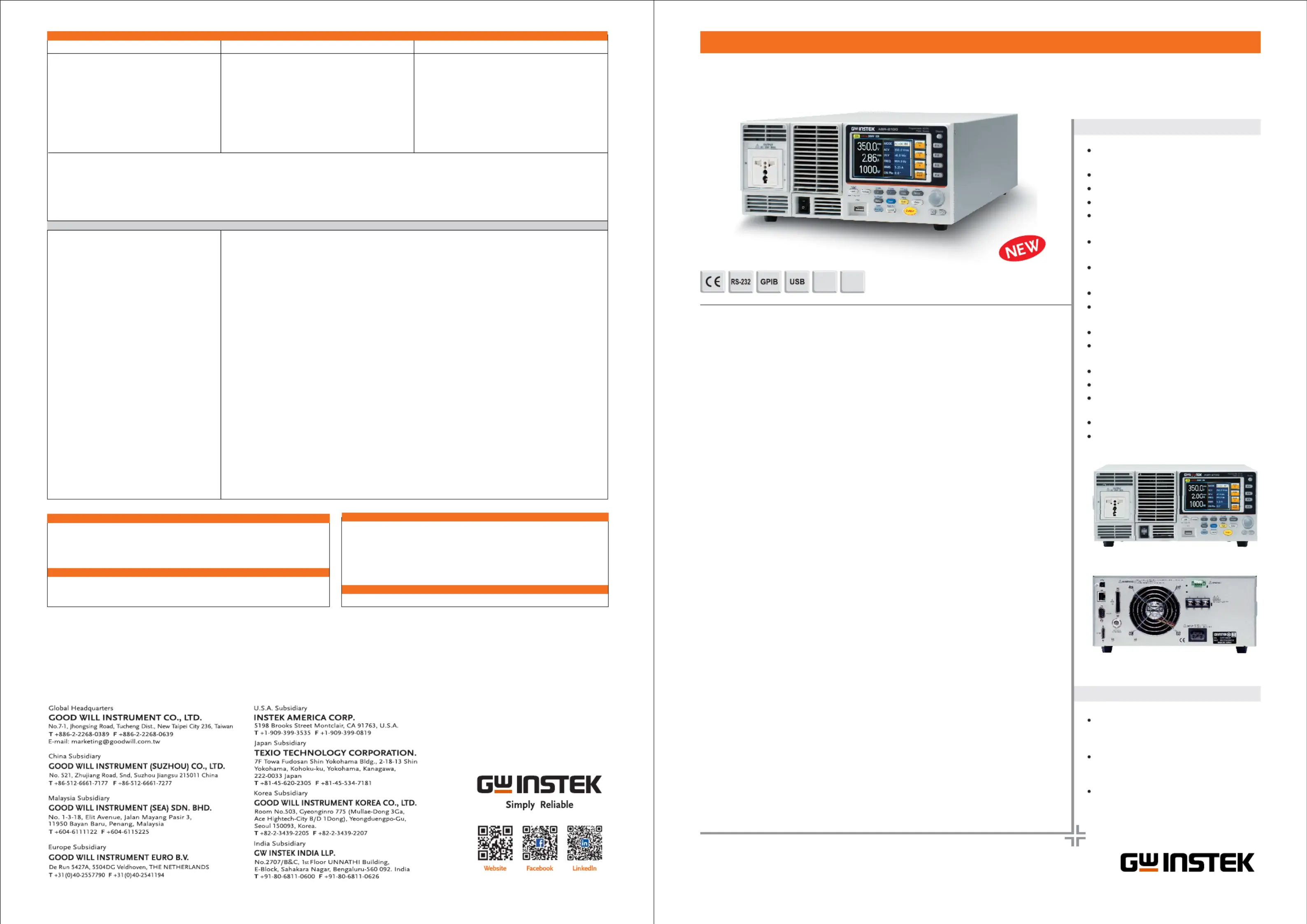

ASR-2000 Series
Simply Reliable
Electronic Products Electronic/
Component Development Test
Automotive Electrical Equipment
Simulation Test
Household Appliance Application Test
FEATURES
Rear Panel
APPLICATIONS
Front Panel
COMPACT PROGRAMMABLE AC/DC POWER SOURCE
ASR-2000 Series
Ext I/O
MAC Address, DNS IP Address, User Password, Gateway IP Address, Instrument IP Address, Subnet Mask
*1. The voltage display is set to RMS in AC/AC+DC mode and AVG in DC mode.
*2. AC mode: For an output voltage of 17.5 V to 175 V / 35 V to 350 V and 23 °C ± 5 °C. DC mode: For an output voltage of 25 V to 250 V / 50 V to 500 V and 23 °C ± 5 °C.
*3. An output current in the range of 5 % to 100 % of the maximum current, and 23 °C ± 5 °C.
*4. An output current in the range of 5 % to 100 % of the maximum peak current in AC mode, an output current in the range of 5 % to 100 % of the maximum instantaneous current in DC mode,
and 23 °C ± 5 °C. The accuracy of the peak value is for a waveform of DC or sine wave
*5. For an output voltage of 50 V or greater, an output current in the range of 10 % to 100 % of the maximum current, DC or an output frequency of 45 Hz to 65 Hz, and 23 °C ± 5 °C.
*6. The apparent and reactive powers are not displayed in the DC mode.
*7. The reactive power is for the load with the power factor 0.5 or lower. *8. An output voltage in the range of 17.5 V to 175 V / 35 V to 350 V and 23 °C ± 5 °C.
ASR-2000GD1DH
Specifications subject to change without notice.
ASR-2100/ASR-2100R
Up to 20th ± (1 % of reading + 0.2 A / 0.1 A);
20th to 40th ± (1.5 % of reading + 0.2 A / 0.1 A)
OCP, OTP, OPP, FAN Fail
TFT-LCD, 4.3 inch
10 sets for Store and Recall settings
16 (nonvolatile)
4096 words
Type A: Host, Type B: Slave, Speed: 1.1/2.0, USB-CDC
External Signal Input; External Control I/O
SCPI-1993, IEEE 488.2 compliant interface
Complies with the EIA-RS-232 specifications
500 Vdc, 30 M or moreΩ
1500 Vac, 1 minute
EN 61326-1 (Class A)
EN 61326-2-1/-2-2 (Class A)
EN 61000-3-2 (Class A, Group 1)
EN 61000-3-3 (Class A, Group 1)
EN 61000-4-2/-4-3/-4-4/-4-5/-4-6/-4-8/-4-11 (Class A, Group 1)
EN 55011 (Class A, Group1)
EN 61010-1
Indoor use, Overvoltage Category II
0 °C to 40 °C
-10 °C to 70 °C
20 %rh to 80 % RH (no condensation)
90 % RH or less (no condensation)
Up to 2000 m
ASR-2000 : 285(W)×124(H)×480(D) (not including protrusions); Approx. 11.5 kg
ASR-2000R : 213(W)×124(H)×480(D) (not including protrusions); Approx. 10.5 kg
PROTECTIONS
DISPLAY
MEMORY FUNCTION
ARBITRARY WAVE Number of Memories
Waveform Length
OTHERS
INTERFACE USB
LAN
EXT Control
Factory Optional GPIB
RS-232C
INSULATION RESISTANCE
Between input and chassis, output and chassis, input and output
WITHSTAND VOLTAGE
Between input and chassis, output and chassis, input and output
EMC
Safety
Environment Operating Environment
Operating Temperature Range
Storage Temperature Range
Operating Humidity Range
Storage Humidity Range
Altitude
DIMENSIONS & WEIGHT
Standard
ASR 2050/ASR-2050R-
Full Scale
Resolution
Accuracy*3
5 A / 2.5 A, 100% 10 A / 5 A, 100%
0.01 A, 0.01% 0.01 A, 0.01%
Up to 20th ± (1 % of reading + 0.1 A / 0.05 A);
20th to 40th ± (1.5 % of reading + 0.1 A / 0.05 A)
EFFECTIVE VALUE (RMS)
PERCENT (%)
(AC-INT and 50/60 Hz only)
Resolution
Accuracy*8
Range
0.1 V, 0.01% 0.1 V, 0.01%
Up to 20th ± (0.2 % of reading + 0.5 V / 1 V);
20th to 40th ± (0.3 % of reading + 0.5 V / 1 V)
Up to 20th ± (0.2 % of reading + 0.5 V / 1 V);
20th to 40th ± (0.3 % of reading + 0.5 V / 1 V)
Up to 40th order of the fundamental wave Up to 40th order of the fundamental wave
PERCENT (%)
(AC-INT and 50/60 Hz only)
HARMONIC CURRENT
SPECIFICATIONS
Range
Full Scale
Up to 40th order of the fundamental wave Up to 40th order of the fundamental wave
175 V / 350 V, 100% 175 V / 350 V, 100%
HARMONIC VOLTAGE
EFFECTIVE VALUE (RMS)
The ASR-2000 series, an AC+DC power source aiming for system integration or desktop
applications, provides both rated power output for AC output and rated power output
for DC output. Nine ASR-2000 output modes are available, including 1) AC power
output mode (AC-INT Mode), 2) DC power output mode (DC-INT Mode), 3) AC/DC
power output mode (AC+DC-INT Mode), 4) External AC signal source mode (AC-EXT
Mode), 5) External AC/DC signal source mode (AC+DC-EXT Mode), 6) External AC
signal superposition mode (AC-ADD Mode), 7) External AC/DC signal superposition
mode (AC+DC-ADD Mode), 8) External AC signal synchronization mode (AC-SYNC
Mode), 9) External AC/DC signal synchronization mode (AC+DC-SYNC Mode).
The ASR-2000 series provides users with waveform output capabilities to meet the test
requirements of different electronic component development, automotive electrical
devices and home appliance, including 1) Sequence mode generates waveform fallings,
surges, sags, changes and other abnormal power line conditions; 2) Arbitrary waveform
function allows users to store/upload user-defined waveforms; and 3) Simulate mode
simulates power outage, voltage rise, voltage fall, and frequency variations. When the
ASR-2000 series power source outputs, it can also measure Vrms, Vavg, Vpeak, Irms,
Iavg, Ipeak, IpkH, P, S, Q, PF, CF, 40th-order Voltage Harmonic and Current Harmonic.
In addition, the Remote sense function ensures accurate voltage output. The
Customized Phase Angle for Output On/Off function can set the starting angle and
ending angle of the voltage output according to the test requirements. V-Limit, Ipeak-
Limit, F-Limit, OVP, OCP, OPP function settings can protect the DUT during the
measurement process. In addition to OTP, OCP, and OPP protection, the ASR-2000
series also incorporates the Fan fail alarm function and AC fail alarm function.
The front panel of the ASR-2050/2100 provides a universal socket or a European socket,
which allows users to plug and use so as to save wiring time. The ASR-2050R/2100R is
3U height and 1/2 Rack width design, which is compatible with ATS assembly. The ASR-
2000 series supports I/O interface and is equipped with USB, LAN, External I/O and
optional RS-232C and GPIB.
Extended Universal Power Socket(ASR-2000R only)
Extended European Power Socket(ASR-2000R only)
ACCESSORIES
FREE DOWNLOAD
CD ROM(User Manual, Programming manual), Safety Guide, Power Cord,
Mains Terminal Cover Set, Remote Sense Terminal Cover Set, GTL-123 Test Lead,
GTL-246 USB Cable
Rack Mount Kit (EIA)
Rack Mount Kit (JIS)
RS-232C Cable, approx. 2M
GPIB Cable, approx. 2M, including
25 pins Micro-D connector
GET-003
GET-004
GRA-439-E
GRA-439-J
GTL-232
GTL-258
ASR-001 Air inlet filter
USB Driver
OPTIONAL ACCESSORIES
ORDERING INFORMATION
Opt01 : RS-232+GPIB Communication Functions(Factory installed)
Opt02 : European Output Outlet only for ASR-2000(Factory installed)
ASR-2050 500VA Programmable AC/DC Power Source
ASR-2100 1000VA Programmable AC/DC Power Source
ASR-2050R
500VA Programmable AC/DC Power Source for 3U 1/2 Rack Mount
ASR-2100R
1000VA Programmable AC/DC Power Source for 3U 1/2 Rack Mount
Setting Resolution
Accuracy*2
200 V
100 V
200 V
Resolution
Accuracy*2
Resolution
Accuracy
Resolution
Accuracy*3
Resolution
Accuracy*4
Resolution
Accuracy*5
100 V
Setting Resolution
Accuracy
Stability*5
DC OFFSET*6
Accuracy*2
200 V
200 V
-250 V to +250 V / -500 V to +500 V
±0.2% or less
0.15% @45 - 65Hz; 0.5% @DC, all other frequencies (0 to 100%, via output terminal)
0.7 Vrms / 1.4 Vrms (TYP)
0.5 % or less
100 us (TYP)
70 % or more
0.1 V
For 45 Hz to 65 Hz and DC: ±(0.5 % of reading + 0.3 V/0.6 V)For 40 Hz to 999.9 Hz: ±(0.7 % of reading + 0.9 V/1.8 V)
0.1 V
For 45 Hz to 65 Hz and DC: ±(|2 % of reading| + 1 V / 2 V)
0.01 A 0.01 A
For 45 Hz to 65 Hz and DC:±(0.5 % of reading+0.02 A/0.02 A); For 45 Hz to 65 Hz and DC:±(0.5 % of reading+0.04 A/0.02 A);
For 40 Hz to 999.9 Hz:±(0.7 % of reading + 0.04 A / 0.04 A) For 40 Hz to 999.9 Hz:±(0.7 % of reading + 0.08 A / 0.04 A)
0.1 A 0.1 A
For 45 Hz to 65 Hz and DC:±(|2 % of reading|+0.2 A/0.1 A) For 45 Hz to 65 Hz and DC:±(|2 % of reading|+0.2 A/0.1 A)
0.1 / 1 W 0.1 / 1 W
±(2 % of reading + 0.5 W)
Resolution
Accuracy*5*6
Resolution
Accuracy*5*7
Range
Resolution
Range
Resolution
±(2 % of reading + 1 W)
0.1 / 1 VA 0.1 / 1 VA
±(2 % of reading + 0.5 VA) ±(2 % of reading + 1 VA)
0.1 / 1 VAR 0.1 / 1 VAR
±(2 % of reading + 0.5 VAR) ±(2 % of reading + 1 VAR)
0.000 to 1.000 0.000 to 1.000
0.001 0.001
0.00 to 50.00 0.00 to 50.00
0.01 0.01
0.1 V
±(|0.5 % of set| + 0.6 V / 1.2 V)
5 A
2.5 A
20 A
10 A
500 W
10 A
5 A
40 A
20 A
1000 W
100Vac
200Vac
100Vac
200Vac
Setting Resolution
100 Vac to 240 Vac
90 Vac to 264 Vac
Single phase, Two-wire
47 Hz to 63 Hz
0 VA or less80
0.95 (typ.)
0.90 (typ.)
A8
4 A
100 Vac to 240 Vac
90 Vac to 264 Vac
Single phase, Two-wire
47 Hz to 63 Hz
1500 VA or less
0.95 (typ.)
0.90 (typ.)
15 A
7.5 A
NORMINAL INPUT VOLTAGE
INPUT VOLTAGE RANGE
PHASE
INPUT FREQUENCY RANGE
MAX. POWER CONSUMPTION
POWER FACTOR*1
MAX. INPUT CURRENT
INPUT RATING (AC)
AC MODE OUTPUT RATINGS (AC rms)
OUTPUT RATING FOR DC MODE
OUTPUT VOLTAGE STABILITY
OUTPUT VOLTAGE WAVEFORM DISTORTION RATIO, OUTPUT VOLTAGE RESPONSE TIME, EFFICIENCY
MEASURED VALUE DISPLAY
*1 For an output voltage of 100 V/200 V (100V/200V range), maximum current, and a load power factor of 1..
0.0 V to 175.0 V / 0.0 V to 350.0 V
0.1 V
±(0.5 % of set + 0.6 V / 1.2 V)
Single phase, Two-wire
5 A
2.5 A
20 A
10 A
500 VA
AC Mode: 40.00 Hz to 999.9 Hz, AC+DC Mode: 1.00 Hz to 999.9 Hz
0.01 Hz (1.00 to 99.99 Hz), 0.1 Hz (100.0 to 999.9 Hz)
For 45 Hz to 65 Hz: 0.01% of set, For 40 Hz to 999.9 Hz: 0.02% of set
± 0.005%
0.0° to 359.9° variable (setting resolution 0.1°)
Within ± 20 mV (TYP)
*1. 100 V / 200 V range
*2. For an output voltage of 17.5 V to 175 V / 35 V to 350 V, sine wave, an output frequency of 45 Hz to 65 Hz, no load, DC voltage setting 0V (AC+DC mode) and 23°C ± 5°C
*3. For an output voltage of 1 V to 100 V / 2 V to 200 V, Limited by the power capacity when the output voltage is 100 V to 175 V / 200 V to 350 V.
*4. With respect to the capacitor-input rectifying load. Limited by the maximum current.
*5. For 45 Hz to 65 Hz, the rated output voltage, no load and the resistance load for the maximum current, and the operating temperature.
*6. In the case of the AC mode and output voltage setting to 0 V.
*1. 100 V / 200 V range
*2. For an output voltage of -250 V to -25 V, +25 V to +250 V / -500 V to -50 V, +50 V to +500 V, no load, AC volatge setting 0V (AC+DC mode) and 23 ± 5℃ ℃
*3. For an output voltage of 1.4 V to 100 V / 2.8 V to 200 V, Limited by the power capacity when the output voltage is 100 V to 250 V / 200 V to 500 V.
*4. Within 5 ms, Limited by the maximum current.
*1. Power source input voltage is 100 V, 120 V, or 230 V, no load, rated output.
*2. For an output voltage of 75 V to 175V/150V to 350V, a load power factor of 1, stepwise change from an output current of 0 A to maximum current(or its reverse), using the output terminal on the rear panel.
*3. For 5 Hz to 1 MHz components in DC mode using the output terminal on the rear panel.
*1. At an output voltage of 50 V to 175 V / 100 V to 350 V, a load power factor of 1, and in AC and AC+DC mode.
*2. For an output voltage of 100 V / 200 V, a load power factor of 1, with respect to stepwise change from an output current of 0 A to the maximum current (or its reverse); 10% ~ 90% of output voltage
*3. For AC mode, at an output voltage of 100 V / 200 V, maximum current, and load power factor of 1 and sine wave only.
VOLTAGE Setting Range*1
OUTPUT PHASE
OUTPUT ON PHASE
MAXIMUM CURRENT*3 100 V
Setting Range
MAXIMUM PEAK CURRENT*4 100 V
FREQUENCY
POWER CAPACITY
10 A
5 A
40 A
20 A
1000 VA
VOLTAGE
LINE REGULATION*1
LOAD REGULATION*2
RIPPLE NOISE*3
OUTPUT VOLTAGE WAVEFORM DISTORTION RATIO
*1
OUTPUT VOLTAGE RESPONSE TIME*2
EFFICIENCY*3
VOLTAGE
CURRENT
POWER
LOAD POWER FACTOR
LOAD CREST FACTOR
RMS, AVG Value*1
PEAK Value
RMS, AVG Value
PEAK Value
Active (W)
Apparent (VA)
Reactive (VAR)
MAXIMUM CURRENT*3
MAXIMUM PEAK CURRENT*4
POWER CAPACITY
Setting Range*1
SPECIFICATIONS
ASR-2100/ASR-2100RASR 2050/ASR-2050R-
A.
C. SEQUENCE MODE AND APPLICATIONS

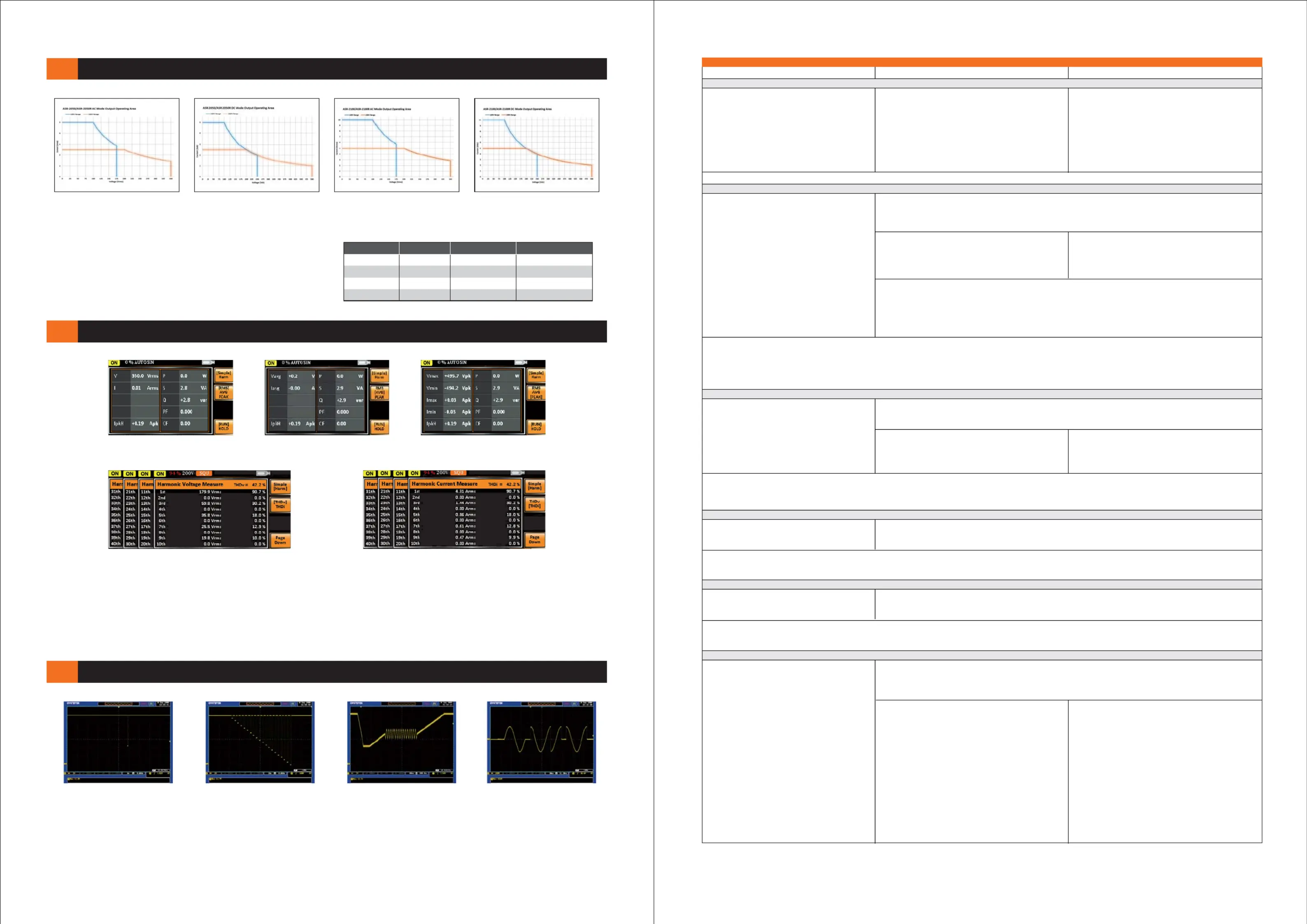

OPERATING AREA FOR ASR-2000 SERIES
There are 10 sets of Sequence mode and each set has 0~999
steps. The time setting range of each step is 0.0001 ~ 999.9999
seconds. Users can combine multiple sets of steps to generate
The ASR-2000 series is an AC+DC power source that provides
rated power output not only at the AC output, but also at the DC
output. The operation areas are shown in diagrams.
B. MEASUREMENT ITEMS FOR ASR-2000 SERIES
The ASR-2000 series provides users with measurement
capabilities including Vrms, Vavg, Vpeak, Irms, Iavg, Ipeak, IpkH,
P, S, Q, PF, CF, 40th-order Voltage Harmonic and Current
Harmonic. During the power output, the measurement
AC Output for
ASR-2050/ASR-2050R
DC Output for
ASR-2050/ASR-2050R
AC Output for
ASR-2100/ASR-2100R
DC Output for
ASR-2100/ASR-2100R
RMS Meas Display AVG Meas Display
Peak Meas Display
Voltage Harmonic Current Harmonic
ASR-2050
ASR-2100
ASR-2050R
ASR-2100R
500 VA
1000 VA
500 VA
1000 VA
5 / 2.5 A
10 / 5 A
5 / 2.5 A
10 / 5 A
350 Vrms / 500 Vdc
350 Vrms / 500 Vdc
350 Vrms / 500 Vdc
350 Vrms / 500 Vdc
Model Name Power Rating
Max. Output Current
Max. Output Voltage
the desired waveforms, including waveform fallings, surges, sags,
changes and other abnormal power line conditions to meet the
needs of the test application.
parameters including Vrms/Irms, Vavg/Iavg and Vmax/Vmin/
Imax/Imin can be switched by users at any time to display the
instantaneous calculation reading.
Instantaneous Power Failure
Reset Behavior at Voltage DropMomentary Drop in Supply Voltage
Starting Profile Waveform

Product specificaties

Merk: GW Instek
Categorie: Niet gecategoriseerd
Model: ASR-2100R

Heb je hulp nodig?

Als je hulp nodig hebt met GW Instek ASR-2100R stel dan hieronder een vraag en andere gebruikers zullen je antwoorden


Handleiding Niet gecategoriseerd GW Instek

GW Instek

GW Instek ASR-2100R Handleiding

2 Februari 2025
GW Instek

GW Instek ASR-2100 Handleiding

2 Februari 2025
GW Instek

GW Instek PPX-10H01-GPIB Handleiding

16 April 2024
GW Instek

GW Instek GPS-2303 Handleiding

16 April 2024
GW Instek

GW Instek PSW 800-4.32 Handleiding

16 April 2024
GW Instek

GW Instek ASR-3200 Handleiding

16 April 2024
GW Instek

GW Instek PPH-1506D Handleiding

16 April 2024
GW Instek

GW Instek GPS-3303-S Handleiding

16 April 2024
GW Instek

GW Instek PPX-10H01 Handleiding

16 April 2024
GW Instek

GW Instek PSW160-21.6 Handleiding

16 April 2024

Handleiding Niet gecategoriseerd

Nieuwste handleidingen voor Niet gecategoriseerd

Kugoo

Kugoo KuKirin G3 Handleiding

2 Februari 2025
SoundTube

SoundTube TS81-EZ Handleiding

2 Februari 2025
Grasslin

Grasslin telt 100 Handleiding

2 Februari 2025
Ruggard

Ruggard EDC-850LC Handleiding

2 Februari 2025
Watson

Watson B-1513 Handleiding

2 Februari 2025
Clatronic

Clatronic CL 3831 Handleiding

2 Februari 2025
Hisense

Hisense HI6432BSCE Handleiding

2 Februari 2025
Bugaboo

Bugaboo Dragonfly rain cover Handleiding

2 Februari 2025
Watson

Watson B-1514 Handleiding

2 Februari 2025
Watson

Watson B-1505 Handleiding

2 Februari 2025
