Installation
Instructions
Microwave Oven
Built-In Trim Kits
JX9152 and JX9153
BEFORE YOU BEGIN
Read these instructions completely and carefully.
• IMPORTANT — Save these instructions
for local inspector’s use.
• IMPORTANT — Observe all governing
codes and ordinances.
• Note to Installer – Be sure to leave these
instructions with the Consumer.
• Note to Consumer – Keep these instructions for
future reference.
• Skill level – Installation of this appliance requires
basic mechanical and electrical skills.
• Completion time – 1 to 3 hours
• Proper installation is the responsibility of the
installer.
• Product failure due to improper installation is not
covered under the Warranty.
• This kit is for use on models:PCWK15C1, PEB9159,
CEB1599
• This kit and microwave are approved for installation
alone or above any single electric wall oven. Do
not mount adjacent (within 2 feet) to any range,
cooktop, gas oven, or other microwave.
• This product is to be installed 3 feet above floor
level.
• Do not alter or modify any part of this kit or the
oven.
• For easier installation and personal safety, we
recommend that two people install this microwave
oven.
• Unplug the microwave oven before attempting
installation of this kit.
WARNING This oven must be plugged into a
properly grounded 3-hole, 120 volt receptacle as
required by the National Electrical Code.
WARNING Before beginning the installation,
switch power off at service panel and lock the
service disconnecting means to prevent power from
being switched on accidentally. When the service
disconnecting means cannot be locked, securely
fasten a prominent warning device, such as a tag, to
the service panel.
Questions? Call GE Appliances Answer Center at 800.626.2000 or Visit our Website at: GEAppliances.com
PARTS INCLUDED
PART QUANITY
Rear Duct 1
Bottom Duct 1
Trim Kit Frame 1
Rail 2
Short Screws 16 required
3 extra
Long Wood
Screws
4 required
2 extra
NOTE: This kit has extra screws to prevent the
technician from spending extra time locating a
replacement in case they lose one during installation.
31-7000308 Rev. 0 08-24
READ CAREFULLY. KEEP THESE INSTRUCTIONS.
31-7000308 Rev. 0
2

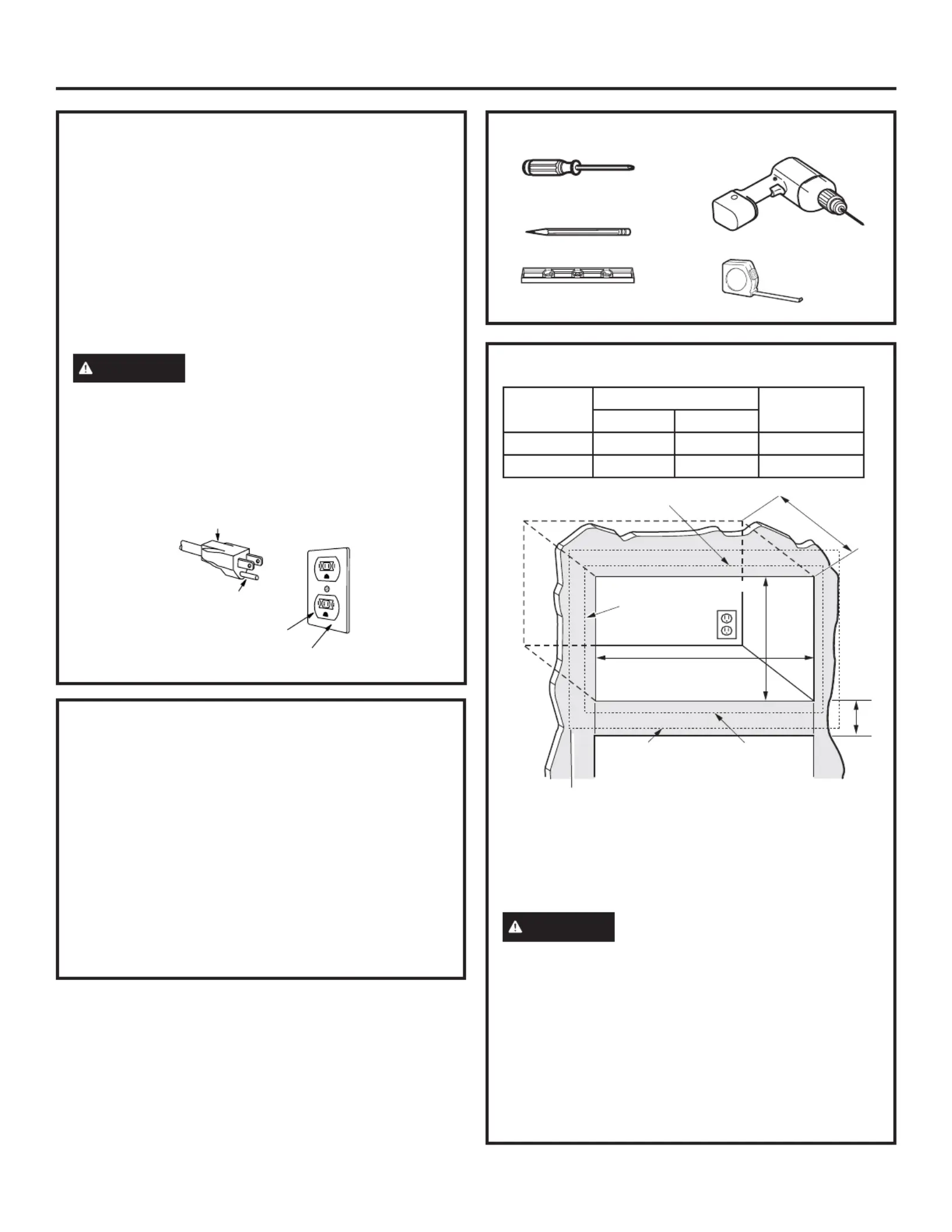

CUTOUT DIMENSIONS
Dimension
Trim Kit
Cutout
27” 30”
Height 19 1/8” 19 1/8” 17 1/8 ± 1/ ”8
Width 26 7/8” 29 3/4” 23 1/4 ± 1/ ”8
• Min. depth with receptacle outside cutout – 22”
• Min. depth with receptacle inside cutout – 23 1/ ”2
• 120 volt – 60 Hertz grounded power receptacle.
WARNING This trim kit uses air flow from the
top, bottom and sides of the trim frame. Blocking
the air flow can cause the microwave to function
improperly and may cause damage to the microwave.
Allow a 1” clearance beyond the edge of the trim kit
frame to provide proper air flow.
FOR INSTALLATION ABOVE A BUILT-IN OVEN:
Microwave oven should be installed on a 3/8” plywood
base and supported by 2x4 or 1x2 equivalent runners
on all sides. Base must be capable of supporting a
minimum of 100 lbs.
Installation Instructions
TOOLS YOU WILL NEED
2 Phillips Screwdrivers
(#1 & #2)
Drill with 3/32” Drill Bit
Pencil
Level
Tape Measure
Depth
Height
1” Overlap
Width
1” Overlap
1” Clearance beyond
trim frame
(on all sides)
3” Min.
27”models: 1 7/8” overlap
30”models: 3 5/16” overlap
Bottom of trim kit must be
minimum of 36” from floor
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of
an electrical short circuit, grounding reduces the risk
of electric shock by providing an escape wire for
the electric current. This appliance is equipped with
a cord having a grounding wire with a grounding
plug. The plug must be plugged into an outlet that is
properly installed and grounded.Consult a qualified
electrician or serviceman if the grounding instructions
are not completely understood, or if doubt exists as to
whether the appliance is properly grounded.
WARNING Improper use of the grounding plug
can result in a risk of electric shock.
Do not use an extension cord. If the power supply
cord is too short, have a qualified electrician or
serviceman install an outlet near the appliance.
Permanent and Correct Installation
3-Prong plug
Grounding pin
3-Prong receptacle
Grounded receptacle box
ELECTRICAL REQUIREMENTS
Product rating is 120 volts AC, 60 Hertz, 14 amps and
1.60 kilowatts. This product must be connected to a
supply circuit of the proper voltage and frequency.
Wire size must conform to the requirements of the
National Electrical Code or the prevailing local code
for this kilowatt rating. The power supply cord and
plug should be brought to a separate 15 to 20 ampere
branch circuit single grounded outlet. The outlet box
should be located in the cabinet above the oven. The
outlet box and supply circuit should be installed by
a qualified electrician and conform to the National
Electrical Code or the prevailing local code.
31-7000308 Rev. 0
3

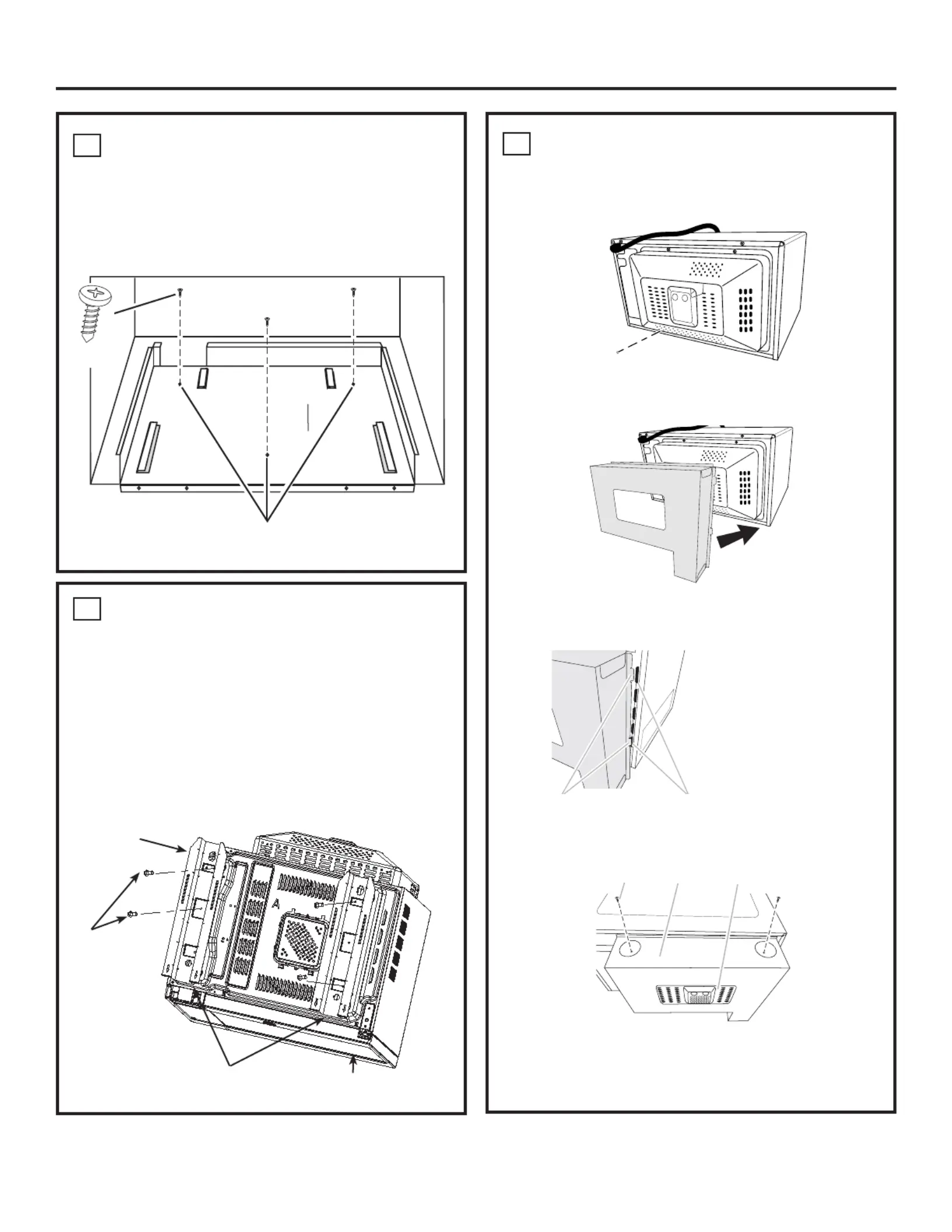

3 INSTALL THE REAR DUCT
1. Gently return microwave oven to its upright position.
2. Remove screw A.
3. Align the rear duct with the back of microwave
oven, as shown.
4. Slide 2 tabs into the slots on the right side of the
back of microwave oven.
5. Use 2 short screws to secure top of rear duct to the
back of microwave oven, as shown.
2 INSTALL THE RAILS
Disconnect the microwave oven from the receptacle.
Remove everything out of the microwave oven,
including packing, Owner’s Manuals, turntable and
turntable support. A protective film has been applied to
some microwave oven and trim kits. If applied, remove
the film. Turn over the microwave oven and secure the
rails to oven Base Plate by inserting 4 short screws.
Be careful not to scratch the microwave oven.
1 LOCATE AND INSTALL THE
BASE PAN
Set Base Pan into the front cabinet microwave oven
cutout and center it right and left. Push back until the
front flange is against the cabinet front wall. Mount
the Base Pan using 3 short screws.
Installation Instructions
Short
Screw
Base Pan
Mounting Holes
A. Rear duct tabs
B. Slots
A B
A. Short screws (2)
B. Rear duct
C. Back of microwave oven
AB C
Screw A
Microwave
Oven Bottom
Rail
Short
Screw
Flanges Door
