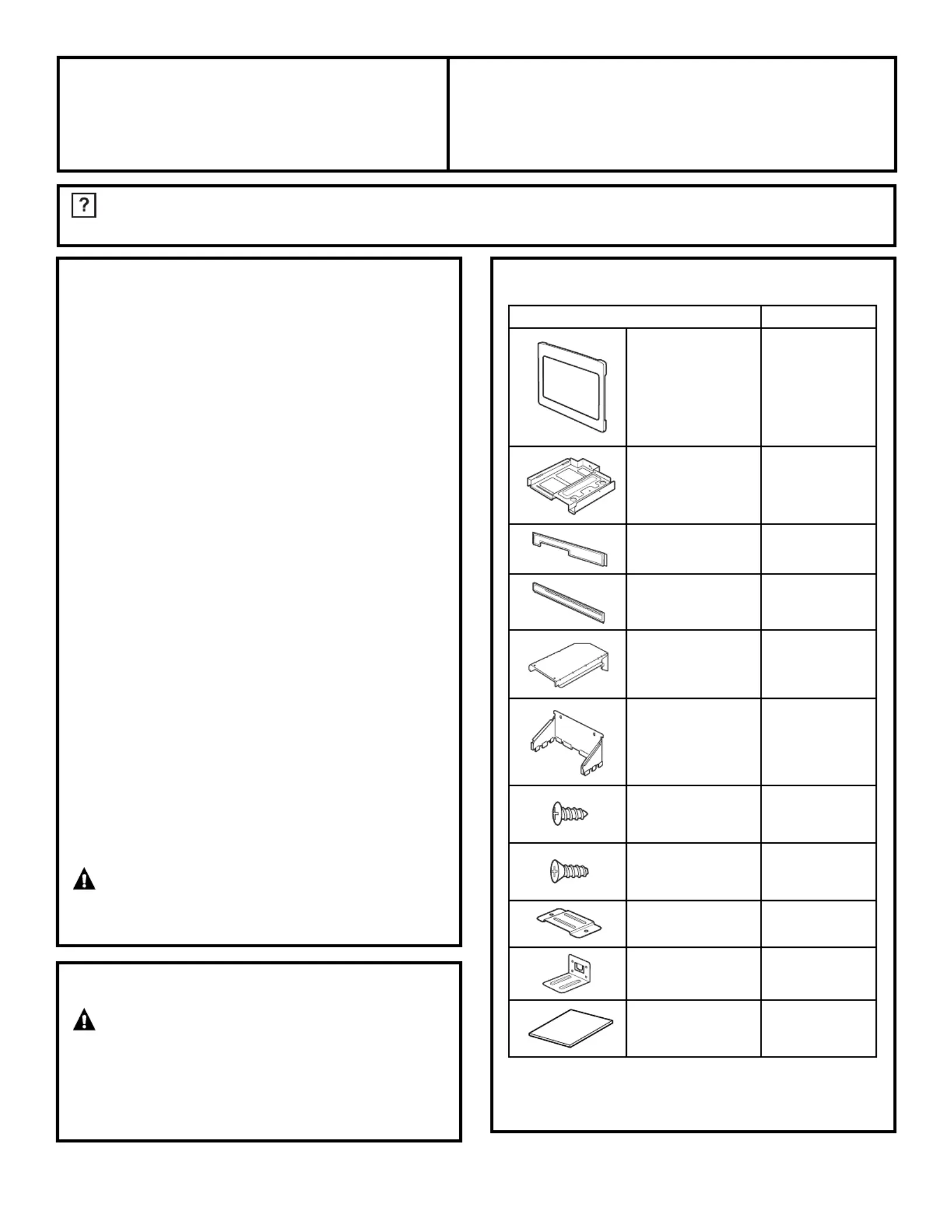

PARTS INCLUDED
NOTE: This kit has extra screws to prevent the technician
from spending extra time locating a replacement screw
during installation.
PART QUANTITY
❒ Trim Frame 1
❒ Bottom Duct 1
❒ Top Bracket 1
❒ Bottom Bracket 1
❒ Upper Duct 1
❒ Rear Duct 1
❒ 4 mm x 14 mm 22 required
Round-Head 2 extra
Screws
❒ 4 mm x 14 mm 4 required
Flat-Head 2 extra
Screws
❒ Anti-Tip Brace 1
❒ Anti-Tip Bracket 1
❒ Template 1
READ CAREFULLY.
KEEP THESE INSTRUCTIONS.
Installation Built-In Trim Kits
Instructions JX1527 JX1530
1
❒
BEFORE YOU BEGIN
Read these instructions completely and carefully.
•IMPORTANT —Save these instructions
for local inspector’s use.
•IMPORTANT —Observe all governing codes
and ordinances.
• Note to Installer – Be sure to leave these instructions
with the Consumer.
• Note to Consumer – Keep these instructions for future
reference.
• Skill level – Installation of this appliance requires basic
mechanical and electrical skills.
• Completion time – 1 to 3 hours
•Proper installation is the responsibility of the installer.
•Product failure due to improper installation is not covered
under the Warranty.
•This kit is UL/CSA listed for installation alone or over any
GE/GE Profile single electric wall oven. Not for use adjacent
to (within 2 feet of) any gas or electric range, cooktop
or oven.
•For easier installation and personal safety, we
recommend that two people install this microwave oven.
•Unplug the microwave oven before attempting installation
of this kit.
•This kit is for use on models: PEB1590DMBB,
PEB1590DMWW, PEB1590SMSS, PEB159CDNBB,
PEB159CSNSS and PEB159CDNWW.
•Do not alter or modify any part of this kit or the oven.
WARNING —This oven must be plugged into a
properly grounded 3-hole, 120V receptacle as required by
the National Electrical Code or Canadian Electrical Code.
FOR YOUR SAFETY:
WARNING —Before beginning the installation,
switch power off at service panel and lock the service
disconnecting means to prevent power from being switched
on accidentally. When the service disconnecting means
cannot be locked, securely fasten a prominent warning
device, such as a tag, to the service panel.
Questions? In the U.S., call 800.GE.CARES (800.432.2737) or Visit our Website at: ge.com.
In Canada, call 1.800.561.3344 or Visit our Website at: GEAppliances.ca.

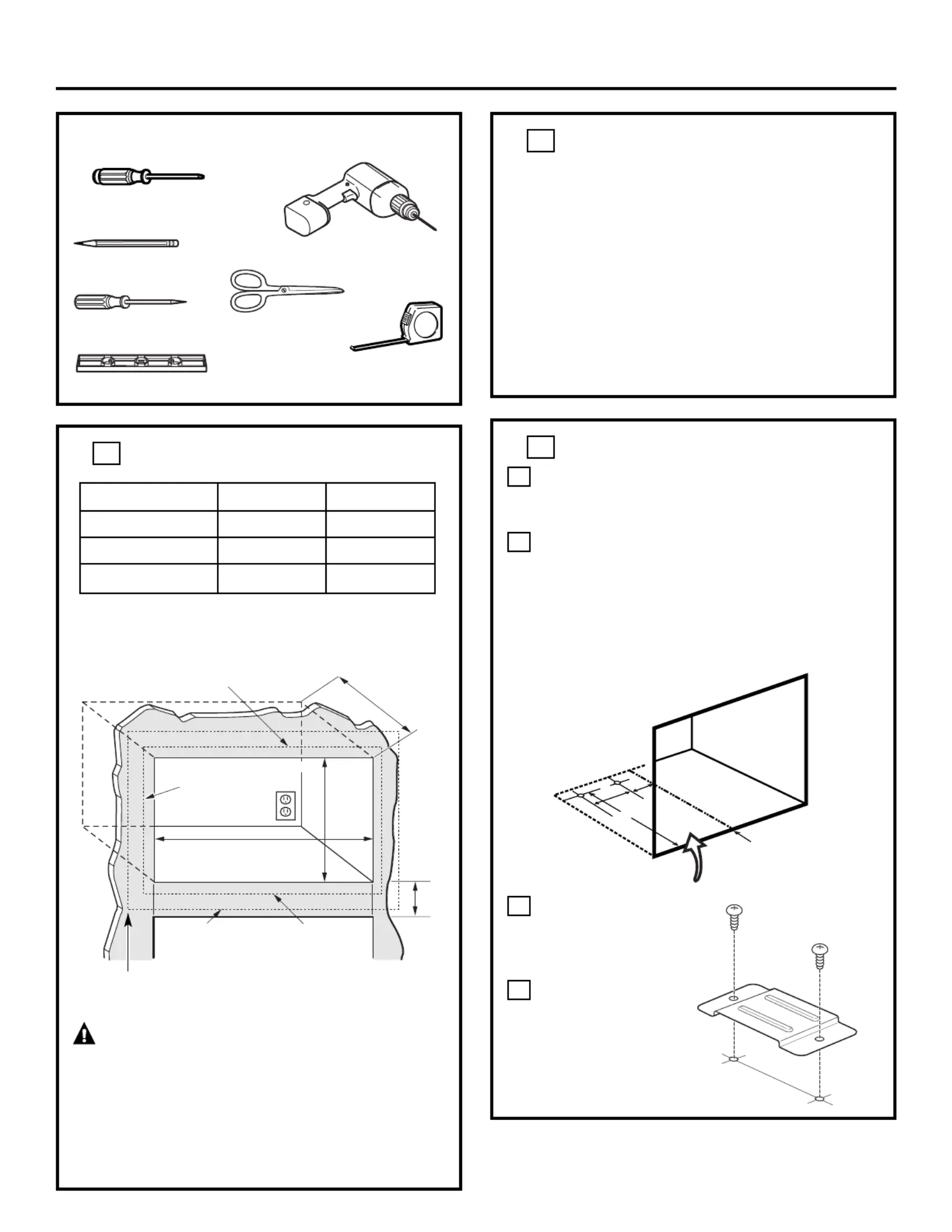

TOOLS YOU WILL NEED
2
Installation Instructions
❒ #2 Phillips Screwdriver
❒ Tape Measure
❒ Drill with 7/64 Bit or #35″
❒ Scissors (Optional)
❒ Pencil
❒ Awl or Punch
❒
CUTOUT DIMENSIONS
WARNING — This trim kit uses air flow
from the top, bottom and sides of the trim frame.
Blocking the air flow can cause the microwave to
function improperly and may cause damage to
the microwave.
Allow a 1 clearance beyond the edge of the trim″
frame to provide proper air flow.
1
Depth
Height
11⁄2″Overlap
Width
11⁄2″Overlap
1″Clearance beyond
trim frame
(on all sides)
3″Min.
27″Models: 11⁄2″overlap
30″Models: 3″overlap
❒
CUTOUT DIMENSIONS (CONT.)
On 27″models, allow 11⁄2″on all sides for overlap
of the trim frame over the edges of the cutout.
On 30″models, allow 11⁄2″at the top and bottom
and 3 on each side for overlap of the trim frame″
over the edges of the cutout.
FOR INSTALLATION ABOVE A BUILT-IN OVEN:
Microwave oven should be installed on a 3/8″
plywood base and supported by 2x4 or 1x2
equivalent runners on all sides. Base must be capable
of supporting a minimum of 100 lbs (45.3 kg).
1
* Min. depth with 120V–60 Hertz grounded power
receptacle outside cabinet 211⁄2″
Min. depth with 120V–60 Hertz grounded power
receptacle inside cabinet 23″
Models 27″30″
Height 183⁄4″183⁄4″
Width 24″±1⁄ ±16″24″1⁄16″
Depth (min.)* 211⁄2″or 23″211⁄2″or 23″
❒
INSTALL THE ANTI-TIP BRACE
Draw a line on the cutout floor at the center of
the cutout, and extend the line 1/2 down the″
face of the cabinet.
Fold or cut the front edge of the template,
along the front guide line. Place the template
flush along the front edge of the cutout floor,
aligning the center line of the template with the
center line of the cutout floor. Mark the centers
of the two screw holes with an awl or center
punch for the anti-tip brace location as shown.
Remove the
template and drill
two holes for the
anti-tip brace.
Install the anti-tip
brace onto the
cutout floor using
two round-head
screws.
D
C
B
A
2
Round-Head
Screws
Anti-Tip
Brace
Cutout
Floor
Center
Line
BA
C
DIMENSIONS:
A = 13⁄16″
B = 3″
C = 20 1⁄16″
❒ Level
Bottom of trim kit must be
minimum of 36 from floor″
1′= 0.3 m
1″= 2.5 cm
❒ INSTALL BOTTOM DUCT ASSEMBLY
TO MICROWAVE OVEN
Fasten the anti-tip bracket to the bottom duct
using four round-head screws.
Install the rear duct to the bottom duct with
one round-head screw.
Remove all loose items, including the turntable
and turntable support, from the microwave
oven. Carefully turn the oven upside down.
Remove one screw from microwave oven
cabinet. Place the bottom duct assembly on
the microwave oven bottom and fasten with
six round-head screws and the screw just
removed from the microwave oven. Turn the
microwave oven right side up, being careful
not to bend the bottom duct flange.
C
B
A
3
Installation Instructions
Anti-Tip
Bracket
Round-Head
Screws (4)
Bottom Duct FRONT
REAR
Rear Duct
Round-Head Screw
❒

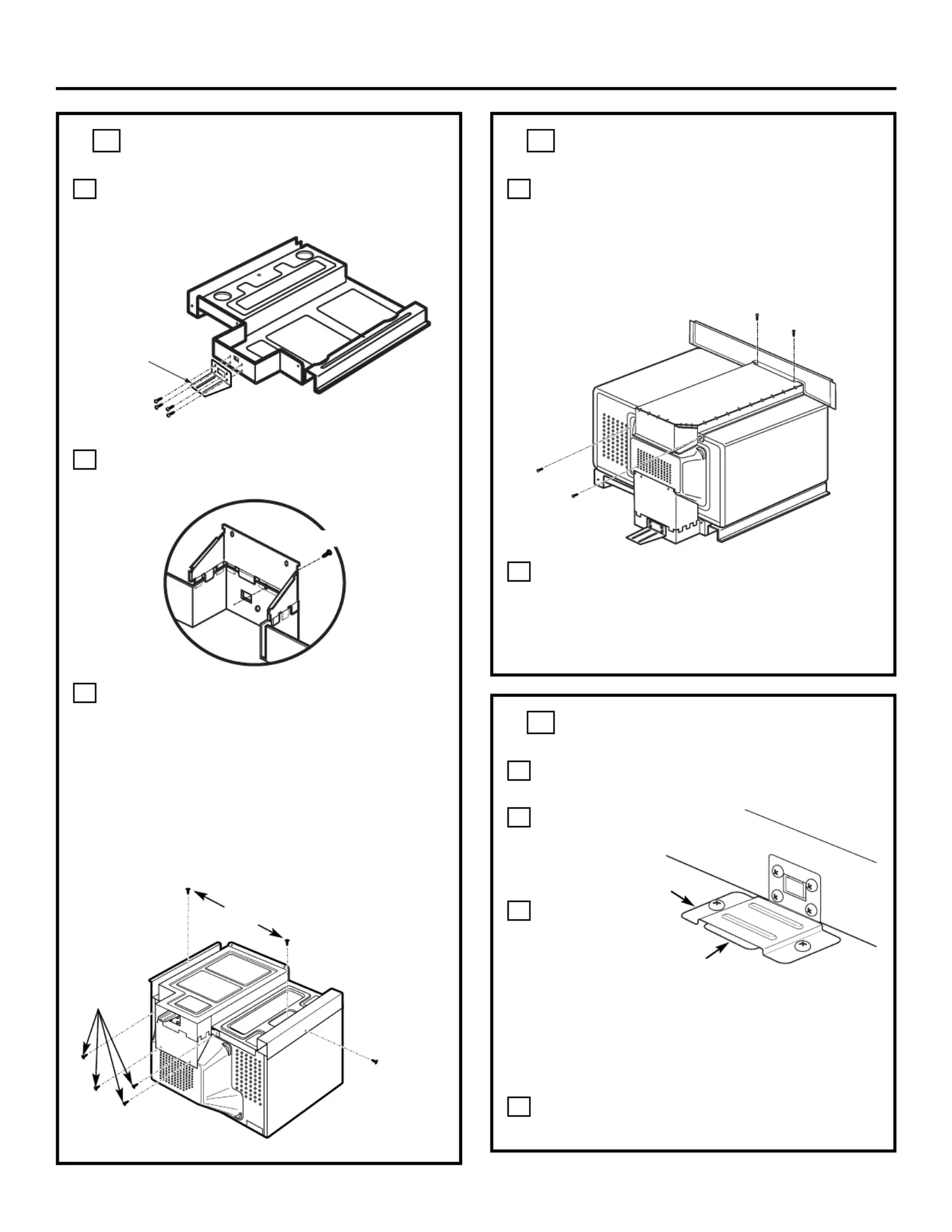

INSTALL UPPER DUCT AND TOP
BRACKET
Remove two screws from back of the
microwave oven. Peel off the adhesive backing
from the upper duct and secure it to the
microwave oven by pressing it firmly down
on duct. Fasten the upper duct with the two
screws just removed from the microwave oven.
Place the top bracket on top of the upper
duct, with the opening on the top bracket
lined up with the opening on the duct. Attach
the top bracket to the upper duct using two
round-head screws.
B
A
4
Microwave oven
upside down
Screw from
microwave oven
Round-Head
Screws (4)
Round-Head
Screws
❒
INSTALL MICROWAVE OVEN
INTO CABINET
Slide the microwave oven part way into the
cabinet opening.
Plug in the
microwave
oven.
The anti-tip
bracket
must be
flat to the
cutout floor to engage correctly with the
anti-tip brace as shown. Carefully slide the
microwave oven back, engaging the anti-tip
brace. Make sure the power cord is not
mashed or cut as you slide the microwave
into place.
Center the microwave oven within the cutout
opening.
D
C
B
A
5
Anti-Tip
Assembly
Bottom Duct
Anti-Tip
Bracket
Anti-Tip
Brace
Screws
from
microwave
oven
Round-Head
Screws
3
