READ CAREFULLY.
KEEP THESE INSTRUCTIONS.
Installation Built-In Trim Kits
Instructions JX2027 and JX2030
Read these instructions completely and carefully.
•IMPORTANT – Save these instructions for local inspector’s use.
•IMPORTANT – Observe all governing codes and ordinances.
•Note to Installer – Be sure to leave these instructions with the
Consumer.
•Note to Consumer – Keep these instructions for future reference.
•For easier installation and personal safety, we recommend that two people
install this microwave oven.
WARNING —This oven must be plugged into a properly
grounded 3-hole, 120V receptacle as required by the National Electrical Code
or the Canadian Electrical Code.
❒
BEFORE YOU BEGIN
• Do not alter or modify any part of this kit or the oven.
• Unplug the microwave oven before attempting installation of this kit.
• Skill level – Installation of this appliance requires basic mechanical and
electrical skills.
• Completion time – 1-3 hours
• Proper installation is the responsibility of the installer.
• Product failure due to improper installation is not covered under the Warranty.
• This kit is UL/CSA listed for installation alone or over any GE/GE Profile
single electric wall oven. Not for use adjacent to (within 2 feet of) any gas
or electric range, cooktop or oven.
• This kit is for use on models: PEB2060DMBB, PEB2060DMWW,
PEB2060DMCC, PEB2060SMSS, JEB1860DMBB, JEB1860DMWW,
JEB1860DMCC, JEB1860SMSS, PEB206CDNBB, PEB206CSNSS,
PEB206CDNWW, JEB186CDNWW, JEB186CDNBB and JEB186CSNSS.
TOOLS YOU WILL NEED
❒ Phillips screwdriver
❒ Pencil
❒ Tape measure
❒ Awl or punch
❒ Drill with 7⁄64″bit or #35
FOR YOUR SAFETY:
WARNING – Before beginning the
installation, switch power off at service panel and lock
the service disconnecting means to prevent power from
being switched on accidentally. When the service
disconnecting means cannot be locked, securely fasten
a prominent warning device, such as a tag, to the
service panel.
❒ Level
❒ Scissors (optional)
1
PART QUANTITY
❒ Trim Frame 1
❒ Bottom Duct 1
❒ Side Duct 1
❒ 4 mm x 12 mm 23
Round-Head Screws (21 required
for installation)
❒ 4 mm x 14 mm 6
Flat-Head Screws
(4 required for
installation)
❒ Anti-Tip Brace 1
❒ Anti-Tip Bracket 1
❒ Upper Duct 1
❒ Top Bracket 1
❒ Bottom Bracket 1
❒ Templates 2
PARTS INCLUDED
NOTE: This kit has extra screws to prevent the technician from spending extra
time locating a replacement screw in case they lose one during installation.
Questions? In the U.S., call 800.GE.CARES (800.432.2737) or Visit our Website at: ge.com.
In Canada, call 1.800.561.3344 or Visit our Website at: GEAppliances.ca.
❒

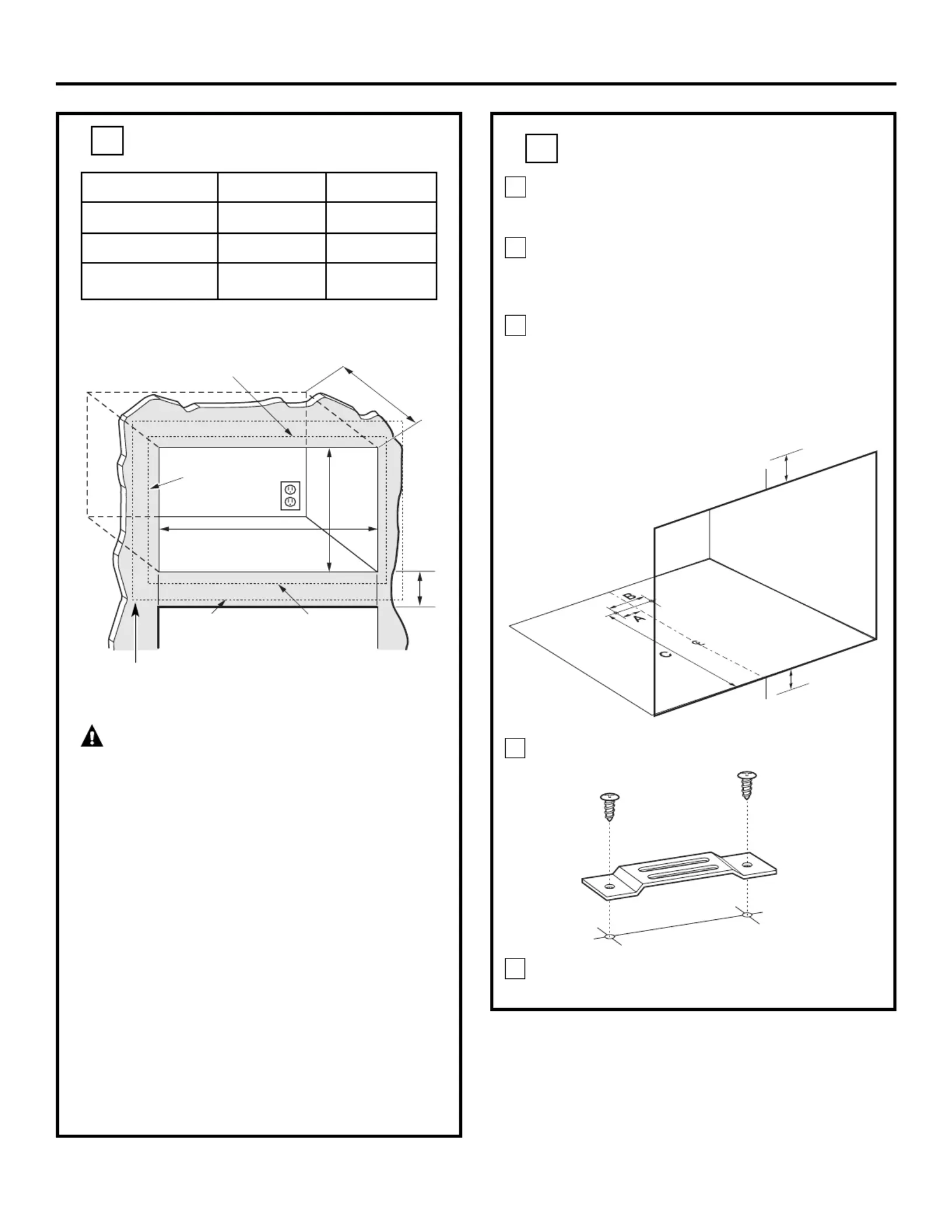

CUTOUT DIMENSIONS
1
2
* Min. depth with receptacle outside cabinet 191⁄2″
Min. depth with receptacle inside cabinet 22″
120 volt-60 Hertz grounded power receptacle
Installation Instructions
Models 27″30″
Height 163⁄4″163⁄4″
Width 251⁄2″251⁄2″
Depth (min.)* 191⁄2″or 22″191⁄2″or 22″
WARNING — This trim kit uses air flow
from the top, bottom and sides of the trim frame.
Blocking the air flow can cause the microwave to
function improperly and may cause damage to
the microwave.
Allow a 1 clearance beyond the edge of the trim″
frame to provide proper air flow.
On 27″models, allow 11⁄8″at the top, 11⁄16″on the sides
and 11⁄4″at the bottom for overlap of the Trim Frame
over the edges of the cutout.
On 30″models, allow 11⁄8″at the top, 21⁄16″on the sides
and 11⁄4″at the bottom for overlap of the Trim Frame
over the edges of the cutout.
FOR INSTALLATION ABOVE A
BUILT-IN OVEN:
Microwave oven should be installed on a 3/8″plywood
base and supported by 2x4 or 1x2 equivalent runners
on all sides. Base must be capable of supporting a
minimum of 100 lbs (45.3 kg).
Draw a line on the cutout floor at the center of the
cutout, and extend the line 1/2 down the face of″
the cabinet.
Draw a line on the top front face of the cabinet
at the center of the cutout. The line should extend
1/2″up the face of the cabinet. This center line will
be used for mounting the top bracket (see step 7).
Fold or cut the front edge of the template, along the
front guide line. Place the template flush along the
front edge of the cutout floor, aligning the center line
of the template with the center line of the cutout
floor. Mark the center positions with an awl or center
punch for the anti-tip brace location as shown.
Drill two holes for the anti-tip brace.
Install the anti-tip brace onto the cutout floor using
two round-head screws.
B
C
D
E
D
D
Round-head
screws (2)
Anti-Tip Brace
❒
INSTALL THE ANTI-TIP BRACE
2
Depth
Height
11⁄4″Overlap
Width
11⁄8″Overlap
1″Clearance
beyond trim frame
(on all sides)
3″Min.
27″Models: 11⁄16″overlap
30″Models: 21
⁄16″overlap
A
DIMENSIONS:
A = 11⁄2″
B = 3″
C = 183⁄16″
D = 1/2″
Bottom of trim kit
must be minimum
of 36″from floor
1′= 0.3 m
1″= 2.5 cm
3
Disconnect the microwave oven before proceeding with the
installation.
Fasten the anti-tip bracket to the bottom duct by using four
round-head screws.
Remove any loose items
inside the microwave oven,
including the turntable
and turntable support.
Carefully turn the
microwave upside down.
Install bottom duct with
four round-head screws
as shown.
A
C
B
D
Front
Rear
Round-Head Screws (4)
Installation Instructions
Set the microwave upright, being careful not to bend the front
flange. Remove the one existing screw from the left side of the
microwave oven.
As indicated on the supplied template (publication
#31-41003-1), fold or cut along the “cut lines” and place the
template on top of the microwave oven. By aligning the
template with the outside edges of the oven, you will see
exactly where to place the upper duct assembly. Peel off the
backing from the double-sided tape. Carefully position the
side duct and upper duct assembly on the microwave
cabinet, aligning with the bottom screw hole. Press down
firmly on the ducts. Fasten the duct assembly to the left
side of the cabinet with the screw removed above.
B
C
Existing Screw (1)
Round-Head Screws
Microwave Oven Upside Down
❒
INSTALL ANTI-TIP BRACKET AND
BOTTOM DUCT
3
❒
INSTALL SIDE DUCT AND UPPER
DUCT (cont.)
4
A
B
C
Anti-Tip Assembly
Bottom Duct
Round-Head
Screw
Anti-Tip Bracket
Anti-Tip
Brace
D
E
❒
INSTALL MICROWAVE OVEN
INTO CABINET
5
Connect the side duct to the upper duct as shown.
1. Insert projecting tabs of the upper duct into the holes
of the side duct.
2. Bend the tabs up with caution as shown.
NOTE: Remove any oil or dirt on the surface of the microwave
oven before the ducts are attached.
A
(2)
(1)
Upper Duct
Side Duct
3 Tabs
3 Holes
❒
INSTALL SIDE DUCT AND UPPER
DUCT
4
Slide the microwave oven part way into the cabinet opening.
Plug in the microwave oven.
The anti-tip bracket must be flat to the cutout floor to engage
correctly with the anti-tip brace as shown. Carefully slide the
microwave back, making sure the power cord is not mashed
or cut.
Center the microwave oven within the cutout opening and
slide the microwave oven in place, engaging the anti-tip brace.
Ensure the microwave oven is accurately centered
.
