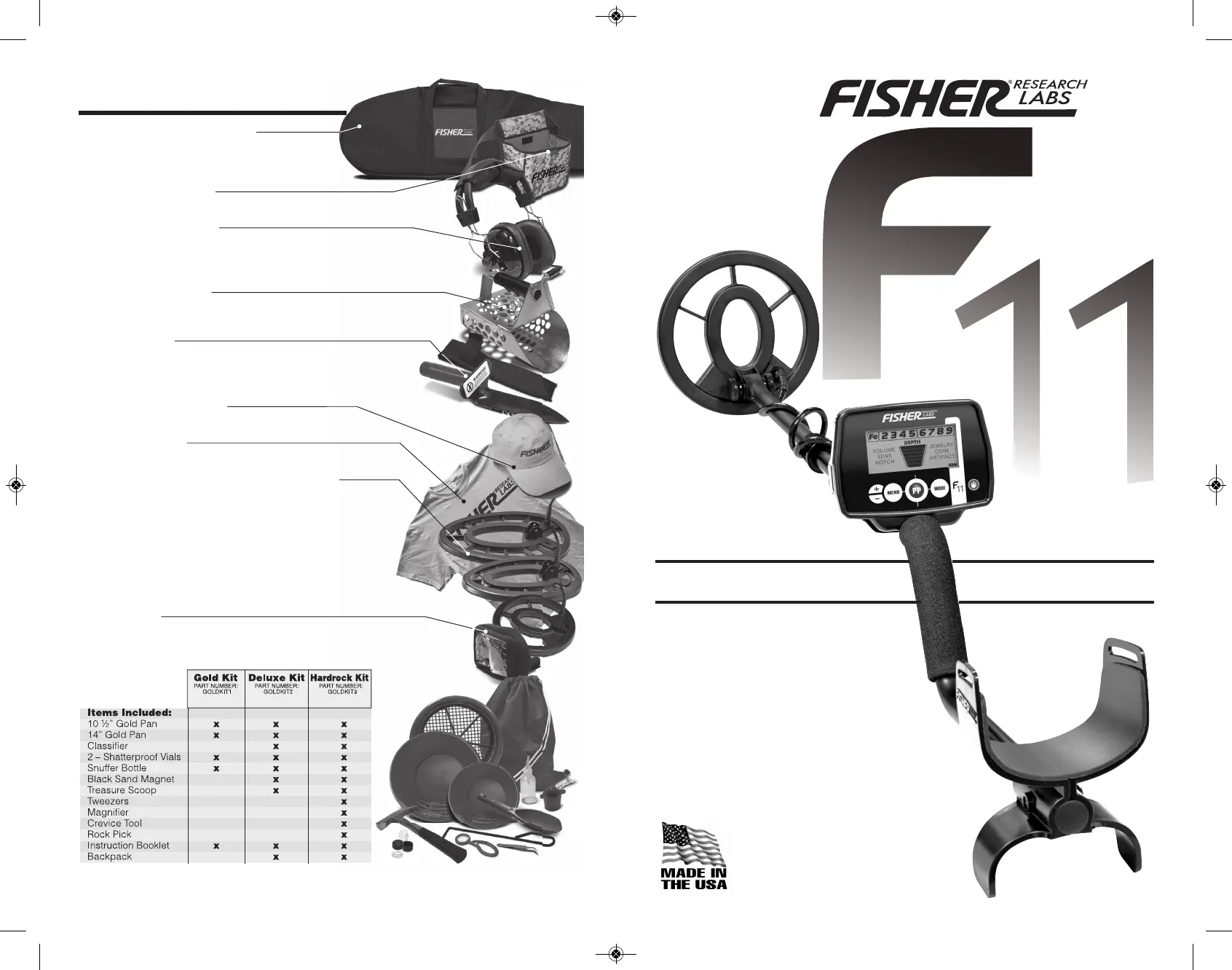

OWNER’S MANUAL
Uses one 9-volt ALKALINE battery only.
Do not use “Heavy Duty” batteries.
Do not use ordinary Zinc Carbon
batteries.
MF11 052215
ACCESSORIES
FOR COMPLETE DETAILS VISIT WWW.FISHERLAB.COM • 1-800-685-5050
Fisher
®
Padded Carry Bag
Rugged double stitched construction. Includes handy
exterior pocket for extra batteries or small accessories.
– 103693000C
Fisher
®
Camo Pouch
Camo pouch with two inside pockets, belt included. –
PCH-F
Stereo Headphones
Use with Fisher
®
metal detectors. Lightweight and adjustable with
true stereo sound, adjustable volume, 1/4 jack with 1/8 adaptor,
4’ cable. – 9720950000
Metal Sand Scoop
Large galvanized metal scoop with filtering holes. Strong Rubberized grip.
– SAND SCOOP
Lesche Knife
Made from high quality heat-treated tempered steel. The ultimate digging tool.
Comes with a durable sheath. 12" in length with a 7" serrated blade.
– LESCHE KNIFE
Fisher
®
Baseball Cap
One size fits all. – FCAP
Fisher
®
T-Shirt
100% cotton with Fisher
®
Logo. Sizes: S, M, LG, XL & XXL – FTSHIRT
Replacement/Accessory Searchcoils
7” Round Elliptical Replacement Coil – 7COIL-RE-F
9” Triangulated Concentric Elliptical Accessory Coil – 9COIL-EE
11” Triangulated Concentric Elliptical Accessory Coil – 11COIL-EE
Coil Covers
Specially made to protect your searchcoil from abrasion and damage.
9” Triangulated Concentric Elliptical Coil Cover– 9COVER-EE
11” Triangulated Concentric Elliptical Coil Cover– 11COVER-EE
Rain Cover
Neoprene protective cover specially made to protect your F11 from weather–
COV-F11
Gold
Prospecting Kits
MF11-manual_MF11-manual 5/28/15 10:46 AM Page 2
TABLE OF CONTENTS
Congratulations!
Congratulations on the purchase of your new Fisher F11™ Metal Detector. The F11 is the result of many
years of software engineering and features the latest advancements in lightweight design and target
accuracy. The F11 can be used with its default turn-on-and-go settings, or you can adjust the detector's
settings to match your hunting conditions. This detector was designed to be an easy to use yet powerful
detector. This manual has been written to help you get optimal use of your detector so we hope you will
read it thoroughly before your first outing.
Happy Hunting from Fisher Research Labs!
The F11 operates at a frequency of 7.69 kHz and comes with a 7” round elliptical
searchcoil. The F11 shares searchcoil compatibility with the F22 and F44.
Terminology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Contents of Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-6
Batteries (use alkaline batteries) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Quick-Start Demonstration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
The Basics of Metal Detecting
Ground Minerals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Trash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Identifying Buried Objects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Depth of Buried Objects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
EMI (Electromagnetic Interference) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Using the Detector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Waterproof Searchcoil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
How to Work the Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
The Display
Depth Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Overload Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Target Identification
Target-ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
4-Tone Target Identification Bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-13
Depth and Target Display
Reading the Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Target Group Category ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Controls
Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Sensitivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Notch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Pinpoint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Pinpointing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15-16
Headphone Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Characteristics & Limitations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Treasure Hunter's Code of Ethics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Page
2
5-YEAR LIMITED WARRANTY
Register your warranty on-line for a chance to win a
FREE DETECTOR
For details, visit www.fisherlab.com
The F11 metal detector is warranted against defects in materials and workmanship
under normal use for five years from the date of purchase to the original owner.
Damage due to neglect, accidental damage or misuse of this product is not
covered under this warranty. Decisions regarding abuse or misuse of the F11
metal detector are made solely at the discretion of the manufacturer.
Proof of Purchase is required to make a claim under this warranty.
Liability under this Warranty is limited to replacing or repairing, at our option, the
metal detector returned, shipping cost prepaid, to Fisher Research Labs. Shipping
cost to Fisher Research Labs is the responsibility of the consumer.
To return your detector for service, please first contact Fisher Research Labs for a
Return Authorization (RA) Number. Reference the RA number on your package
and return the detector within 15 days of calling to:
Fisher Research Labs
1465 Henry Brennan Dr.
El Paso, TX 79936
Phone: 915-225-0333 ext. 118
NOTICE TO CUSTOMERS OUTSIDE THE U.S.A.
This warranty may vary in other countries; check with your distributor for details.
Warranty does not cover shipping costs to and from the U.S.A.
According to FCC part 15.21, changes or modifications made to this device not expressly approved by the party
responsible for compliance could void the user’s authority to operate this equipment.
This device complies with FCC Part 15 Subpart B Section 15.109 Class B.
Copyright© 2015
All rights reserved, including the right to reproduce this book, or parts thereof, in any form.
Fisher®is a registered trademark of Fisher Research Labs
www.fisherlab.com
Made in the USA from USA and imported parts.
TREASURE HUNTER’S CODE OF ETHICS:
• Always check Federal, State, County and local laws before searching.
• Respect private property and do not enter private property without the owner’s permission.
• Take care to refill all holes and leave no damage.
• Remove and dispose of any and all trash and litter found.
• Appreciate and protect our inheritance of natural resources, wildlife and private property.
•
Act as an ambassador for all treasure hunters; use thoughtfulness, consideration and courtesy at all times.
• Never destroy historical or archaeological treasures.
• All treasure hunters may be judged by the example you set; always conduct yourself with
courtesy and consideration of others.
19
MF11-manual_MF11-manual 5/28/15 10:46 AM Page 4
TERMINOLOGY
The following terms are used throughout the manual and are standard
terminology among detectorists.
RELIC
A relic is an object of interest by reason of its age or its association with
the past. Many relics are made of iron, but can also be made of bronze
or precious metals.
IRON
Iron is a common, low-grade metal that is an undesirable target in certain
metal detecting applications. Examples of undesirable iron objects are
old cans, pipes, bolts and nails. Sometimes the desired target is made
of iron. Property markers, for instance, contain iron. Valuable relics can
also be composed of iron; cannon balls, old armaments and parts of old
structures and vehicles can also be composed of iron.
FERROUS
Metals which are made of, or contain iron.
ELIMINATION
Reference to a metal being "eliminated" means the detector will not emit
a tone, nor display a Target-ID, when a metal object passes through the
searchcoil's detection field.
DISCRIMINATION
When the detector emits different tones for different types of metals, and
when the detector "eliminates" certain metals, we refer to this as the
detector "discriminating" among different types of metals.
Discrimination is an important feature of professional metal detectors.
Discrimination allows the user to ignore trash and otherwise undesirable
objects.
PINPOINTING
Pinpointing is the process of finding the exact location of a buried object.
Long-buried metals can appear exactly like the surrounding soil and can
therefore be very hard to isolate from the soil.
GROUND CANCELATION
Ground Cancelation is the ability of the detector to ignore, or "see
through," the earth's naturally occurring minerals, and only sound a tone
when a metal object is detected. This detector incorporates proprietary
circuitry to eliminate false signals from many mineralized soils.
3
TROUBLESHOOTING GUIDE
SYMPTOM CAUSE SOLUTION
Detector chatters, • Using detector • Use detector
beeps erratically indoors outdoors only
or has low • Using detector near • Move away
sensitivity power lines
from power lines
• Using 2 detectors • Keep 2 detectors
in close at least 6 meters
proximity (20’) apart
• Environmental • Reduce sensitivity
electromagnetic until erratic
interference signals cease
Low speaker •
Discharged battery
• Replace battery
volume
• Wrong type of • Use only 9Volt
battery batteryalkaline
Display does not lock
• Multiple targets •
Sweep searchcoil at
on to one Target-ID present different angles
or detector emits • Highly mineralized • Move to a
multiple tones soil different location
• Sensitivity set
• Reduce sensitivity
too high
No power, no sounds
• Dead battery • Replace battery
• Cable not •
Check connections
connected securely
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Consult the dealer or an experienced radio/TV technician for help.
CE The manufacturer declares that the minimum ESD performance criteria is 1) the unit shall not
be permanently damaged and 2) operator intervention is allowed.
This product is RoHS compliant.
This product meets the requirements of Industry Canada: CAN ICES-3 B/NMB-3 B.
18
MF11-manual_MF11-manual 5/28/15 10:46 AM Page 6
Product specificaties
| Merk: | Fisher |
| Categorie: | Detector |
| Model: | F11 |
Heb je hulp nodig?
Als je hulp nodig hebt met Fisher F11 stel dan hieronder een vraag en andere gebruikers zullen je antwoorden
Handleiding Detector Fisher
27 Juli 2023
27 Juli 2023
27 Juli 2023
Handleiding Detector
- Detector Bosch
- Detector Garmin
- Detector Gigaset
- Detector Honeywell
- Detector Pioneer
- Detector Abus
- Detector Alecto
- Detector Amprobe
- Detector AngelEye
- Detector Astralpool
- Detector Axis
- Detector Beha-Amprobe
- Detector Brennenstuhl
- Detector BRK
- Detector Denver
- Detector Dometic
- Detector Duro
- Detector Ebode
- Detector Elro
- Detector Extech
- Detector Ferguson
- Detector Ferrex
- Detector FireAngel
- Detector Flir
- Detector Fluke
- Detector Gamma Scout
- Detector Gossen
- Detector Grothe
- Detector Hager
- Detector Hikvision
- Detector Iget
- Detector Konig
- Detector Laserliner
- Detector Maginon
- Detector Marquant
- Detector Mercury
- Detector Metrix
- Detector National Geographic
- Detector Nedis
- Detector Netatmo
- Detector PCE Instruments
- Detector Perel
- Detector Powerfix
- Detector Protector
- Detector Pyle
- Detector Royal Sovereign
- Detector Sanwa
- Detector Satel
- Detector Siedle
- Detector Silverline
- Detector Skil
- Detector Smartwares
- Detector Steinberg
- Detector Steinel
- Detector Techno Line
- Detector Toolcraft
- Detector Trotec
- Detector Uniden
- Detector V-Tac
- Detector Velleman
- Detector Voltcraft
- Detector X4-Tech
- Detector Xavax
- Detector Joy-it
- Detector Jung
- Detector Olympia
- Detector Optex
- Detector Black And Decker
- Detector Schwaiger
- Detector Soler And Palau
- Detector Safescan
- Detector Cobra
- Detector Sauter
- Detector Sun Joe
- Detector Techly
- Detector DSC
- Detector Garrett
- Detector Genie
- Detector Tripp Lite
- Detector Nexa
- Detector EVOLVEO
- Detector Whistler
- Detector Vemer
- Detector Ei Electronics
- Detector FireX
- Detector GEV
- Detector AcuRite
- Detector Testo
- Detector System Sensor
- Detector Testboy
- Detector IFM
- Detector Kyoritsu
- Detector Dahua Technology
- Detector Busch-Jaeger
- Detector Popp
- Detector Homematic IP
- Detector X-Sense
- Detector Kreator
- Detector ORNO
- Detector Multimetrix
- Detector Vimar
- Detector Escort
- Detector ZKTeco
- Detector Inovonics
- Detector Guardian Avionics
- Detector Thitronik
- Detector Cavius
- Detector Chauvin Arnoux
- Detector Pentatech
- Detector Flow Smoke Detector
- Detector Benewake
- Detector BeeSecure
- Detector Resideo
- Detector SureCall
- Detector Schabus
- Detector Zircon
- Detector STI
- Detector HT Instruments
- Detector BlendMount
- Detector K40
- Detector Gewiss
- Detector Seco-Larm
- Detector Seaward
- Detector Silent Knight
- Detector S.E. International
- Detector Rocky Mountain
- Detector Skyscan
- Detector Bearware
- Detector Winland
- Detector Noyafa
Nieuwste handleidingen voor Detector
21 December 2024
20 December 2024
15 December 2024
15 December 2024
15 December 2024
15 December 2024
15 December 2024
15 December 2024
15 December 2024
14 December 2024
