Pagina 1/2
UTS 100 (70-1028-01)
(8) #4-40 x 3/16 inch product mounting screw
(4) #8 x 1/2 inch shelf mounting screw
UTS 150 (70-1028-02)
(8) #4-40 x 3/16 inch product mounting screw
(2) #8-32 Thumbnut

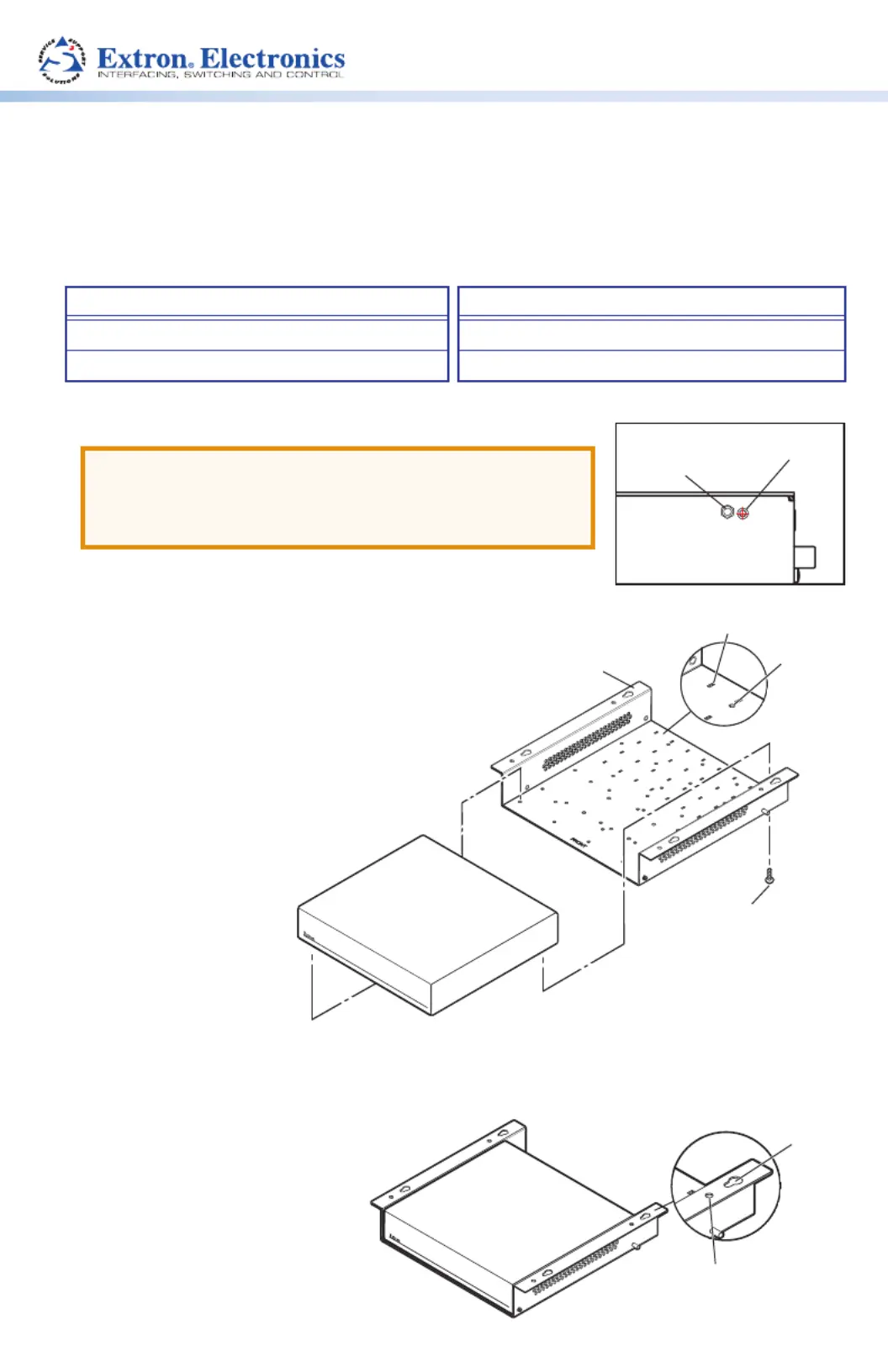

Step 1 — Mount Devices on the Shelf
ATTENTION: Some products have hexagonal holes
in their base, which anchor stand-offs for internal circuit
boards (see the gure to the right). Using these holes will
damage the product and will not provide secure mounting.
Before securing a device to the shelf, decide where the device
will be placed. Ensure that adequate space remains for running
cables.
1. Place the device on the shelf so that the rack mounting
holes are aligned with two diagonally opposite product
mounting holes in the shelf (see gure at right).
Remove any rubber feet attached to the device.
2. Secure the device to the shelf, using two
of the provided #4-40 x 3/16 inch
screws.
3. Use the rectangular (wire tie)
openings for tie wraps if
necessary.
UTS 100 Series • Setup Guide
The Extron UTS100 and UTS 150 under-table shelf system accommodates half-rack,
quarter-rack, and eighth-rack products in a half-rack width installation. The shelves can
accommodate a single device or combinations of smaller devices.
Included Parts
Step 2 — Install the UTS 100 (Primary Shelf) Under the Table
The UTS 100 may be mounted under furniture in
one of two ways: using the keyhole slots for
a removable installation or the clearance
holes for a fixed installation.
1. Hold the UTS 100 under
the desk or table and mark
the locations of four corner
mounting holes. Clearance
hole
Keyhole
slot
#4-40 Thread for
Rack Mounting
Hexagonal
Stand-off (for
mounting circuit
board)
Use 2 mounting holes on diagonally
opposite corners of device.
(2) #4-40 x 3/16"
screws
UTS 100
Wire tie
openings
Product
mounting
holes
Step 3 — Install the UTS 150 (Secondary Shelf)
1. Insert the hooks of the UTS 150
into the front posts and rear studs
of the top adjacent shelf, then
push the UTS 150 upward to lock
it in place (see image at right).
2. Secure the #8-32 thumb nuts to
the rear studs of the top adjacent
shelf.
3. Repeat steps above to add more UTS 150
shelves to the expandable shelf system.
Servicing options
The UTS 150 may be adjusted to three different positions for servicing cables and mounted
devices.
ATTENTION: Before pivoting the UTS 150, disconnect all cables from any device(s) on
the UTS system. Not doing so may bend and damage the cables or device(s).
Position 1: To lower the
UTS 150, pull it slightly forward
and release it onto the posts and
studs of the top adjacent shelf
(see image below).
Position 2: To pivot the
UTS 150 from the front,
engage the front hooks to the
front posts of the top adjacent
shelf (see image below).
Position 3: To pivot the
UTS 150 from the back,
engage the rear hooks to the
rear studs of the top adjacent
shelf (see image below).
© 2013 Extron Electronics — All rights reserved. All trademarks mentioned are the property of their respective owners. www.extron.com
68-2357-50
Rev. A
02 13
2. Drill four pilot holes, each 3/32 inch (2.38 mm) in diameter, at the marked locations.
ATTENTION: Be careful not to drill
through the table. If the table is too thin or of
a different material for the supplied screws,
use an appropriate type and length.
3. Secure the shelf, using the four provided
#8 x 1/2 inch mounting screws (see image at right).
Rear
studs
UTS 100
UTS 150
Front
posts
#8-32
thumb nut
