IMPORTANT:
IM
IM
IM
IMPO
PO
PO
PORT
RT
RT
RTAN
AN
AN
ANT:
T:
T:
T:
Go to www.extron.com for the
complete user guide, installation
instructions, and specifications.
SMB Table Clamp Kit • Setup Guide
The SMB Table Clamp Kit secures Extron SMB boxes to table edges. The kit includes the
following items:
Installation
Follow these steps to install the clamp kit.
SMB 213
If needed, apply the additional
anti-pivot footpads to the left
and right sides of the SMB
bottom panel.
1
Clamp
Fasten the clamp
to the SMB using
the two provided
#6-32 mounting
screws.
2
SMB 210 Series
SMB Model Clamp Quantity
SMB 211 1
SMB 212 1
SMB 213 1
SMB 214 1 or 2
NOTE: Footpads are required if only
one clamp is used for SMBs that are
2-gang and larger.
SMB Table Clamp Compatibility
The chart below lists the number of recommended clamp kits for each SMB model.
Table Clamp range is 0.38” to 2.00” (10 mm to 51 mm).
SMB 110 Series
SMB Model Clamp Quantity
SMB 111 1
SMB 112 1
SMB 113 1
SMB 114 2
SMB 115 2
Clamp
#6-32
Screws Footpads
Cable Shield & Rivet
(SMB 210 Series only)
Cable Wrap
For information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related
topics, see the on the Extron website.
Extron Safety and Regulatory Compliance Guide
© 2017-2021 Extron — All rights . reserved www.extron.com
All trademarks mentioned are the property of their respective owners.
Worldwide Headquarters: Extron USA West, 1025 E. Ball Road, Anaheim, CA 92805, 800.633.9876
SMB Table Clamp Kit • Setup Guide (Continued)
68-2877-01
Rev. E
02 21

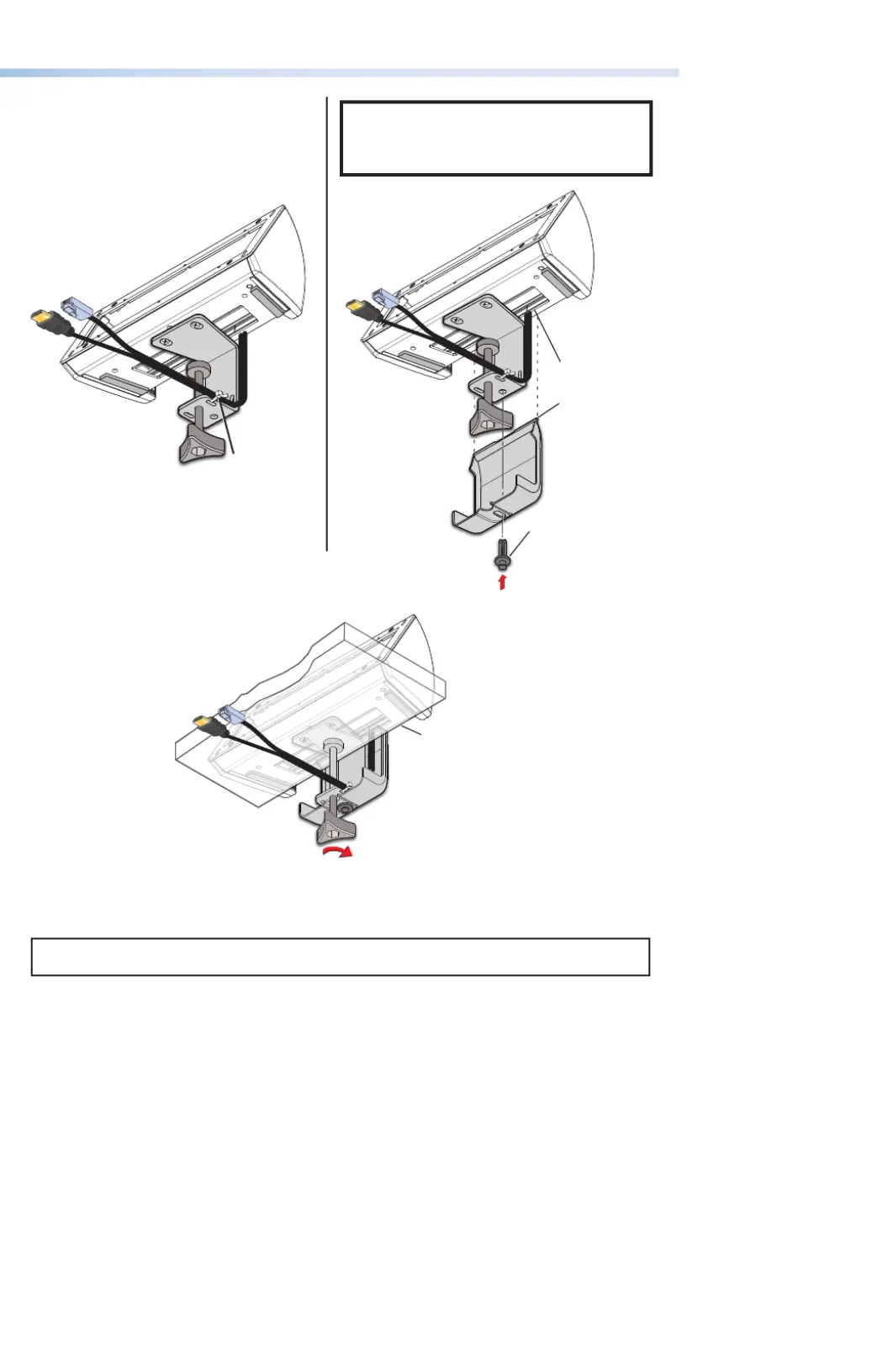

NOTE: The cable shield below is compatible
only with SMB 210 Series boxes, except
for the SMB 211 which can not t the cable
shield.
Route cables out
the rear of the SMB
and secure them to
the clamp using a
zip tie.
3
Cable
Shield
Plastic
Rivet
Secure the cable
shield to the
clamp using the
included rivet.
Insert the tab
of the cable
shield into the
groove behind
the SMB.
4
5
Tighten the clamp
to the table edge.
Clamp
Screw
Table
6
