RADAR beam path
Class B
AIS Transceiver

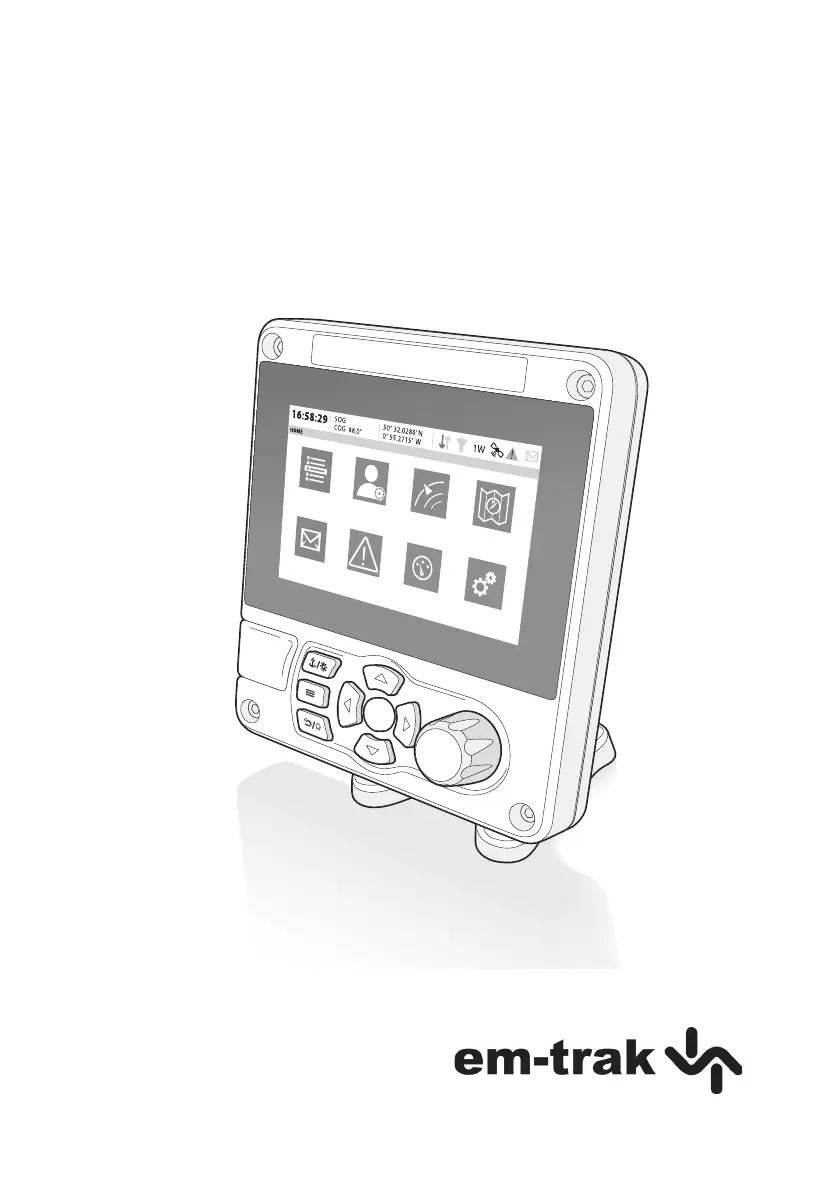

QUICK START GUIDE
Whatā€™s in the box?
For full instructions on how to install and use your
AIS Transceiver please refer to the product manual.
Step 1 ā€“ Install the Transceiver
Front panel controls
What do I need?
201-0708:3
Panel mounted
Overhead mounted
(reverse mounting bracket)
Desk mounted
Step 2 ā€“ Install the Antennas
GNSS antenna should be at least 5m (16ft)
from RADAR or satellite communication antennas.
It should also be away from the RADAR beam path
and mounted on a rigid surface.
VHF antenna should be at least
3m (10ft) from other transmitting radio,
satellite and RADAR antennas.
Power cable
Product CD
Warranty card
Product Mounting
Template
Quick Start
Guide
AIS transceiver
VHF antenna
(Connector
type: PL-259)
Pozidriv (PZ2)
screwdriver
Allen keys (3mm, 4mm)
12V/24V
power supply
DrillSaw (for panel cut-out)
MMSI number (9 digits):
Vessel name:
Vessel callsign:
Vessel dimensions and GNSS antenna position:
Information needed for installation:
Scroll wheel
(push to select)
Function keys
(up, down, left right)
Back / Home
Micro SD card
slot behind door
Navigation Status /
Screen brightness
Select
Options menu
Display
Mounting bracket
Fixings
GNSS antenna
and cable
Ref A
Antenna
Ref A + Ref B = Length in metres Ref C + Ref D = Beam in metres
Ref B
Stern Bow
Ref C
Ref D
Grounding wire
VHF antenna
GNSS antenna
3m (10ft)
5m (16ft)
Surge Arrestor
Data
Accessory Cable
NAME/MMSI Range Bearing TypeCPA TCPA Age
DUBLIN FISHER 1m 50s
B
B
BS
PROXIMITY CRAFT 1m 47s
ATLANTIC PRIDE 0m 1s
212222222 0m 36s
EMSLAKE 0m 45s
PIER 4 0m 6s
444110175
3.15NM
15.5NM
6.9NM
6.7NM
-
5.2NM
35.8NM
3.15NM
15.5NM
6.9NM
6.7NM
-
5.2NM
35.8NM
-
-
-
-
-
5h 38m
-
120.8
0
22.6
0
37.20
313.4
0
-
86.6
0
167.3
0
0m 5s
Visible: 12 Filtered out: 0
TARGET LIST
16:58:29 SOG 21.1kt
UTC + 1h COG 88.0Ā°
50Ā° 32.0286ā€™ N
0Ā° 55.2715ā€™ W
Speed / Course
Time
Time oī˜Ÿset
Menu title
Main display
area
Messages
Rx
Tx
Filtering
Power Setting
GNSS status
Alarms
Position
NMEA2000
Optional connections
Chassis/GND
GNSS antenna
VHF antenna
Surge arrestor
12/24V
DC Supply
Red Black
An optional junction box, USB cable and 14/18 way data cables are available to assist with wiring to sensors and displays
NOTE: Numbers and tables refer to
connector pins on unit
This product must be connected to
protective earth via the earth connection
point. It is essential that the earth
connection point is used in all installations,
regardless of what other equipment
is connected. The earth connection point
must be bonded to protective earth using
as short a connection as possible.
11 10 9 78
15 14 1213
6 5 34
18 16
2 1
17
2 1
2 1
3
5
4
PIN
1
2
WIRE COLOUR
RED
BLACK
SIGNAL
VIN +
VIN -
PIN
1
2
3
4
5
SIGNAL
N2K_NET_SHIELD
N2K_NET_S
N2K_NET_C
N2K_NET_H
N2K_NET_L
5W !
Step 3 ā€“ Connecting
the transceiver
Step 4 ā€“ Quick Start Sequence
CONFIGURATION CHECK
--:-- -- SOG 21.1kt
UTC + 1h COG 88.0Ėš
5.0Ėš 32.0286ā€™ N
0Ėš 55.2715ā€™ W
Save settingsCancel setup
Power supply
MMSI 235001402
GPS position ī˜x
INTRODUCTION
--:-- -- SOG -
UTC + 1h COG -
-
-
Welcome to your new AIS transceiver.
This setup process will assist with conī˜guring the basic aspects of this device
required for a standard installation. More advanced options (such as conī˜guring
NMEA2000 data sources) are available in options menus after completion of the
setup process. All information entered can be changed at a later date.
The default administrator password is 0000.
NextSkip setup
!
WARNING - LIMITATIONS ON USE
WARNING - LIMITATIONS ON USE
--:-- -- SOG -
UTC + 1h COG -
-
-
This product, including the C-MAP by Jeppesen charts, is intended to be used
only as an aid to navigation. It should facilitate use of oī˜œcial government
charts, not replace them. Only Oī˜œcial Government Charts and Notices to
Mariners contain all the current information needed for safe navigation. This
productā€™s features cannot be relied on as complete or accurate and may vary
depending on location. It is the captainā€™s responsibility to use oī˜œcial
government charts, notices to mariners, caution, sound judgement and
proper navigational skills when operating their boat using this product.
This product supports C-MAP by Jeppesen electronic charts. Their use is
Accept
DATA SOURCES
--:-- -- SOG -
UTC + 1h COG -
-
-
NextCancel setup
Sensor 1
Sensor 2
Sensor 3
No data source
No data source
No data source
5W
NMEA2000 data sources have to be explicitly selected from the NMEA2000
settings screen.
ENTER VESSEL IDENTITY
--:-- -- SOG -
UTC + 1h COG -
-
-
NextSkip setup
MMSI (required)
Vessel name
Vessel callsign
Vessel type
The unit is now
conī˜gured and
ready to go.
Final window, all three
ticks should be displayed.
5W
5W
5W5W
GNSS ANTENNA POSITION
--:-- -- SOG -
UTC + 1h COG -
-
-
NextCancel setup
A
B
C
D
D
B A
C
m
m
m
m
5W Please ensure that you
enter the correct MMSI
as this cannot be
changed at a later date.
!!
!!
!
PINWIRE COLOUR FUNCTIONPORT NAME
IN MKD
DESCRIPTION
BLACK
BLUE/WHITE
WHITE/BLUE
1
3
4
NMEA0183
PORT 1
NMEA0183
PORT 1
NMEA0183
PORT 1
NMEA0183
PORT 1 COM
NMEA0183
PORT 1 Tx B
NMEA0183
PORT 1 Tx A
HIGH SPEED NMEA0183
OUTPUT (38,400 baud)
INTENDED FOR CHART
PLOTTERS
PINWIRE COLOUR FUNCTIONPORT NAME
IN MKD
DESCRIPTION
RED/WHITE
ORANGE/WHITE
BLACK
6
10
11
NMEA0183
PORT 2
NMEA0183
PORT 2
NMEA0183
PORT 2
NMEA0183
PORT 2 Rx B
NMEA0183
PORT 2 Rx A
NMEA0183
PORT 2 COM
CAN BE SET TO LOW SPEED
(4,800 baud) INTENDED FOR
CONNECTION TO OTHER
NMEA0183 COMPATIBLE
SENSORS FOR
MULTIPLEXING OF DATA
TO THE CHART PLOTTER
