Pagina 1/2

ERROR MANAGEMENT ELC CONNECTION

Error

number Desription Solution

1 Capacitor overvoltage

Switch the unit off, wait

2 minutes and switch the

unit on again. If the error

shows up again the unit

requires a check-up at

an authorized Elinchrom

Service Centre.

4 Charge timeout

6Voltage unstable

(Charge hold error)

18 Discharge circuit error

32 Head board type unknown

33 14 VDC error

www.elinchrom.ch/support

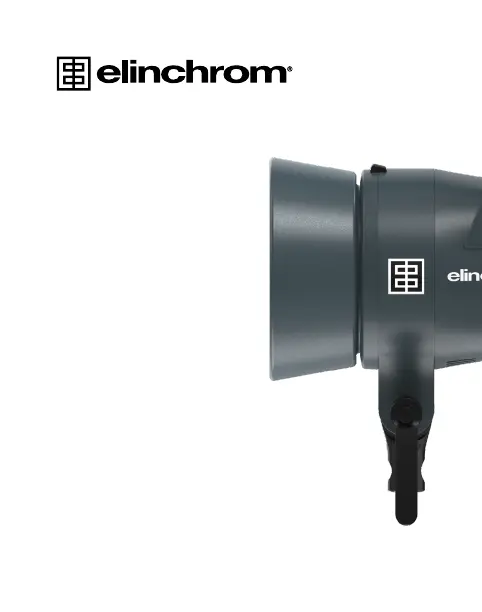

ELC

125 / 500

Unit

Quick Start Guide

www.elinchrom.com

Elinchrom is a registered trademark of ELINCHROM LTD, RENENS, SWITZERLAND

QSG ELC 125 / 500 - 08.2019

Av. de Longemalle 11, P. O. Box -458, CH-1020 Renens, Switzerland,

Tel. : + 41 21 637 26 77 Fax: +41 21 637 26 81 E-mail: elinchrom@elinchrom.ch

USB socket for

rmware update

Power supply

Sync socket

MODELLING LAMP BUTTON

CONTROL PANELSETUP MENU

Long press to enter the menu.

Press menu for Mode, VFC, Timer.

On / Off

Photocell

Radio

Mode Normal SpeedOff

Group 1-4

Frequency 1-20

Flash mode

Flash mode Standard Action

Recycling time EcoFast

Flash before ready Yes No

Photocell Mode On Off

Extras

Auto stand-by 1-59 min.Off

Auto-off 1-60 min.Off

Auto-on NoYes

Favorite function Flash mode, Recycling time, Flash before ready,

Skyport Group, Photocell Mode, Background

Logo mode Low, High, Off, Low on ready, High on ready

Logo color Group color White

Ready tone 1-12

Ready volume Off, Min, Low, Default, High, Max

Error volume Off, Min, Low, Default, High, Max

Keyboard click Off, Min, Low, Default, High, Max

Background Black White

Info

Friendly name “ELC XXX -1” by default (set through computer), XXX =

125 / 500 depending on the model

Firmware rev. *******

Skyport ID *******

Life time In hours (hhhh:mm)

Power-on count How many times the units has been turned on

Flash count Total ash number

-1 f-stop

/ back

+1 f-stop

/ exit

Favorite

function

Knob Button

CW: +0.1 f-stop / down

CCW: -0.1 f-stop / up

DISPLAY PANEL – DASHBOARD

The colours of the upper bar correspond to the group number :

blue for the group 1, yellow for the group 2, red for the group 3

and green for the group 4.

1. EL-Skyport Synchronisation

(normal or speed sync mode)

2. EL-Skyport frequency channel

and group number

3. Photocell status

4. Flash mode Action

5. Volume

6. Recycling time

7. Power setting in

f-stop equivalents

8. Increase by 1 f-stop

9. Decrease by 1 f-stop

10. Flash Duration value

1. Menu selected

2. Selected menu options

3. Menu option settings navigation

4. Exit menu navigation

5. Back

Knob Button :

Scroll function to change setting /

press function to enter the menu option.

5 4

Knob Button

1 2 3 4 65
