Pagina 1/13

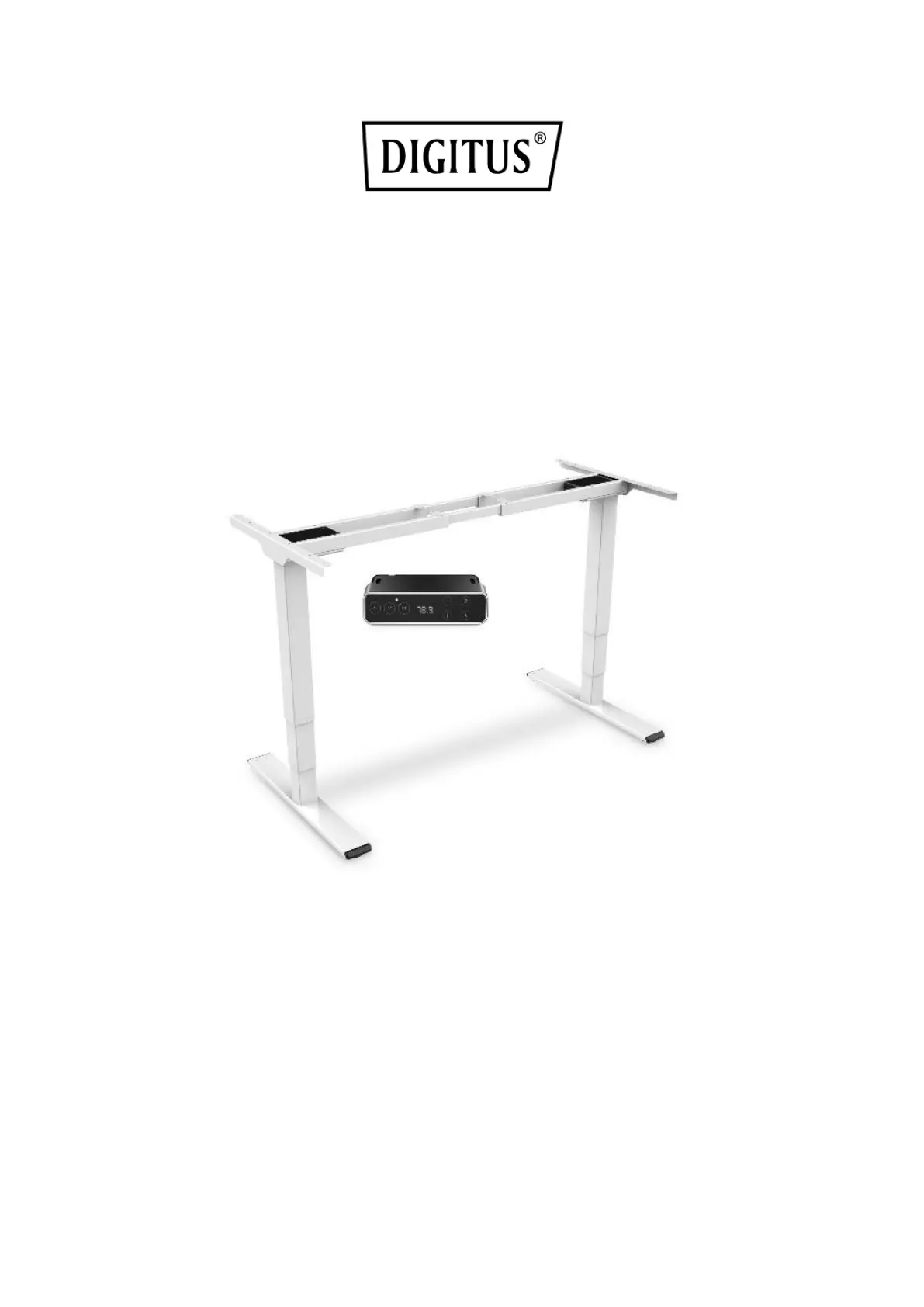

Electrically Height-Adjustable Desk Frame
Frame Assembling and Display Manual
DA-90433 / DA-90434 / DA-90435
2
1. Overview ................................................................................................. 2
2. Technical Features ................................................................................... 2
3. Package content 3......................................................................................
4. Component list 4........................................................................................
Step 1: Install the supporting beam and the side bracket: ................................................. 6
Step 2: Install the lifting column: ......................................................................................... 6
Step 3: Install the feet:......................................................................................................... 7
Step 4: Install the adapter arm: ........................................................................................... 7
Step 5: Install the tabletop, handset, control box and adapter: ......................................... 8
Step 6: Connect cables to the control box: 8 .........................................................................
5. Operating unit 9.........................................................................................
Product Outline .................................................................................................................... 9
Product Specification ........................................................................................................... 9
Operating Instructions ....................................................................................................... 10
6. Important Safety & Usage Instructions ................................................... 11
Waste Disposal................................................................................................................... 13
1. Overview
With this electric height-adjustable table frame you can easily convert your desk
into an ergonomic sit/stand workstation. Save the cost and hassle of finding a
height-adjustable desktop and just use the DIGITUS® electrically height-
adjustable table frame instead. This set is suitable for all tabletops between 110
and 200 cm in width and 60 to 100 cm in depth. 4 different heights can be
programmed and saved using the touch display. The frame allows height
adjustment from 62-127 cm. The lifting speed is 35 mm/sec. The anti-collision
function automatically stops the table when hitting obstacles during up and
down movement. The anti-collision function can be set to 3 different sensitivity
levels. The frame can lift a maximum load of 100 kg and is equipped with a
display lock / child lock for the control panel. Improve your health and prevent
postural damage and impairments of the musculoskeletal system!
2. Technical Features
Maximum load capacity
Up to 100kg
Convenient electrical height adjustment
(without tabletop)
62-127 cm
3
Weight
28,3 kg
Color
DA-90433: White
DA-90434 : Black
DA-90435: Grey
Power supply letter
Euro, plug (type C, CEE 7/16)
– C7, device socket, length: 3 m
Shape
Rectangular
Column Stage
3
Height Range
620- 1270 mm (without tabletop)
Width Range
1100-1700
3. Package content
• Electrically Height-Adjustable Table Frame
• Manual
• Mounting material


Product specificaties

Merk: Digitus
Categorie: Bureau
Model: DA-90433
Gewicht: 28300 g
Diepte: 680 mm
Gewicht verpakking: 31200 g
Breedte verpakking: 950 mm
Diepte verpakking: 250 mm
Aantal motors: 2
In hoogte verstelbaar: Ja
Land van herkomst: China
Code UK-handelstarief: 94039910
Maximale gewichtscapaciteit: 100 kg
Vorm: Recht
Frame kleur: Wit
Snelle installatiehandleiding: Ja
Verpakkingsvolume: 51062.5 cm³
Aantal benen/poten: 2 poot/poten
Maximale snelheid: 35 mm/sec
Minimale breedte: 1100 mm
Maximum breedte: 1700 mm
Type hoogteverstelling: Electrisch
Minimale hoogte: 620 mm
Maximale hoogte: 1270 mm
Compatibele breedte bureaublad (min): 1100 mm
Compatibele breedte bureaublad (max): 2000 mm
Compatibele diepte van bureaublad (min): 600 mm
Compatibele diepte van bureaublad (max): 1000 mm
Aantal ondersteunde werkbladen (max): 1
