Pagina 1/4

Quick Start Guide 930398E

The IP Endpo int Company

1.0 Out-of-Box and Prior to Final Installation

1.1. Verify that you have received all of the parts listed on the Installation Quick

Reference placemat.

1.2. Download the current manual, otherwise known as an Operation Guide,

which is available on the Documentation page at the following website

address:

http://www.cyberdata.net/products/voip/digitalanalog/ceilingspkr2/docs.html

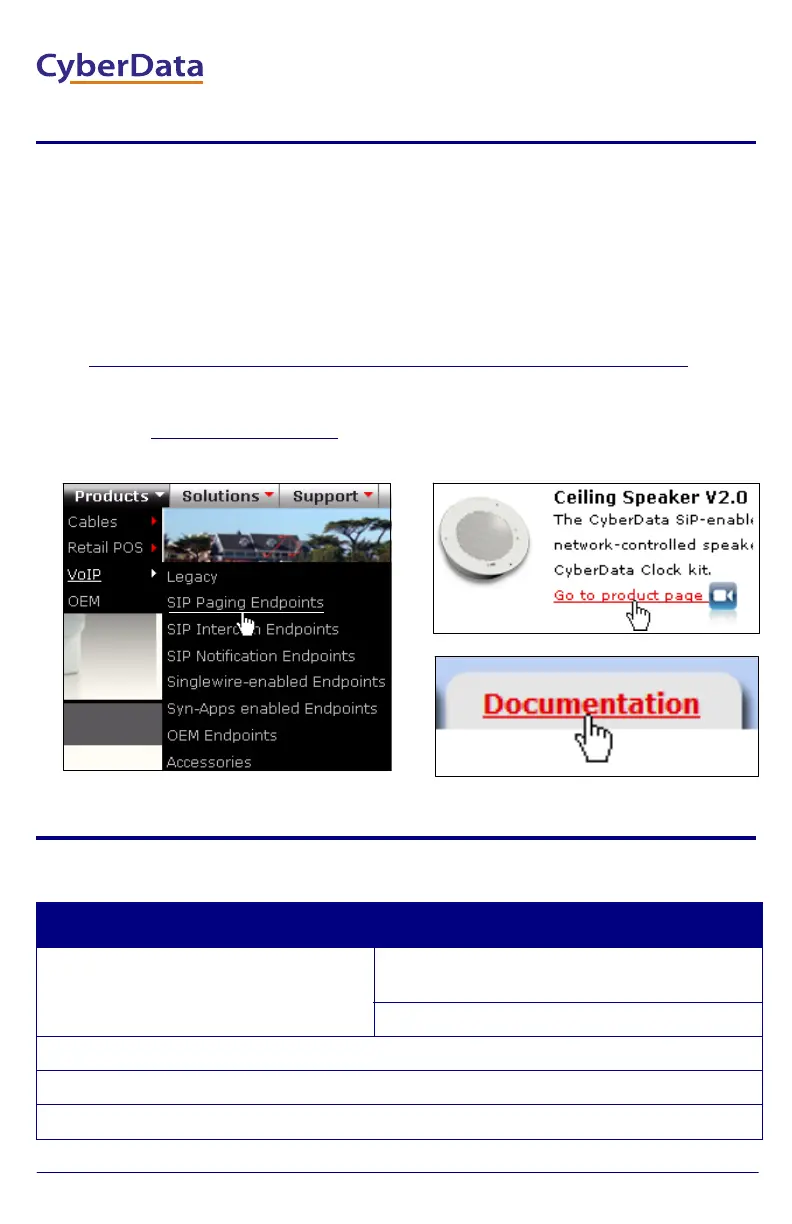

Note You can also navigate to the Documentation page by going to

www.CyberData.net and following the steps that are indicated by

the following figures:

2.0 Select Power Source

PoE Switch PoE Injector

Set PoE power type to Class 0 = 15.4W CAT6 cable recommended—

for longer distances

Be sure you are using a non-PoE switch or port

Make sure port is not in trunk mode

Set port to full duplex/ 100mbps

Spanning Tree Protocol (STP) must be disabled or Portfast enabled

VoIP V2 Ceiling Speaker

Quick Start Guide

Quick Start Guide 930398E

3.0 Power Test

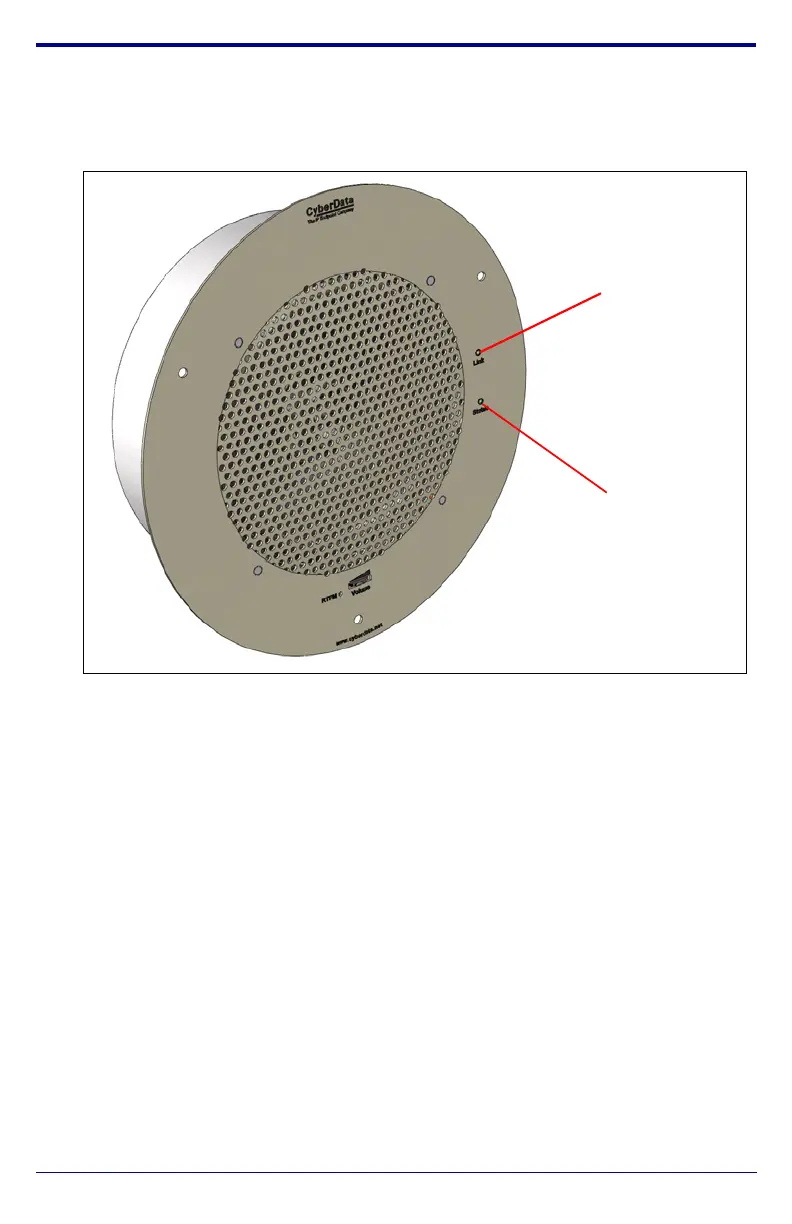

3.1. Plug in the CyberData device and monitor the LED activity on the front of

the device. See the following figure:

3.2. The GREEN power/status LED and the YELLOW network LED come on

immediately. The YELLOW network LED will blink to indicate network

traffic. After about 27 seconds, the GREEN power/status LED will blink

twice to indicate that the board is fully booted.

If there is no DHCP server available on the network, it will try 12 times with

a three second delay between tries and eventually fall back to the

programmed static IP address (by default 10.10.10.10). This process will

take approximately 80 seconds.

3.3. When the device has completed the initialization process, press and hold the

RTFM switch for 3 seconds to announce the IP address.

This concludes the power test. Go to Section 4.0, "Connecting to a Network

in a Test Environment".

Speaker

Status

(Green LED)

Network

Link/Activity

(Yellow LED)

Quick Start Guide 930398E

4.0 Connecting to a Network in a Test Environment

Note The following connections are usually needed for this procedure:

• PC

• PoE switch or injector

• CyberData device

4.1. In a test environment, use a PC that is connected to the same switch as a

single CyberData device. Note the subnet of the test PC.

4.2. Use the CyberData Discovery Utility program to locate the device on the

network. You can download the Discovery Utility program from the

following website address:

http://www.cyberdata.net/support/voip/discovery_utility.html

4.3. Wait for initialization to complete before using the Discovery Utility

program to scan for a device. The device will show the current IP address,

MAC address, and serial number.

4.4. Select the device.

Note If the IP address of the device is in the same subnet of the PC, then

go to Step 4.7.

4.5. If the IP address of the device is different from the subnet of the PC, then

complete the following steps:

4.5.1. Click the Details tab.

4.5.2. Click Adv. Config to manually configure settings with an available IP

address in the same subnet.

Note A gateway address of 0.0.0.0 or a subnet address of

255.255.255.255 will prompt you to enter a valid address.

4.5.3. Click OK after you are finished making changes.

4.6. A dialog box will prompt you to click OK after confirming the configuration

changes and will ask you to wait while the device reboots. Please wait for

the device to power up and wait for the Discovery Utility program to find

the device on the network.

Product specificaties

Merk:	CyberData Systems
Categorie:	Speaker
Model:	SIP-enabled IP V2
Kleur van het product:	Wit
Breedte:	228.6 mm
Diepte:	228.6 mm
Hoogte:	60.96 mm
Connectiviteitstechnologie:	Bedraad
Ethernet LAN:	Ja
Type stroombron:	Power over Ethernet (PoE)
Gemiddeld vermogen:	- W
Aanbevolen gebruik:	Overige
Impedantie:	- Ohm
Geschikt voor buitengebruik:	Nee
Audio-uitgangskanalen:	1.0 kanalen
Speaker plaatsing:	Plafond-montage
Aantal drivers:	1
Peak Music Power Output (PMPO):	10 W
Frequentiebereik:	- Hz
Gevoeligheid:	96 dB
Luidspreker soort:	1-weg
Speaker omsluiting:	Gesloten
Bedrijfstemperatuur (T-T):	-10 - 50 °C
