Crucial P5 Plus Handleiding

Crucial Solid state drives (ssd) P5 Plus

Lees hieronder de 📖 handleiding in het Nederlandse voor Crucial P5 Plus (8 pagina's) in de categorie Solid state drives (ssd). Deze handleiding was nuttig voor 46 personen en werd door 2 gebruikers gemiddeld met 4.5 sterren beoordeeld

Download PDF

Pagina 1/8

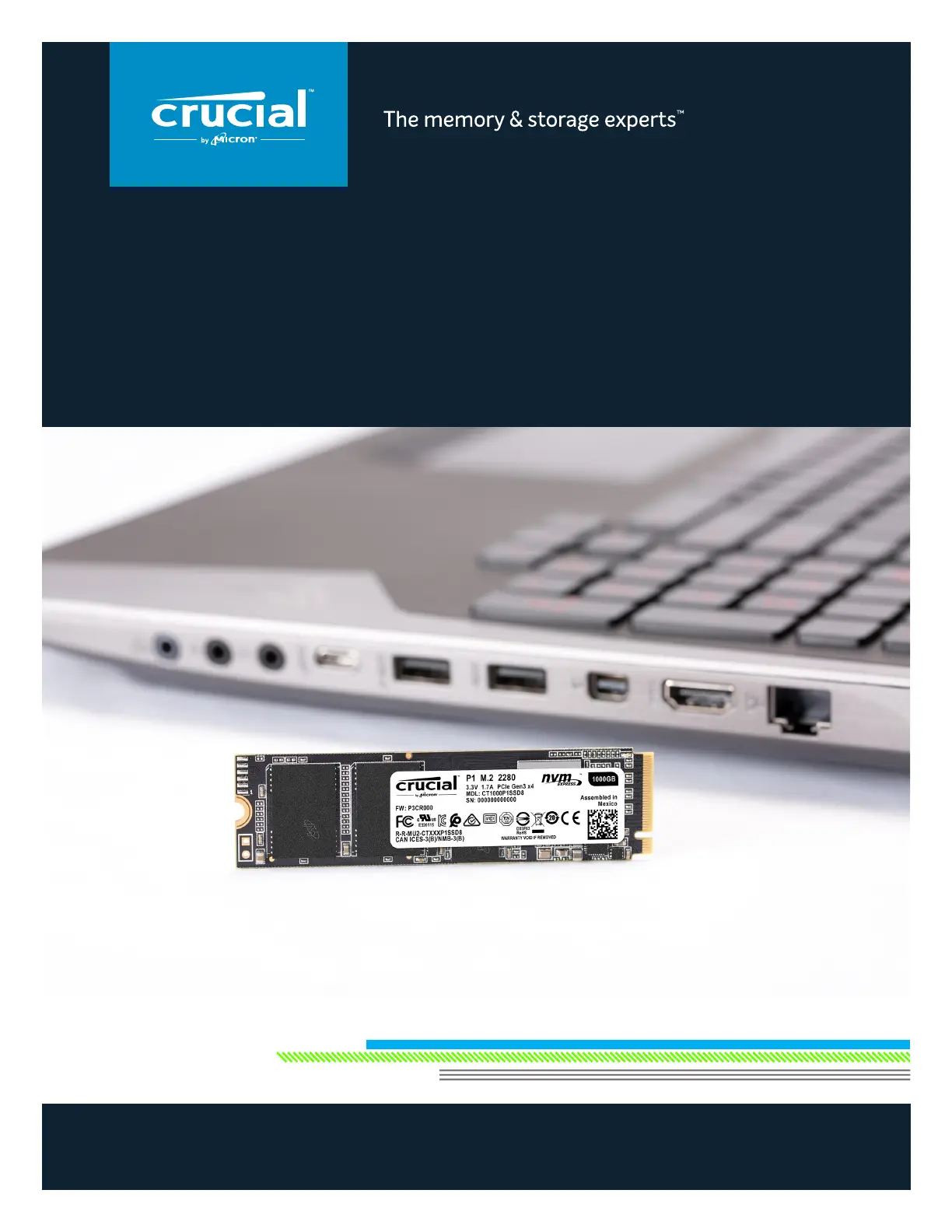

Installing a Crucial SSD is easy and makes your computer significantly faster!

HOW TO INSTALL

A CRUCIAL® NVMe™ PCIe® M.2 SSD

IN YOUR COMPUTER

PART 1: PREPARE

Page 2

2. Back up important files

Before starting the install process, save any important files on your

computer to an external storage drive, a USB flash drive, or cloud

storage.

3. Go slowly and deliberately

The information you need is all here. Your computer will likely look

dierent than the ones shown, but the process is the same. Read

each step thoroughly and consult our Helpful Tips for more info.

1. Gather supplies

You’ll need your computer, a screwdriver, your new Crucial SSD,

and your computer’s owner’s manual.

HELPFUL TIP

NVMe SSD support and drivers are not available for Windows© 7. Your computer or motherboard manufacturer might

be able to add support. There is also a hotfix available from Microsoft© that can be applied to natively support NVMe

drives for Windows 7.

DID YOU KNOW...?

Clearing your workspace helps prevent the buildup of static electricity that could damage your new drive.

PART 2: INSTALL

1. Shut down your system

Turn o your computer completely.

Page 3

3. Discharge residual power

If your laptop has a removable battery, remove it, and hold the

power button for five seconds to discharge any electricity left in

the system.

2. Remove the power cable and battery

Now remove the power cable and battery. The battery removal

step applies only to laptops when it’s possible to remove the

battery. To see how to remove the battery, refer to your owner’s

manual.

4. Open the case

How you do this will vary from system to system, so consult your

owner’s manual for exact instructions.

5. Ground yourself

Touch an unpainted metal surface to ground yourself. This protects

your computer’s components from the static electricity that’s

naturally present in your body – grounding is an extra safeguard.

6. Locate the M.2 PCIe slot

This slot is usually easy to find in desktops, but in laptops the

location will vary – it’s typically under the bottom panel, or under

the keyboard. Refer to your owner’s manual for the exact location,

as every system looks slightly dierent.

DesktopLaptop

Product specificaties

Merk:	Crucial
Categorie:	Solid state drives (ssd)
Model:	P5 Plus
Interface:	PCI Express 4.0
Duurzaamheidscertificaten:	BSMI, CE, Federal Communications Commission (FCC), KC, REACH, RoHS, TUV, WEEE
SSD capaciteit:	500 GB
Naleving van duurzaamheid:	Ja
ECC:	Ja
SSD-vormfactor:	M.2
Type geheugen:	3D NAND
Leessnelheid:	6600 MB/s
Schrijfsnelheid:	4000 MB/s
Component voor:	Notebook/Game console
Bedrijfstemperatuur (T-T):	0 - 70 °C
Hardware encryptie:	Ja
S.M.A.R.T. support:	Ja
NVMe:	Ja
TRIM support:	Ja
PCI Express interface data lanes:	x4
M.2 SSD-grootte:	2280 (22 x 80 mm)
