DO GUIDE
HR-310/HR-310-I
Handheld Remote
DO Acquire the Remote
The remote must be acquired by an inNET EX
® wireless gateway or by a control system with a
built-in inNET EX gateway before it may be used with a Crestron control system. Supported devices
with inNET EX gateways include the CEN-GWEXER, CEN-RFGW-EX, DIN-AP3MEX, and MC3.
Use the procedures below to join or leave an inNET EX network and to verify communications
between the device and the control system.
NOTE: If the remote is acquired to an MC3, RF operation on channels 25 and 26 is not supported.
Join the inNET EX Network
1. Press the ACQUIRE button on the inNET EX gateway to enter Acquire mode, or enter
Acquire mode from Crestron Toolbox™ software. For more information, refer to the
CEN-GWEXER Installation Guide (Doc. 7723), the CEN-RFGW-EX DO Guide (Doc. 7745),
the DIN-AP3MEX Installation Guide (Doc. 7492), or the MC3 DO Guide (Doc. 7774) at
www.crestron.com/manuals.
NOTE: In an environment where there are multiple gateways installed, place only one
gateway in Acquire mode at a time.
2. Press the (Home) button on the remote three times, and then press and hold
the button (press, press, press, press + hold) until the green LED on the navigation pad
of the remote ashes once. This process may take up to ten seconds to complete.
3. Release the button to start the acquire process. The green LED ashes slowly to show
that the remote is actively scanning the inNET EX network.
4. Conrm the status of the acquire process:
• If the remote is acquired by the inNET EX network, the green LED stops ashing and
turns on for several seconds.
• If the remote is not acquired by the inNET EX network, the red LED on the navigation
pad ashes rapidly for several seconds. Press the button to cancel the acquire
process. Ensure the gateway is in Acquire mode and that the remote is in range before
attempting the acquire process again.
5. After the acquire process is complete, remove the gateway from Acquire mode as
described by its documentation.
Leave the inNET EX Network
To leave the inNET EX network, perform the acquire process as described in “DO Acquire the
Remote” while the remote is not within range of a gateway in acquire mode. Once the remote is
removed from the network, the red LED on the navigation pad ashes rapidly for several seconds.
Verify the Communication Status
To check the communication status of the remote, press the button three times, and then press
and hold the button (press, press, press, press + hold) for up to two seconds. The navigation pad
LEDs ash to indicate the communication status as described in the table on the following page.
DO Customize the Hard Buttons
The Crestron® HR-310 and HR-310-I ship with a default set of nine congurable hard buttons
installed. Custom-engraved buttons may be created and ordered using Crestron Engraver software
to replace the default button set. A custom-engraved frame that secures the custom button set to the
remote is also included with each engraving order. For more information, refer to the HR-310-BTN
Installation Guide (Doc. 8224) at www.crestron.com/manuals.
NOTE: The HR-310 and HR-310-I are functionally similar. For simplicity within this guide, the term
“remote” is used except where noted.

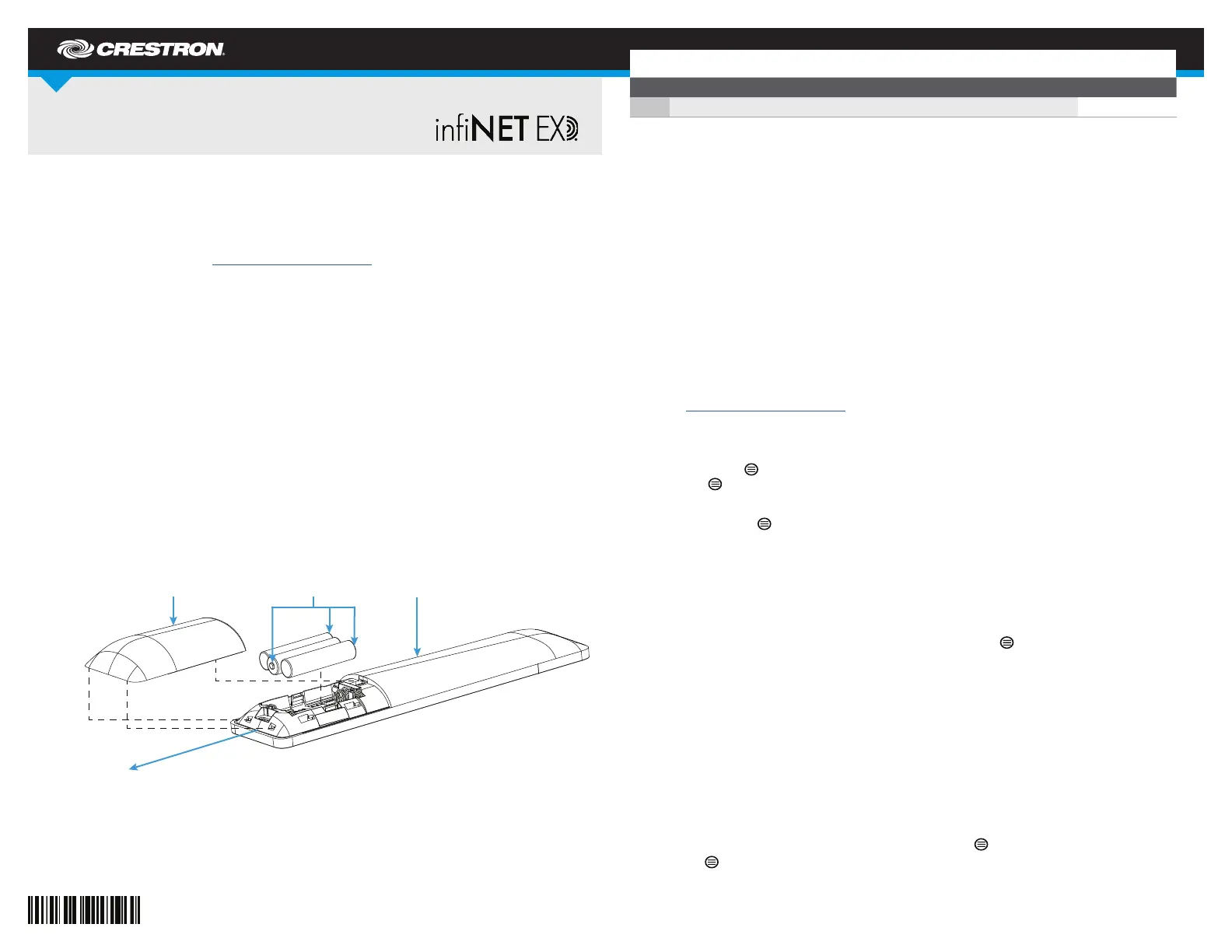

DO Install the Batteries
The remote ships with three AAA alkaline batteries that must be installed prior to operation. To install
the batteries:
1. Locate the battery cover on the rear of the remote.
2. Push gently on the battery cover while sliding it down and away from the remote until the
tabs connecting the cover to the remote disengage.
3. Install the three included AAA batteries as shown in the illustration following step 5.
Observe the correct polarity when inserting the batteries into the compartment.
4. Reattach the battery cover by aligning the tabs on the top and bottom of the cover with
their respective slots on the bottom of the remote.
5. Slide the cover gently upward until the tabs snap into place.
The remote features intelligent keypad backlighting, which illuminates button text only when the
remote detects that the room is dark. In a brightly lit room where the remote is sufciently illuminated,
the keypad backlight (aside from the color indicators) remains off to conserve the batteries.
DO Check the Box
QTY PRODUCT PART NUM.
1 Batteries, AAA Alkaline, x3 2022558
Battery cover
AAA batteries (3):
positive (+) terminals
HR-310/HR-310-I
(rear view)
Slide battery cover down
and away from remote
DO GUIDE DOC. 8228H (2049525) 06/01/20
Specicat ions subject t o change without not ice.
DO Set the Device RFID
Use the following procedure to set the RFID (radio-frequency identication) of the remote. The remote
RFID is set to “01” by default.
1. Remove and reinstall one of the three AAA batteries in the remote without connecting a
USB cable to the remote. Refer to “DO Install the Batteries” on the previous page.
NOTE: Do not press any buttons while performing this step. Hold the remote while
performing this step to ensure that no buttons are pressed accidently.
2. Press and hold the center button on the navigation pad for ve seconds. The LEDs on the
navigation pad light in a circular pattern to indicate that the remote is in ID Settings mode.
NOTE: Do not press any other buttons prior to pressing and holding the center button.
3. Enter a two-character device RFID within ten seconds of entering ID Settings mode:
• Enter 0–9 by pressing the corresponding button on the number pad.
• Enter A–F by pressing the corresponding button on the custom-engraved button pad
at the top of the remote. Refer to the illustration below.
4. Conrm the status of the RFID process:
• If the RFID process is successful, the green LED ashes three times.
• If the RFID process is unsuccessful, the red LED ashes three times. Remove and
reinstall one of the three AAA batteries, and then repeat steps 2 and 3.
The minimum required rmware version for setting the device RFID from the remote is 1.001.0003.
For remotes with older rmware installed, set the device RFID via the InNetEx Diagnostic Tool or the
Text Console tool in Crestron Toolbox:
• To set the device RFID through the InNetEx Diagnostic Tool in Crestron Toolbox, refer to
the “How to Set the HR-310 Remote ID” video at https://vimeo.com/album/4939476.
• To set the device RFID through the Text Console tool in Crestron Toolbox, remove the
battery cover to locate the micro USB port, and then connect the remote to the computer
using a micro USB to USB A cable (not included). Open the Text Console tool in Crestron
Toolbox, and then issue the MNETID [xx] command, where xx is the desired RFID.
NOTE: Firmware updates may be performed only by connecting the remote to Crestron Toolbox via
USB. Remove the battery cover on the rear of the remote to locate the micro USB port, and then
connect the remote to the computer using a micro USB to USB A cable.
DO Learn More
Visit the website for additional information and the latest rmware
updates. Instructional videos showing various installation
procedures can also be viewed. Use a QR reader application
on your mobile device to scan the QR images. The instructional
videos can also be accessed by visiting
https://vimeo.com/album/4939476.
Crestron Electronics
15 Volvo Drive, Rockleigh, NJ 07647
888.CRESTRON | www.crestron.com
As of the date of manufacture, the product has been tested and found to comply with specications for CE marking.
Federal Communications Commission (FCC) Compliance Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
CAUTION: Changes or modications not expressly approved by the manufacturer responsible for compliance could void the
user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Industry Canada (IC) Compliance Statement
CAN ICES-3(B)/NMB-3(B)
This equipment should be installed and operated with a minimum distance 20cm between the radiator and your body
Cet équipement doit être installé et utilisé à une distance minimale de 20 cm entre le radiateur et votre corps.
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation
est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit
accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.
根據NCC低功率電波輻射性電機管理辦法 規定:
第十二條 經型式認證合格之低功率射頻電機,非經許可,公司、商號或使用者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。
第十四條 低功率射頻電機之使用不得影響飛航安全及干擾合法通信;經發現有干擾現象時,應立即停用,並改善至無干擾時方得繼續使用。
前項合法通信,指依電信法規定作業之無線電通信。
低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
The specic patents t hat cover Crestron products are listed at .www.crestron.com/legal/patents
The product warrant y can be found at .www.crestron.com/legal/sales-terms-conditions-warranties
Cert ain Crestron products cont ain open source sof tware. For specic information, visit . www.crest ron.com/ legal/open-source-soft ware
Crest ron, t he Crestron logo, Crest ron Toolbox, inNET EX, and the inNET EX logo are eit her t rademarks or registered trademarks of Crestron Electronics, Inc. in the Unit ed Stat es and/or other
countries. Other trademarks, regist ered trademarks, and t rade names may be used in t his document to refer t o either the ent ities claiming t he marks and names or their products. Crest ron
disclaims any propriet ary interest in the marks and names of others. Crest ron is not responsible for errors in t ypography or photography.
This document was writ ten by the Technical Publications department at Crest ron.
©2020 Crestron Electronics, Inc.
NAVIGATION PAD BACKLIGHT BEHAVIOR COMMUNICATION STATUS
The green LED turns on for ve seconds. The remote is communicating with the control system.
The red LED ashes twice. The remote was previously joined to the network but
is no longer communicating with the gateway.
The red LED ashes once. The remote is not joined to the network.
A B C
D E F
Instructional VideosProduct Page
